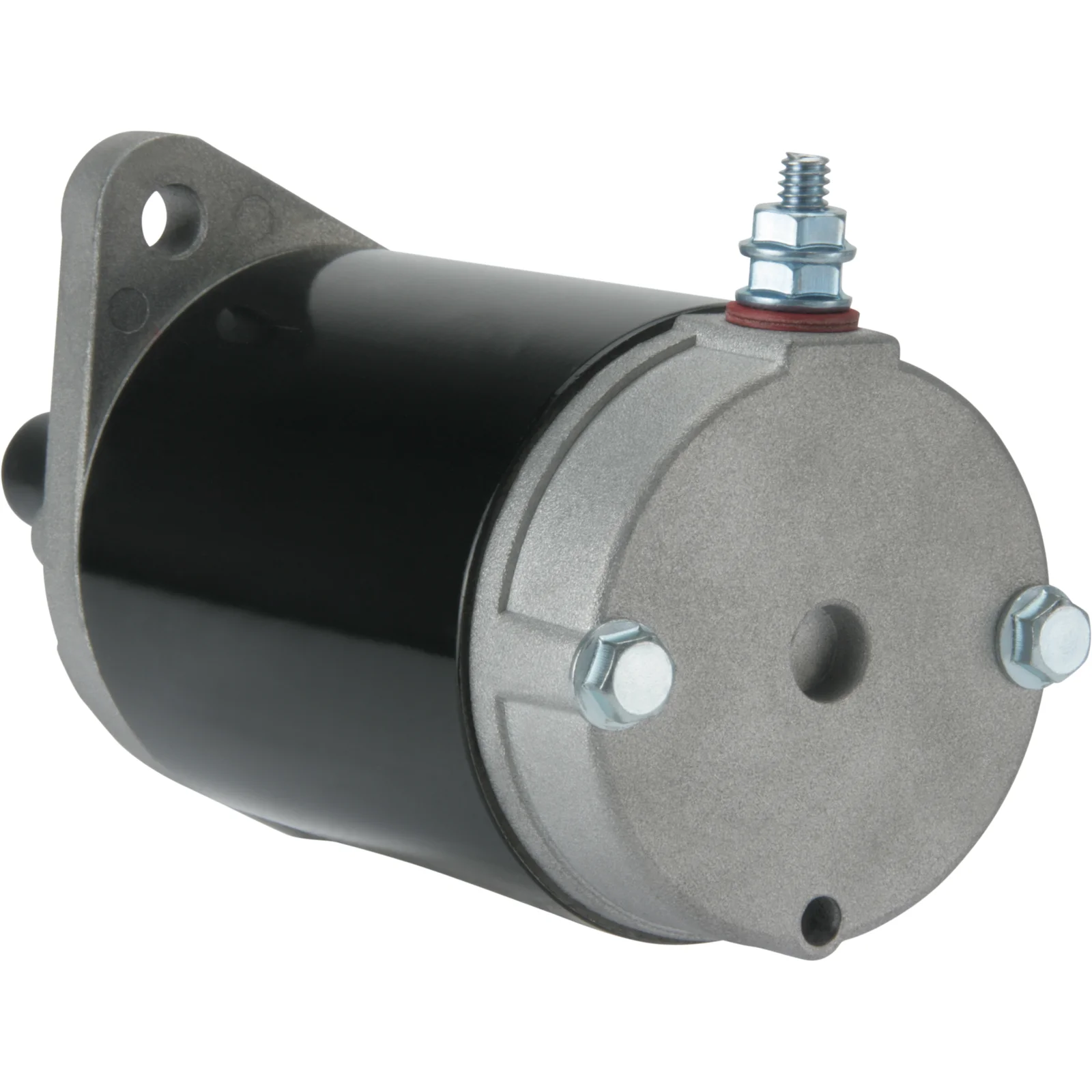

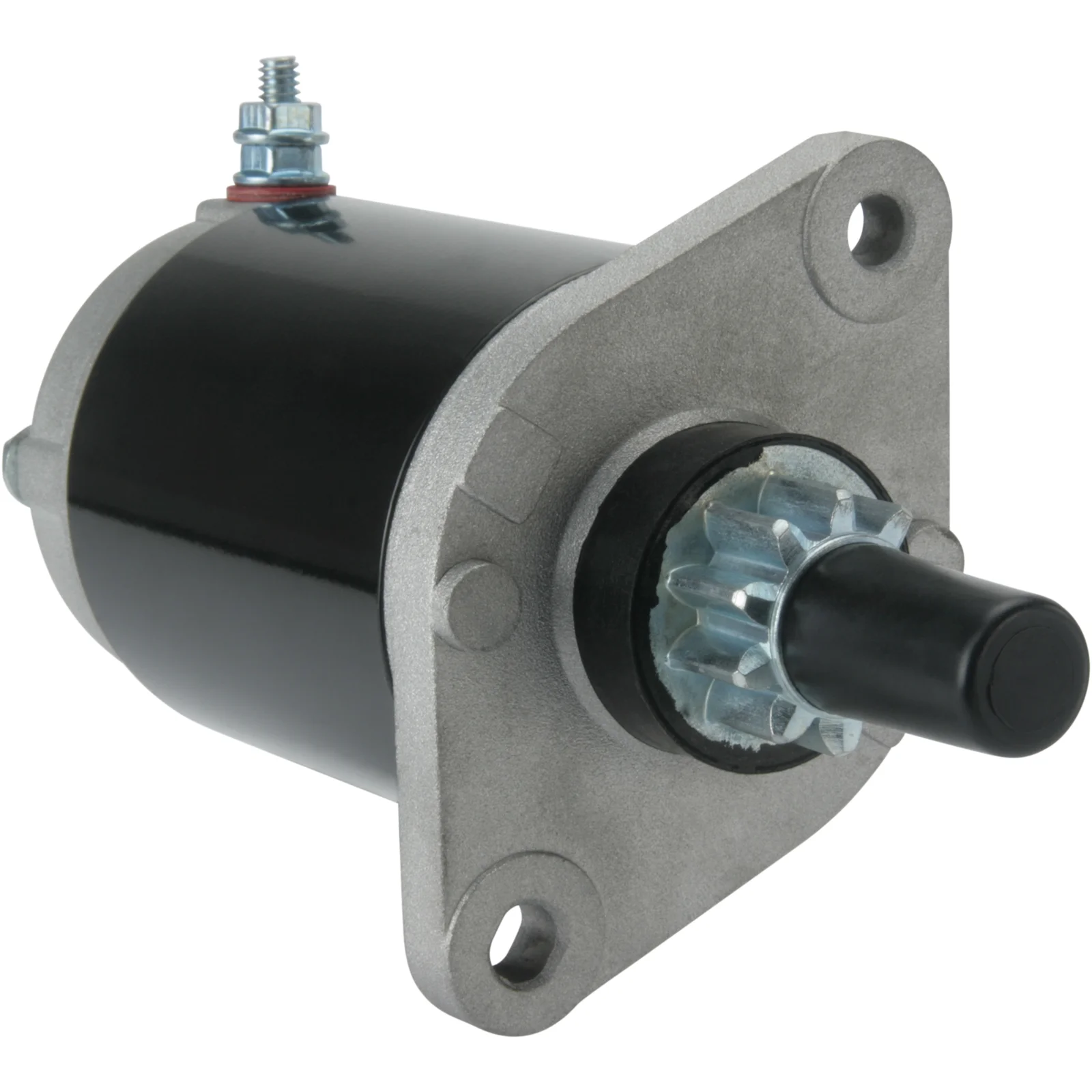

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032112565

HC-Cargo Startmotor

Tekniske oplysninger:

Spændingsf.: 12, kW: 0,5, Antal/tyg.: 10, Rotation: mod u.

Beskrivelse

Spændingsføler: 12
kW: 0.5
Mount. flange: 43,50
Drevafstand: 30,00
Mount. hul 2 mm: 8,50
Mount. hul 1 mm: 8,50
Afstand / bag: 123,50
Afstand / for: 58,00
Nr. / tænder: 10
B+: 1/4" UNC
Tandtype: DD
Afstand mm: 99,50
Rotation: CCW
Samlet længde mm: 187,50
Koblingstype: Tør
Drevetype: Stål
Prod. info: BN
Vandsikret: Nej
Oliekapsling: Nej
Nr. / mount. huller: 2 (0)

Filer

Specifikation

B+ 1/4" UNC
No./teeth 10
Mount. flange 43.50
Oil sealed No
No./mount. holes 2 (0)
Clutch type Dry
Prod. info BN
Rotation CCW
Dist./back 123.50
Dist./front 58.00
Drive dist. 30.00
Drive type Steel
Gear type DD
kW 0.5
Voltage 12
Total length 187.50 mm
Waterproof No
Dist. 99.50 mm
Mount. hole 2 8.50 mm
Mount. hole 1 8.50 mm

  • OEM
    F032112565, 36264, 36795

  • Konkurrentreferens
    F04200D005, F04200D009, F042S0D005, F042S0D009, stc0019, STR-1047, STR88302, 2-2339, 5754, 5754N, 5754N-HD

  • NormaliseratArtNr
    f032112565, f04200d005, f04200d009, f042s0d005, f042s0d009, stc0019, str1047, str88302, 5754, 5754n, 5754nhd, 22339, 36264, 36795

  • Passar modeller
    Tecumseh Model: Engine Model series: OHV135 Approved: Yes
    Tecumseh Model: Engine Model series: OHV14 Approved: Yes
    Tecumseh Model: Engine Model series: OHV145 Approved: Yes
    Tecumseh Model: Engine Model series: OHV15 Approved: Yes
    Tecumseh Model: Engine Model series: OHV150 Approved: Yes
    Tecumseh Model: Engine Model series: OHV155 Approved: Yes
    Tecumseh Model: Engine Model series: OHV16 Approved: Yes
    Tecumseh Model: Engine Model series: OHV160 Approved: Yes
    Tecumseh Model: Engine Model series: OHV165 Approved: Yes
    Tecumseh Model: Engine Model series: OHV17 Approved: Yes
    Tecumseh Model: Engine Model series: OHV170 Approved: Yes
    Tecumseh Model: Engine Model series: OHV175 Approved: Yes
    1 / 3
  • Beskrivelse
    Spændingsføler: 12
    kW: 0.5
    Mount. flange: 43,50
    Drevafstand: 30,00
    Mount. hul 2 mm: 8,50
    Mount. hul 1 mm: 8,50
    Afstand / bag: 123,50
    Afstand / for: 58,00
    Nr. / tænder: 10
    B+: 1/4" UNC
    Tandtype: DD
    Afstand mm: 99,50
    Rotation: CCW
    Samlet længde mm: 187,50
    Koblingstype: Tør
    Drevetype: Stål
    Prod. info: BN
    Vandsikret: Nej
    Oliekapsling: Nej
    Nr. / mount. huller: 2 (0)

    Filer

  • Specifikation
    B+ 1/4" UNC
    No./teeth 10
    Mount. flange 43.50
    Oil sealed No
    No./mount. holes 2 (0)
    Clutch type Dry
    Prod. info BN
    Rotation CCW
    Dist./back 123.50
    Dist./front 58.00
    Drive dist. 30.00
    Drive type Steel
    Gear type DD
    kW 0.5
    Voltage 12
    Total length 187.50 mm
    Waterproof No
    Dist. 99.50 mm
    Mount. hole 2 8.50 mm
    Mount. hole 1 8.50 mm
  • Køretøjsmatchning

    • OEM
      F032112565, 36264, 36795

    • Konkurrentreferens
      F04200D005, F04200D009, F042S0D005, F042S0D009, stc0019, STR-1047, STR88302, 2-2339, 5754, 5754N, 5754N-HD

    • NormaliseratArtNr
      f032112565, f04200d005, f04200d009, f042s0d005, f042s0d009, stc0019, str1047, str88302, 5754, 5754n, 5754nhd, 22339, 36264, 36795

    • Passar modeller
      Tecumseh Model: Engine Model series: OHV135 Approved: Yes
      Tecumseh Model: Engine Model series: OHV14 Approved: Yes
      Tecumseh Model: Engine Model series: OHV145 Approved: Yes
      Tecumseh Model: Engine Model series: OHV15 Approved: Yes
      Tecumseh Model: Engine Model series: OHV150 Approved: Yes
      Tecumseh Model: Engine Model series: OHV155 Approved: Yes
      Tecumseh Model: Engine Model series: OHV16 Approved: Yes
      Tecumseh Model: Engine Model series: OHV160 Approved: Yes
      Tecumseh Model: Engine Model series: OHV165 Approved: Yes
      Tecumseh Model: Engine Model series: OHV17 Approved: Yes
      Tecumseh Model: Engine Model series: OHV170 Approved: Yes
      Tecumseh Model: Engine Model series: OHV175 Approved: Yes
      1 / 3
