Vare nr.: F032113313

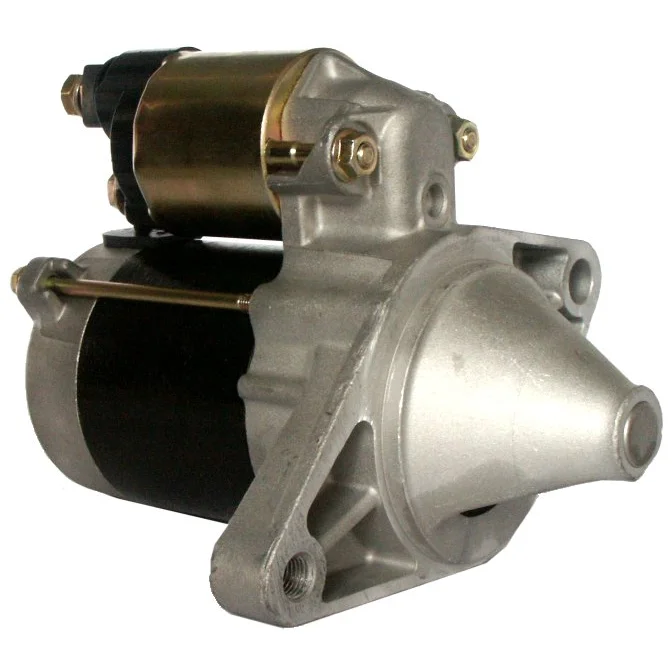

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 0.7, No./tænder: 8, Rotation: CW

Beskrivelse

Spænding: 12
kW: 0.7
Monteringsflange: 74.00
Drevafstand: 11.50
Monteringshul 1 mm: 11.50
Afstand/bag: 135.00
Afstand/frem: 47.50
Antal./tænder: 8
B+: M8
Position/50: 40
Terminal 50: Stik
Geartype: DD
Afstand mm: 131.50
Rotation: CW
Total længde mm: 187.00
Drevt …ype: Stål
Produktfakta: Reman
Vandtæt: Nej
Olieforseglet: Nej
Antal./monteringshuller: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 40
Prod. info Reman
Rotation CW
Dist./back 135.00
Dist./front 47.50
Drive dist. 11.50
Drive type Steel
Gear type DD
kW 0.7
Terminal 50 Plug
Voltage 12
Total length 187.00 mm
Waterproof No
Dist. 131.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032113313, js1299, 28100-0J010, 28100-23020, 228000-8350, 228000-9530

  • Konkurrentreferens
    DRS3864, F042S0H048, J5212110, LRS01452, S6035, STR-H048, 8EA011610-741, 25-2381, 335.075.082, 105520, 201299, 220759, 220759A, 8020561, 11040680, 0986020561

  • NormaliseratArtNr
    drs3864, f032113313, f042s0h048, j5212110, js1299, lrs01452, s6035, strh048, 8ea011610741, 105520, 201299, 220759, 220759a, 252381, 281000j010, 8020561, 11040680, 335075082, 0986020561, 2280008350, 2280009530, 2810023020

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 0.7
    Monteringsflange: 74.00
    Drevafstand: 11.50
    Monteringshul 1 mm: 11.50
    Afstand/bag: 135.00
    Afstand/frem: 47.50
    Antal./tænder: 8
    B+: M8
    Position/50: 40
    Terminal 50: Stik
    Geartype: DD
    Afstand mm: 131.50
    Rotation: CW
    Total længde mm: 187.00
    Drevt …ype: Stål
    Produktfakta: Reman
    Vandtæt: Nej
    Olieforseglet: Nej
    Antal./monteringshuller: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (1)
    Position/50 40
    Prod. info Reman
    Rotation CW
    Dist./back 135.00
    Dist./front 47.50
    Drive dist. 11.50
    Drive type Steel
    Gear type DD
    kW 0.7
    Terminal 50 Plug
    Voltage 12
    Total length 187.00 mm
    Waterproof No
    Dist. 131.50 mm
    Mount. hole 1 11.50 mm
  • Køretøjsmatchning

    • OEM
      F032113313, js1299, 28100-0J010, 28100-23020, 228000-8350, 228000-9530

    • Konkurrentreferens
      DRS3864, F042S0H048, J5212110, LRS01452, S6035, STR-H048, 8EA011610-741, 25-2381, 335.075.082, 105520, 201299, 220759, 220759A, 8020561, 11040680, 0986020561

    • NormaliseratArtNr
      drs3864, f032113313, f042s0h048, j5212110, js1299, lrs01452, s6035, strh048, 8ea011610741, 105520, 201299, 220759, 220759a, 252381, 281000j010, 8020561, 11040680, 335075082, 0986020561, 2280008350, 2280009530, 2810023020

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
