Vare nr.: F032113723

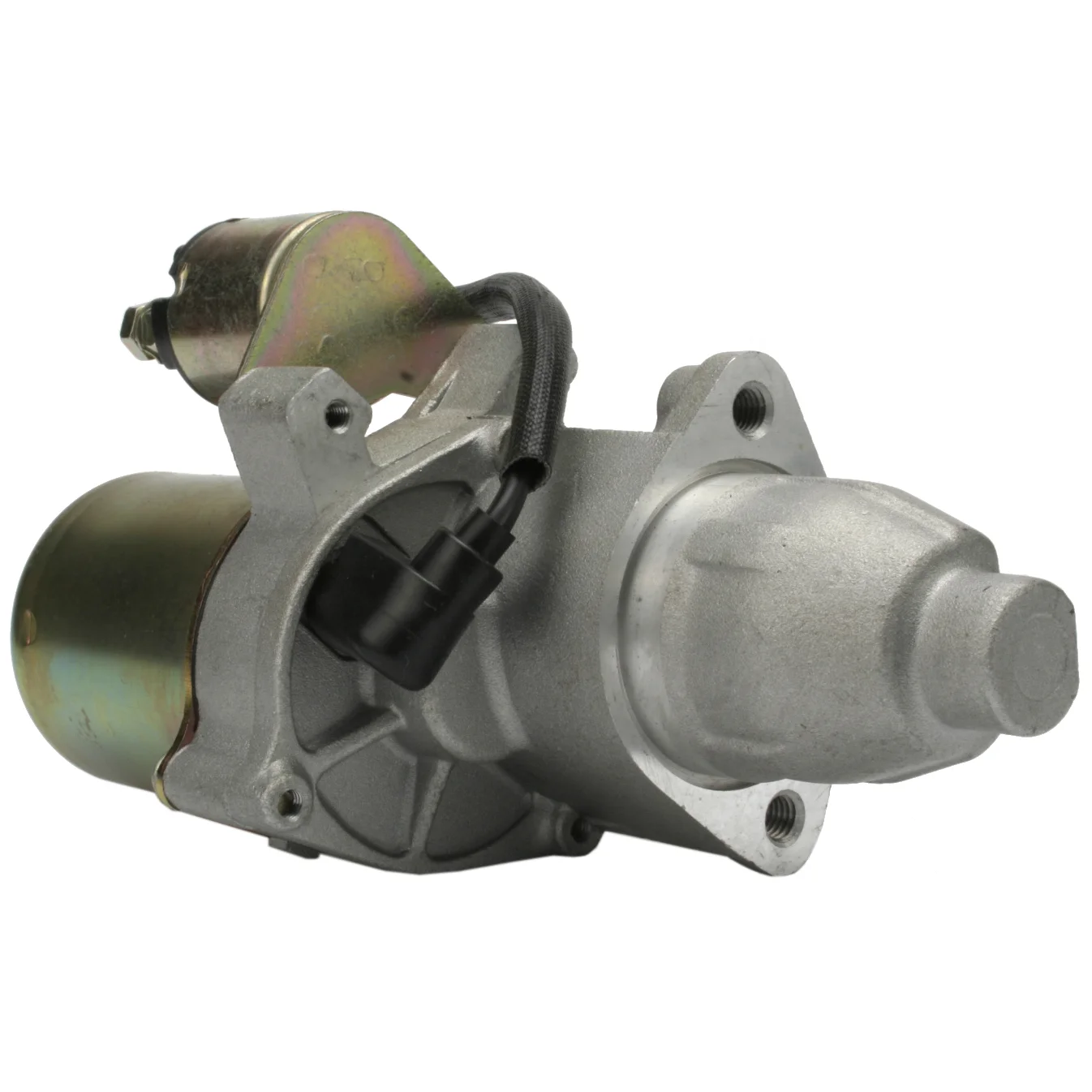

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 0.4, Nr./tænder: 14, Rotation: CCW

Beskrivelse

Spænding: 12
kW: 0.4
Montagespænding: 46.00
Drevafstand: 10.00
Afstand/bag: 142.50
Afstand/frem: 55.00
Antal tænder: 14
B+: M6
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Afstand mm: 64.50
Rotation: mod uret
Total længde mm: 208.00
Drevetype: Stål
Produktoplysninger: BN
Vandsikret: Nej
Olieforseglet: Nej
Antal mountingshuller: 2 (2)

Specifikation

B+ M6
No./teeth 14
Mount. flange 46.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 60
Prod. info BN
Rotation CCW
Dist./back 142.50
Dist./front 55.00
Drive dist. 10.00
Drive type Steel
Gear type GR
kW 0.4
Terminal 50 6.30
Voltage 12
Total length 208.00 mm
Waterproof No
Dist. 64.50 mm
  • OEM

    DB5BC, F032113723, 31200-zh9-003, 128000-2240, 128000-2241, 128000-3390, 128000-9400
  • Konkurrentreferens

    CST40527, LRS02638, SND0454, 25-4311, 120.024.142, 322.064.142, 18984, 18984N, 254117
  • NormaliseratArtNr

    cst40527, db5bc, f032113723, lrs02638, snd0454, 18984, 18984n, 31200zh9003, 254117, 254311, 120024142, 322064142, 1280002240, 1280002241, 1280003390, 1280009400
  • Passar modeller

    Honda Model: GX Model series: GX270QAE2 Approved: Yes
    Honda Model: Various Models Model series: Various Models Size of motor: 9.9 Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 0.4
    Montagespænding: 46.00
    Drevafstand: 10.00
    Afstand/bag: 142.50
    Afstand/frem: 55.00
    Antal tænder: 14
    B+: M6
    Position/50: 60
    Terminal 50: 6.30
    Gear type: GR
    Afstand mm: 64.50
    Rotation: mod uret
    Total længde mm: 208.00
    Drevetype: Stål
    Produktoplysninger: BN
    Vandsikret: Nej
    Olieforseglet: Nej
    Antal mountingshuller: 2 (2)
  • Specifikation
    B+ M6
    No./teeth 14
    Mount. flange 46.00
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 60
    Prod. info BN
    Rotation CCW
    Dist./back 142.50
    Dist./front 55.00
    Drive dist. 10.00
    Drive type Steel
    Gear type GR
    kW 0.4
    Terminal 50 6.30
    Voltage 12
    Total length 208.00 mm
    Waterproof No
    Dist. 64.50 mm
  • Køretøjsmatchning
    • OEM

      DB5BC, F032113723, 31200-zh9-003, 128000-2240, 128000-2241, 128000-3390, 128000-9400
    • Konkurrentreferens

      CST40527, LRS02638, SND0454, 25-4311, 120.024.142, 322.064.142, 18984, 18984N, 254117
    • NormaliseratArtNr

      cst40527, db5bc, f032113723, lrs02638, snd0454, 18984, 18984n, 31200zh9003, 254117, 254311, 120024142, 322064142, 1280002240, 1280002241, 1280003390, 1280009400
    • Passar modeller

      Honda Model: GX Model series: GX270QAE2 Approved: Yes
      Honda Model: Various Models Model series: Various Models Size of motor: 9.9 Approved: Yes
