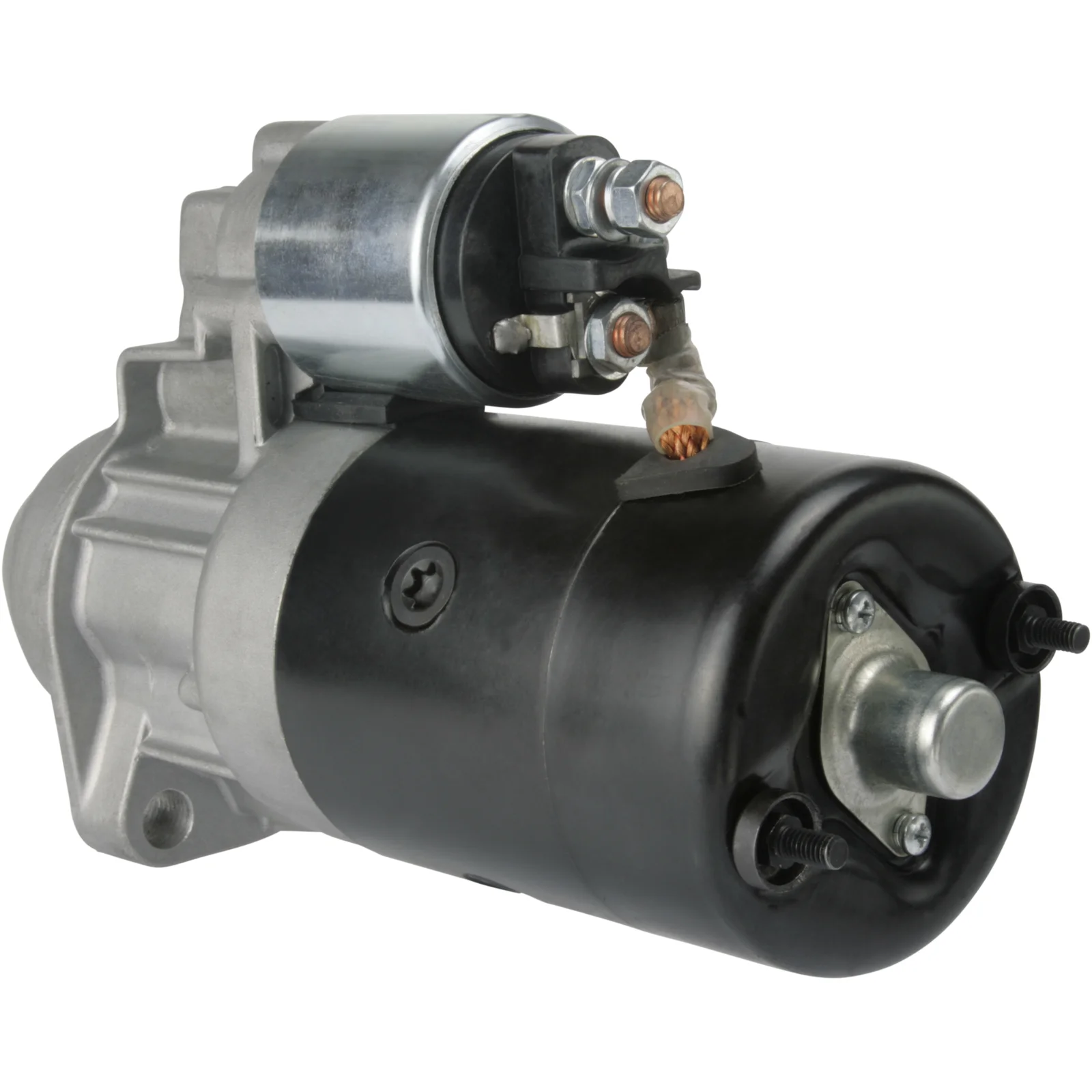

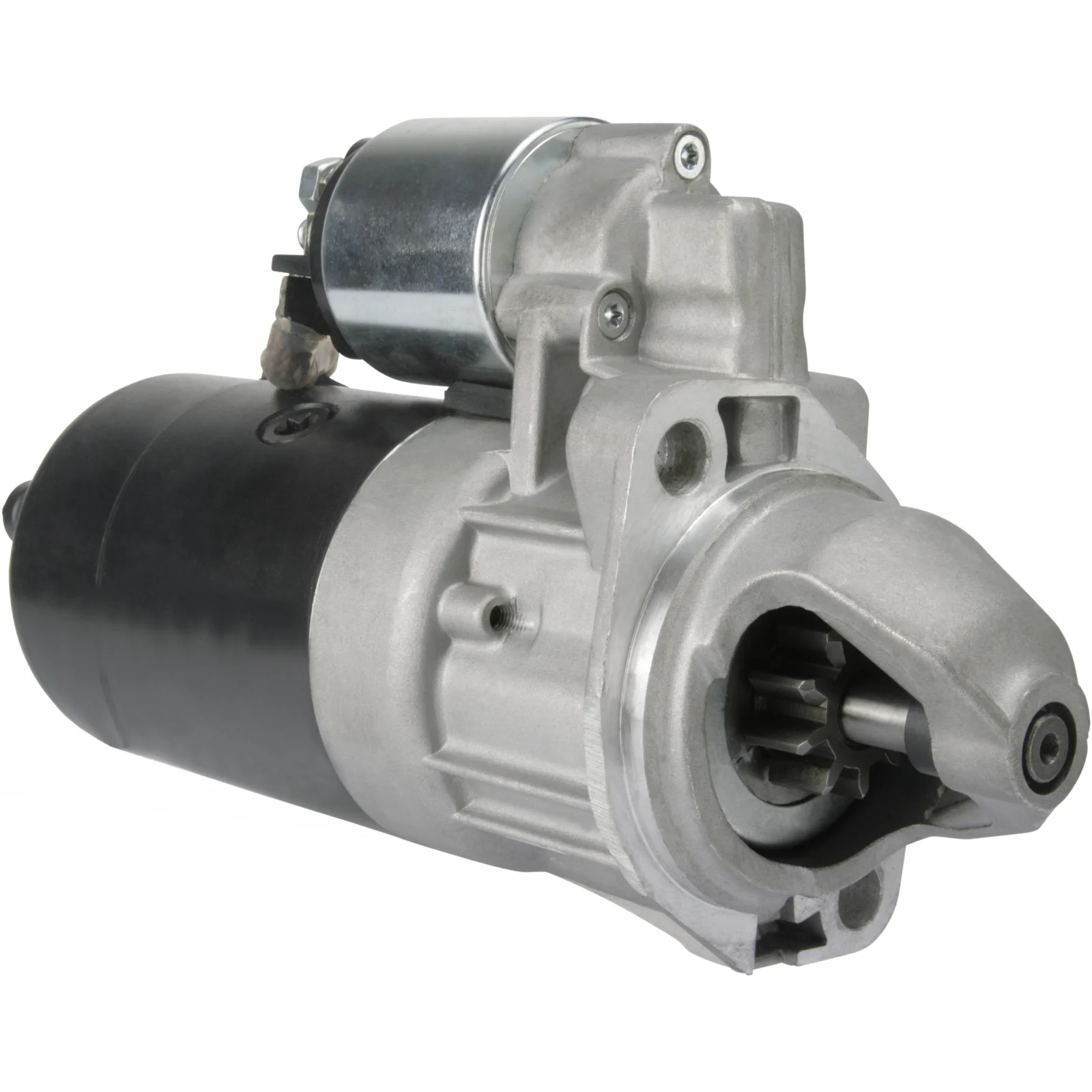

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114055

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.3, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2.3
Monteringsflange: 82,50
Drevafstand: 21,00
Monteringshul 2 mm: 13,00
Monteringshul 1 mm: 13,00
Afstand/bag: 212,00
Afstand/frem: 61,00
Antal/tænder: 9
B+: M8
Gidsetrådlængde mm: 11,00
Position/50: 15
Terminal 50: M4
Gear type: GR
Afstand mm: 105,00
Rotation: CW
Total længde mm: 273,00
Drevetype: Stål
Producentinfo: BN
Vandtæt: Nej
Oliesejlet: Nej
Antal/monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 212.00
Dist./front 61.00
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 2.3
Terminal 50 M4
Voltage 12
Total length 273.00 mm
Waterproof No
Dist. 105.00 mm
Thread length 11.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032114055, FGV35532054, 3.553.2054F, 1986S00740, 0001109358, 0001218176, 0001218776, 035532043F, 35532043F, 9000331418

  • Konkurrentreferens
    CST10169, DRS0786, LRS02556, S0424, STR50063, 8EA015642-411, 8010, 18952N, 220931, 220931A, 254165, 11090209, 063522187760

  • NormaliseratArtNr
    cst10169, drs0786, f032114055, fgv35532054, lrs02556, s0424, str50063, 8ea015642411, 1986s00740, 8010, 18952n, 220931, 220931a, 254165, 0001109358, 0001218176, 0001218776, 11090209, 035532043f, 35532043f, 35532054f, 9000331418, 063522187760

  • Passar modeller
    Jacobsen Model: Lawn Mower Model series: Lawn Mower Brand of engine: VM Motori Approved: Yes
    John Deere Model: 100F Model series: 100F Model type: Orchard Size of motor: 3.0 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
    John Deere Model: 76F Model series: 76F Model type: Orchard Size of motor: 2.7 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
    John Deere Model: 85F Model series: 85F Model type: Orchard Size of motor: 2.7 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 2.3
    Monteringsflange: 82,50
    Drevafstand: 21,00
    Monteringshul 2 mm: 13,00
    Monteringshul 1 mm: 13,00
    Afstand/bag: 212,00
    Afstand/frem: 61,00
    Antal/tænder: 9
    B+: M8
    Gidsetrådlængde mm: 11,00
    Position/50: 15
    Terminal 50: M4
    Gear type: GR
    Afstand mm: 105,00
    Rotation: CW
    Total længde mm: 273,00
    Drevetype: Stål
    Producentinfo: BN
    Vandtæt: Nej
    Oliesejlet: Nej
    Antal/monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 212.00
    Dist./front 61.00
    Drive dist. 21.00
    Drive type Steel
    Gear type GR
    kW 2.3
    Terminal 50 M4
    Voltage 12
    Total length 273.00 mm
    Waterproof No
    Dist. 105.00 mm
    Thread length 11.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Køretøjsmatchning

    • OEM
      F032114055, FGV35532054, 3.553.2054F, 1986S00740, 0001109358, 0001218176, 0001218776, 035532043F, 35532043F, 9000331418

    • Konkurrentreferens
      CST10169, DRS0786, LRS02556, S0424, STR50063, 8EA015642-411, 8010, 18952N, 220931, 220931A, 254165, 11090209, 063522187760

    • NormaliseratArtNr
      cst10169, drs0786, f032114055, fgv35532054, lrs02556, s0424, str50063, 8ea015642411, 1986s00740, 8010, 18952n, 220931, 220931a, 254165, 0001109358, 0001218176, 0001218776, 11090209, 035532043f, 35532043f, 35532054f, 9000331418, 063522187760

    • Passar modeller
      Jacobsen Model: Lawn Mower Model series: Lawn Mower Brand of engine: VM Motori Approved: Yes
      John Deere Model: 100F Model series: 100F Model type: Orchard Size of motor: 3.0 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
      John Deere Model: 76F Model series: 76F Model type: Orchard Size of motor: 2.7 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
      John Deere Model: 85F Model series: 85F Model type: Orchard Size of motor: 2.7 Brand of engine: VM Motori Fuel: Diesel Approved: Yes
