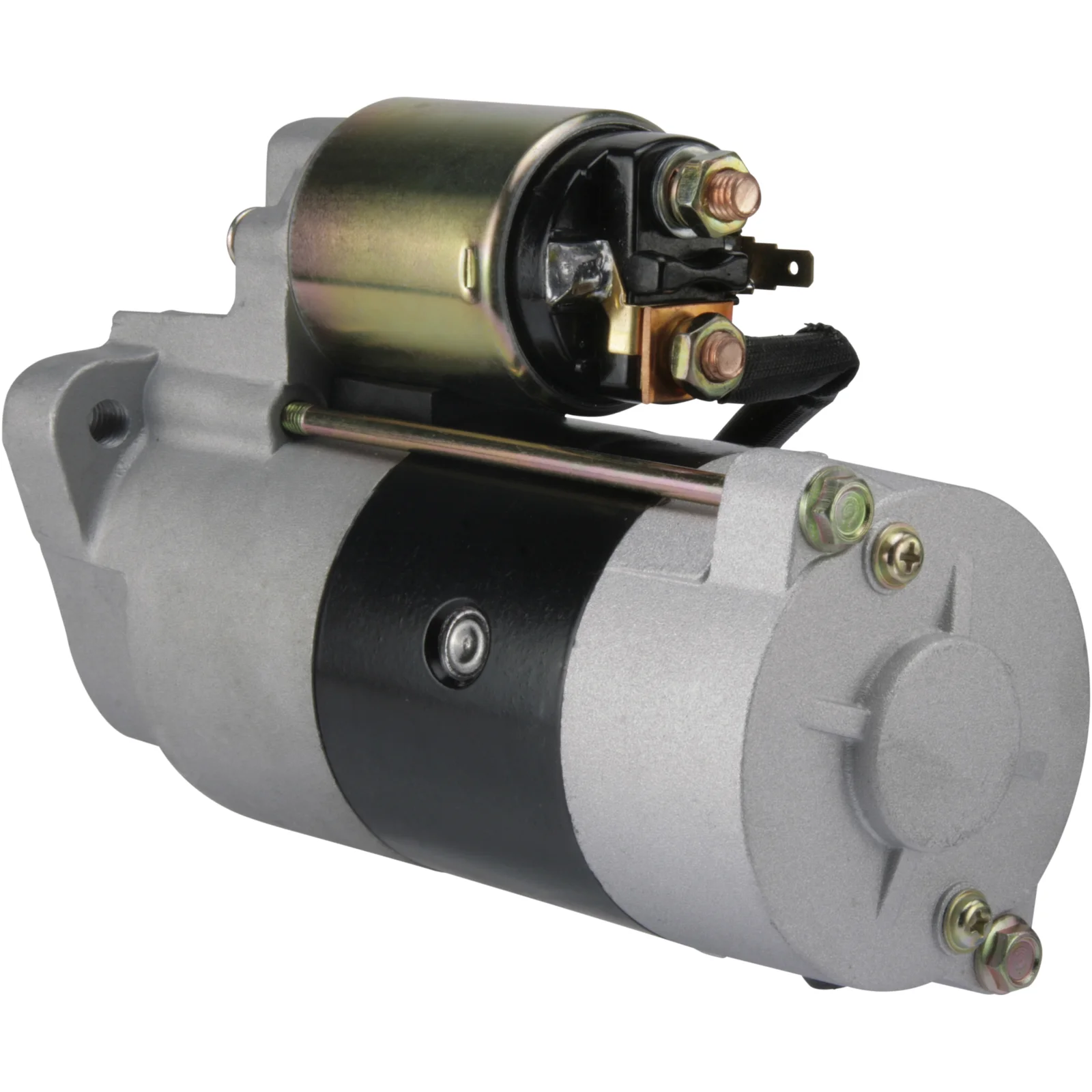

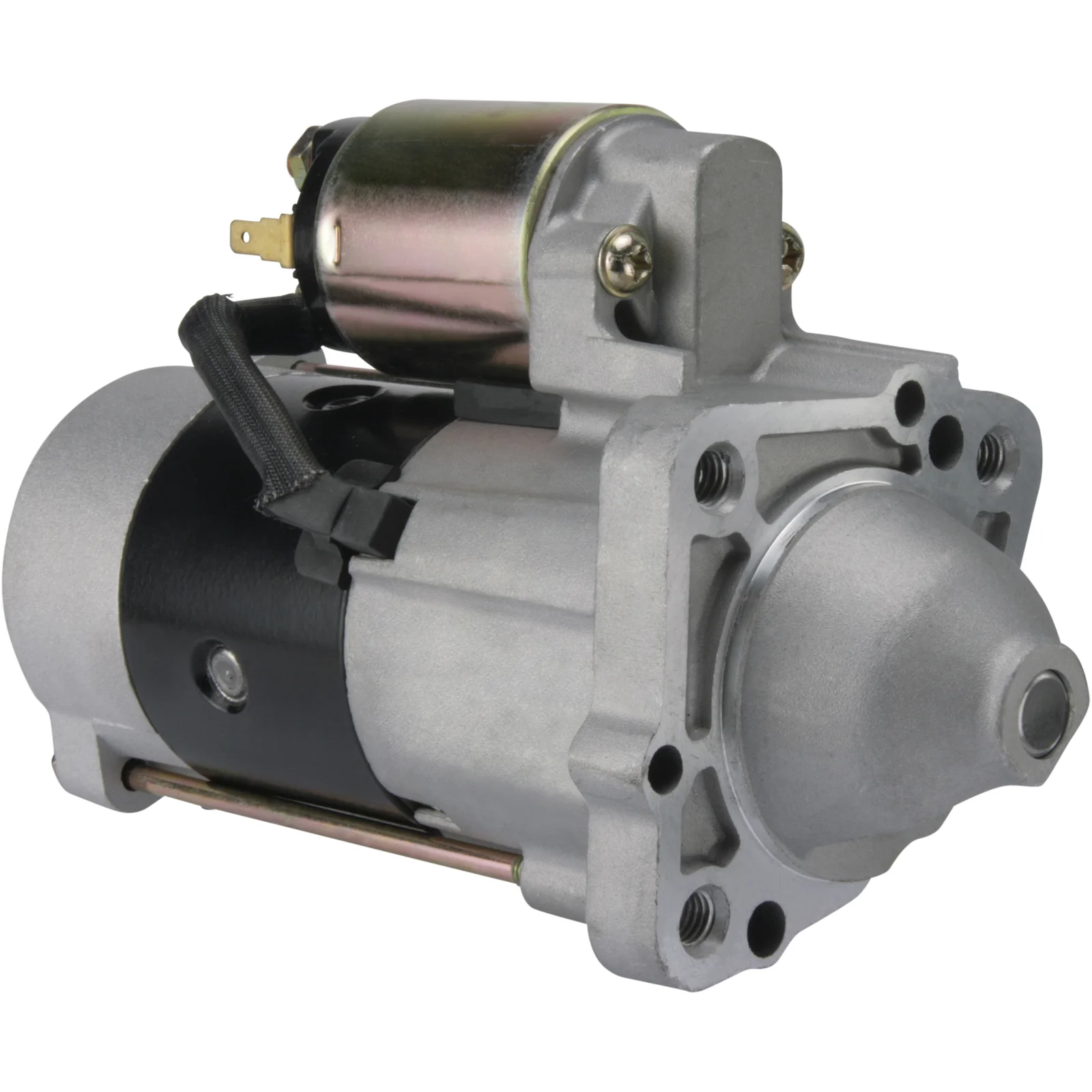

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114061

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.0, Nr./tænder: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2,0
Montering. flange: 66,00
Drev. afstand: 3,00
Montering. hul 3 mm: M10
Afstand/bag: 187,00
Afstand/frem: 39,00
Antal./tænder: 10
B+: M8
Position/50: 15
Terminal 50: 6,30
Geartype: GR
Afstand 2: 71,00
Afstand 3: 71,00
Afstand mm: 100,00
Rotation: CW
Samlet længde mm: 227,50
Drevetype: Stål
Produktion info: BN
Vandtæt: Nej
Olieforseglet: Nej
Antal./montering. huller: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 66.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 71.00
Dist. 3 71.00
Rotation CW
Dist./back 187.00
Dist./front 39.00
Drive dist. 3.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 227.50 mm
Waterproof No
Dist. 100.00 mm
Mount. hole 3 M10 mm

  • OEM
    cs1444, F032114061, M002T85271, m2t85271, 1986S00935, 31100-68d00

  • Konkurrentreferens
    CST35191, drs3984, F042S0H085, J5218018, lrs01716, S5050, STR-H085, 8EA738258-911, 25-3271, 345.019.102, 9765, 31333N, 101444, 106649, 458901, 8080295, 11040729, 0986029090

  • NormaliseratArtNr
    cs1444, cst35191, drs3984, f032114061, f042s0h085, j5218018, lrs01716, m002t85271, m2t85271, s5050, strh085, 8ea738258911, 1986s00935, 9765, 31333n, 101444, 106649, 253271, 458901, 3110068d00, 8080295, 11040729, 345019102, 0986029090

  • Passar modeller
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHW From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHZ From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHZ Type description: FT, GT From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 2,0
    Montering. flange: 66,00
    Drev. afstand: 3,00
    Montering. hul 3 mm: M10
    Afstand/bag: 187,00
    Afstand/frem: 39,00
    Antal./tænder: 10
    B+: M8
    Position/50: 15
    Terminal 50: 6,30
    Geartype: GR
    Afstand 2: 71,00
    Afstand 3: 71,00
    Afstand mm: 100,00
    Rotation: CW
    Samlet længde mm: 227,50
    Drevetype: Stål
    Produktion info: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Antal./montering. huller: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 66.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Prod. info BN
    Dist. 2 71.00
    Dist. 3 71.00
    Rotation CW
    Dist./back 187.00
    Dist./front 39.00
    Drive dist. 3.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 227.50 mm
    Waterproof No
    Dist. 100.00 mm
    Mount. hole 3 M10 mm
  • Køretøjsmatchning

    • OEM
      cs1444, F032114061, M002T85271, m2t85271, 1986S00935, 31100-68d00

    • Konkurrentreferens
      CST35191, drs3984, F042S0H085, J5218018, lrs01716, S5050, STR-H085, 8EA738258-911, 25-3271, 345.019.102, 9765, 31333N, 101444, 106649, 458901, 8080295, 11040729, 0986029090

    • NormaliseratArtNr
      cs1444, cst35191, drs3984, f032114061, f042s0h085, j5218018, lrs01716, m002t85271, m2t85271, s5050, strh085, 8ea738258911, 1986s00935, 9765, 31333n, 101444, 106649, 253271, 458901, 3110068d00, 8080295, 11040729, 345019102, 0986029090

    • Passar modeller
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHW From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHZ From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHZ Type description: FT, GT From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
