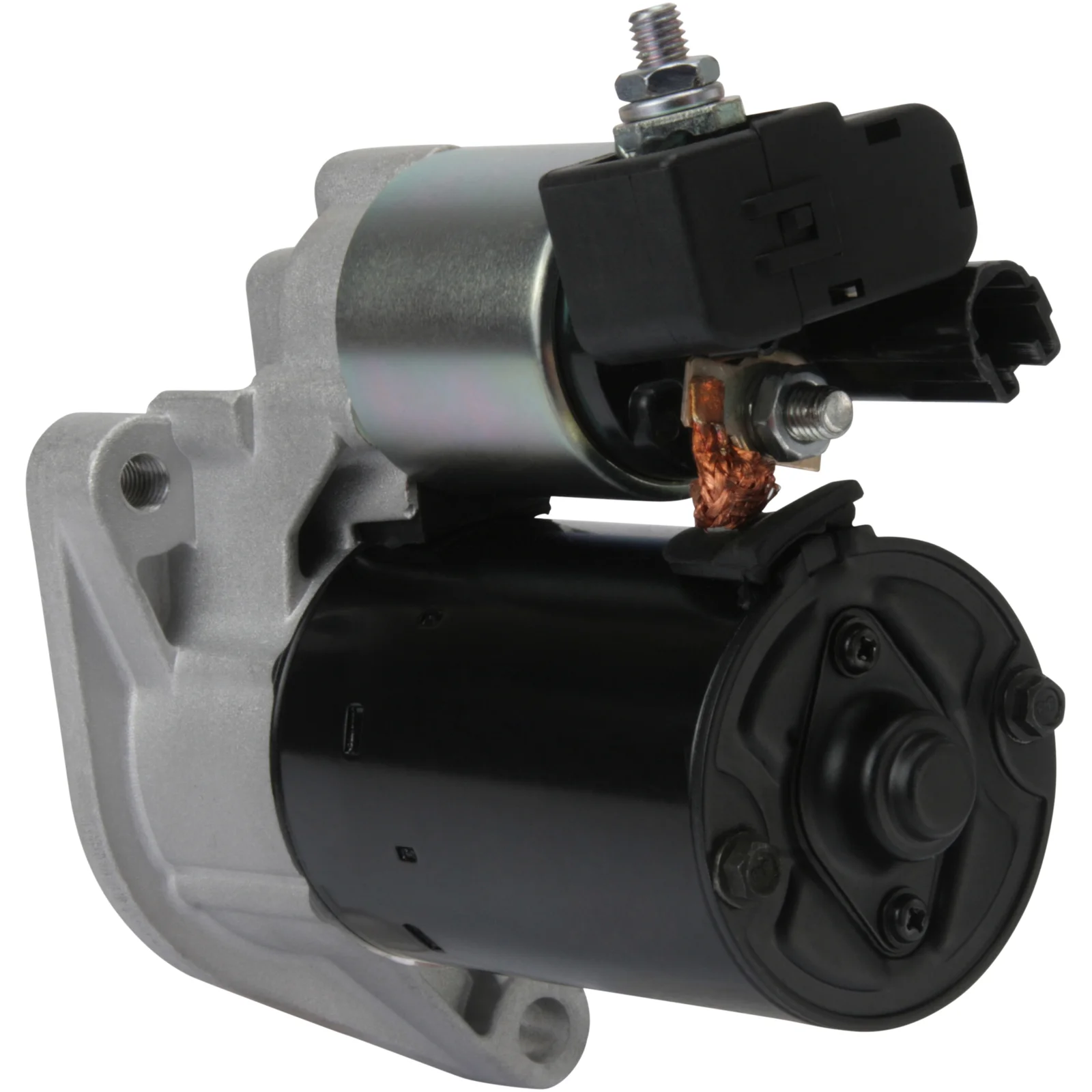

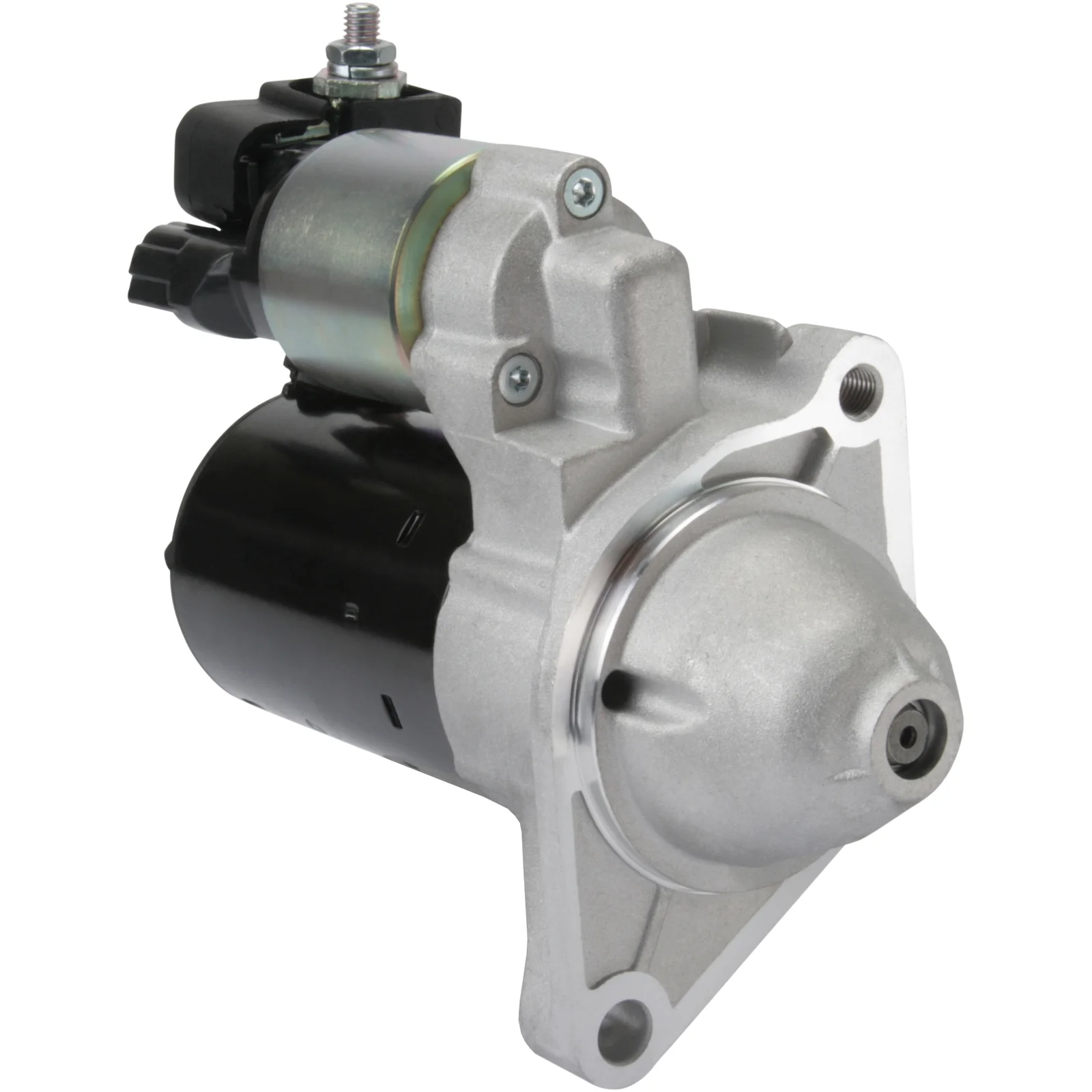

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114068

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.1, Nr./tænder: 9, Rotation: CW

Beskrivelse

Fuldspænding: 12
kW: 1.1
Monteringsflange: 74.00
Drevafstand: 15.00
Monteringshul 2 mm: 11.00
Afstand/tilbagelægning: 143.00
Afstand/front: 48.50
Nummer/tænder: 9
B+: M8
Terminal 50: Stik
Gear type: GR
Afstand mm: 122.50
Rotation: P ​​med uret
Samlet længde mm: 199.00
Prod. info: BN
Info: 1.1 kw version = HC-CARGO 114071.
Nummer/monteringshuller: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Prod. info BN
Rotation CW
Dist./back 143.00
Dist./front 48.50
Drive dist. 15.00
Gear type GR
Info 1.1 kw version = HC-CARGO 114071.
kW 1.1
Terminal 50 Plug
Voltage 12
Total length 199.00 mm
Dist. 122.50 mm
Mount. hole 2 11.00 mm

  • OEM
    cs1453, F032114068, 1986S00673, 28100-0N010, 0001107440, 0001107441

  • Konkurrentreferens
    CST10383, DRT1560, lrs02333, S0494, 8EA011611-321, 8EA738258-901, 25-4005, 335.222.092, 9756, 33320N, 101453, 106376, 220659, 220659A, 458824, 11040681, 0986021560

  • NormaliseratArtNr
    cs1453, cst10383, drt1560, f032114068, lrs02333, s0494, 8ea011611321, 8ea738258901, 1986s00673, 9756, 33320n, 101453, 106376, 220659, 220659a, 254005, 281000n010, 458824, 0001107440, 0001107441, 11040681, 335222092, 0986021560

  • Passar modeller
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Fuldspænding: 12
    kW: 1.1
    Monteringsflange: 74.00
    Drevafstand: 15.00
    Monteringshul 2 mm: 11.00
    Afstand/tilbagelægning: 143.00
    Afstand/front: 48.50
    Nummer/tænder: 9
    B+: M8
    Terminal 50: Stik
    Gear type: GR
    Afstand mm: 122.50
    Rotation: P ​​med uret
    Samlet længde mm: 199.00
    Prod. info: BN
    Info: 1.1 kw version = HC-CARGO 114071.
    Nummer/monteringshuller: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Prod. info BN
    Rotation CW
    Dist./back 143.00
    Dist./front 48.50
    Drive dist. 15.00
    Gear type GR
    Info 1.1 kw version = HC-CARGO 114071.
    kW 1.1
    Terminal 50 Plug
    Voltage 12
    Total length 199.00 mm
    Dist. 122.50 mm
    Mount. hole 2 11.00 mm
  • Køretøjsmatchning

    • OEM
      cs1453, F032114068, 1986S00673, 28100-0N010, 0001107440, 0001107441

    • Konkurrentreferens
      CST10383, DRT1560, lrs02333, S0494, 8EA011611-321, 8EA738258-901, 25-4005, 335.222.092, 9756, 33320N, 101453, 106376, 220659, 220659A, 458824, 11040681, 0986021560

    • NormaliseratArtNr
      cs1453, cst10383, drt1560, f032114068, lrs02333, s0494, 8ea011611321, 8ea738258901, 1986s00673, 9756, 33320n, 101453, 106376, 220659, 220659a, 254005, 281000n010, 458824, 0001107440, 0001107441, 11040681, 335222092, 0986021560

    • Passar modeller
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
