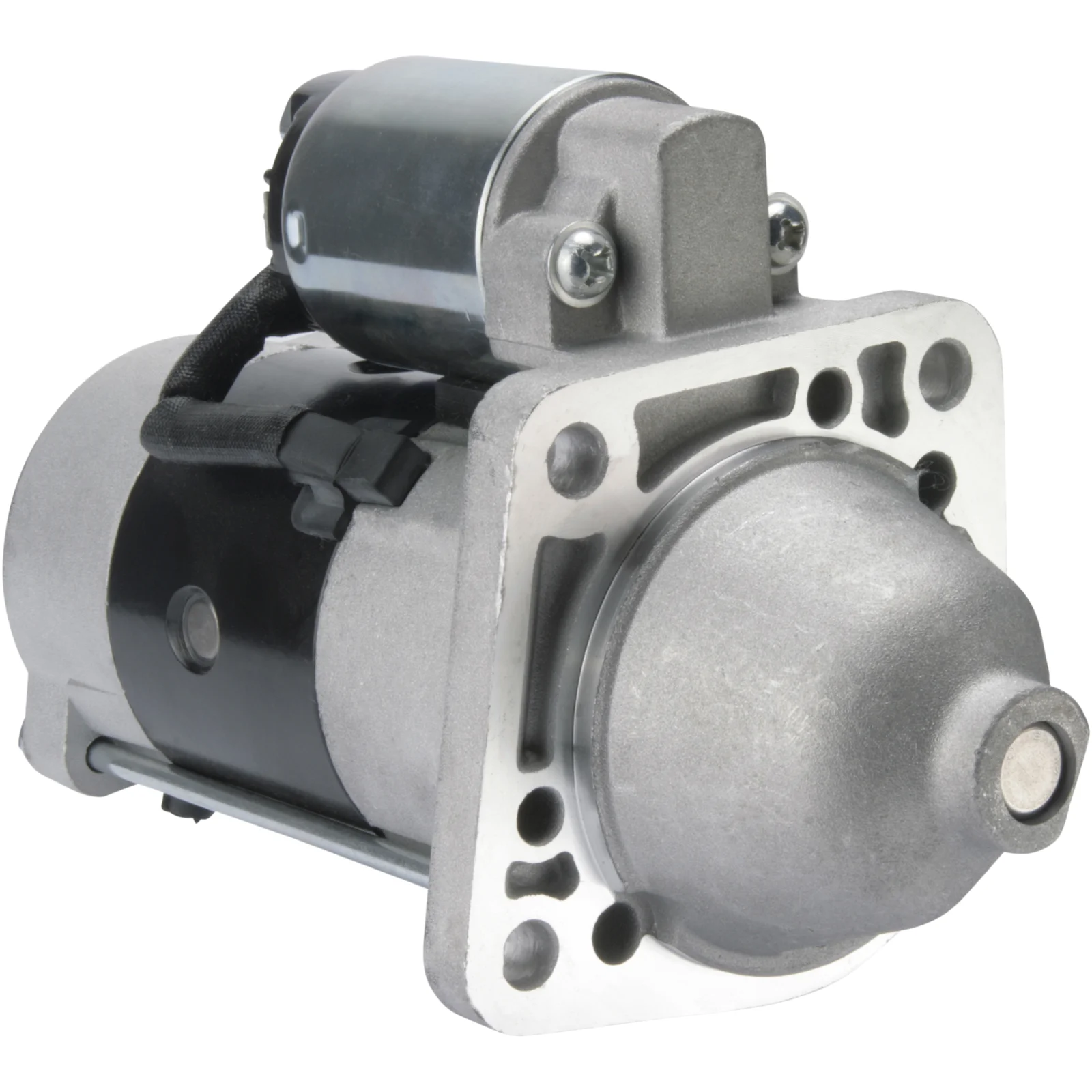

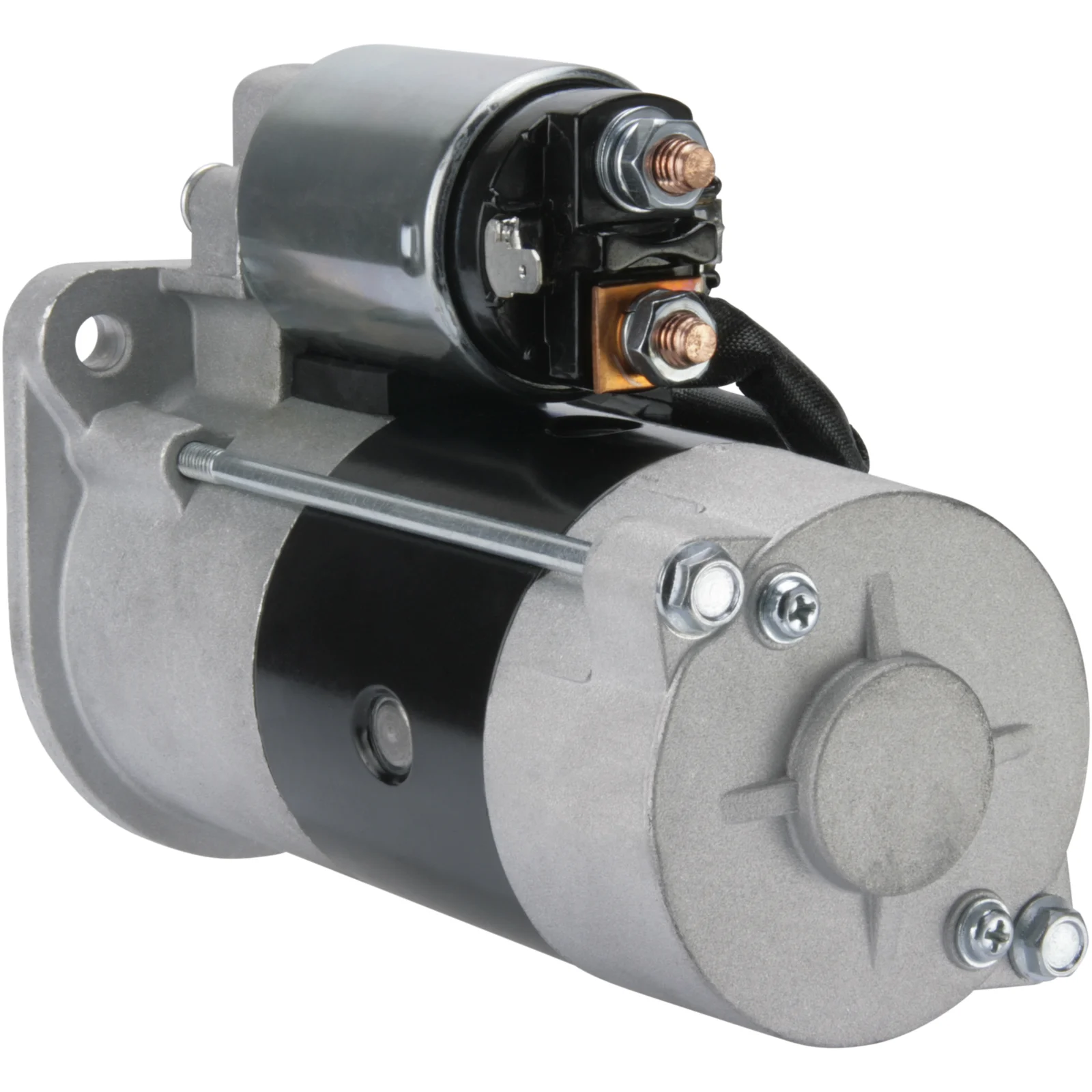

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114279

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2,2, Antal/tenner: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 2.2
Monteringsflange: 82.50
Drevafstand: 19.00
Monteringshul 3 mm: 9.00
Monteringshul 2 mm: 9.00
Monteringshul 1 mm: 9.00
Afstand/bag: 170.00
Afstand/frem: 55.50
Antal/tænder: 10
B+: M8
Position/50: 45
Terminal 50: 6.30
Kuglekransetype: GR
Afstand 2: 73.00
Afstand 3: 73.00
Afstand mm: 113.50
Rotation: med uret
Samlet længde mm: 227.50
Antal/monteringshuller: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 3 (0)
Position/50 45
Dist. 2 73.00
Dist. 3 73.00
Rotation CW
Dist./back 170.00
Dist./front 55.50
Drive dist. 19.00
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 227.50 mm
Dist. 113.50 mm
Mount. hole 3 9.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    cs1507, F032114279, M002T88372, M002T88372ZC, M2T88372, M2T88372ZC, 56041579ab

  • Konkurrentreferens
    CST35169, DRS0213, lrs02166, S5031, 25-3340, 670.009.102, 17652N, 17940N, 17940R, 106856, 220718, 220718A, 254296, 8080271, 11040763, 0986024750

  • NormaliseratArtNr
    cs1507, cst35169, drs0213, f032114279, lrs02166, m002t88372, m002t88372zc, m2t88372, m2t88372zc, s5031, 17652n, 17940n, 17940r, 106856, 220718, 220718a, 253340, 254296, 8080271, 11040763, 56041579ab, 670009102, 0986024750

  • Passar modeller
    Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.5 Brand of engine: R425 (DOHC) Type description: KJ From date: 01-09-2001 To date: 01-01-2008 Fuel: Diesel Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-11-2002 To date: 01-01-2008 Fuel: Diesel Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: KJ Body: Closed Off-Road Vehicle From date: 01-09-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: KJ From date: 01-11-2004 To date: 01-01-2008 Fuel: Diesel Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: 4x4 Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-08-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 2.2
    Monteringsflange: 82.50
    Drevafstand: 19.00
    Monteringshul 3 mm: 9.00
    Monteringshul 2 mm: 9.00
    Monteringshul 1 mm: 9.00
    Afstand/bag: 170.00
    Afstand/frem: 55.50
    Antal/tænder: 10
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Kuglekransetype: GR
    Afstand 2: 73.00
    Afstand 3: 73.00
    Afstand mm: 113.50
    Rotation: med uret
    Samlet længde mm: 227.50
    Antal/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 82.50
    No./mount. holes 3 (0)
    Position/50 45
    Dist. 2 73.00
    Dist. 3 73.00
    Rotation CW
    Dist./back 170.00
    Dist./front 55.50
    Drive dist. 19.00
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 227.50 mm
    Dist. 113.50 mm
    Mount. hole 3 9.00 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Køretøjsmatchning

    • OEM
      cs1507, F032114279, M002T88372, M002T88372ZC, M2T88372, M2T88372ZC, 56041579ab

    • Konkurrentreferens
      CST35169, DRS0213, lrs02166, S5031, 25-3340, 670.009.102, 17652N, 17940N, 17940R, 106856, 220718, 220718A, 254296, 8080271, 11040763, 0986024750

    • NormaliseratArtNr
      cs1507, cst35169, drs0213, f032114279, lrs02166, m002t88372, m002t88372zc, m2t88372, m2t88372zc, s5031, 17652n, 17940n, 17940r, 106856, 220718, 220718a, 253340, 254296, 8080271, 11040763, 56041579ab, 670009102, 0986024750

    • Passar modeller
      Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.5 Brand of engine: R425 (DOHC) Type description: KJ From date: 01-09-2001 To date: 01-01-2008 Fuel: Diesel Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-11-2002 To date: 01-01-2008 Fuel: Diesel Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: KJ Body: Closed Off-Road Vehicle From date: 01-09-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: KJ From date: 01-11-2004 To date: 01-01-2008 Fuel: Diesel Approved: Yes
      Jeep Model: Liberty Model series: Liberty Model type: 4x4 Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-08-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
