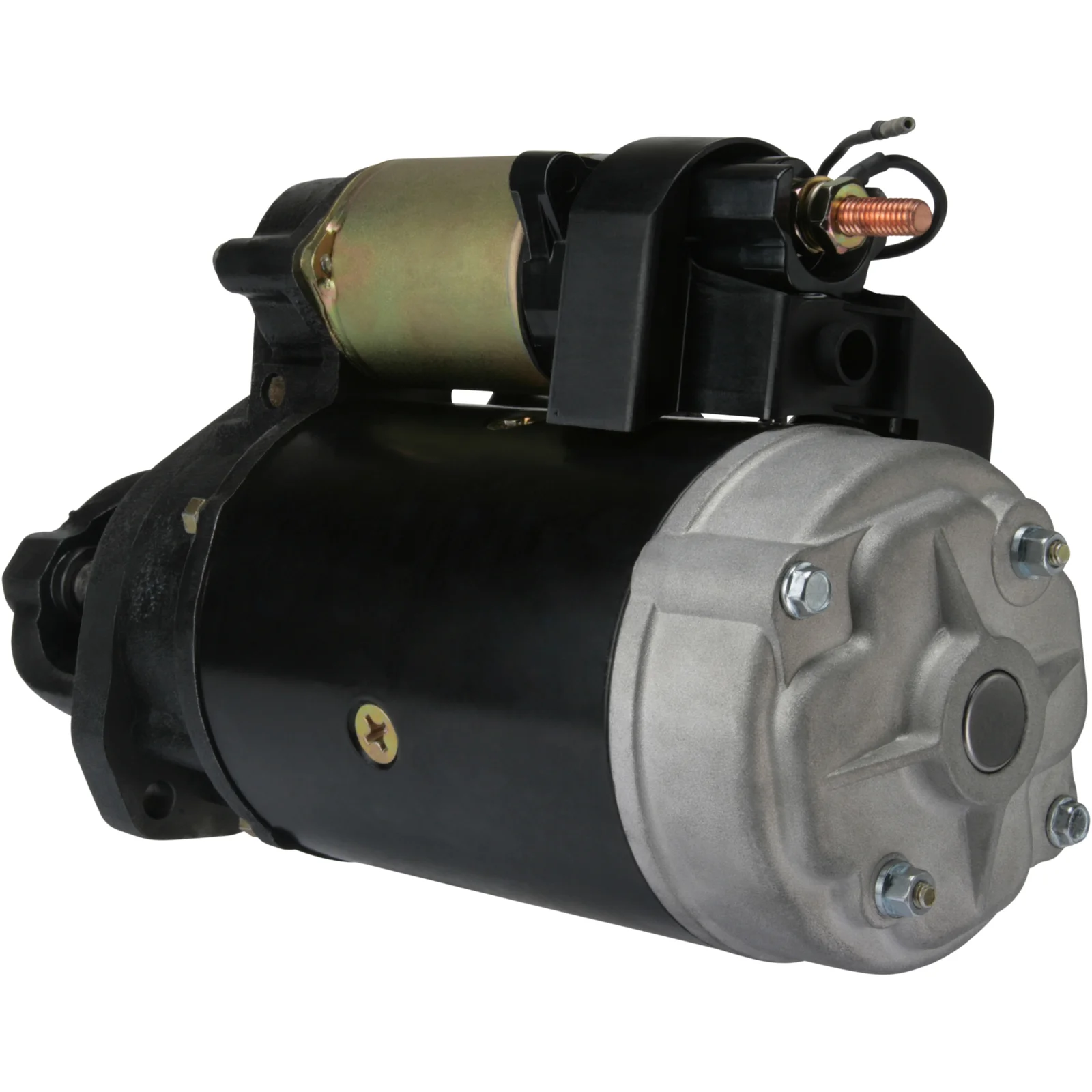

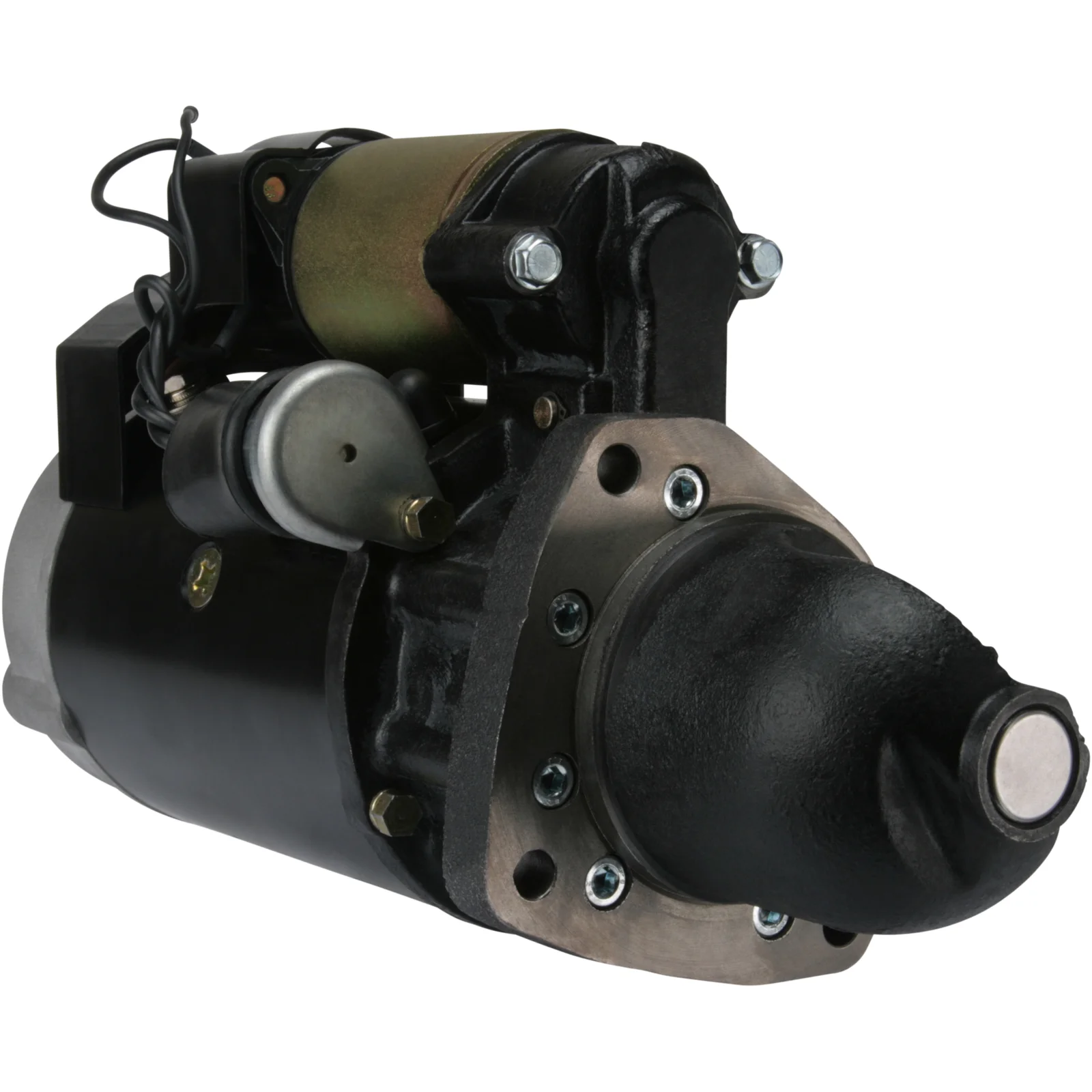

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114309

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 4,0, No./tænder: 10, Rotation: med uret

Beskrivelse

VOutage: 12
kW: 4.0
Montering flange: 89,00
Drevafstand: 46,50
Monteringshul 3 mm: 10,80
Monteringshul 2 mm: 10,80
Monteringshul 1 mm: 10,80
Afstand/bager: 285,00
Afstand/frem: 96,00
Nummer/tænder: 10
B+: 3/8" UNC
Terminal 50: Stik
Geartype: DD
Afstand 2: 90,00
Afstand 3: 127,00
Afstand mm: 90,00
Rotation: med uret
Samlet længde mm: 381,00
Produktinfo: BN
Oliesealed: Ja
Nummer/monteringshuller: 3 (0)

Filer

Specifikation

B+ 3/8" UNC
No./teeth 10
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Prod. info BN
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 285.00
Dist./front 96.00
Drive dist. 46.50
Gear type DD
kW 4.0
Terminal 50 Plug
Voltage 12
Total length 381.00 mm
Dist. 90.00 mm
Mount. hole 3 10.80 mm
Mount. hole 2 10.80 mm
Mount. hole 1 10.80 mm

  • OEM
    F032114309, 4N0241, 9X0354, 028000-3650, 028000-5960, 028000-5961

  • Konkurrentreferens
    CST40155, DRS0333, 25-2418, 640.537.103, 672.019.102, 17103, 254457

  • NormaliseratArtNr
    cst40155, drs0333, f032114309, 4n0241, 9x0354, 17103, 252418, 254457, 0280003650, 0280005960, 0280005961, 640537103, 672019102

  • Passar modeller
    Caterpillar Model: 900 Model series: 910 Model type: Wheel loader Approved: Yes
    Caterpillar Model: 900 Model series: 916 Model type: Wheel loader Approved: Yes
    Caterpillar Model: 900 Model series: 931 Model type: Track Loader Brand of engine: 3204 Approved: Yes
    Caterpillar Model: 900 Model series: 935C Model type: Track Loader Brand of engine: 3046 Approved: Yes
    Caterpillar Model: D3 Model series: D3B Model type: Track Tracktor Brand of engine: 3204 Approved: Yes
    Caterpillar Model: Various Industrial applications Model series: Various Industrial applications Approved: Yes
    1 / 2
  • Beskrivelse
    VOutage: 12
    kW: 4.0
    Montering flange: 89,00
    Drevafstand: 46,50
    Monteringshul 3 mm: 10,80
    Monteringshul 2 mm: 10,80
    Monteringshul 1 mm: 10,80
    Afstand/bager: 285,00
    Afstand/frem: 96,00
    Nummer/tænder: 10
    B+: 3/8" UNC
    Terminal 50: Stik
    Geartype: DD
    Afstand 2: 90,00
    Afstand 3: 127,00
    Afstand mm: 90,00
    Rotation: med uret
    Samlet længde mm: 381,00
    Produktinfo: BN
    Oliesealed: Ja
    Nummer/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ 3/8" UNC
    No./teeth 10
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 285.00
    Dist./front 96.00
    Drive dist. 46.50
    Gear type DD
    kW 4.0
    Terminal 50 Plug
    Voltage 12
    Total length 381.00 mm
    Dist. 90.00 mm
    Mount. hole 3 10.80 mm
    Mount. hole 2 10.80 mm
    Mount. hole 1 10.80 mm
  • Køretøjsmatchning

    • OEM
      F032114309, 4N0241, 9X0354, 028000-3650, 028000-5960, 028000-5961

    • Konkurrentreferens
      CST40155, DRS0333, 25-2418, 640.537.103, 672.019.102, 17103, 254457

    • NormaliseratArtNr
      cst40155, drs0333, f032114309, 4n0241, 9x0354, 17103, 252418, 254457, 0280003650, 0280005960, 0280005961, 640537103, 672019102

    • Passar modeller
      Caterpillar Model: 900 Model series: 910 Model type: Wheel loader Approved: Yes
      Caterpillar Model: 900 Model series: 916 Model type: Wheel loader Approved: Yes
      Caterpillar Model: 900 Model series: 931 Model type: Track Loader Brand of engine: 3204 Approved: Yes
      Caterpillar Model: 900 Model series: 935C Model type: Track Loader Brand of engine: 3046 Approved: Yes
      Caterpillar Model: D3 Model series: D3B Model type: Track Tracktor Brand of engine: 3204 Approved: Yes
      Caterpillar Model: Various Industrial applications Model series: Various Industrial applications Approved: Yes
