HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114320

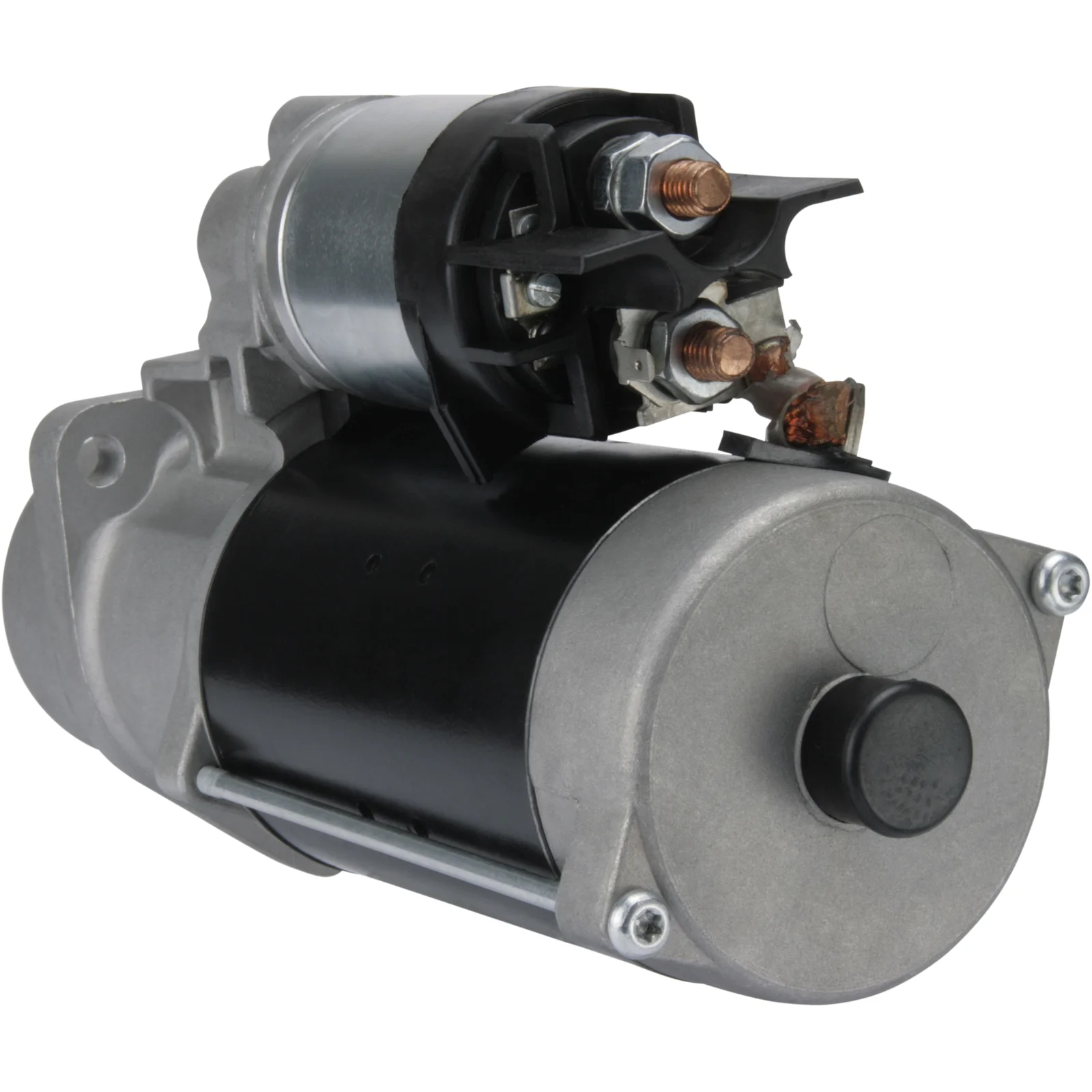

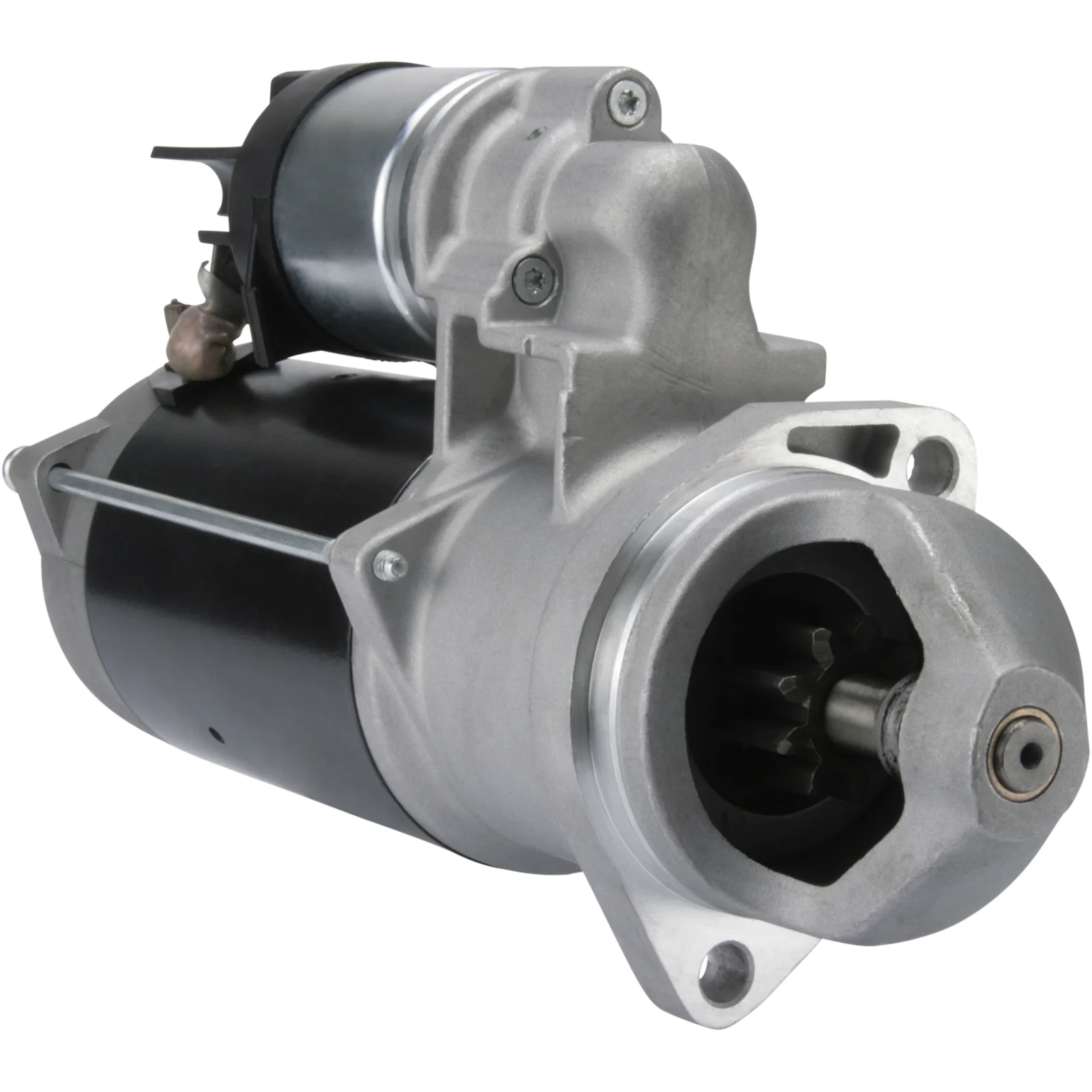

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 3.0, Antal/tænder: 9, Rotation: med uret

Beskrivelse

Voltage: 12
kW: 3.0
Monteringsflange: 82,50
Driveafstand: 23,00
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Afstand/bag: 231,50
Afstand/frem: 71,50
Nr./tænder: 9
B+: M10
Position/50: 45
Terminal 50: M4
Gear-typen: GR
Afstand mm: 101,50
Rotation: med uret
Samlet længde mm: 316,00
Kobling-typen: Tør
Drive-typen: Stål
Nr./monteringshuller: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 45
Clutch type Dry
Rotation CW
Dist./back 231.50
Dist./front 71.50
Drive dist. 23.00
Drive type Steel
Gear type GR
kW 3.0
Terminal 50 M4
Voltage 12
Total length 316.00 mm
Dist. 101.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4229, F032114320, 01181570, 01181570KZ, 1181570, 1181570KZ, 01182179, 1182179, 01182388, 1182388, 0001230013, 04300287

  • Konkurrentreferens
    DRS0363, is1237, les0380, LRS02559, MS67, S0300, S9174, 25-4231, 8009, 18525N, 255052, 11090158

  • NormaliseratArtNr
    azf4229, drs0363, f032114320, is1237, les0380, lrs02559, ms67, s0300, s9174, 8009, 18525n, 254231, 255052, 01181570, 01181570kz, 1181570, 1181570kz, 01182179, 1182179, 01182388, 1182388, 0001230013, 04300287, 11090158

  • Passar modeller
    Atlas Copco Model: CC102 Model series: CC102 Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Atlas Copco Model: CC122 Model series: CC122 Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Atlas Copco Model: CC132 Model series: CC132 Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Atlas Copco Model: IRMAIR 3 Model series: IRMAIR 3 Model type: Air Compressors Brand of engine: F2L1011 Approved: Yes
    Atlas Copco Model: XA SERIES Model series: XA SERIES Model type: Air Compressors Brand of engine: F2L1011 Approved: Yes
    Bomag Model: BW 100 AC-3 Model series: BW 100 AC-3 Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Bomag Model: BW 100 AD-3 Model series: BW 100 AD-3 Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Bomag Model: BW 100 ADS Model series: BW 100 ADS Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Bomag Model: BW 120 AC-3 Model series: BW 120 AC-3 Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Bomag Model: BW 120 AD-3 Model series: BW 120 AD-3 Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Bomag Model: BW124D Model series: BW124D Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Ingersoll-Rand Model: P WD Model series: P WD Model type: Air Compressors Brand of engine: F2L1011 Approved: Yes
    JCB Model: Various Models Model series: Various Models Approved: Yes
    John Deere Model: HD 10(K) Model series: HD 10(K) Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    John Deere Model: HD 12(K) Model series: HD 12(K) Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    John Deere Model: HD 13(K) Model series: HD 13(K) Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    KHD Model: Engine Model series: Various Models Approved: Yes
    Terex Model: 2515 Model series: 2515 Model type: Aerial Lifts Brand of engine: F2L1011 Approved: Yes
    Terex Model: 3020 Model series: 3020 Model type: Aerial Lifts Brand of engine: F2L1011 Approved: Yes
    Terex Model: 30KBDF Model series: 30KBDF Model type: Aerial Lifts Brand of engine: F2L1011 Approved: Yes
    Terex Model: 3715 Model series: 3715 Model type: Aerial Lifts Brand of engine: F2L1011 Approved: Yes
    Terex Model: 41KBDF Model series: 41KBDF Model type: Aerial Lifts Brand of engine: F2L1011 Approved: Yes
    Terex Model: 4612 Model series: 4612 Model type: Aerial Lifts Brand of engine: F2L1011 Approved: Yes
    Terex Model: MOSQUITO 06 OPT Model series: MOSQUITO 06 OPT Model type: Mixers Brand of engine: F2L1011 Approved: Yes
    Terex Model: PT/PS 2000 Model series: PT/PS 2000 Model type: Dumpers/Tenders Brand of engine: F2L1011 Approved: Yes
    Terex Model: TV1000 Model series: TV1000 Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Terex Model: TV1200 Model series: TV1200 Model type: Rollers Brand of engine: F2L1011 Approved: Yes
    Thwaites Model: ALLDIG Model series: ALLDIG Model type: Tractor/Loader/Backhoes Brand of engine: F2L1011 Approved: Yes
    1 / 6
