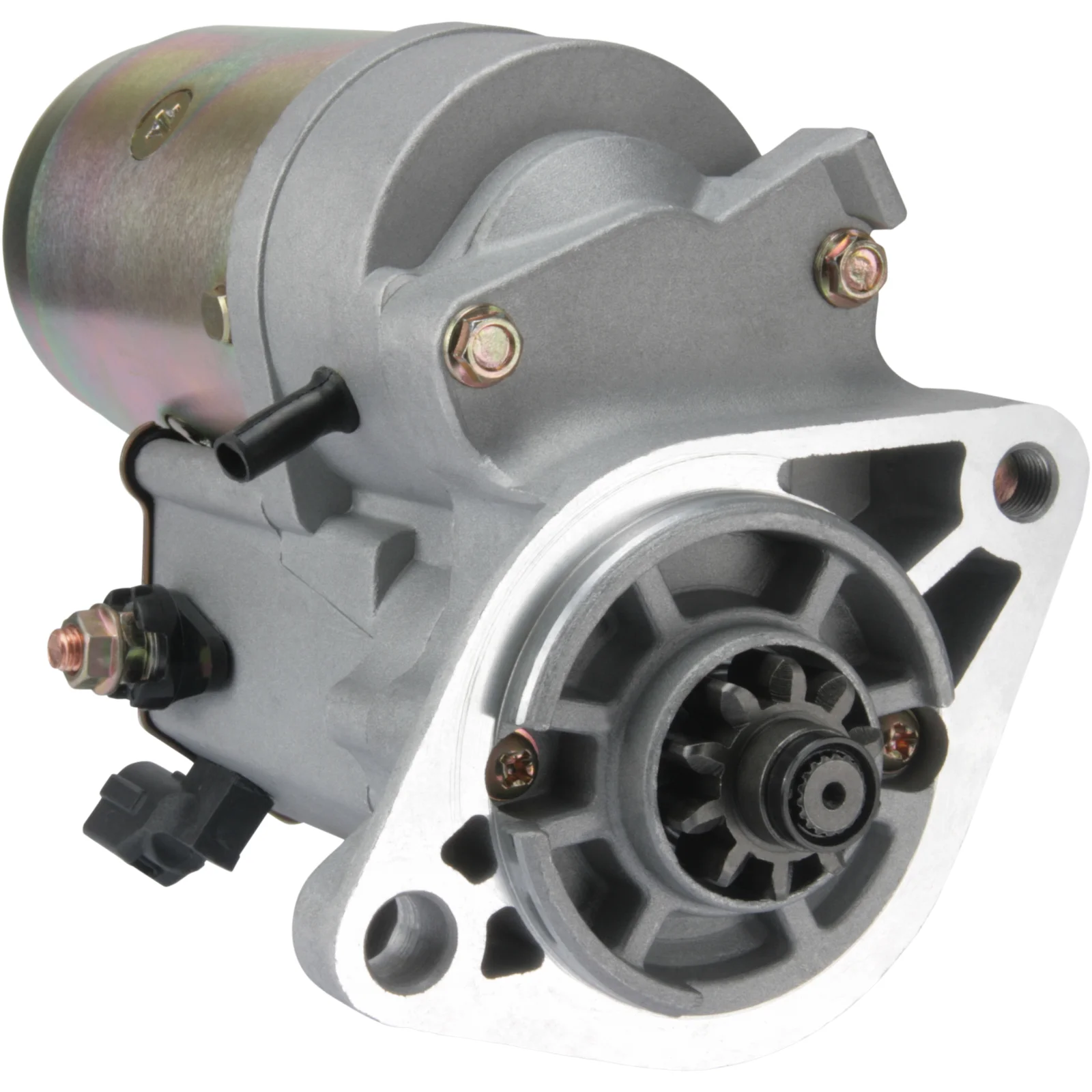

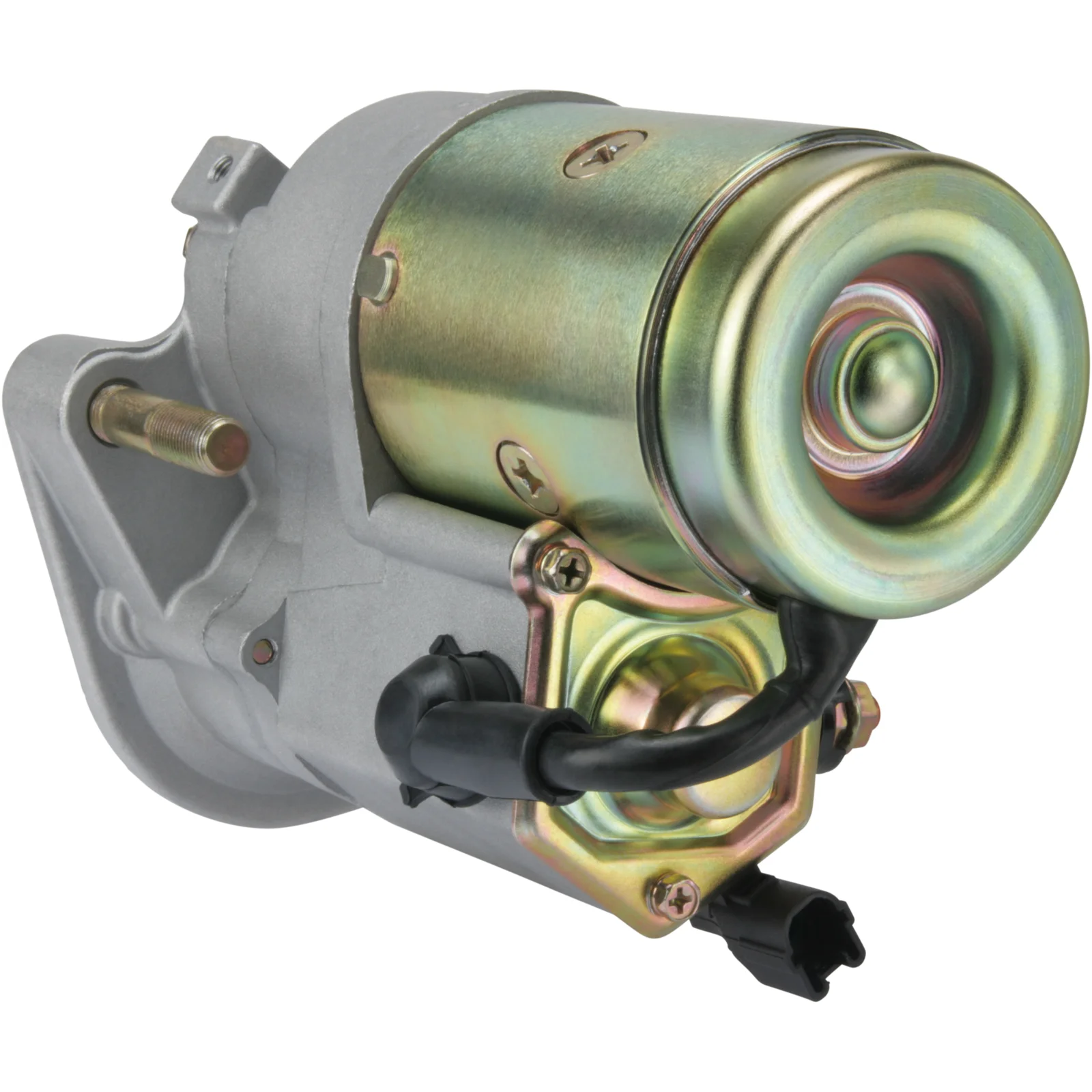

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114731

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2.2, No./tandhjul: 9, Rotation: CW

Beskrivelse

Spenning: 12
kW: 2.2
Mont. flænge: 82,50
Drive afstand: 18,00
Mont. hul 2 mm: 13,00
Afstand/bag: 154,00
Afstand/forside: 31,00
Nr./tænder: 9
B+: M8
Terminal 50: Stik
Gear type: GR
Afstand mm: 129,00
Rotationsretning: CW
Total længde mm: 235,00
Drive type: Stål
Nr./mont. huller: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (1)
Rotation CW
Dist./back 154.00
Dist./front 31.00
Drive dist. 18.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 Plug
Voltage 12
Total length 235.00 mm
Dist. 129.00 mm
Mount. hole 2 13.00 mm

  • OEM
    F032114731, 28100-0L030, 28100-0L031, 28100-0L121, 28100-0L141, 428000-2321

  • Konkurrentreferens
    CST40324, DSN1373, F042000268, F042S00268, LRS02480, S6284S, 8EA011612-411, 25-4152, 335.230.102, 600373

  • NormaliseratArtNr
    cst40324, dsn1373, f032114731, f042000268, f042s00268, lrs02480, s6284s, 8ea011612411, 254152, 281000l030, 281000l031, 281000l121, 281000l141, 600373, 335230102, 4280002321

  • Passar modeller
    Toyota Model: Fortuner Model series: Fortuner Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N5_, _N6_ Body: SUV From date: 01-01-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Size of motor: 3.0 Brand of engine: 1KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Body: Pick Up From date: 01-08-2005 To date: 01-09-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: D-4D 4WD (KUN26) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: Tdi 4x4 (KUN26) Type of engine: TDI Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Body: Pick Up From date: 01-08-2006 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 2.2
    Mont. flænge: 82,50
    Drive afstand: 18,00
    Mont. hul 2 mm: 13,00
    Afstand/bag: 154,00
    Afstand/forside: 31,00
    Nr./tænder: 9
    B+: M8
    Terminal 50: Stik
    Gear type: GR
    Afstand mm: 129,00
    Rotationsretning: CW
    Total længde mm: 235,00
    Drive type: Stål
    Nr./mont. huller: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (1)
    Rotation CW
    Dist./back 154.00
    Dist./front 31.00
    Drive dist. 18.00
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 Plug
    Voltage 12
    Total length 235.00 mm
    Dist. 129.00 mm
    Mount. hole 2 13.00 mm
  • Køretøjsmatchning

    • OEM
      F032114731, 28100-0L030, 28100-0L031, 28100-0L121, 28100-0L141, 428000-2321

    • Konkurrentreferens
      CST40324, DSN1373, F042000268, F042S00268, LRS02480, S6284S, 8EA011612-411, 25-4152, 335.230.102, 600373

    • NormaliseratArtNr
      cst40324, dsn1373, f032114731, f042000268, f042s00268, lrs02480, s6284s, 8ea011612411, 254152, 281000l030, 281000l031, 281000l121, 281000l141, 600373, 335230102, 4280002321

    • Passar modeller
      Toyota Model: Fortuner Model series: Fortuner Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N5_, _N6_ Body: SUV From date: 01-01-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4x4 Size of motor: 3.0 Brand of engine: 1KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Body: Pick Up From date: 01-08-2005 To date: 01-09-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: D-4D 4WD (KUN26) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: Tdi 4x4 (KUN26) Type of engine: TDI Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Body: Pick Up From date: 01-08-2006 To date: 01-05-2015 Fuel: Diesel Approved: Yes
