Vare nr.: F032114741

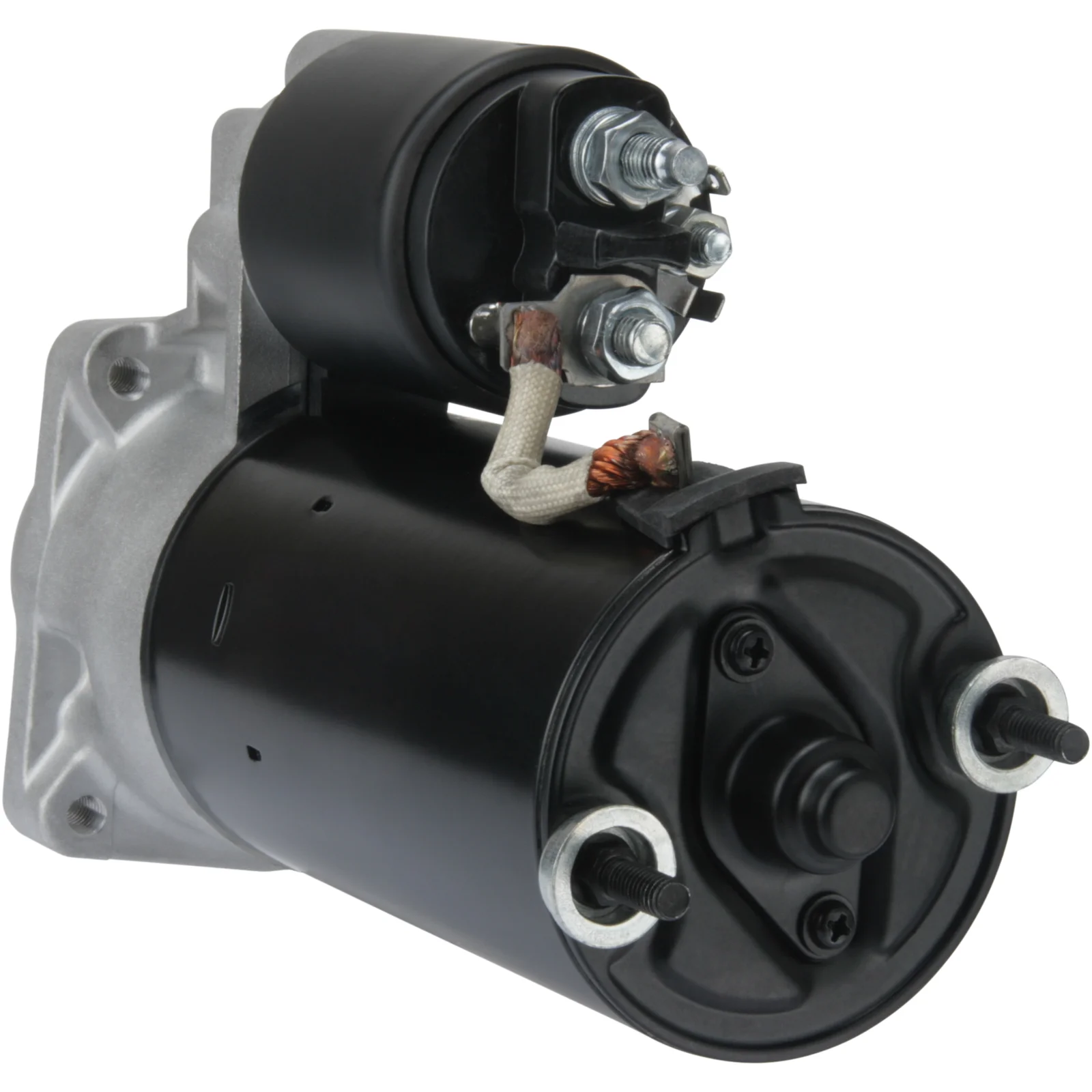

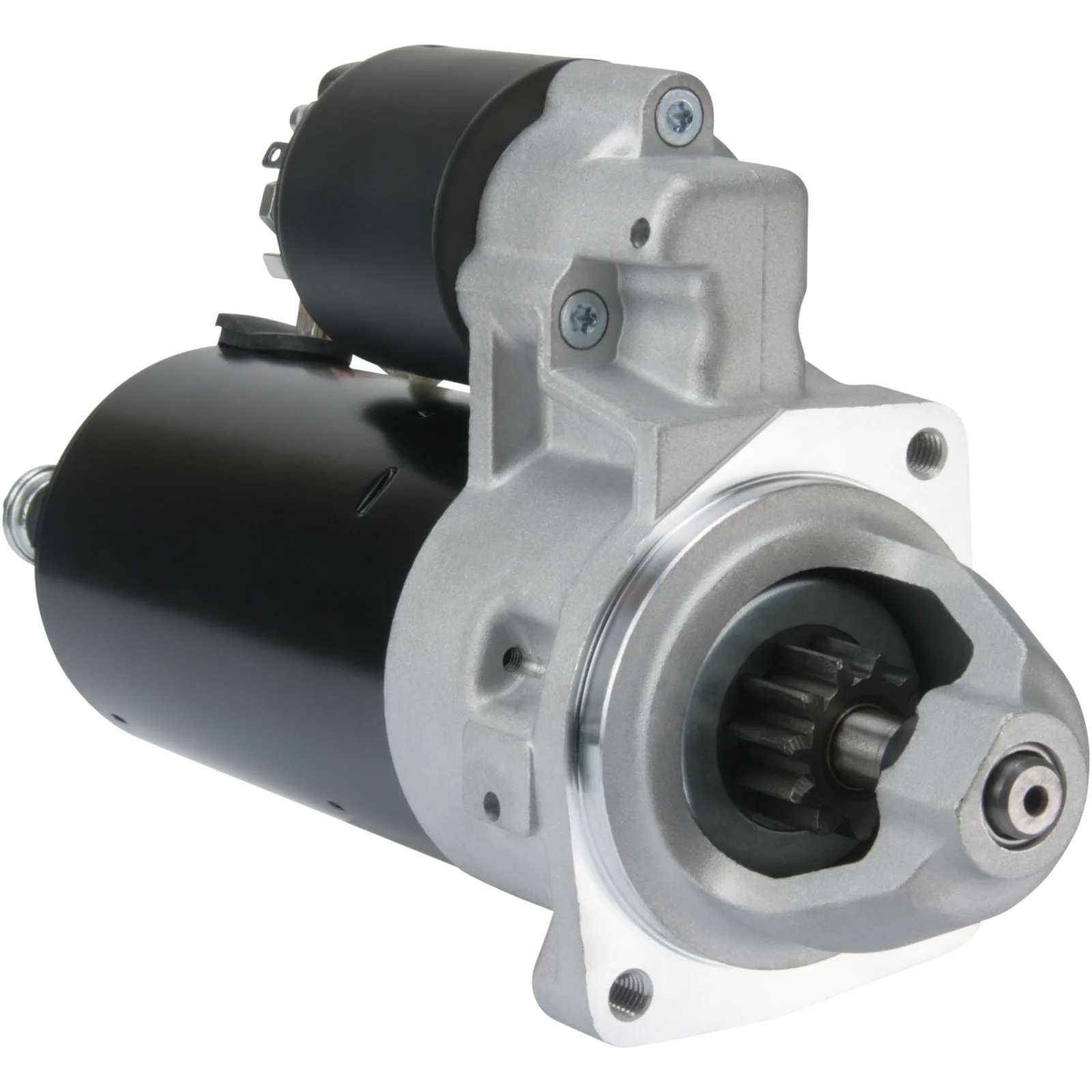

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1,6, Nr./tænder: 11, Rotation: CCW

Beskrivelse

Spænding: 12
kW: 1.6
Fastgørelsesflange: 76.00
Driveafstand: 21.50
Fastgørelseshul 3 mm: M8
Afstand/bag: 186.00
Afstand/front: 60.00
Num./tænder: 11
B+: M8
Gængelængde mm: 13.50
Position/50: 15
Terminal 50: M6
Geartype: GR
Afstand 2: 63.50
Afstand 3: 96.50
Afstand mm: 73.50
Rotation: CCW
Total længde mm: 260.00
Produktoplysninger: BN
Num./fastgørelseshul: 3 (3)

Specifikation

B+ M8
No./teeth 11
Mount. flange 76.00
No./mount. holes 3 (3)
Position/50 15
Prod. info BN
Dist. 2 63.50
Dist. 3 96.50
Rotation CCW
Dist./back 186.00
Dist./front 60.00
Drive dist. 21.50
Gear type GR
kW 1.6
Terminal 50 M6
Voltage 12
Total length 260.00 mm
Dist. 73.50 mm
Thread length 13.50 mm
Mount. hole 3 M8 mm
  • OEM

    F032114741, 1986S00717, 250761, 292083, 0001109011, 0001314040, 58402060, 58402490
  • Konkurrentreferens

    CST10189, DRS0922, LRS02611, S0459, 500.529.113, 618.019.112, 31232N, 220719, 220719A, 254006, 11090313, 063521090110
  • NormaliseratArtNr

    cst10189, drs0922, f032114741, lrs02611, s0459, 1986s00717, 31232n, 220719, 220719a, 250761, 254006, 292083, 0001109011, 0001314040, 11090313, 58402060, 58402490, 500529113, 618019112, 063521090110
  • Passar modeller

    Piaggio Model: Ape Car D Model series: Ape Car D Size of motor: 0.5 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
    Piaggio Model: Ape Car TMD Model series: Ape Car TMD Size of motor: 0.5 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
    Piaggio Model: Ape Poker Quadriciclo Model series: Ape Poker Quadriciclo Size of motor: 0.4 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.6
    Fastgørelsesflange: 76.00
    Driveafstand: 21.50
    Fastgørelseshul 3 mm: M8
    Afstand/bag: 186.00
    Afstand/front: 60.00
    Num./tænder: 11
    B+: M8
    Gængelængde mm: 13.50
    Position/50: 15
    Terminal 50: M6
    Geartype: GR
    Afstand 2: 63.50
    Afstand 3: 96.50
    Afstand mm: 73.50
    Rotation: CCW
    Total længde mm: 260.00
    Produktoplysninger: BN
    Num./fastgørelseshul: 3 (3)
  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 76.00
    No./mount. holes 3 (3)
    Position/50 15
    Prod. info BN
    Dist. 2 63.50
    Dist. 3 96.50
    Rotation CCW
    Dist./back 186.00
    Dist./front 60.00
    Drive dist. 21.50
    Gear type GR
    kW 1.6
    Terminal 50 M6
    Voltage 12
    Total length 260.00 mm
    Dist. 73.50 mm
    Thread length 13.50 mm
    Mount. hole 3 M8 mm
  • Køretøjsmatchning
    • OEM

      F032114741, 1986S00717, 250761, 292083, 0001109011, 0001314040, 58402060, 58402490
    • Konkurrentreferens

      CST10189, DRS0922, LRS02611, S0459, 500.529.113, 618.019.112, 31232N, 220719, 220719A, 254006, 11090313, 063521090110
    • NormaliseratArtNr

      cst10189, drs0922, f032114741, lrs02611, s0459, 1986s00717, 31232n, 220719, 220719a, 250761, 254006, 292083, 0001109011, 0001314040, 11090313, 58402060, 58402490, 500529113, 618019112, 063521090110
    • Passar modeller

      Piaggio Model: Ape Car D Model series: Ape Car D Size of motor: 0.5 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
      Piaggio Model: Ape Car TMD Model series: Ape Car TMD Size of motor: 0.5 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
      Piaggio Model: Ape Poker Quadriciclo Model series: Ape Poker Quadriciclo Size of motor: 0.4 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
