HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114818

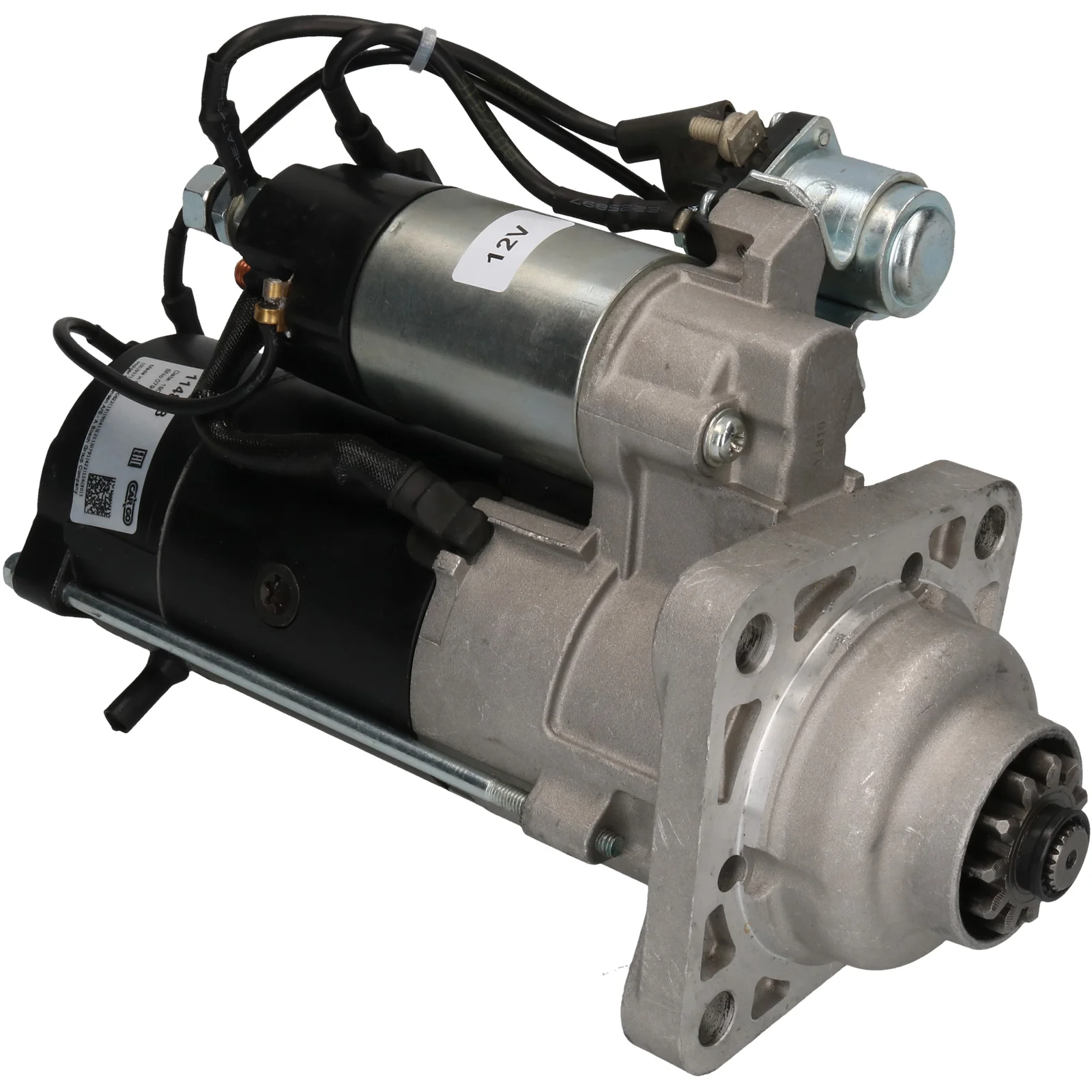

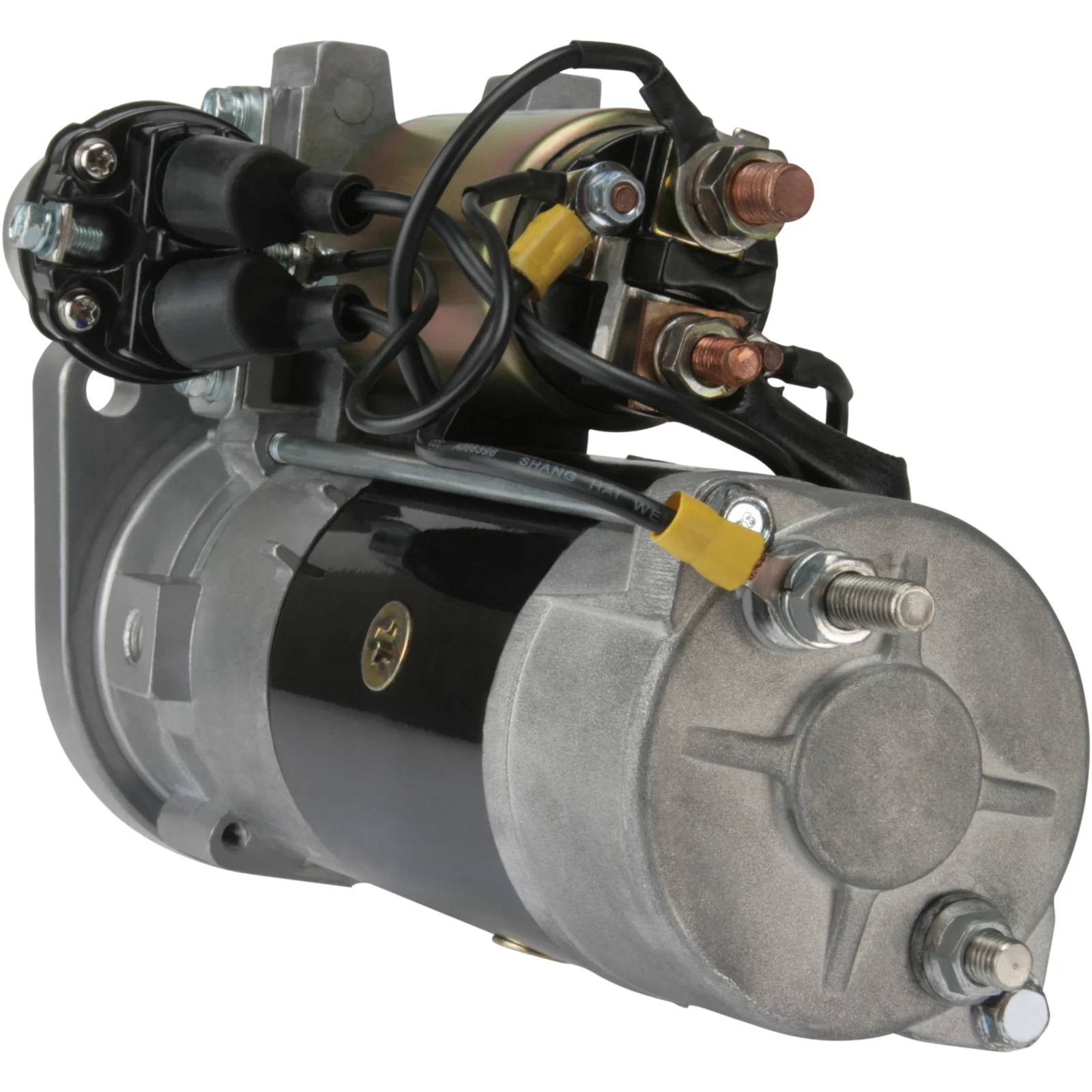

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 3,6, Nr./tænder: 11, Rotation: med uret

Beskrivelse

Start 12V-3.6kW passer til Penta 12V - 3.6kW, 11k, isoleret A - 89mm, B - 48mm, DE Gavel montagemsholder = 11,5 mm Alternativ: 91-605-5579 (13mm monteringshuller) For Yourex produkt bestilling 91-605-8555

Spænding: 12
kW: 3,6
Isoleret retur: Ja
Monteringsflange: 89,00
Driveafstand: 47,50
Monteringshul 3 mm: 13,00
Monteringshul 2 mm: 13,00
Monteringshul 1 mm: 13,00
Afstand/bag: 235,00
Afstand/front: 54,00
Antal/tenner: 11
B+: M10
Position/B+: 7
Gängtdepth mm: 22,00
Terminal 50: M5
Kuglen type: GR
Afstand 2: 90,00
Afstand 3: 90,00
Afstand mm: 127,00
Rotation: CW
Position/b-: 50
B-: M8
Total længde mm: 314,00
Produktinfo: BN
Antal/montagehuller: 3 (0)

Filer

Specifikation

B+ M10
B- M8
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/b- 50
Position/B+ 7
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 235.00
Dist./front 54.00
Drive dist. 47.50
Gear type GR
Insulated return Yes
kW 3.6
Terminal 50 M5
Voltage 12
Total length 314.00 mm
Dist. 127.00 mm
Thread length 22.00 mm
Mount. hole 3 13.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032114818, M008T55578, M008T55579, M008T55779, M8T-55578, M8T55578, M8T55579, M8T55779, M8T55779AM, 874501, 3588491, 3594614, 3801296, 3803938, 3841359, 21423438, 21423488

  • Konkurrentreferens
    CST35210, DRS0545, LRS02636, MITM8T55779, S5302S, S5395S, 25-4309, 25-5179, 638.057.112, 810.532.113, 30626N, 31502N, 220553, 220553A, 254537, 254699, 11040931

  • Bilmärken
    Volvo Penta

  • NormaliseratArtNr
    cst35210, drs0545, f032114818, lrs02636, m008t55578, m008t55579, m008t55779, m8t55578, m8t55579, m8t55779, m8t55779am, mitm8t55779, s5302s, s5395s, 30626n, 31502n, 220553, 220553a, 254309, 254537, 254699, 255179, 874501, 3588491, 3594614, 3801296, 3803938, 3841359, 11040931, 21423438, 21423488, 638057112, 810532113

  • Passar modeller
    Volvo Penta Model: Engine Model series: Various Models Approved: Yes
    Volvo Penta Series: Marin Model: D 4-180... (12V)
    Volvo Penta Series: Marin Model: D 4-260... (12V)
    Volvo Penta Series: Marin Model: D 4-300... (12V)
    Volvo Penta Series: Marin Model: D 6-300... (12V)
    Volvo Penta Series: Marin Model: D 6-330... (12V)
    Volvo Penta Series: Marin Model: D 6-370... (12V)
    Volvo Penta Series: Marin Model: D 6-435... (12V)
