HC-Cargo Startmotor

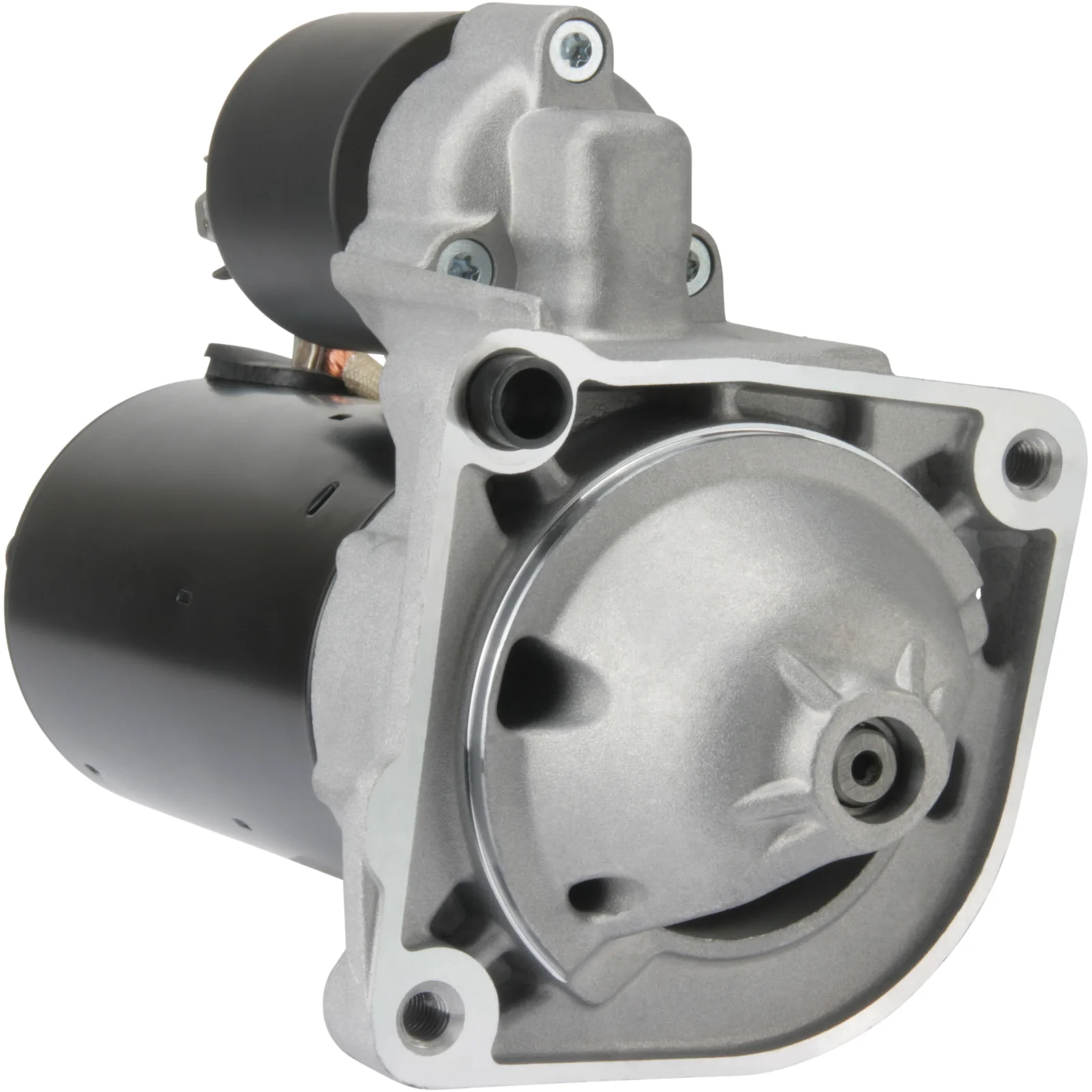

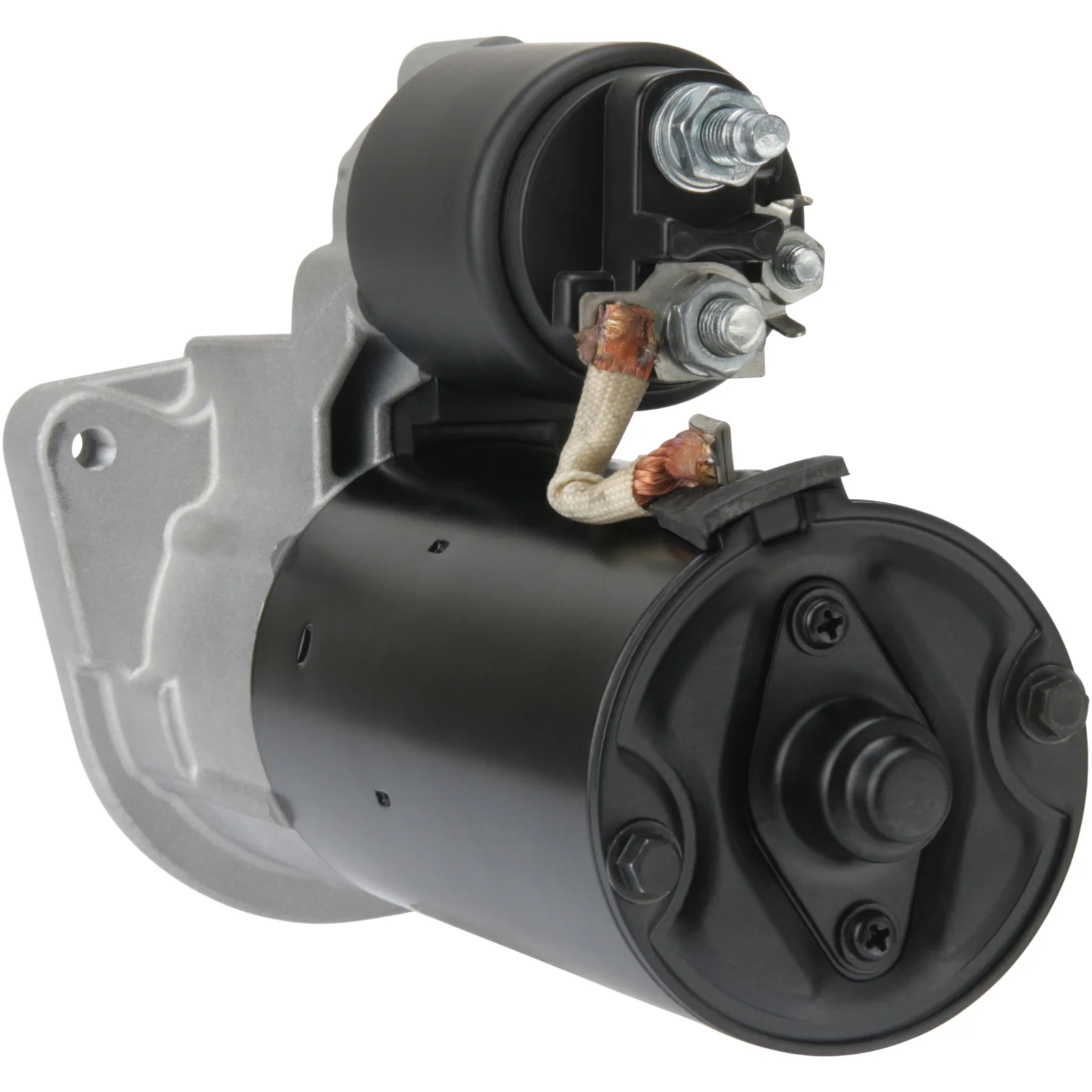

HC-Cargo Startmotor
Vare nr.: F032114833

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.7, Nr./tænder: 9, Rotation: CW

Beskrivelse

Spændingsføler: 12
kW: 1.7
Monteringsflange: 82.00
Drevafstand: 1.00
Monteringshul 3 mm: M8
Afstand/bag: 181.00
Afstand/frem: 36.00
Antal/tenner: 9
B+: M8
Position/50: 15
Terminal 50: M6
Koblingstype: GR
Afstand 2: 82.50
Afstand 3: 82.50
Afstand mm: 116.00
Rotation: CW
Samlet længde mm: 235.00
Produktinfo: BN
Antal/monteringshuller: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.00
No./mount. holes 3 (3)
Position/50 15
Prod. info BN
Dist. 2 82.50
Dist. 3 82.50
Rotation CW
Dist./back 181.00
Dist./front 36.00
Drive dist. 1.00
Gear type GR
kW 1.7
Terminal 50 M6
Voltage 12
Total length 235.00 mm
Dist. 116.00 mm
Mount. hole 3 M8 mm

  • OEM
    A25380, cs1552, CS1552, CST10455, DRS0787, F032114833, LRS02645, S0307, S0307PR, S0307SR, STR-B301, STR50624, 8EA011611-921, 25-4318, 96MF6C301BC, 318.223.092, 500.565.093, 1986S00777, 3173, 5750YG, 5750Z6, 30315N, 107175, 201167, 220610, 220610A, 220906, 220906A, 254655, 255366, 438496, 458817, 1004485, 1041193, 0001115078, 0001115079, 0001115114, 0001115115, 0001115120, 0001115121, 8080292, 9189229, 9458411, 10439556, 11090203, 42025380, 46769821, 047903137AB, 51832949, 51855784, 51984357, 51984357A152, 52110465, 55832949, 71724237, 71724240, 71739910, 71794785, 71794786, 71797122, 074145933AD, 074145933AR, 0986025380, 5000693140, 7700101261, 7700107175, 500565093010

  • Konkurrentreferens
    CST10455, DRS0787, LRS02645, S0307, S0307PR, S0307SR, STR-B301, STR50624, 8EA011611-921, 25-4318, 318.223.092, 500.565.093, 3173, 30315N, 107175, 201167, 220610, 220610A, 220906, 220906A, 254655, 255366, 438496, 458817, 8080292, 11090203, 42025380, 0986025380

  • Bilmärken
    FIAT

  • NormaliseratArtNr
    a25380, cs1552, cst10455, drs0787, f032114833, lrs02645, s0307, s0307pr, s0307sr, str50624, strb301, 8ea011611921, 96mf6c301bc, 1986s00777, 3173, 5750yg, 5750z6, 30315n, 107175, 201167, 220610, 220610a, 220906, 220906a, 254318, 254655, 255366, 438496, 458817, 1004485, 1041193, 0001115078, 0001115079, 0001115114, 0001115115, 0001115120, 0001115121, 8080292, 9189229, 9458411, 10439556, 11090203, 42025380, 46769821, 047903137ab, 51832949, 51855784, 51984357, 51984357a152, 52110465, 55832949, 71724237, 71724240, 71739910, 71794785, 71794786, 71797122, 074145933ad, 074145933ar, 318223092, 500565093, 0986025380, 5000693140, 7700101261, 7700107175, 500565093010

  • Passar modeller
    FIAT DUCATO Buss (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 05.14-
    FIAT DUCATO Buss (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
    FIAT DUCATO Buss (250_) 120 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE0481D Year: 07.06-10.13
    FIAT DUCATO Buss (250_) 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 06.11-
    FIAT DUCATO Buss (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411M, F1AE3481D, F1AGL411D, F1AE0481N Year: 01.07-
    FIAT DUCATO Buss (250_) 140 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4113 Year: 05.19-
    FIAT DUCATO Buss (250_) 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 04.15-
    FIAT DUCATO Buss (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
    FIAT DUCATO Buss (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 04.15-
    FIAT DUCATO Flak/chassi (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 08.06-
    FIAT DUCATO Flak/chassi (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
    FIAT DUCATO Flak/chassi (250_) 120 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE0481D Year: 03.10-
    FIAT DUCATO Flak/chassi (250_) 120 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4114, F1AE0481D Year: 07.06-
    FIAT DUCATO Flak/chassi (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 08.06-
    FIAT DUCATO Flak/chassi (250_) 140 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4113 Year: 05.19-
    FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
    FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411C Year: 12.15-
    FIAT DUCATO Flak/chassi (250_) 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111, F1AGL411B Year: 12.15-
    FIAT DUCATO Skåp (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 05.14-
    FIAT DUCATO Skåp (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
    FIAT DUCATO Skåp (250_) 120 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE0481D Year: 03.10-
    FIAT DUCATO Skåp (250_) 120 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4114, F1AE0481D Year: 07.06-
    FIAT DUCATO Skåp (250_) 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 06.11-
    FIAT DUCATO Skåp (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 08.06-
    FIAT DUCATO Skåp (250_) 140 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4113 Year: 05.19-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
    FIAT DUCATO Skåp (250_) 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111, F1AGL4115, F1AGL411B Year: 12.15-
    1 / 6
  • Beskrivelse
    Spændingsføler: 12
    kW: 1.7
    Monteringsflange: 82.00
    Drevafstand: 1.00
    Monteringshul 3 mm: M8
    Afstand/bag: 181.00
    Afstand/frem: 36.00
    Antal/tenner: 9
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Koblingstype: GR
    Afstand 2: 82.50
    Afstand 3: 82.50
    Afstand mm: 116.00
    Rotation: CW
    Samlet længde mm: 235.00
    Produktinfo: BN
    Antal/monteringshuller: 3 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.00
    No./mount. holes 3 (3)
    Position/50 15
    Prod. info BN
    Dist. 2 82.50
    Dist. 3 82.50
    Rotation CW
    Dist./back 181.00
    Dist./front 36.00
    Drive dist. 1.00
    Gear type GR
    kW 1.7
    Terminal 50 M6
    Voltage 12
    Total length 235.00 mm
    Dist. 116.00 mm
    Mount. hole 3 M8 mm
  • Køretøjsmatchning

    • OEM
      A25380, cs1552, CS1552, CST10455, DRS0787, F032114833, LRS02645, S0307, S0307PR, S0307SR, STR-B301, STR50624, 8EA011611-921, 25-4318, 96MF6C301BC, 318.223.092, 500.565.093, 1986S00777, 3173, 5750YG, 5750Z6, 30315N, 107175, 201167, 220610, 220610A, 220906, 220906A, 254655, 255366, 438496, 458817, 1004485, 1041193, 0001115078, 0001115079, 0001115114, 0001115115, 0001115120, 0001115121, 8080292, 9189229, 9458411, 10439556, 11090203, 42025380, 46769821, 047903137AB, 51832949, 51855784, 51984357, 51984357A152, 52110465, 55832949, 71724237, 71724240, 71739910, 71794785, 71794786, 71797122, 074145933AD, 074145933AR, 0986025380, 5000693140, 7700101261, 7700107175, 500565093010

    • Konkurrentreferens
      CST10455, DRS0787, LRS02645, S0307, S0307PR, S0307SR, STR-B301, STR50624, 8EA011611-921, 25-4318, 318.223.092, 500.565.093, 3173, 30315N, 107175, 201167, 220610, 220610A, 220906, 220906A, 254655, 255366, 438496, 458817, 8080292, 11090203, 42025380, 0986025380

    • Bilmärken
      FIAT

    • NormaliseratArtNr
      a25380, cs1552, cst10455, drs0787, f032114833, lrs02645, s0307, s0307pr, s0307sr, str50624, strb301, 8ea011611921, 96mf6c301bc, 1986s00777, 3173, 5750yg, 5750z6, 30315n, 107175, 201167, 220610, 220610a, 220906, 220906a, 254318, 254655, 255366, 438496, 458817, 1004485, 1041193, 0001115078, 0001115079, 0001115114, 0001115115, 0001115120, 0001115121, 8080292, 9189229, 9458411, 10439556, 11090203, 42025380, 46769821, 047903137ab, 51832949, 51855784, 51984357, 51984357a152, 52110465, 55832949, 71724237, 71724240, 71739910, 71794785, 71794786, 71797122, 074145933ad, 074145933ar, 318223092, 500565093, 0986025380, 5000693140, 7700101261, 7700107175, 500565093010

    • Passar modeller
      FIAT DUCATO Buss (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 05.14-
      FIAT DUCATO Buss (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
      FIAT DUCATO Buss (250_) 120 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE0481D Year: 07.06-10.13
      FIAT DUCATO Buss (250_) 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 06.11-
      FIAT DUCATO Buss (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411M, F1AE3481D, F1AGL411D, F1AE0481N Year: 01.07-
      FIAT DUCATO Buss (250_) 140 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4113 Year: 05.19-
      FIAT DUCATO Buss (250_) 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 04.15-
      FIAT DUCATO Buss (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
      FIAT DUCATO Buss (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 04.15-
      FIAT DUCATO Flak/chassi (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 08.06-
      FIAT DUCATO Flak/chassi (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
      FIAT DUCATO Flak/chassi (250_) 120 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE0481D Year: 03.10-
      FIAT DUCATO Flak/chassi (250_) 120 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4114, F1AE0481D Year: 07.06-
      FIAT DUCATO Flak/chassi (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 08.06-
      FIAT DUCATO Flak/chassi (250_) 140 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4113 Year: 05.19-
      FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
      FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411C Year: 12.15-
      FIAT DUCATO Flak/chassi (250_) 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111, F1AGL411B Year: 12.15-
      FIAT DUCATO Skåp (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 05.14-
      FIAT DUCATO Skåp (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
      FIAT DUCATO Skåp (250_) 120 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE0481D Year: 03.10-
      FIAT DUCATO Skåp (250_) 120 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4114, F1AE0481D Year: 07.06-
      FIAT DUCATO Skåp (250_) 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 06.11-
      FIAT DUCATO Skåp (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 08.06-
      FIAT DUCATO Skåp (250_) 140 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4113 Year: 05.19-
      FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
      FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
      FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
      FIAT DUCATO Skåp (250_) 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111, F1AGL4115, F1AGL411B Year: 12.15-
      1 / 6
