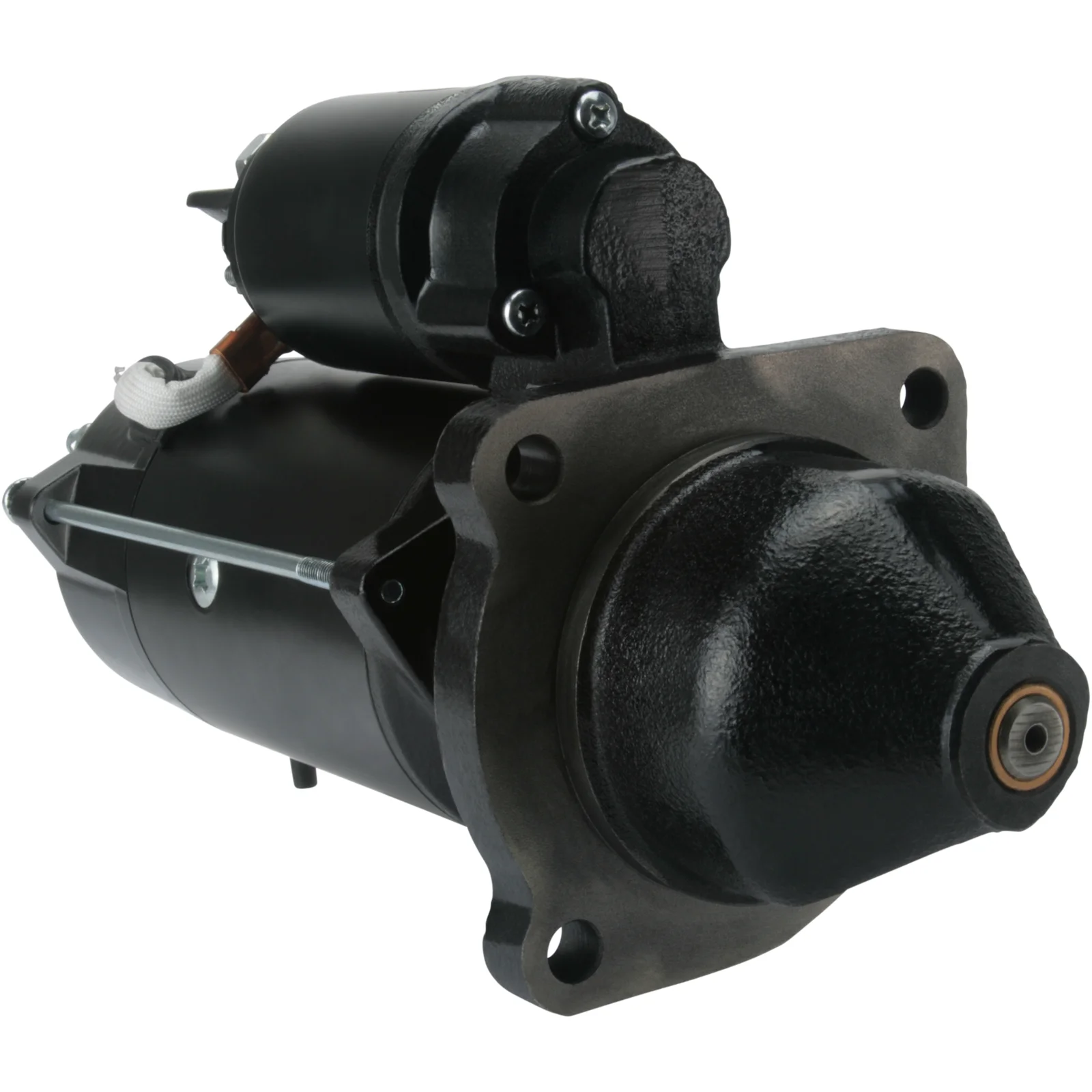

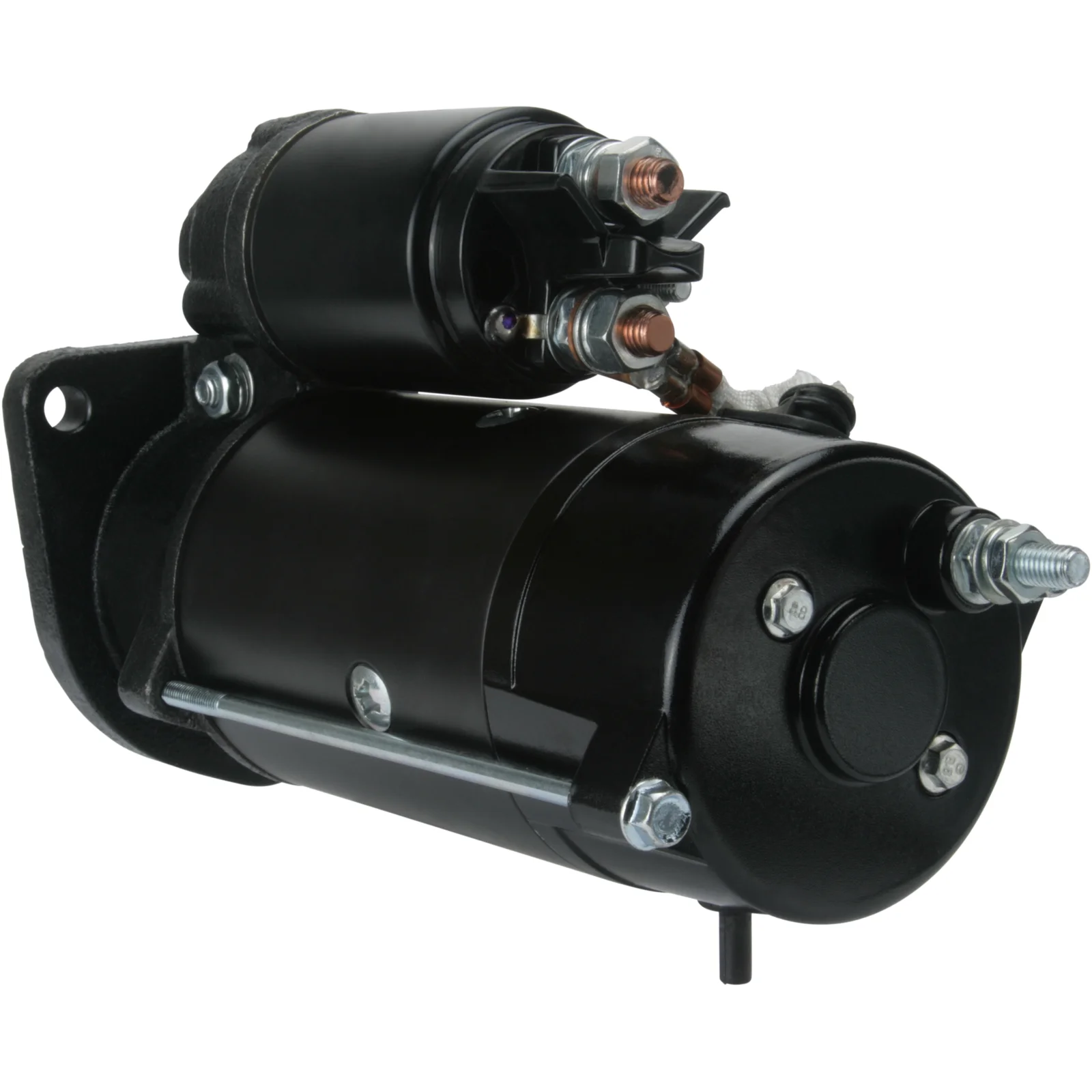

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114852

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 4.2, No./tenner: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 4,2
Monteringsflange: 89,00
Drevafstand: 29,50
Monteringshul 3 mm: 11,00
Monteringshul 2 mm: 11,00
Monteringshul 1 mm: 11,00
Afstand/bag: 241,00
Afstand/frem: 77,50
Antal/tænder: 10
B+: M10
Gevindlængde mm: 18,00
Position/50: 17
Terminal 50: M6
Kuglecausetype: GR
Afstand 2: 90,00
Afstand 3: 90,00
Afstand mm: 127,00
Rotation: CW
Position/b-: 10
B-: M10
Samlet længde mm: 350,00
Produktinfo: BN
Antal/monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 17
Position/b- 10
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 241.00
Dist./front 77.50
Drive dist. 29.50
Gear type GR
kW 4.2
Terminal 50 M6
Voltage 12
Total length 350.00 mm
Dist. 127.00 mm
Thread length 18.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4164, AZF4196, AZF4206, AZF4208, AZF4248, AZF4269, F032114852, M100R2015SE, T406154, 11.131.640, 11.131.763, 11.131.784, 11.131.792, 11.131.900, 11.132.008, 2873K604, 2873K605, 2873K606, 2873K635, 788116, 3317010, 7169479, 7220938

  • Konkurrentreferens
    CST21155, CST21215, DRS0277, IS1202, LRS02551, MS226, MS403, S9235, S9235(LETRIKA), S9362S, 700.531.103, 700.533.103, 16058N

  • NormaliseratArtNr
    azf4164, azf4196, azf4206, azf4208, azf4248, azf4269, cst21155, cst21215, drs0277, f032114852, is1202, lrs02551, m100r2015se, ms226, ms403, s9235, s9235letrika, s9362s, t406154, 2873k604, 2873k605, 2873k606, 2873k635, 16058n, 788116, 3317010, 7169479, 7220938, 11131640, 11131763, 11131784, 11131792, 11131900, 11132008, 700531103, 700533103

  • Passar modeller
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    Various Industrial applications Model: Various Industrial applications Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 4,2
    Monteringsflange: 89,00
    Drevafstand: 29,50
    Monteringshul 3 mm: 11,00
    Monteringshul 2 mm: 11,00
    Monteringshul 1 mm: 11,00
    Afstand/bag: 241,00
    Afstand/frem: 77,50
    Antal/tænder: 10
    B+: M10
    Gevindlængde mm: 18,00
    Position/50: 17
    Terminal 50: M6
    Kuglecausetype: GR
    Afstand 2: 90,00
    Afstand 3: 90,00
    Afstand mm: 127,00
    Rotation: CW
    Position/b-: 10
    B-: M10
    Samlet længde mm: 350,00
    Produktinfo: BN
    Antal/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 17
    Position/b- 10
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 241.00
    Dist./front 77.50
    Drive dist. 29.50
    Gear type GR
    kW 4.2
    Terminal 50 M6
    Voltage 12
    Total length 350.00 mm
    Dist. 127.00 mm
    Thread length 18.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      AZF4164, AZF4196, AZF4206, AZF4208, AZF4248, AZF4269, F032114852, M100R2015SE, T406154, 11.131.640, 11.131.763, 11.131.784, 11.131.792, 11.131.900, 11.132.008, 2873K604, 2873K605, 2873K606, 2873K635, 788116, 3317010, 7169479, 7220938

    • Konkurrentreferens
      CST21155, CST21215, DRS0277, IS1202, LRS02551, MS226, MS403, S9235, S9235(LETRIKA), S9362S, 700.531.103, 700.533.103, 16058N

    • NormaliseratArtNr
      azf4164, azf4196, azf4206, azf4208, azf4248, azf4269, cst21155, cst21215, drs0277, f032114852, is1202, lrs02551, m100r2015se, ms226, ms403, s9235, s9235letrika, s9362s, t406154, 2873k604, 2873k605, 2873k606, 2873k635, 16058n, 788116, 3317010, 7169479, 7220938, 11131640, 11131763, 11131784, 11131792, 11131900, 11132008, 700531103, 700533103

    • Passar modeller
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
      Various Industrial applications Model: Various Industrial applications Approved: Yes
