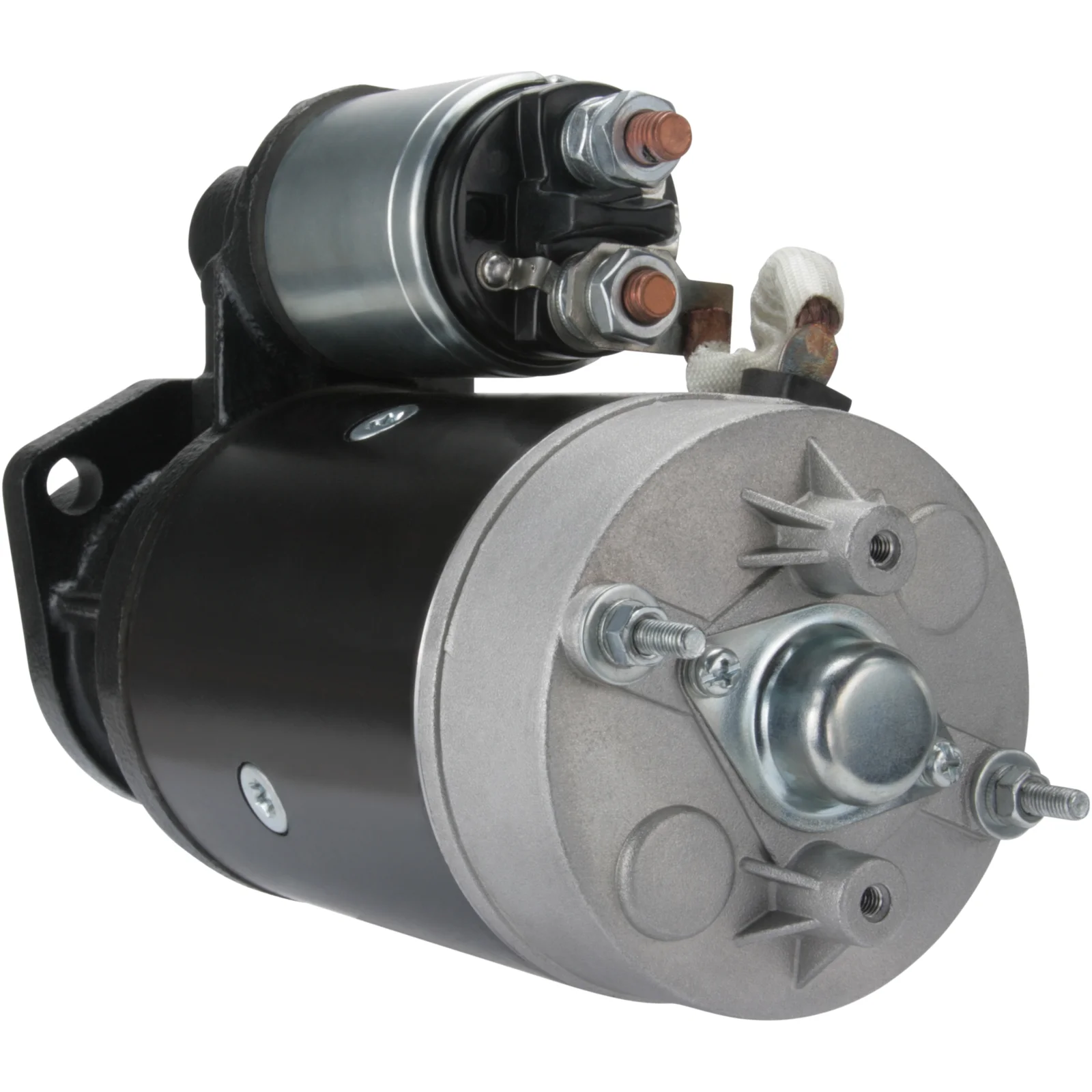

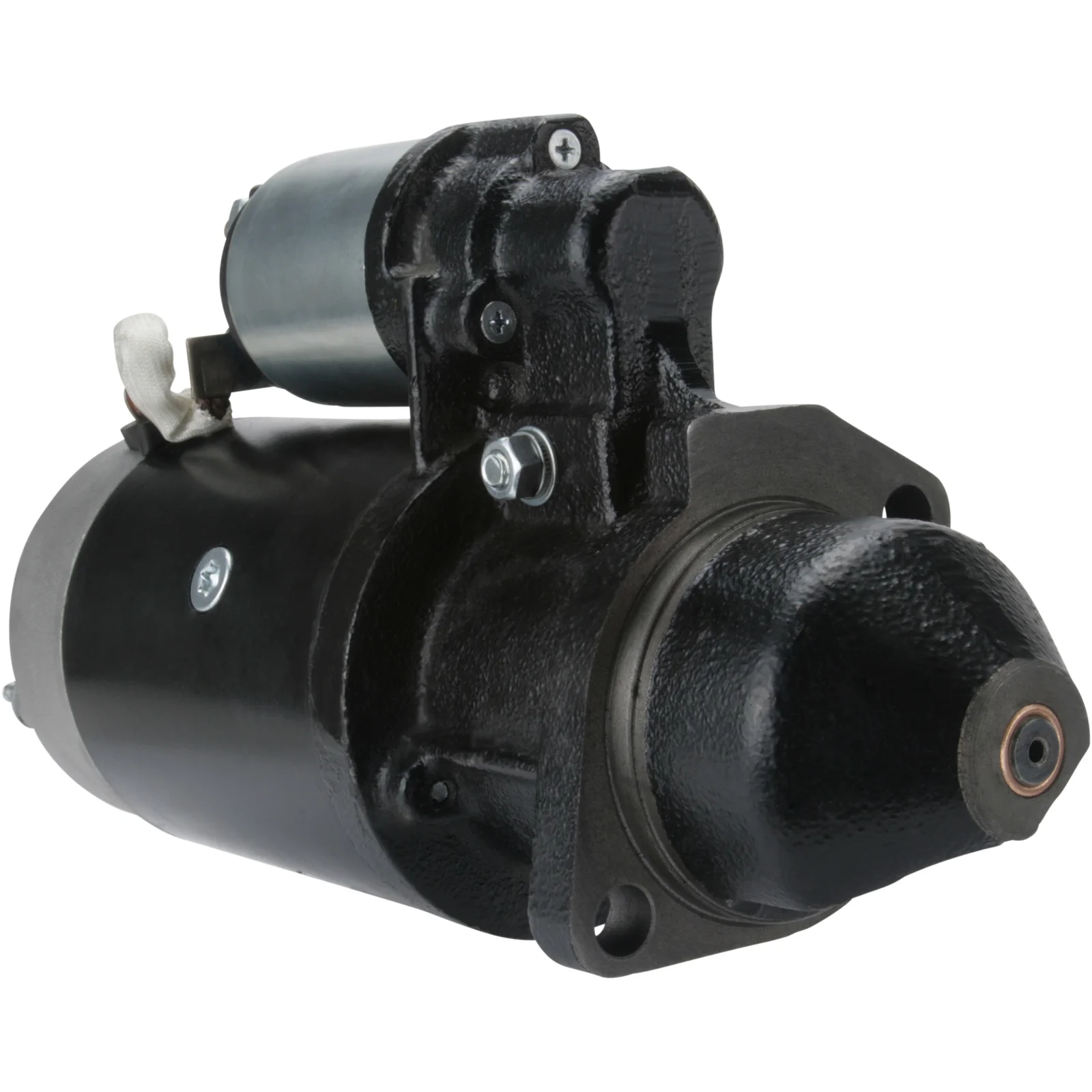

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115423

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 3,0, Antal/iveskæder: 9, Rotation: CCW

Beskrivelse

Virking: 12
kW: 3.0
Monteringsflange: 82,50
Drev afstand: 21,00
Monteringshul 2 mm: 13,50
Monteringshul 1 mm: 13,50
Afstand/bag: 255,00
Afstand/foran: 67,50
Nr./tænder: 9
B+: M10
Gennemløbslængde mm: 10,00
Position/50: 15
Terminal 50: M4
Drejningstype: DD
Afstand mm: 105,00
Rotation: CCW
Total længde mm: 330,00
Produktinfo: BN
Nr./monteringshuller: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CCW
Dist./back 255.00
Dist./front 67.50
Drive dist. 21.00
Gear type DD
kW 3.0
Terminal 50 M4
Voltage 12
Total length 330.00 mm
Dist. 105.00 mm
Thread length 10.00 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    azj0102, azj3138, azj3552, F032115423, mt71hb, mt74a, mtl12-10, 11.130.019, 11.130.248, 56308, 0001362058, 0001366003, 0001366029, 63217173, 63217180, 63217433, 66510522A, 1142510552

  • Konkurrentreferens
    CST10345, CST21101, DRS3306, DRS3329, is0248, lrs00951, lrs00957, MS392, S0560, S0563, 25-1455, 681.006.092, 690.534.092, 8598, 8755, 33463, 33591, 33807, 33894, 254092, 943217112, 943217180

  • NormaliseratArtNr
    azj0102, azj3138, azj3552, cst10345, cst21101, drs3306, drs3329, f032115423, is0248, lrs00951, lrs00957, ms392, mt71hb, mt74a, mtl1210, s0560, s0563, 8598, 8755, 33463, 33591, 33807, 33894, 56308, 251455, 254092, 0001362058, 0001366003, 0001366029, 11130019, 11130248, 63217173, 63217180, 63217433, 66510522a, 681006092, 690534092, 943217112, 943217180, 1142510552

  • Passar modeller
    BPM Model: Various Models Model series: Various Models Approved: Yes
    Goldoni Model: Various Models Model series: Various Models Approved: Yes
    Lombardini Model: Engine Model series: Various Models Approved: Yes
    Lombardini Model: Various Models Model series: Various Models Approved: Yes
    Lombardini Model: Various Models Model series: Various Models Size of motor: 0.3 Brand of engine: IM.. From date: 01-01-1975 Fuel: Gasoline Approved: Yes
    Ruggerini Model: RD Model series: Various Models From date: 01-09-1981 Approved: Yes
    Ruggerini Model: Various Models Model series: Various Models From date: 01-02-1995 Approved: Yes
    1 / 2
  • Beskrivelse
    Virking: 12
    kW: 3.0
    Monteringsflange: 82,50
    Drev afstand: 21,00
    Monteringshul 2 mm: 13,50
    Monteringshul 1 mm: 13,50
    Afstand/bag: 255,00
    Afstand/foran: 67,50
    Nr./tænder: 9
    B+: M10
    Gennemløbslængde mm: 10,00
    Position/50: 15
    Terminal 50: M4
    Drejningstype: DD
    Afstand mm: 105,00
    Rotation: CCW
    Total længde mm: 330,00
    Produktinfo: BN
    Nr./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CCW
    Dist./back 255.00
    Dist./front 67.50
    Drive dist. 21.00
    Gear type DD
    kW 3.0
    Terminal 50 M4
    Voltage 12
    Total length 330.00 mm
    Dist. 105.00 mm
    Thread length 10.00 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Køretøjsmatchning

    • OEM
      azj0102, azj3138, azj3552, F032115423, mt71hb, mt74a, mtl12-10, 11.130.019, 11.130.248, 56308, 0001362058, 0001366003, 0001366029, 63217173, 63217180, 63217433, 66510522A, 1142510552

    • Konkurrentreferens
      CST10345, CST21101, DRS3306, DRS3329, is0248, lrs00951, lrs00957, MS392, S0560, S0563, 25-1455, 681.006.092, 690.534.092, 8598, 8755, 33463, 33591, 33807, 33894, 254092, 943217112, 943217180

    • NormaliseratArtNr
      azj0102, azj3138, azj3552, cst10345, cst21101, drs3306, drs3329, f032115423, is0248, lrs00951, lrs00957, ms392, mt71hb, mt74a, mtl1210, s0560, s0563, 8598, 8755, 33463, 33591, 33807, 33894, 56308, 251455, 254092, 0001362058, 0001366003, 0001366029, 11130019, 11130248, 63217173, 63217180, 63217433, 66510522a, 681006092, 690534092, 943217112, 943217180, 1142510552

    • Passar modeller
      BPM Model: Various Models Model series: Various Models Approved: Yes
      Goldoni Model: Various Models Model series: Various Models Approved: Yes
      Lombardini Model: Engine Model series: Various Models Approved: Yes
      Lombardini Model: Various Models Model series: Various Models Approved: Yes
      Lombardini Model: Various Models Model series: Various Models Size of motor: 0.3 Brand of engine: IM.. From date: 01-01-1975 Fuel: Gasoline Approved: Yes
      Ruggerini Model: RD Model series: Various Models From date: 01-09-1981 Approved: Yes
      Ruggerini Model: Various Models Model series: Various Models From date: 01-02-1995 Approved: Yes
      1 / 2
