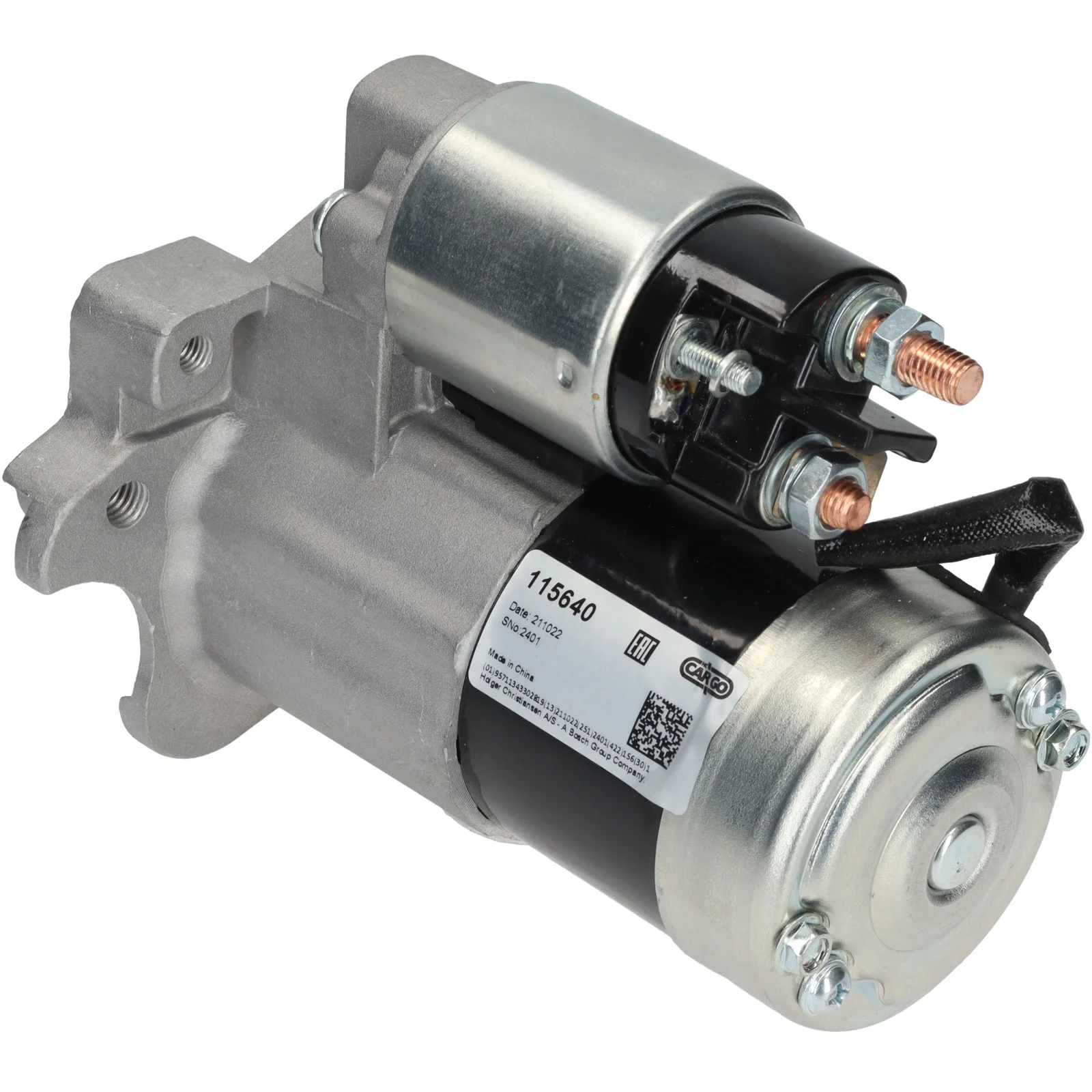

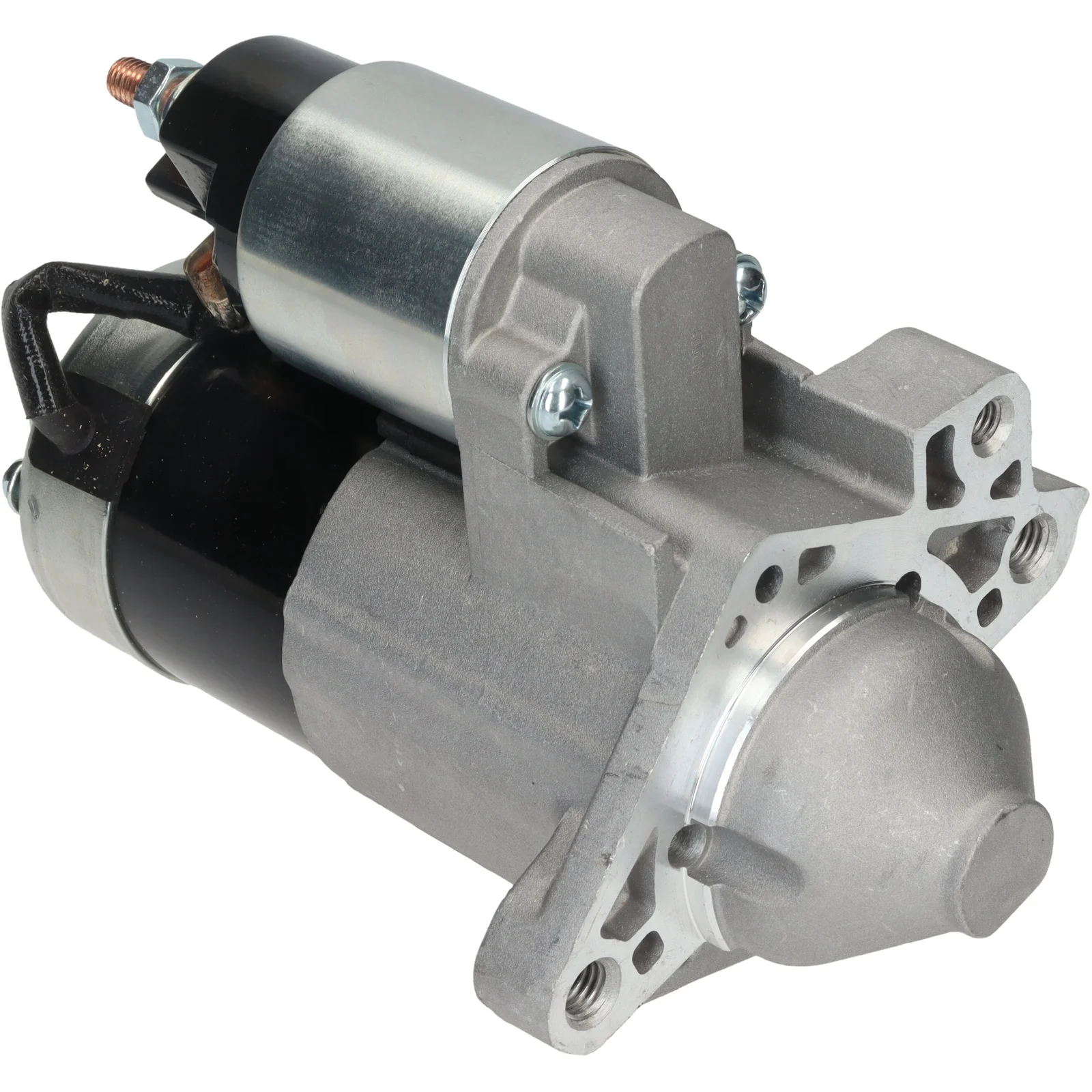

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115640

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1,0, Antal./tænder: 12, Rotation: med uret

Beskrivelse

Spænding: 12
kW: 1.0
Montageflange: 63.00
Driveafstand: 0.00
Montagehul 3 mm: M10
Afstand/bag: 158.50
Afstand/frem: 35.50
Antal/tænder: 12
B+: M8
Position/B+: 5
Position/50: 50
Terminal 50: M5
Geartype: GR
Afstand 2: 105.00
Afstand 3: 106.50
Afstand mm: 29.00
Rotation: CW
Total længde mm: 194.00
Antal/montagehuller: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 12
Mount. flange 63.00
No./mount. holes 3 (3)
Position/50 50
Position/B+ 5
Dist. 2 105.00
Dist. 3 106.50
Rotation CW
Dist./back 158.50
Dist./front 35.50
Drive dist. 0.00
Gear type GR
kW 1.0
Terminal 50 M5
Voltage 12
Total length 194.00 mm
Dist. 29.00 mm
Mount. hole 3 M10 mm

  • OEM
    CST35248, DRS0727, DRS0727N, F032115640, LRS02703, M000T45371, M000T45371AM, M000T45371ZC, M000T45371ZT, M000T45371ZTDM, M000T45871, M000T45871ZT, M000T92981, M0T45371, M0T45371AM, M0T45371ZC, M0T45371ZT, M0T45371ZTDM, M0T45871, M0T45871ZT, M0T92981, 25-4375, 330.055.122, 570.566.123, 438510, 458909, 11090230, 7711368060, 7711368264, 8200298371, 8200413215, 8200520411, 8200584387, 8200584837, 8200584847

  • Konkurrentreferens
    CST35248, DRS0727, DRS0727N, LRS02703, 25-4375, 330.055.122, 570.566.123, 438510, 458909, 11090230

  • Bilmärken
    RENAULT

  • NormaliseratArtNr
    cst35248, drs0727, drs0727n, f032115640, lrs02703, m000t45371, m000t45371am, m000t45371zc, m000t45371zt, m000t45371ztdm, m000t45871, m000t45871zt, m000t92981, m0t45371, m0t45371am, m0t45371zc, m0t45371zt, m0t45371ztdm, m0t45871, m0t45871zt, m0t92981, 254375, 438510, 458909, 11090230, 330055122, 570566123, 7711368060, 7711368264, 8200298371, 8200413215, 8200520411, 8200584387, 8200584837, 8200584847

  • Passar modeller
    RENAULT CLIO III (BR0/1, CR0/1) 1.4 16V Engine volume: 1.4 Engine type: K4J 780 Year: 06.05-12.12
    RENAULT CLIO III (BR0/1, CR0/1) 1.6 16V (BR05, BR0B, BR0Y, BR15, BR1J, BR1M, BR1Y, CR0B,... Engine volume: 1.6 Engine type: K4M 800, K4M 801 Year: 06.05-12.14
    RENAULT CLIO III (BR0/1, CR0/1) 1.6 16V (BR09, BR0T, CR09, CR0T) Engine volume: 1.6 Engine type: K4M 804 Year: 06.05-10.07
    RENAULT CLIO III (BR0/1, CR0/1) 1.6 16V GT (BR10, CR10) Engine volume: 1.6 Engine type: K4M 862 Year: 06.09-12.14
    RENAULT CLIO III Grandtour (KR0/1_) 1.4 16V Engine volume: 1.4 Engine type: K4J 780 Year: 11.07-12.12
    RENAULT CLIO III Grandtour (KR0/1_) 1.6 16V (KR0B) Engine volume: 1.6 Engine type: K4M 800, K4M 801 Year: 11.07-12.12
    RENAULT CLIO III Grandtour (KR0/1_) 1.6 16V (KR10) Engine volume: 1.6 Engine type: K4M 862 Year: 11.07-12.12
    RENAULT CLIO III Grandtour (KR0/1_) 1.6 16V Engine volume: 1.6 Engine type: K4M 804 Year: 11.07-12.12
    RENAULT MODUS / GRAND MODUS (F/JP0_) 1.4 (JP01, JP0J) Engine volume: 1.4 Engine type: K4J 780, K4J 770 Year: 12.04-12.13
    RENAULT MODUS / GRAND MODUS (F/JP0_) 1.6 (JP03, JP0B, JP0U, JP0Y, JP1G) Engine volume: 1.6 Engine type: K4M 790, K4M 791, K4M 800, K4M 801 Year: 12.04-12.13
    RENAULT MODUS / GRAND MODUS (F/JP0_) 1.6 (JP0L, JP0V) Engine volume: 1.6 Engine type: K4M 794 Year: 12.04-10.07
    RENAULT TWINGO II (CN0_) 1.6 RS (CN0N, CN0R, CN0S) Engine volume: 1.6 Engine type: K4M 854 Year: 05.08-09.14
    RENAULT WIND (E4M_) 1.6 (E4MB, E4MC) Engine volume: 1.6 Engine type: K4M 854 Year: 07.10-08.13
    1 / 3
  • Beskrivelse
    Spænding: 12
    kW: 1.0
    Montageflange: 63.00
    Driveafstand: 0.00
    Montagehul 3 mm: M10
    Afstand/bag: 158.50
    Afstand/frem: 35.50
    Antal/tænder: 12
    B+: M8
    Position/B+: 5
    Position/50: 50
    Terminal 50: M5
    Geartype: GR
    Afstand 2: 105.00
    Afstand 3: 106.50
    Afstand mm: 29.00
    Rotation: CW
    Total længde mm: 194.00
    Antal/montagehuller: 3 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 63.00
    No./mount. holes 3 (3)
    Position/50 50
    Position/B+ 5
    Dist. 2 105.00
    Dist. 3 106.50
    Rotation CW
    Dist./back 158.50
    Dist./front 35.50
    Drive dist. 0.00
    Gear type GR
    kW 1.0
    Terminal 50 M5
    Voltage 12
    Total length 194.00 mm
    Dist. 29.00 mm
    Mount. hole 3 M10 mm
  • Køretøjsmatchning

    • OEM
      CST35248, DRS0727, DRS0727N, F032115640, LRS02703, M000T45371, M000T45371AM, M000T45371ZC, M000T45371ZT, M000T45371ZTDM, M000T45871, M000T45871ZT, M000T92981, M0T45371, M0T45371AM, M0T45371ZC, M0T45371ZT, M0T45371ZTDM, M0T45871, M0T45871ZT, M0T92981, 25-4375, 330.055.122, 570.566.123, 438510, 458909, 11090230, 7711368060, 7711368264, 8200298371, 8200413215, 8200520411, 8200584387, 8200584837, 8200584847

    • Konkurrentreferens
      CST35248, DRS0727, DRS0727N, LRS02703, 25-4375, 330.055.122, 570.566.123, 438510, 458909, 11090230

    • Bilmärken
      RENAULT

    • NormaliseratArtNr
      cst35248, drs0727, drs0727n, f032115640, lrs02703, m000t45371, m000t45371am, m000t45371zc, m000t45371zt, m000t45371ztdm, m000t45871, m000t45871zt, m000t92981, m0t45371, m0t45371am, m0t45371zc, m0t45371zt, m0t45371ztdm, m0t45871, m0t45871zt, m0t92981, 254375, 438510, 458909, 11090230, 330055122, 570566123, 7711368060, 7711368264, 8200298371, 8200413215, 8200520411, 8200584387, 8200584837, 8200584847

    • Passar modeller
      RENAULT CLIO III (BR0/1, CR0/1) 1.4 16V Engine volume: 1.4 Engine type: K4J 780 Year: 06.05-12.12
      RENAULT CLIO III (BR0/1, CR0/1) 1.6 16V (BR05, BR0B, BR0Y, BR15, BR1J, BR1M, BR1Y, CR0B,... Engine volume: 1.6 Engine type: K4M 800, K4M 801 Year: 06.05-12.14
      RENAULT CLIO III (BR0/1, CR0/1) 1.6 16V (BR09, BR0T, CR09, CR0T) Engine volume: 1.6 Engine type: K4M 804 Year: 06.05-10.07
      RENAULT CLIO III (BR0/1, CR0/1) 1.6 16V GT (BR10, CR10) Engine volume: 1.6 Engine type: K4M 862 Year: 06.09-12.14
      RENAULT CLIO III Grandtour (KR0/1_) 1.4 16V Engine volume: 1.4 Engine type: K4J 780 Year: 11.07-12.12
      RENAULT CLIO III Grandtour (KR0/1_) 1.6 16V (KR0B) Engine volume: 1.6 Engine type: K4M 800, K4M 801 Year: 11.07-12.12
      RENAULT CLIO III Grandtour (KR0/1_) 1.6 16V (KR10) Engine volume: 1.6 Engine type: K4M 862 Year: 11.07-12.12
      RENAULT CLIO III Grandtour (KR0/1_) 1.6 16V Engine volume: 1.6 Engine type: K4M 804 Year: 11.07-12.12
      RENAULT MODUS / GRAND MODUS (F/JP0_) 1.4 (JP01, JP0J) Engine volume: 1.4 Engine type: K4J 780, K4J 770 Year: 12.04-12.13
      RENAULT MODUS / GRAND MODUS (F/JP0_) 1.6 (JP03, JP0B, JP0U, JP0Y, JP1G) Engine volume: 1.6 Engine type: K4M 790, K4M 791, K4M 800, K4M 801 Year: 12.04-12.13
      RENAULT MODUS / GRAND MODUS (F/JP0_) 1.6 (JP0L, JP0V) Engine volume: 1.6 Engine type: K4M 794 Year: 12.04-10.07
      RENAULT TWINGO II (CN0_) 1.6 RS (CN0N, CN0R, CN0S) Engine volume: 1.6 Engine type: K4M 854 Year: 05.08-09.14
      RENAULT WIND (E4M_) 1.6 (E4MB, E4MC) Engine volume: 1.6 Engine type: K4M 854 Year: 07.10-08.13
