Vare nr.: F032115697

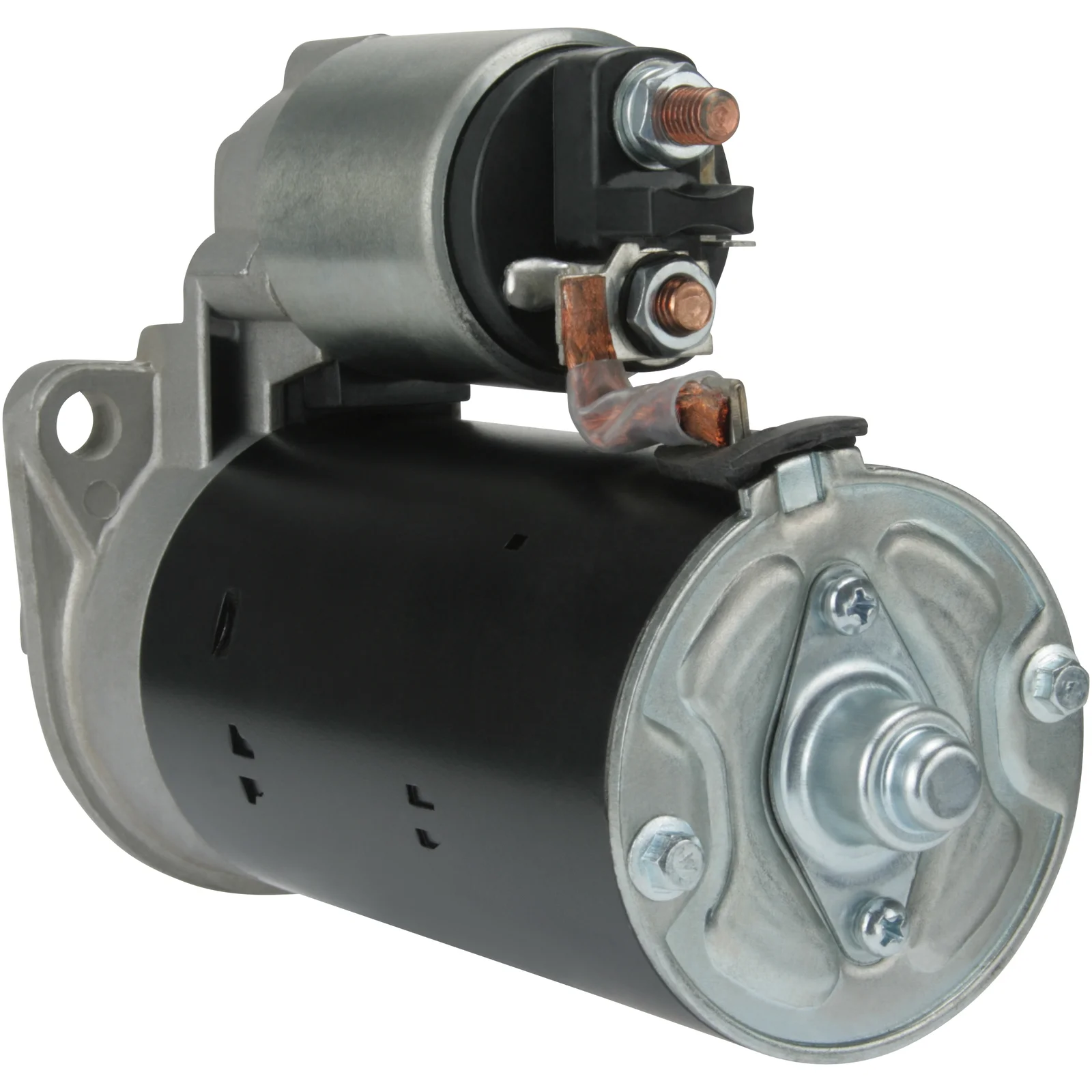

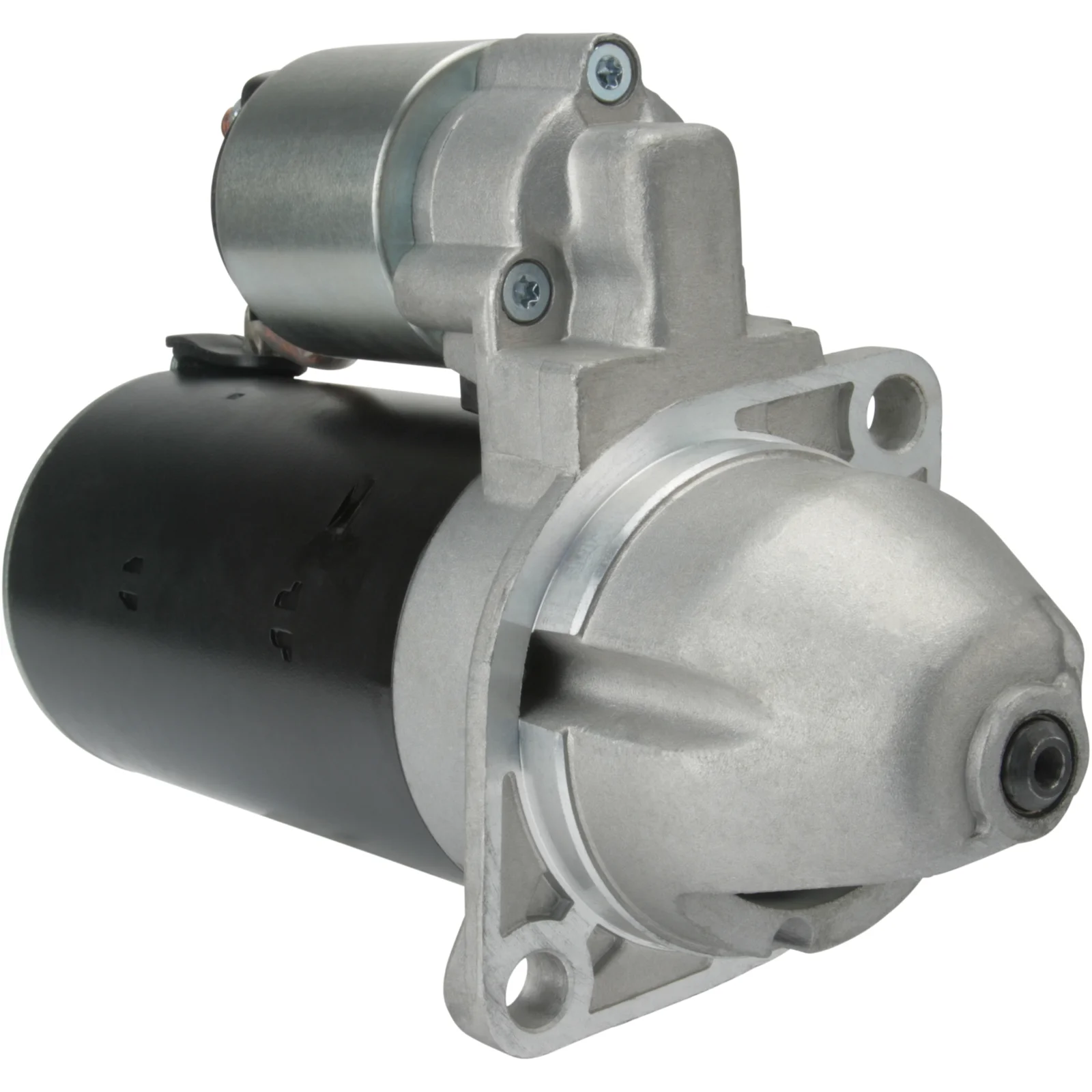

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.8, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.8
Monteringsflange: 76.20
Drevafstand: 28.00
Monteringshul 2 mm: 11.00
Monteringshul 1 mm: 11.00
Afstand/bag: 162.00
Afstand/frampå: 63.50
Antal / tænder: 9
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Afstand mm: 105.00
Rotation: med uret
Total længde mm: 238.00
Produktoplysninger: BN
Antal / monteringshuller: 2 (0)

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.20
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 162.00
Dist./front 63.50
Drive dist. 28.00
Gear type GR
kW 1.8
Terminal 50 6.30
Voltage 12
Total length 238.00 mm
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm
  • OEM

    AZE2645, F032115697, 11.131.255, 563R0610, 0001109016, 0001109028, 0058402280, 58402280
  • Konkurrentreferens

    CST10177, DRS0208, IS1115, MS98, S0835S, 690.502.092, 18367
  • NormaliseratArtNr

    aze2645, cst10177, drs0208, f032115697, is1115, ms98, s0835s, 563r0610, 18367, 0001109016, 0001109028, 11131255, 0058402280, 58402280, 690502092
  • Passar modeller

    Ruggerini Model: MD Model series: Various Models Brand of engine: MD300 Approved: Yes
    Ruggerini Model: MD Model series: Various Models Brand of engine: MD301 Approved: Yes
    Ruggerini Model: MD Model series: Various Models Brand of engine: MD350 Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.8
    Monteringsflange: 76.20
    Drevafstand: 28.00
    Monteringshul 2 mm: 11.00
    Monteringshul 1 mm: 11.00
    Afstand/bag: 162.00
    Afstand/frampå: 63.50
    Antal / tænder: 9
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Afstand mm: 105.00
    Rotation: med uret
    Total længde mm: 238.00
    Produktoplysninger: BN
    Antal / monteringshuller: 2 (0)
  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 76.20
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 162.00
    Dist./front 63.50
    Drive dist. 28.00
    Gear type GR
    kW 1.8
    Terminal 50 6.30
    Voltage 12
    Total length 238.00 mm
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning
    • OEM

      AZE2645, F032115697, 11.131.255, 563R0610, 0001109016, 0001109028, 0058402280, 58402280
    • Konkurrentreferens

      CST10177, DRS0208, IS1115, MS98, S0835S, 690.502.092, 18367
    • NormaliseratArtNr

      aze2645, cst10177, drs0208, f032115697, is1115, ms98, s0835s, 563r0610, 18367, 0001109016, 0001109028, 11131255, 0058402280, 58402280, 690502092
    • Passar modeller

      Ruggerini Model: MD Model series: Various Models Brand of engine: MD300 Approved: Yes
      Ruggerini Model: MD Model series: Various Models Brand of engine: MD301 Approved: Yes
      Ruggerini Model: MD Model series: Various Models Brand of engine: MD350 Approved: Yes
