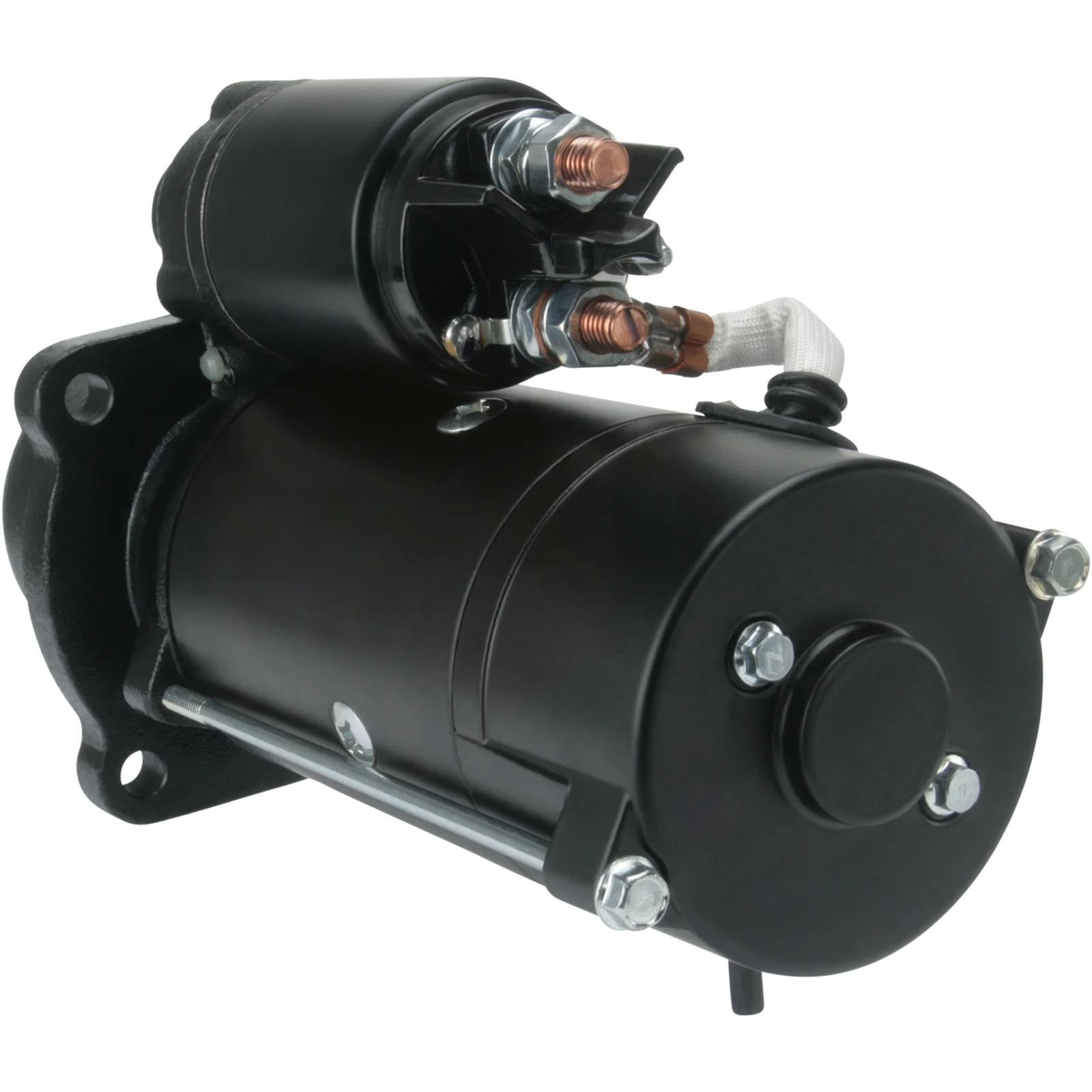

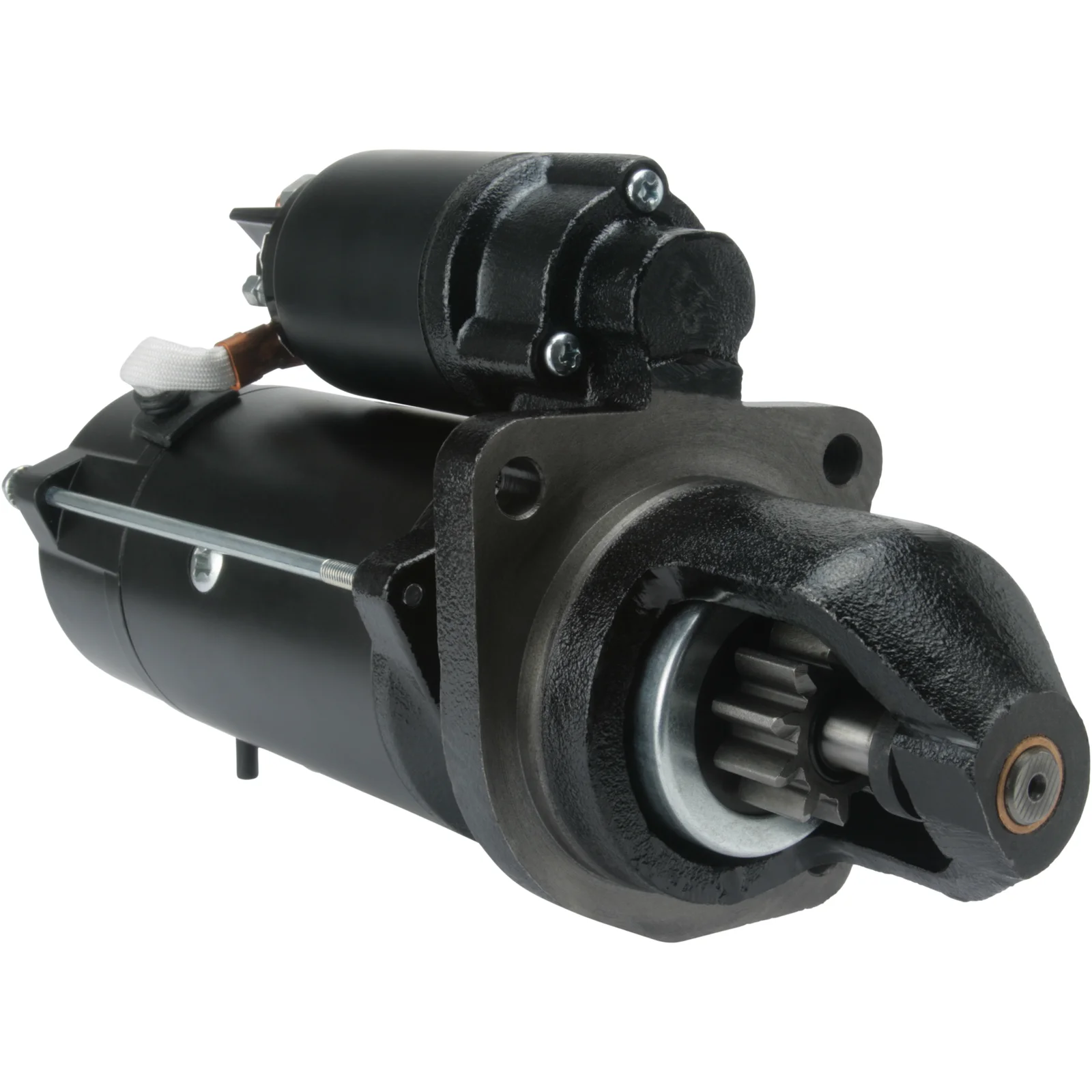

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115721

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 4.2, No./tenner: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 4.2
Monteringsflange: 89.00
Drevafstand: 48.00
Monteringshul 3 mm: 11.00
Monteringshul 2 mm: 11.00
Monteringshul 1 mm: 11.00
Afstand/ryg: 222.50
Afstand/for: 96.50
Antal/tænder: 10
B+: M10
Position/50: 17
Terminal 50: M5
Gears type: GR
Afstand 2: 127.00
Afstand 3: 90.00
Afstand mm: 90.00
Rotation: med uret
Total længde mm: 321.50
Prod. info: BN
Antal/monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 17
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 222.50
Dist./front 96.50
Drive dist. 48.00
Gear type GR
kW 4.2
Terminal 50 M5
Voltage 12
Total length 321.50 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    azf4553, AZF4598, F032115721, RE504009, RE509856, RE523502, RE68783, 11.131.145, 11.131.382, 502632, 3114986, 46550710

  • Konkurrentreferens
    CST21159, CST50104, IS1056, MS486, S9229, 650.502.103, 6584R

  • NormaliseratArtNr
    azf4553, azf4598, cst21159, cst50104, f032115721, is1056, ms486, re504009, re509856, re523502, re68783, s9229, 6584r, 502632, 3114986, 11131145, 11131382, 46550710, 650502103

  • Passar modeller
    Case Model: CS 660 Model series: CS 660 Size of motor: 8.3 Brand of engine: Cummins Approved: Yes
    Doosan Model: Various Industrial applications Model series: Various Models Approved: Yes
    John Deere Model: Combines Model series: Various Models Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 4.2
    Monteringsflange: 89.00
    Drevafstand: 48.00
    Monteringshul 3 mm: 11.00
    Monteringshul 2 mm: 11.00
    Monteringshul 1 mm: 11.00
    Afstand/ryg: 222.50
    Afstand/for: 96.50
    Antal/tænder: 10
    B+: M10
    Position/50: 17
    Terminal 50: M5
    Gears type: GR
    Afstand 2: 127.00
    Afstand 3: 90.00
    Afstand mm: 90.00
    Rotation: med uret
    Total længde mm: 321.50
    Prod. info: BN
    Antal/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 17
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 222.50
    Dist./front 96.50
    Drive dist. 48.00
    Gear type GR
    kW 4.2
    Terminal 50 M5
    Voltage 12
    Total length 321.50 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      azf4553, AZF4598, F032115721, RE504009, RE509856, RE523502, RE68783, 11.131.145, 11.131.382, 502632, 3114986, 46550710

    • Konkurrentreferens
      CST21159, CST50104, IS1056, MS486, S9229, 650.502.103, 6584R

    • NormaliseratArtNr
      azf4553, azf4598, cst21159, cst50104, f032115721, is1056, ms486, re504009, re509856, re523502, re68783, s9229, 6584r, 502632, 3114986, 11131145, 11131382, 46550710, 650502103

    • Passar modeller
      Case Model: CS 660 Model series: CS 660 Size of motor: 8.3 Brand of engine: Cummins Approved: Yes
      Doosan Model: Various Industrial applications Model series: Various Models Approved: Yes
      John Deere Model: Combines Model series: Various Models Approved: Yes
