HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115828

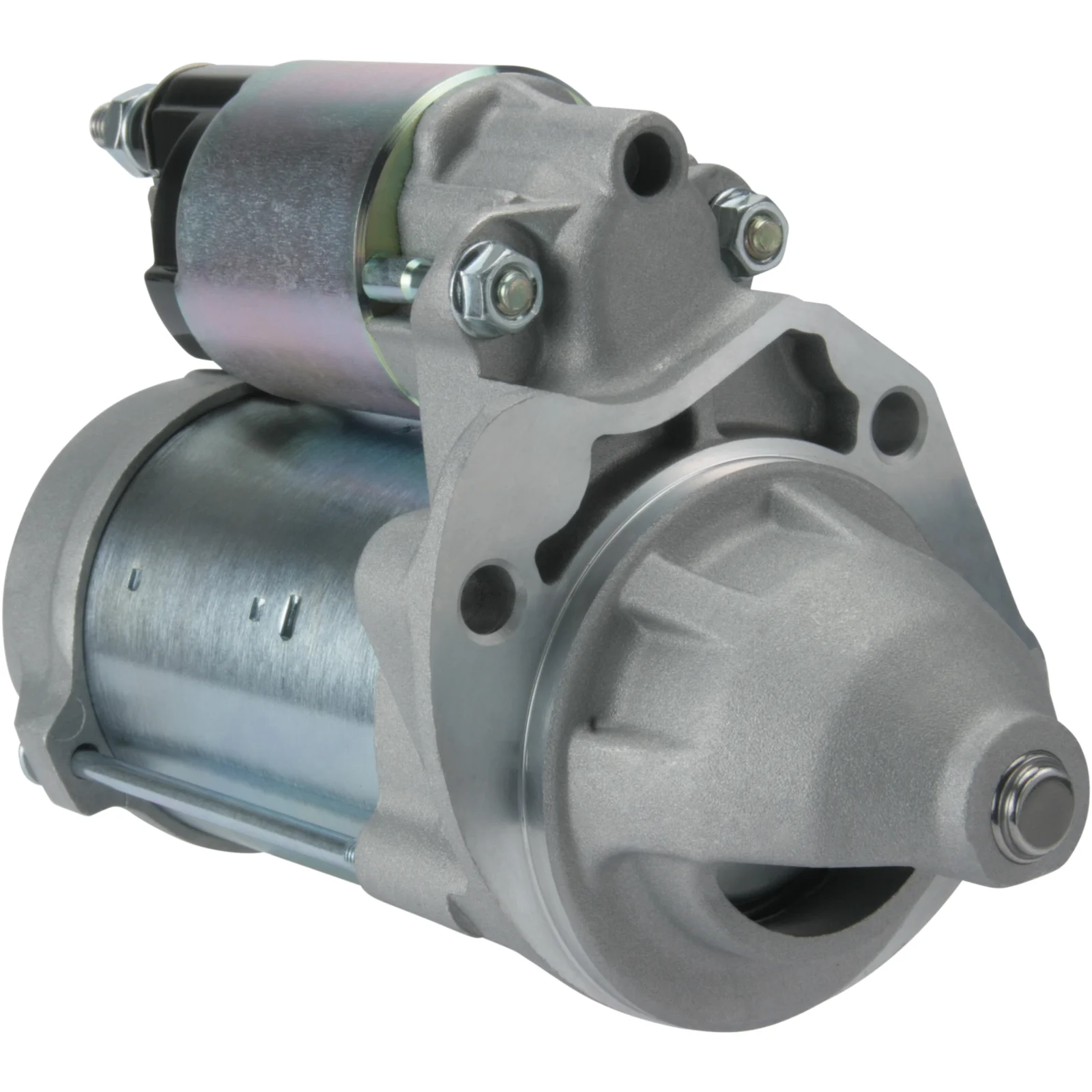

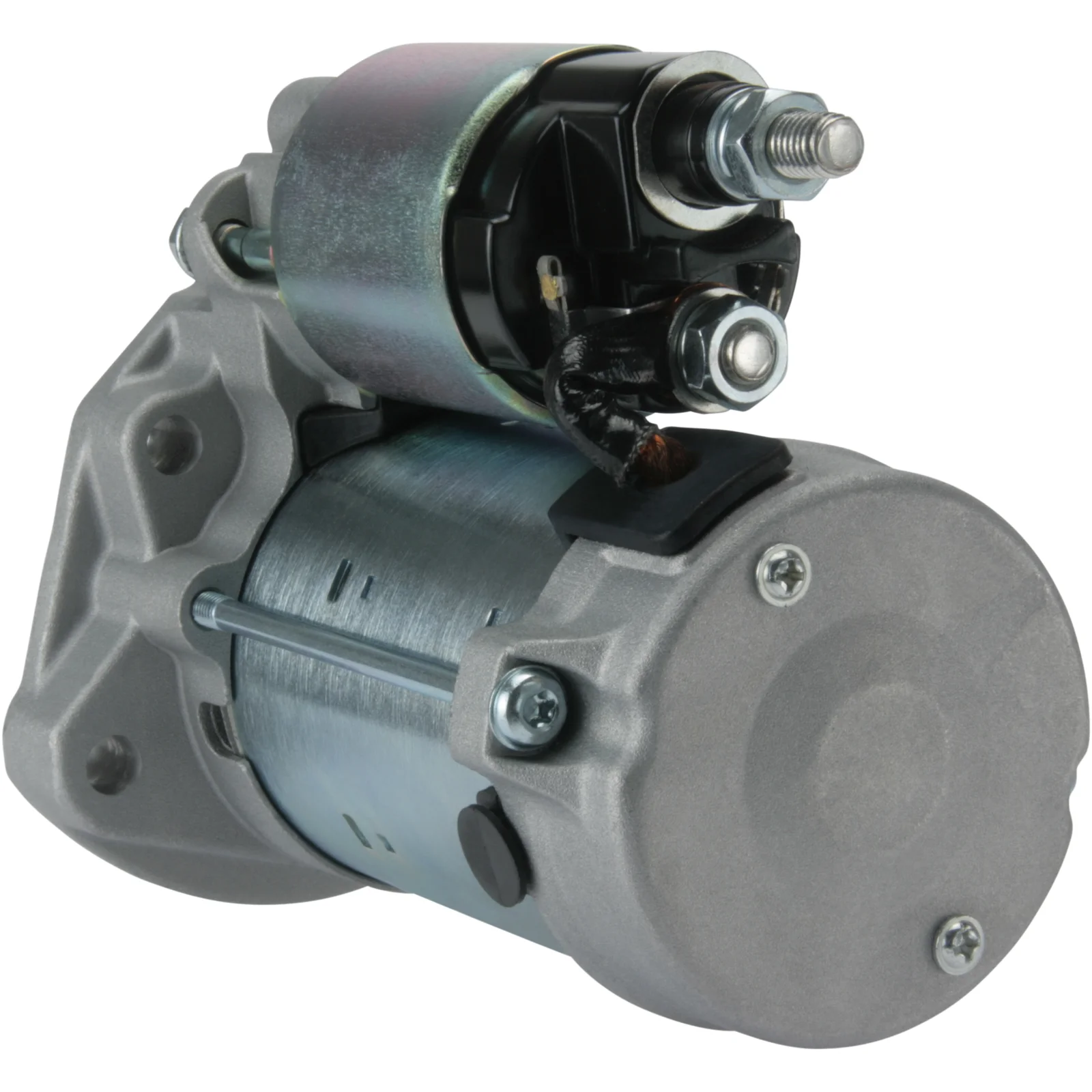

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.4, Nr./tænder: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1,4
Monteringsflange: 76,20
Drevafstand: 20,00
Monteringshul 3 mm: 8,50
Monteringshul 2 mm: 8,50
Monteringshul 1 mm: 8,50
Afstand/bag: 135,00
Afstand/frem: 54,50
Antal/tænder: 10
B+: M8
Position/50: 60
Geartype: GR
Afstand 2: 95,00
Afstand 3: 72,00
Afstand mm: 46,50
Rotation: med uret
Samlet længde mm: 189,50
Startm. type: Start/Stop
Producentinfo: BN
Antal/monteringshuller: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 76.20
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 95.00
Dist. 3 72.00
Rotation CW
Dist./back 135.00
Dist./front 54.50
Drive dist. 20.00
Gear type GR
Starter type Start/Stop
kW 1.4
Voltage 12
Total length 189.50 mm
Dist. 46.50 mm
Mount. hole 3 8.50 mm
Mount. hole 2 8.50 mm
Mount. hole 1 8.50 mm

  • OEM
    F032115828, 428000-7470, 51872564

  • Konkurrentreferens
    CST40351, DRS0913, DSN975, LRS02683, s6056, 25-4355, 318.224.102, 220672, 220672A

  • NormaliseratArtNr
    cst40351, drs0913, dsn975, f032115828, lrs02683, s6056, 220672, 220672a, 254355, 51872564, 318224102, 4280007470

  • Passar modeller
    Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 955 Body: Hatchback From date: 01-07-2011 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 C Model series: 500 C Size of motor: 0.9 Brand of engine: 312A6.000 Type description: 312_ Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500L Model series: 500L Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 351_, 352_ Body: Hatchback From date: 01-04-2017 Fuel: Gasoline/gas Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: Natural Power Size of motor: 0.9 Brand of engine: 46337566 Type description: 312_, 319_ Body: Hatchback From date: 01-03-2019 Fuel: LNG Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Type of engine: CNG Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312_ Body: Hatchback From date: 01-01-2014 Fuel: Gasoline/gas Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1,4
    Monteringsflange: 76,20
    Drevafstand: 20,00
    Monteringshul 3 mm: 8,50
    Monteringshul 2 mm: 8,50
    Monteringshul 1 mm: 8,50
    Afstand/bag: 135,00
    Afstand/frem: 54,50
    Antal/tænder: 10
    B+: M8
    Position/50: 60
    Geartype: GR
    Afstand 2: 95,00
    Afstand 3: 72,00
    Afstand mm: 46,50
    Rotation: med uret
    Samlet længde mm: 189,50
    Startm. type: Start/Stop
    Producentinfo: BN
    Antal/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 76.20
    No./mount. holes 3 (0)
    Position/50 60
    Prod. info BN
    Dist. 2 95.00
    Dist. 3 72.00
    Rotation CW
    Dist./back 135.00
    Dist./front 54.50
    Drive dist. 20.00
    Gear type GR
    Starter type Start/Stop
    kW 1.4
    Voltage 12
    Total length 189.50 mm
    Dist. 46.50 mm
    Mount. hole 3 8.50 mm
    Mount. hole 2 8.50 mm
    Mount. hole 1 8.50 mm
  • Køretøjsmatchning

    • OEM
      F032115828, 428000-7470, 51872564

    • Konkurrentreferens
      CST40351, DRS0913, DSN975, LRS02683, s6056, 25-4355, 318.224.102, 220672, 220672A

    • NormaliseratArtNr
      cst40351, drs0913, dsn975, f032115828, lrs02683, s6056, 220672, 220672a, 254355, 51872564, 318224102, 4280007470

    • Passar modeller
      Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 955 Body: Hatchback From date: 01-07-2011 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 C Model series: 500 C Size of motor: 0.9 Brand of engine: 312A6.000 Type description: 312_ Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: 500L Model series: 500L Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 351_, 352_ Body: Hatchback From date: 01-04-2017 Fuel: Gasoline/gas Approved: Yes
      Fiat Model: Panda Model series: Panda Model type: Natural Power Size of motor: 0.9 Brand of engine: 46337566 Type description: 312_, 319_ Body: Hatchback From date: 01-03-2019 Fuel: LNG Approved: Yes
      Lancia Model: Ypsilon Model series: Ypsilon Type of engine: CNG Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312_ Body: Hatchback From date: 01-01-2014 Fuel: Gasoline/gas Approved: Yes
