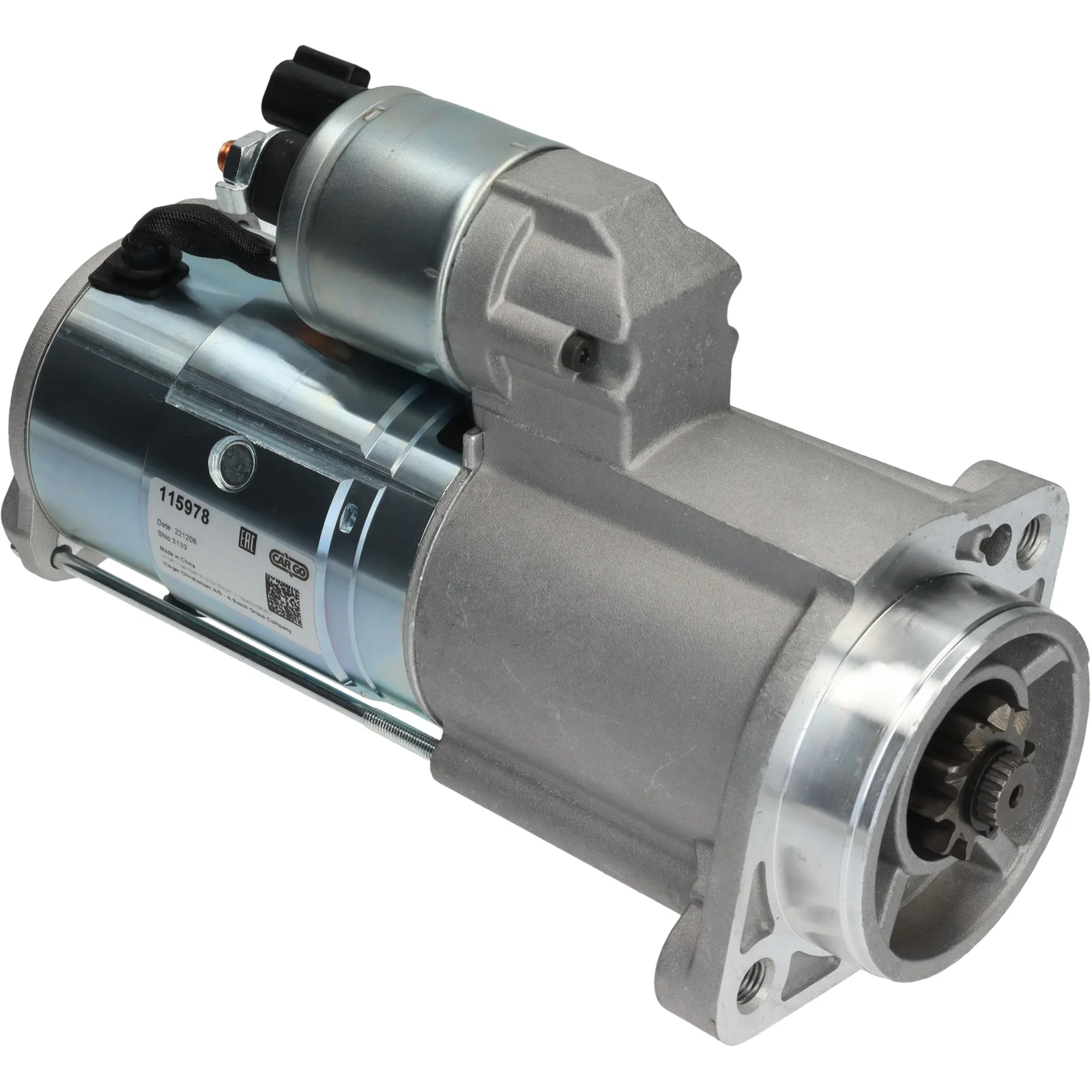

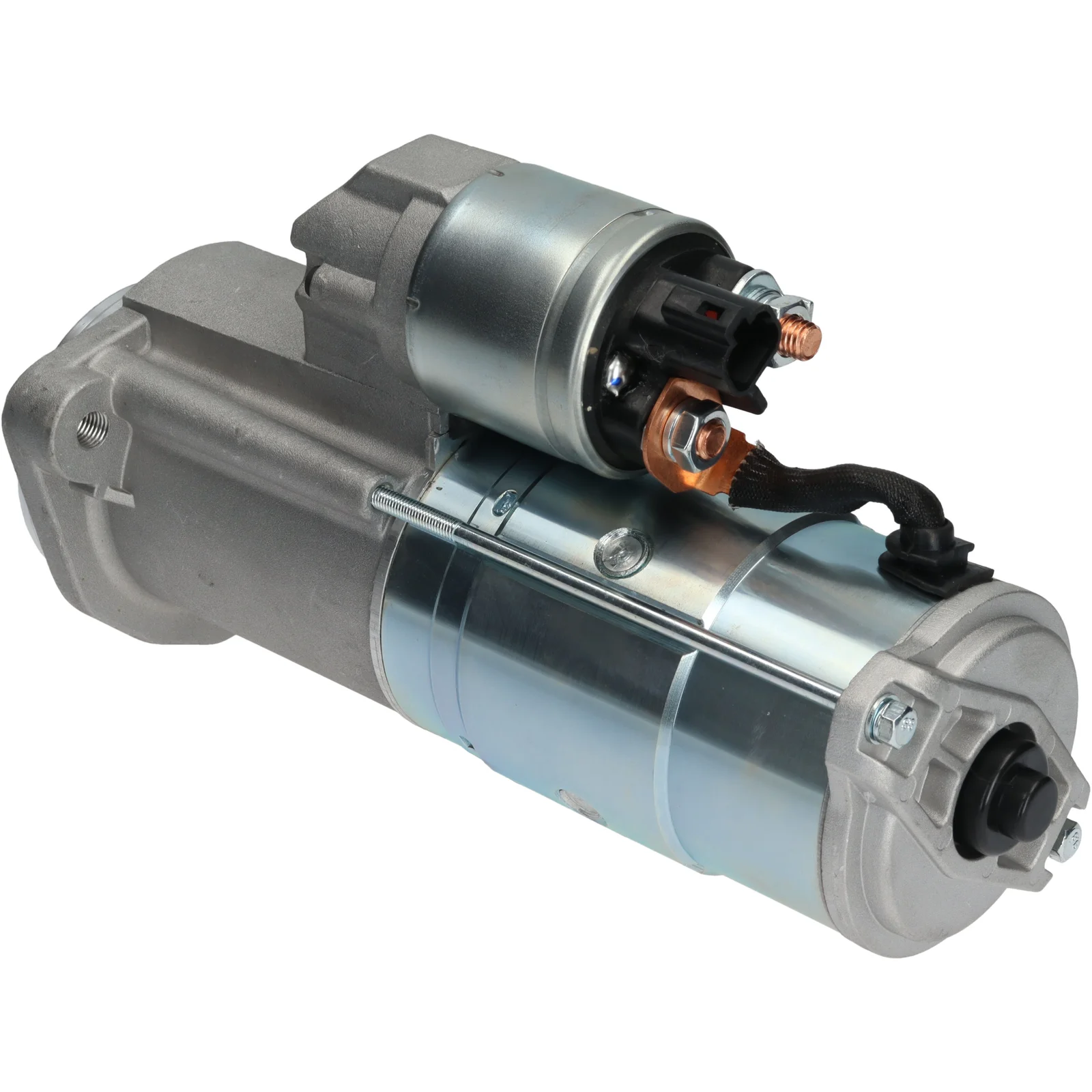

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032115978

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 2,2, Antal/tenner: 10, Rotation: CW

Beskrivelse

Spændingsføler: 12
kW: 2,2
Monteringsflange: 77,00
Drevafstand: 19,50
Monteringshul 2 mm: M10-1,25
Monteringshul 1 mm: M10-1,25
Afstand/bag: 235,00
Afstand/frem: 25,50
Antal/tenner: 10
B+: M8
Position/B+: 10
Position/50: 55
Terminal 50: 6,30
Gear type: GR
Afstand mm: 105,00
Rotation: CW
Total længde mm: 260,50
Antal/monteringshuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 77.00
No./mount. holes 2 (2)
Position/50 55
Position/B+ 10
Rotation CW
Dist./back 235.00
Dist./front 25.50
Drive dist. 19.50
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 260.50 mm
Dist. 105.00 mm
Mount. hole 2 M10-1.25 mm
Mount. hole 1 M10-1.25 mm

  • OEM
    A0001250825, F032115978, 36100-4a020, 36100-4a025, 1196795, 1250825

  • Konkurrentreferens
    CST32127, DRS0629, DRS0629N, J5210519, LRS02491, S3137(VALEO), S3147(VALEO), S3147S, 25-4163, 150.566.102, 324.067.102, 220669, 220669A, 254975, 460244, 600264, 600736

  • NormaliseratArtNr
    a0001250825, cst32127, drs0629, drs0629n, f032115978, j5210519, lrs02491, s3137valeo, s3147s, s3147valeo, 220669, 220669a, 254163, 254975, 361004a020, 361004a025, 460244, 600264, 600736, 1196795, 1250825, 150566102, 324067102

  • Passar modeller
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-L Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-W Body: Van From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Model type: Cargo Type of engine: CRDI Size of motor: 2.5 Type description: TQ Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Model type: Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes Manufacture type: Travel
    Hyundai Model: H-1 Model series: H-1 Model type: Travel Type of engine: CRDI Size of motor: 2.5 Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-07-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Travel Model series: H-1 Travel Model type: CRDI Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Travel Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spændingsføler: 12
    kW: 2,2
    Monteringsflange: 77,00
    Drevafstand: 19,50
    Monteringshul 2 mm: M10-1,25
    Monteringshul 1 mm: M10-1,25
    Afstand/bag: 235,00
    Afstand/frem: 25,50
    Antal/tenner: 10
    B+: M8
    Position/B+: 10
    Position/50: 55
    Terminal 50: 6,30
    Gear type: GR
    Afstand mm: 105,00
    Rotation: CW
    Total længde mm: 260,50
    Antal/monteringshuller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 77.00
    No./mount. holes 2 (2)
    Position/50 55
    Position/B+ 10
    Rotation CW
    Dist./back 235.00
    Dist./front 25.50
    Drive dist. 19.50
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 260.50 mm
    Dist. 105.00 mm
    Mount. hole 2 M10-1.25 mm
    Mount. hole 1 M10-1.25 mm
  • Køretøjsmatchning

    • OEM
      A0001250825, F032115978, 36100-4a020, 36100-4a025, 1196795, 1250825

    • Konkurrentreferens
      CST32127, DRS0629, DRS0629N, J5210519, LRS02491, S3137(VALEO), S3147(VALEO), S3147S, 25-4163, 150.566.102, 324.067.102, 220669, 220669A, 254975, 460244, 600264, 600736

    • NormaliseratArtNr
      a0001250825, cst32127, drs0629, drs0629n, f032115978, j5210519, lrs02491, s3137valeo, s3147s, s3147valeo, 220669, 220669a, 254163, 254975, 361004a020, 361004a025, 460244, 600264, 600736, 1196795, 1250825, 150566102, 324067102

    • Passar modeller
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-L Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-W Body: Van From date: 01-08-2009 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Model type: Cargo Type of engine: CRDI Size of motor: 2.5 Type description: TQ Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Model type: Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes Manufacture type: Travel
      Hyundai Model: H-1 Model series: H-1 Model type: Travel Type of engine: CRDI Size of motor: 2.5 Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-07-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Travel Model series: H-1 Travel Model type: CRDI Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Travel Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
