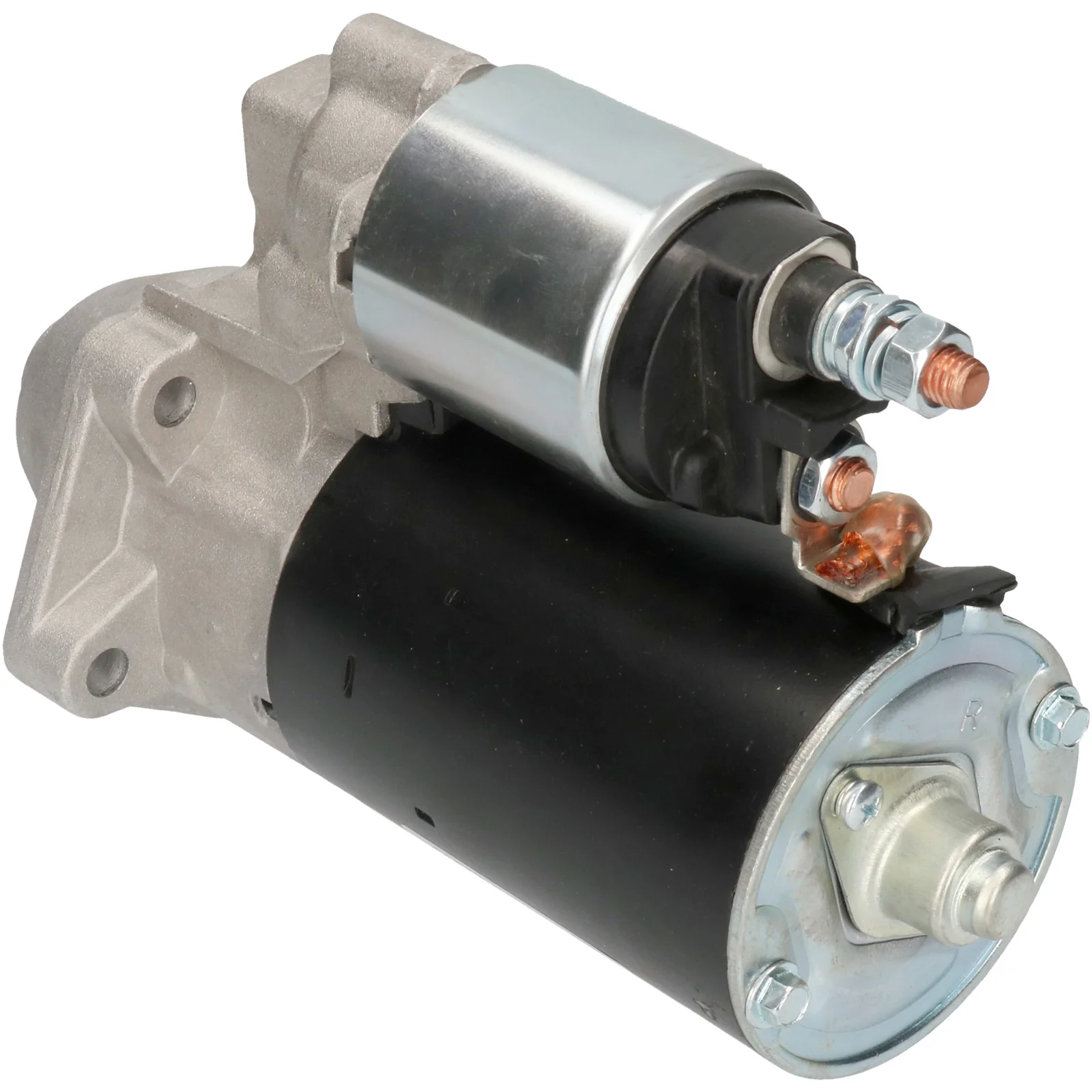

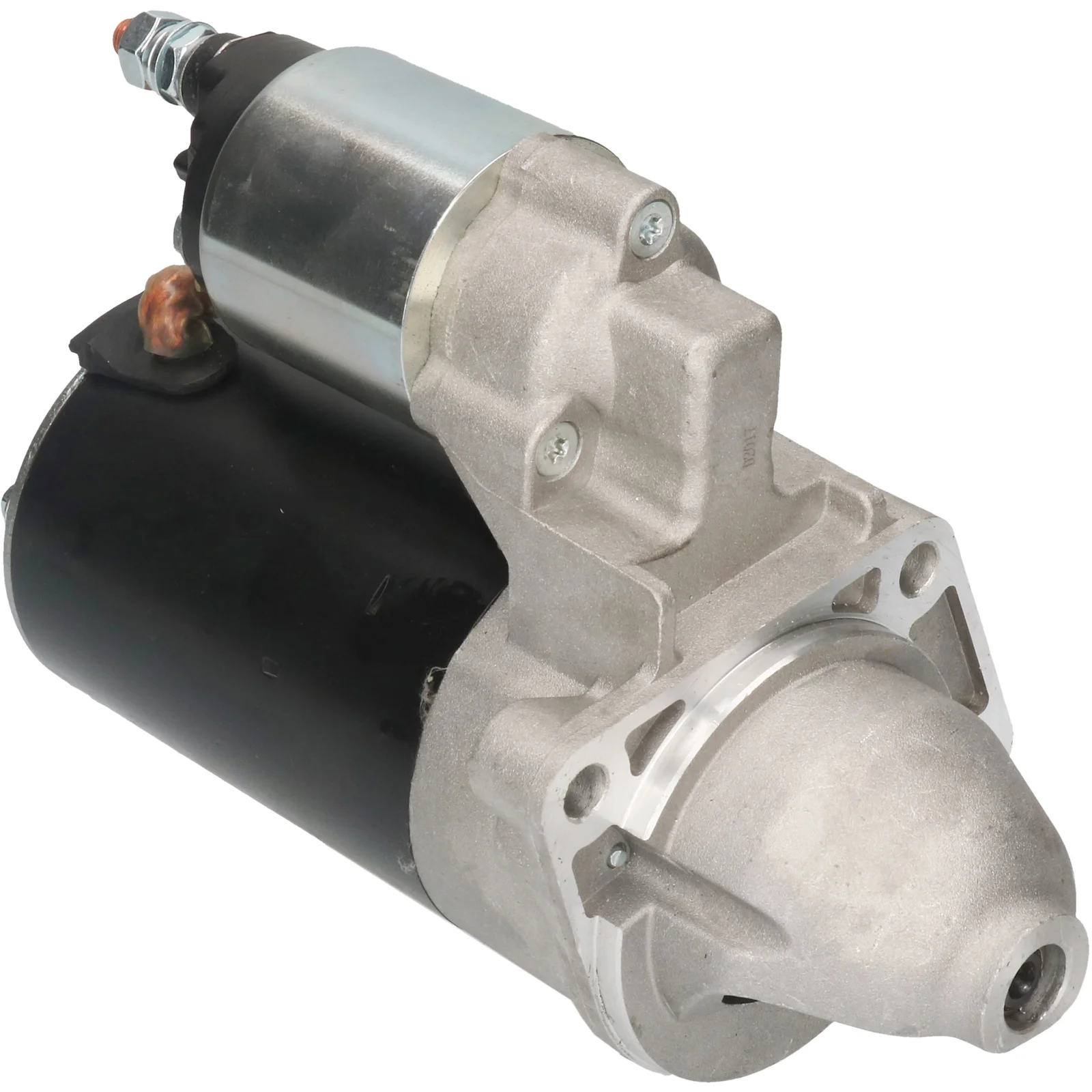

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116024

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1,1, Antal/tenner: 10, Rotation: CW

Beskrivelse

HC-Cargo Startmotor

Spænding: 12
kW: 1.1
Monteringsflange: 76,20
Drevafstand: 20,00
Monteringshul 3 mm: 8,50
Monteringshul 2 mm: 8,50
Monteringshul 1 mm: 8,50
Afstand/bag: 151,00
Afstand/frem: 53,50
Nummer/tænder: 10
B+: M8
Position/50: 60
Terminal 50: M6
Gears type: GR
Afstand 2: 95,50
Afstand 3: 72,00
Afstand mm: 46,50
Rotation: CW
Total længde mm: 216,50
Starttype: Start/Stop
Produktinfo: BN
Antal/monteringshuller: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 76.20
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 95.50
Dist. 3 72.00
Rotation CW
Dist./back 151.00
Dist./front 53.50
Drive dist. 20.00
Gear type GR
Starter type Start/Stop
kW 1.1
Terminal 50 M6
Voltage 12
Total length 216.50 mm
Dist. 46.50 mm
Mount. hole 3 8.50 mm
Mount. hole 2 8.50 mm
Mount. hole 1 8.50 mm

  • OEM
    F032116024, 1986S00647, 1986S00826, 0001137003, 0001137004, 0001170406, 0001170407, 51829380, 51938439

  • Konkurrentreferens
    CST10526, DRS0656, DSN975, LRS02506, S0609S, S6056(DENSO), 8EA011611-801, 25-4178, 318.219.102, 500.538.103, 500.567.103, 500.568.103, 30244, 30244R, 31249N, 220672, 220672A, 254621, 11029150, 0986029150

  • NormaliseratArtNr
    cst10526, drs0656, dsn975, f032116024, lrs02506, s0609s, s6056denso, 8ea011611801, 1986s00647, 1986s00826, 30244, 30244r, 31249n, 220672, 220672a, 254178, 254621, 0001137003, 0001137004, 0001170406, 0001170407, 11029150, 51829380, 51938439, 318219102, 500538103, 500567103, 500568103, 0986029150

  • Passar modeller
    Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 955 Body: Hatchback From date: 01-04-2013 Fuel: Gasoline Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 955 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 955 Body: Hatchback From date: 01-07-2011 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 C Model series: 500 C Size of motor: 0.9 Brand of engine: 312A6.000 Type description: 312_ Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 199B6.000 Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 150 Body: Convertible From date: 01-09-2009 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 312A4.000 Body: Convertible From date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312 Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 199B6.000 Body: Hatchback From date: 01-10-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 150 Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 312A4.000 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 312A5.000 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 1.0 Brand of engine: 312A4.000 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500L Model type: CNG Size of motor: 0.9 Brand of engine: 312A2.000 Body: Hatchback From date: 01-03-2013 Fuel: Gasoline/gas Approved: Yes
    Fiat Model: 500 Model series: 500L Size of motor: 0.9 Brand of engine: 199B6.000 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: 500L Model series: 500L Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 351_, 352_ Body: Hatchback From date: 01-04-2017 Fuel: Gasoline/gas Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: 4x4 Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: 4x4 Size of motor: 0.9 Brand of engine: 312A7.000 Type description: 312 Body: Hatchback From date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: CNG Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-07-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-01-2015 Fuel: Gasoline/gas Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: Natural Power Size of motor: 0.9 Brand of engine: 46337566 Type description: 312_, 319_ Body: Hatchback From date: 01-03-2019 Fuel: LNG Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312, 319 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 1.0 Brand of engine: 312A4.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 1.0 Brand of engine: 312A4.000 Type description: 312, 319 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Model type: 4x4 Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312_ Body: Van From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312_ Body: Van From date: 01-07-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312_ Body: Van From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Size of motor: 1.0 Brand of engine: 312A4.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Model type: Twinair Turbo Type of engine: Turbo Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 199 Body: Hatchback From date: 01-07-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 199 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: BiFuel Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Bi-Fuel Approved: Yes
    Fiat Model: Punto Model series: Punto Van Type of engine: Twinair Turbo Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 199 Body: Van From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Model type: CNG Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 846 Body: Hatchback From date: 01-05-2011 Fuel: Gasoline/gas Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Model type: Twinair Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 846 Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Type of engine: CNG Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312_ Body: Hatchback From date: 01-01-2014 Fuel: Gasoline/gas Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Type of engine: Twinair Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 846 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
