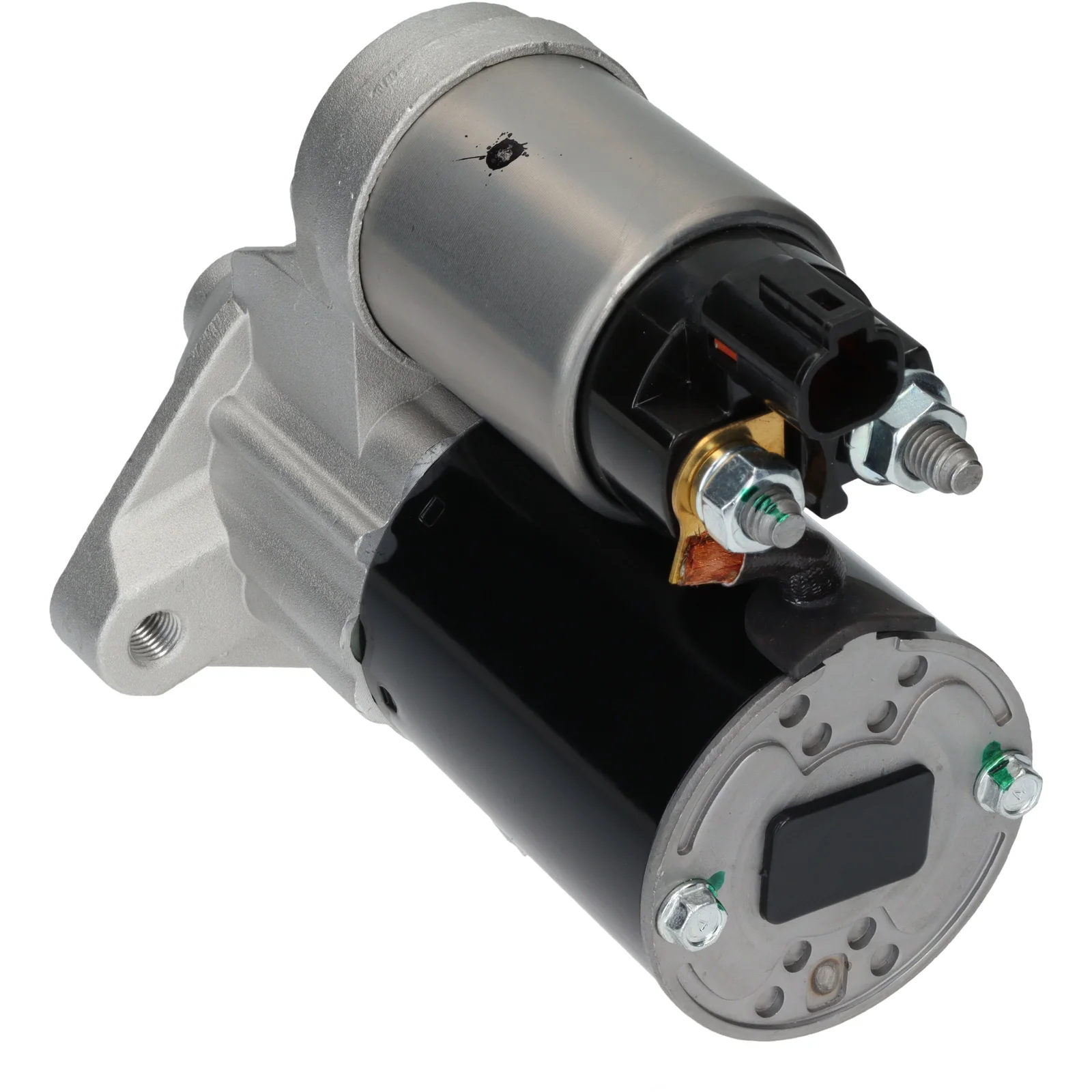

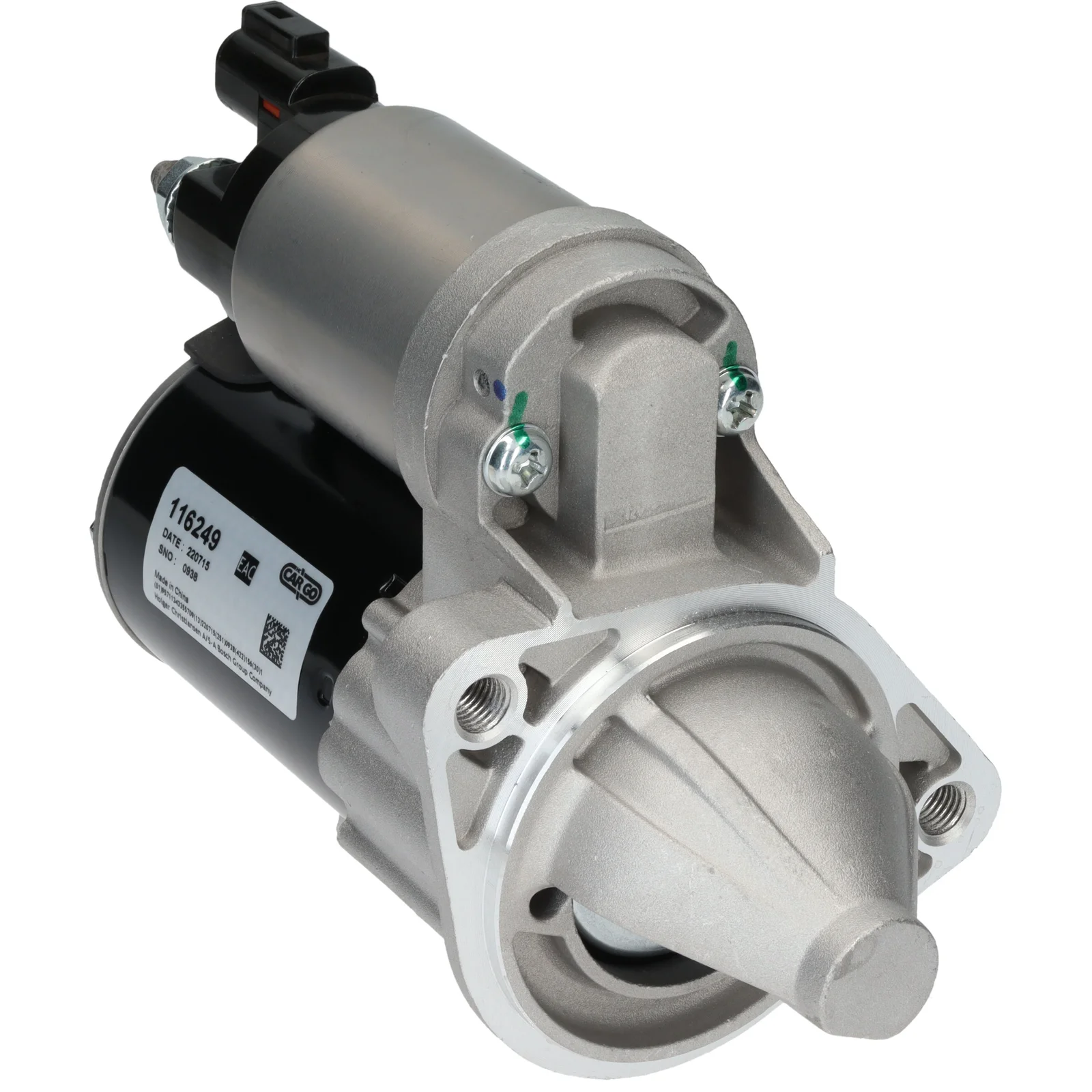

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116249

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 0.8, No./tænder: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 0.8
Monteringsflange: 75,00
Drevafstand: 14,00
Monteringshul 2 mm: M10-1.25
Monteringshul 1 mm: M10-1.25
Afstand/bagside: 134,50
Afstand/forside: 47,00
Nummer/tænder: 10
B+: M8
Position/B+: 15
Position/50: 60
Terminal 50: 6,30
Geartype: GR
Afstand mm: 99,00
Rotation: Med uret
Samlet længde mm: 183,00
Nummer/monteringshuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 75.00
No./mount. holes 2 (2)
Position/50 60
Position/B+ 15
Rotation CW
Dist./back 134.50
Dist./front 47.00
Drive dist. 14.00
Gear type GR
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 183.00 mm
Dist. 99.00 mm
Mount. hole 2 M10-1.25 mm
Mount. hole 1 M10-1.25 mm

  • OEM
    F032116249, JM000-0202, 36100-03201, 36100-03402, 20489007, 26024461, 26024461A

  • Konkurrentreferens
    CST25136

  • NormaliseratArtNr
    cst25136, f032116249, jm0000202, 20489007, 26024461, 26024461a, 3610003201, 3610003402

  • Passar modeller
    Hyundai Model: i10 Model series: i10 Size of motor: 1.2 Brand of engine: G4LA Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: I20 Model series: I20 Size of motor: 1.2 Brand of engine: G4LA Type description: PB, PBT Body: Hatchback From date: 01-03-2012 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: i20 Model series: i20 Size of motor: 1.2 Type description: PB, PBT Body: Hatchback From date: 01-01-2013 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Model type: Bi-Fuel Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Diesel Approved: Yes
    Kia Model: Picanto Model series: Picanto Model type: LPG Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-08-2013 Fuel: Bi-Fuel Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Type description: TA Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.3 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 To date: 01-02-2017 Fuel: Petrol Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 12
    kW: 0.8
    Monteringsflange: 75,00
    Drevafstand: 14,00
    Monteringshul 2 mm: M10-1.25
    Monteringshul 1 mm: M10-1.25
    Afstand/bagside: 134,50
    Afstand/forside: 47,00
    Nummer/tænder: 10
    B+: M8
    Position/B+: 15
    Position/50: 60
    Terminal 50: 6,30
    Geartype: GR
    Afstand mm: 99,00
    Rotation: Med uret
    Samlet længde mm: 183,00
    Nummer/monteringshuller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 75.00
    No./mount. holes 2 (2)
    Position/50 60
    Position/B+ 15
    Rotation CW
    Dist./back 134.50
    Dist./front 47.00
    Drive dist. 14.00
    Gear type GR
    kW 0.8
    Terminal 50 6.30
    Voltage 12
    Total length 183.00 mm
    Dist. 99.00 mm
    Mount. hole 2 M10-1.25 mm
    Mount. hole 1 M10-1.25 mm
  • Køretøjsmatchning

    • OEM
      F032116249, JM000-0202, 36100-03201, 36100-03402, 20489007, 26024461, 26024461A

    • Konkurrentreferens
      CST25136

    • NormaliseratArtNr
      cst25136, f032116249, jm0000202, 20489007, 26024461, 26024461a, 3610003201, 3610003402

    • Passar modeller
      Hyundai Model: i10 Model series: i10 Size of motor: 1.2 Brand of engine: G4LA Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Hyundai Model: I20 Model series: I20 Size of motor: 1.2 Brand of engine: G4LA Type description: PB, PBT Body: Hatchback From date: 01-03-2012 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Hyundai Model: i20 Model series: i20 Size of motor: 1.2 Type description: PB, PBT Body: Hatchback From date: 01-01-2013 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Model type: Bi-Fuel Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Diesel Approved: Yes
      Kia Model: Picanto Model series: Picanto Model type: LPG Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-08-2013 Fuel: Bi-Fuel Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Type description: TA Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.3 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 To date: 01-02-2017 Fuel: Petrol Approved: Yes
