HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116261

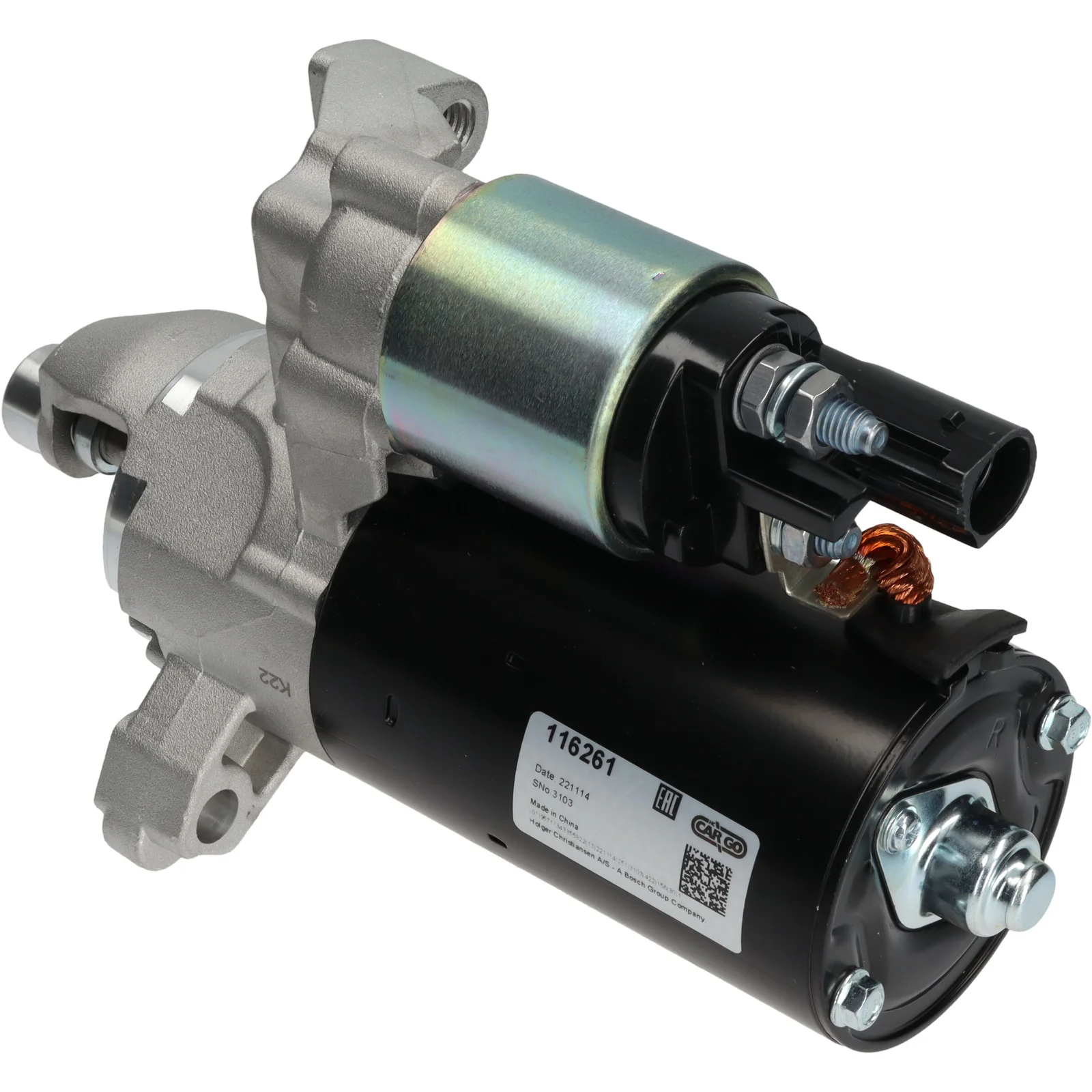

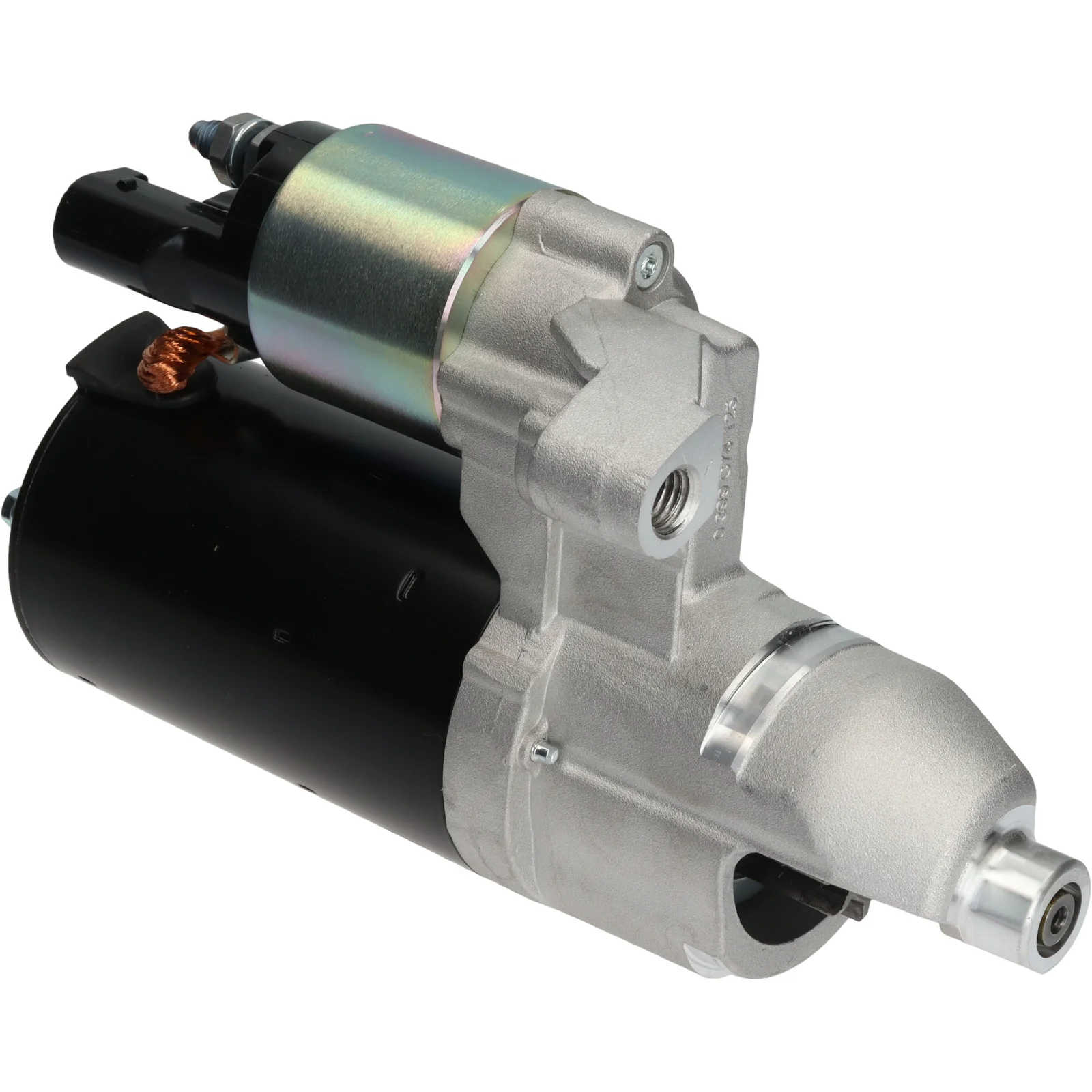

HC-Cargo Startmotor

Tekniske oplysninger:

Voltage: 12, kW: 1,7, No./teeth: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.7
Montageflange: 66.00
Driveafstand: 22.50
Montagehul 2 mm: 11.00
Montagehul 1 mm: M12
Afstand/bagud: 182.00
Afstand/forud: 59.50
Nr./tænder: 10
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: Stik
Geartype: GR
Afstand mm: 138.50
Rotation: Med uret
Samlet længde mm: 242.00
Drevtype: Stål
Nr./montagehuller: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 66.00
No./mount. holes 2 (1)
Position/50 15
Position/B+ 60
Rotation CW
Dist./back 182.00
Dist./front 59.50
Drive dist. 22.50
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 Plug
Voltage 12
Total length 242.00 mm
Dist. 138.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 M12 mm

  • OEM
    F032116261, 04L911021, 04L911021X, 1986S01347, 0001174404, 0001174405

  • Konkurrentreferens
    CST10A02, DRS0936, S0624PR, S0624S, 30858-OS, 30858NTBA, 11090362, 0986026520

  • NormaliseratArtNr
    cst10a02, drs0936, f032116261, s0624pr, s0624s, 04l911021, 04l911021x, 1986s01347, 30858ntba, 30858os, 0001174404, 0001174405, 11090362, 0986026520

  • Passar modeller
    Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD,CSUA Type description: 8RB Body: Box Body / Estate From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CNHA Type description: 8RB Body: Box Body / Estate From date: 01-05-2015 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUB Type description: 8RB Body: Box Body / Estate From date: 01-05-2014 To date: 01-05-2017 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.7
    Montageflange: 66.00
    Driveafstand: 22.50
    Montagehul 2 mm: 11.00
    Montagehul 1 mm: M12
    Afstand/bagud: 182.00
    Afstand/forud: 59.50
    Nr./tænder: 10
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: Stik
    Geartype: GR
    Afstand mm: 138.50
    Rotation: Med uret
    Samlet længde mm: 242.00
    Drevtype: Stål
    Nr./montagehuller: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 66.00
    No./mount. holes 2 (1)
    Position/50 15
    Position/B+ 60
    Rotation CW
    Dist./back 182.00
    Dist./front 59.50
    Drive dist. 22.50
    Drive type Steel
    Gear type GR
    kW 1.7
    Terminal 50 Plug
    Voltage 12
    Total length 242.00 mm
    Dist. 138.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 M12 mm
  • Køretøjsmatchning

    • OEM
      F032116261, 04L911021, 04L911021X, 1986S01347, 0001174404, 0001174405

    • Konkurrentreferens
      CST10A02, DRS0936, S0624PR, S0624S, 30858-OS, 30858NTBA, 11090362, 0986026520

    • NormaliseratArtNr
      cst10a02, drs0936, f032116261, s0624pr, s0624s, 04l911021, 04l911021x, 1986s01347, 30858ntba, 30858os, 0001174404, 0001174405, 11090362, 0986026520

    • Passar modeller
      Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD,CSUA Type description: 8RB Body: Box Body / Estate From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CNHA Type description: 8RB Body: Box Body / Estate From date: 01-05-2015 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUB Type description: 8RB Body: Box Body / Estate From date: 01-05-2014 To date: 01-05-2017 Fuel: Diesel Approved: Yes
