HC-Cargo Startmotor

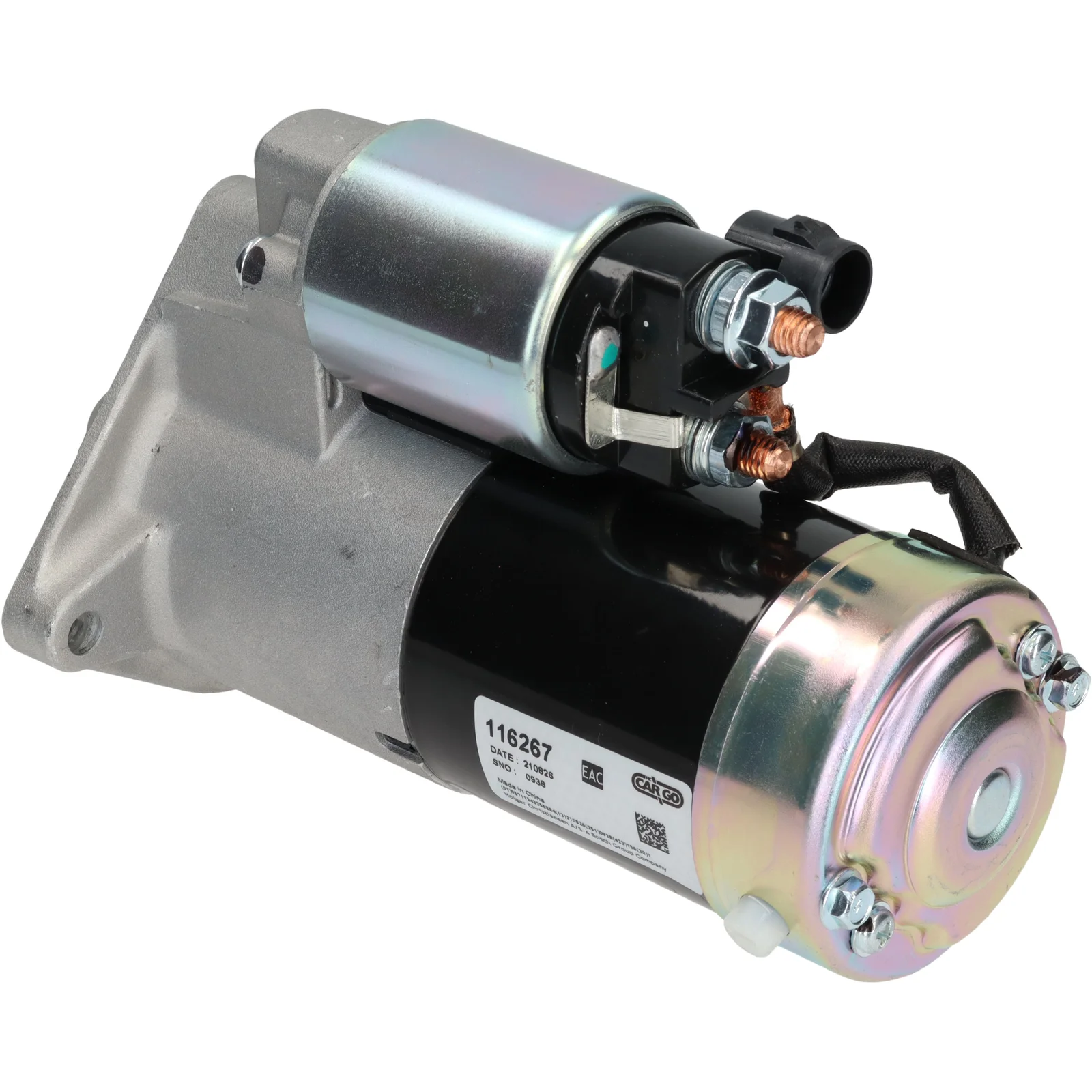

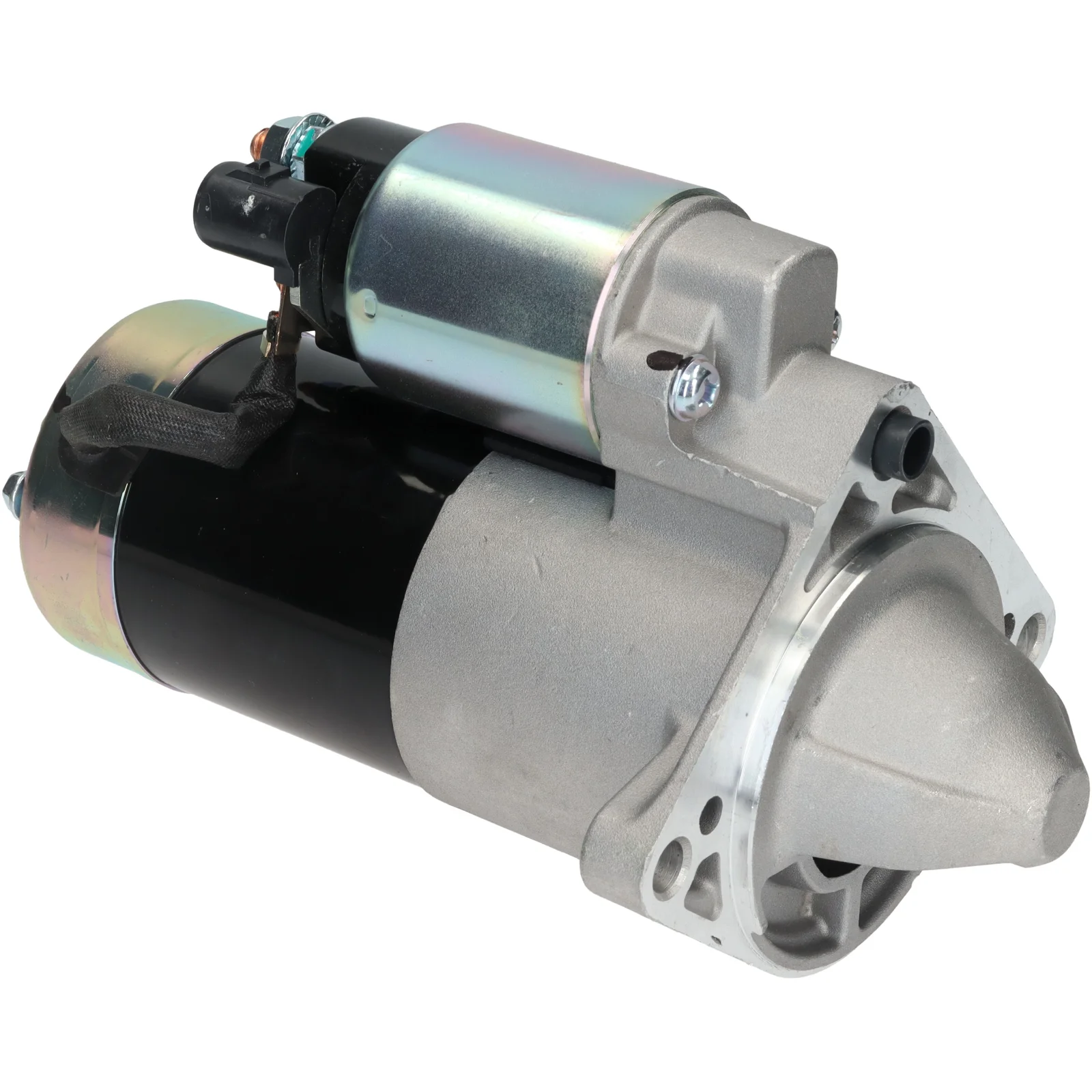

HC-Cargo Startmotor
Vare nr.: F032116267

HC-Cargo Startmotor

Tekniske oplysninger:

Spenning: 12, kW: 1.8, No./tænder: 10, Rotation:CW

Beskrivelse

Spænding: 12
kW: 1.8
Montageflange: 82.00
Drevafstand: 3.50
Monteringshul 2 mm: 8.80
Monteringshul 1 mm: 8.80
Afstand / bag: 182.00
Afstand / foran: 41.00
Antal / tænder: 10
B+: M8
Position / B+: 60
Position / 50: 10
Terminal 50: Stik
Gear-typen: GR
Afstand mm: 116.00
Rotation: CW
Total længde mm: 223.00
Antal / monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 82.00
No./mount. holes 2 (0)
Position/50 10
Position/B+ 60
Rotation CW
Dist./back 182.00
Dist./front 41.00
Drive dist. 3.50
Gear type GR
kW 1.8
Terminal 50 Plug
Voltage 12
Total length 223.00 mm
Dist. 116.00 mm
Mount. hole 2 8.80 mm
Mount. hole 1 8.80 mm

  • OEM
    F032116267, K56029591AB, M001T31171, M001T31171ZC, M1T31171, M1T31171ZC, 56029591AB

  • Konkurrentreferens
    DRS0926, LRS02708, S5377S, 830.937.102, 220855, 220855A, 11040876

  • NormaliseratArtNr
    drs0926, f032116267, k56029591ab, lrs02708, m001t31171, m001t31171zc, m1t31171, m1t31171zc, s5377s, 220855, 220855a, 11040876, 56029591ab, 830937102

  • Passar modeller
    Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC_ Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 940A5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.8
    Montageflange: 82.00
    Drevafstand: 3.50
    Monteringshul 2 mm: 8.80
    Monteringshul 1 mm: 8.80
    Afstand / bag: 182.00
    Afstand / foran: 41.00
    Antal / tænder: 10
    B+: M8
    Position / B+: 60
    Position / 50: 10
    Terminal 50: Stik
    Gear-typen: GR
    Afstand mm: 116.00
    Rotation: CW
    Total længde mm: 223.00
    Antal / monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 82.00
    No./mount. holes 2 (0)
    Position/50 10
    Position/B+ 60
    Rotation CW
    Dist./back 182.00
    Dist./front 41.00
    Drive dist. 3.50
    Gear type GR
    kW 1.8
    Terminal 50 Plug
    Voltage 12
    Total length 223.00 mm
    Dist. 116.00 mm
    Mount. hole 2 8.80 mm
    Mount. hole 1 8.80 mm
  • Køretøjsmatchning

    • OEM
      F032116267, K56029591AB, M001T31171, M001T31171ZC, M1T31171, M1T31171ZC, 56029591AB

    • Konkurrentreferens
      DRS0926, LRS02708, S5377S, 830.937.102, 220855, 220855A, 11040876

    • NormaliseratArtNr
      drs0926, f032116267, k56029591ab, lrs02708, m001t31171, m001t31171zc, m1t31171, m1t31171zc, s5377s, 220855, 220855a, 11040876, 56029591ab, 830937102

    • Passar modeller
      Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC_ Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 940A5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
