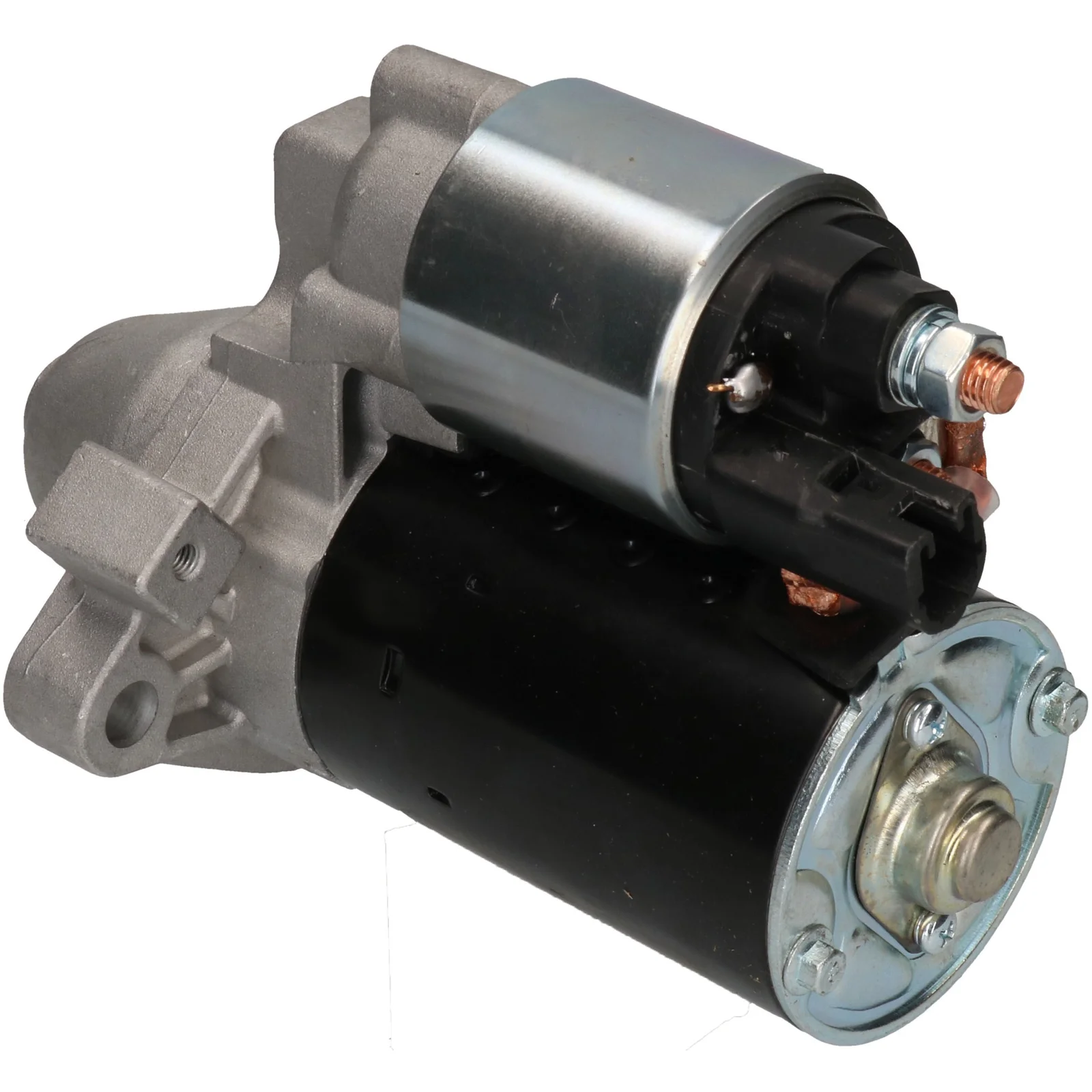

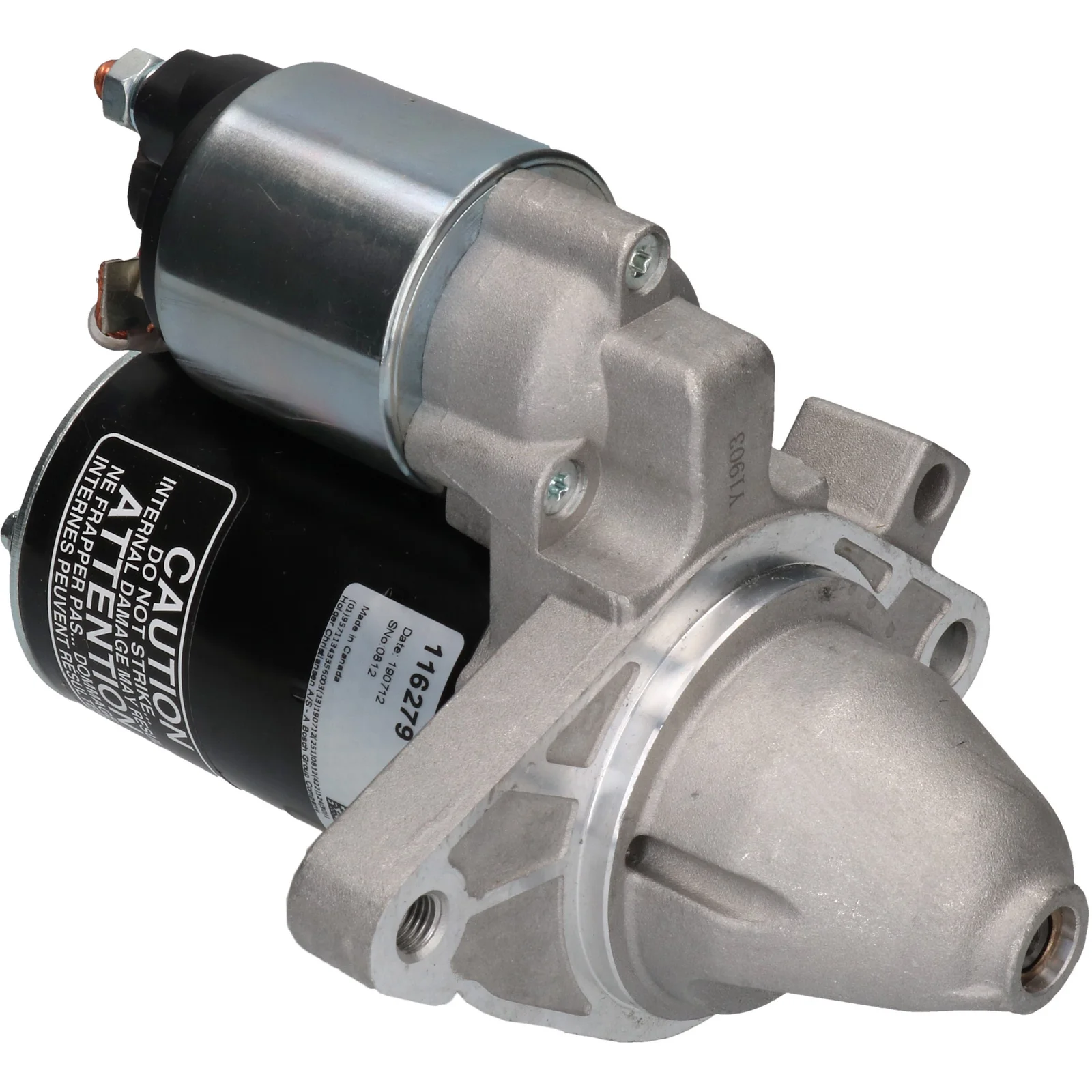

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116279

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.2, No./tænder: 8, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1,2
Montageflange: 74,00
Driveafstand: 26,00
Montagehul 1 mm: 11,00
Afstand/bag: 140,00
Afstand/frem: 59,50
Antal/tænder: 8
B+: M8
Position/50: 40
Terminal 50: Hunstik
Geartype: GR
Afstand mm: 129,50
Rotation: med uret
Samlet længde mm: 199,00
Antal/montagehuller: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 40
Rotation CW
Dist./back 140.00
Dist./front 59.50
Drive dist. 26.00
Gear type GR
kW 1.2
Terminal 50 Plug
Voltage 12
Total length 199.00 mm
Dist. 129.50 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116279, ts12e200, 1986S01077, 28100-0Q110, 1612093080, 1612350480

  • Konkurrentreferens
    CST15299, DRS1025, S3203S, 8EA011612-171, 25-5071, 220.540.092, 335.248.092, 438311, 458734, 11090345, 0986026490

  • NormaliseratArtNr
    cst15299, drs1025, f032116279, s3203s, ts12e200, 8ea011612171, 1986s01077, 255071, 281000q110, 438311, 458734, 11090345, 220540092, 335248092, 0986026490, 1612093080, 1612350480

  • Passar modeller
    Citroen Model: C1 Model series: C1 Model type: 68 Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C1 Model series: C1 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Type description: PA_, PS_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 108 Model series: 108 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Body: Hatchback From date: 01-05-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 12
    kW: 1,2
    Montageflange: 74,00
    Driveafstand: 26,00
    Montagehul 1 mm: 11,00
    Afstand/bag: 140,00
    Afstand/frem: 59,50
    Antal/tænder: 8
    B+: M8
    Position/50: 40
    Terminal 50: Hunstik
    Geartype: GR
    Afstand mm: 129,50
    Rotation: med uret
    Samlet længde mm: 199,00
    Antal/montagehuller: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 40
    Rotation CW
    Dist./back 140.00
    Dist./front 59.50
    Drive dist. 26.00
    Gear type GR
    kW 1.2
    Terminal 50 Plug
    Voltage 12
    Total length 199.00 mm
    Dist. 129.50 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      F032116279, ts12e200, 1986S01077, 28100-0Q110, 1612093080, 1612350480

    • Konkurrentreferens
      CST15299, DRS1025, S3203S, 8EA011612-171, 25-5071, 220.540.092, 335.248.092, 438311, 458734, 11090345, 0986026490

    • NormaliseratArtNr
      cst15299, drs1025, f032116279, s3203s, ts12e200, 8ea011612171, 1986s01077, 255071, 281000q110, 438311, 458734, 11090345, 220540092, 335248092, 0986026490, 1612093080, 1612350480

    • Passar modeller
      Citroen Model: C1 Model series: C1 Model type: 68 Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C1 Model series: C1 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Type description: PA_, PS_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
      Peugeot Model: 108 Model series: 108 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Body: Hatchback From date: 01-05-2018 Fuel: Gasoline Approved: Yes
      Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
