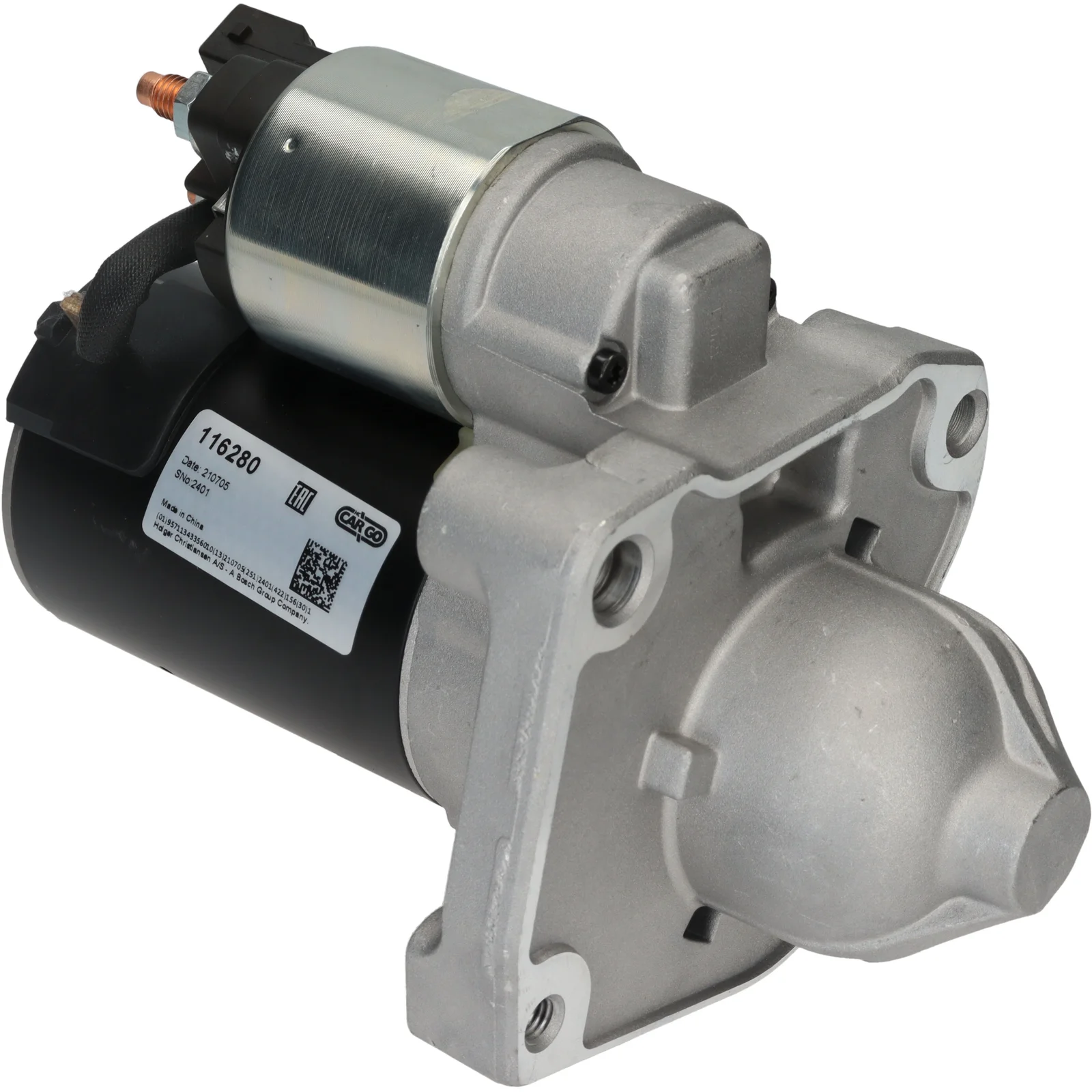

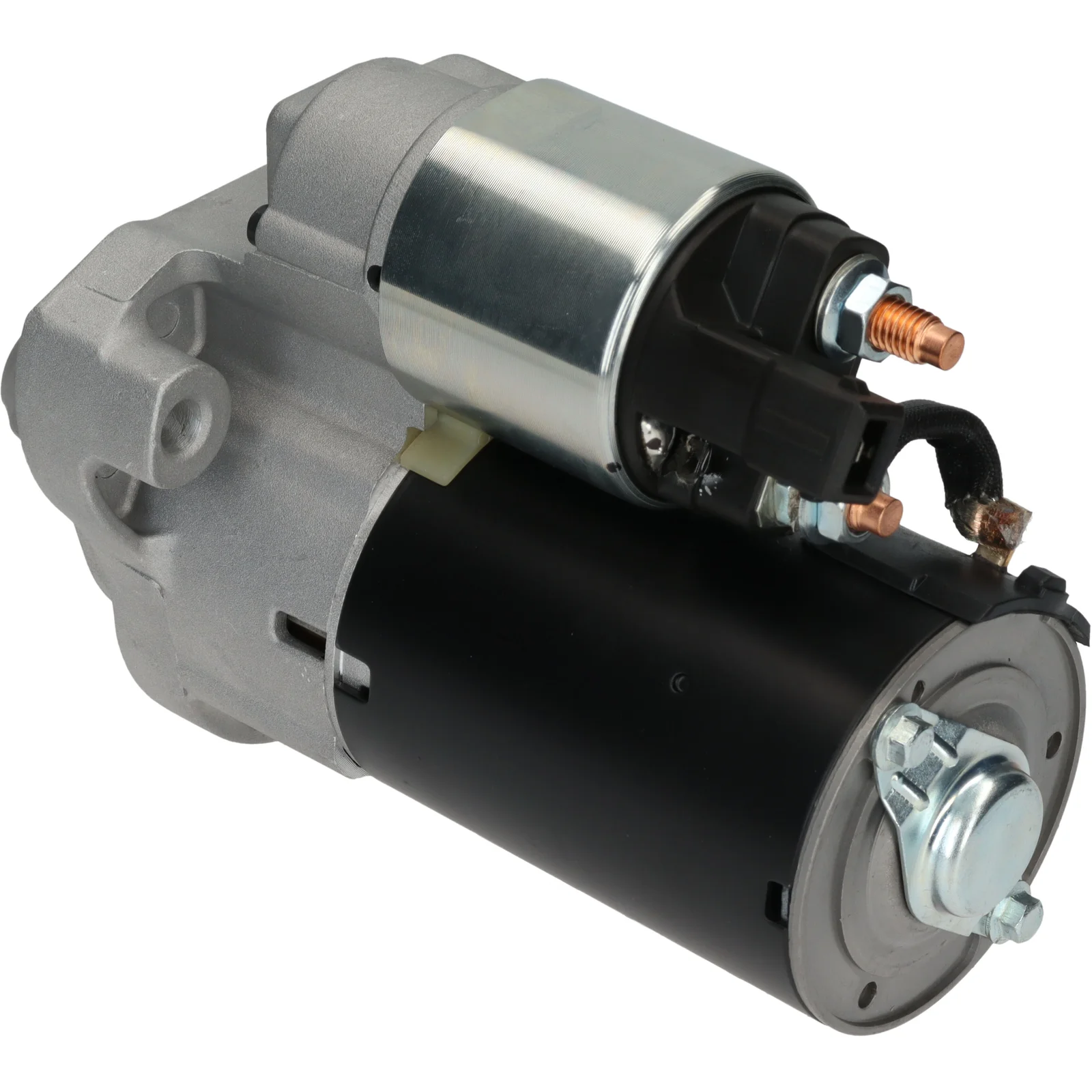

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116280

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 0,9, Nr./tænder: 14, Drevdiameter: 13,50

Beskrivelse

Spænding: 12
kW: 0.9
Drevafstand: 13.50
Montagerør 3 mm: 9.00
Montagerør 1 mm: 9.00
Drejning / bag: 159.50
Drejning / foran: 49.50
No./tandhjul: 14
B+: M8
Position/B+: 5
Position/50: 49
Terminal 50: Stik
Gearing type: GR
Drejning 2: 74.50
Drejning 3: 91.50
Drejning mm: 124.00
Total længde mm: 209.00
Startmotor type: Start/Stop
No./montagerør: 3 (1)

Filer

Specifikation

B+ M8
No./teeth 14
No./mount. holes 3 (1)
Position/50 49
Position/B+ 5
Dist. 2 74.50
Dist. 3 91.50
Dist./back 159.50
Dist./front 49.50
Drive dist. 13.50
Gear type GR
Starter type Start/Stop
kW 0.9
Terminal 50 Plug
Voltage 12
Total length 209.00 mm
Dist. 124.00 mm
Mount. hole 3 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    ESM18-11, ESM1811, ESM18E7, F032116280, 9807545980

  • Konkurrentreferens
    CST15301, 25-5081, 220.543.143, 300.062.142, 438297, 458725, 11090404, 42005002, 0986026400

  • NormaliseratArtNr
    cst15301, esm1811, esm18e7, f032116280, 255081, 438297, 458725, 11090404, 42005002, 220543143, 300062142, 0986026400, 9807545980

  • Passar modeller
    DS Model: DS 3 Model series: DS 3 Model type: VTi 82 (SAHMZ6) Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes
    Peugeot Model: 208 Model series: 208 Model type: Puretech 82 Type of engine: VTI Size of motor: 1.2 Brand of engine: HMZ (EB2F), HMZ (EB2), HMR (EB2FA) Type description: CR_ Body: Box From date: 01-06-2015 Fuel: Petrol Approved: Yes
    Peugeot Model: 208 Model series: 208 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Body: Hatchback From date: 01-08-2016 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Type of engine: GPL Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Peugeot Model: 301 Model series: 301 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 0.9
    Drevafstand: 13.50
    Montagerør 3 mm: 9.00
    Montagerør 1 mm: 9.00
    Drejning / bag: 159.50
    Drejning / foran: 49.50
    No./tandhjul: 14
    B+: M8
    Position/B+: 5
    Position/50: 49
    Terminal 50: Stik
    Gearing type: GR
    Drejning 2: 74.50
    Drejning 3: 91.50
    Drejning mm: 124.00
    Total længde mm: 209.00
    Startmotor type: Start/Stop
    No./montagerør: 3 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 14
    No./mount. holes 3 (1)
    Position/50 49
    Position/B+ 5
    Dist. 2 74.50
    Dist. 3 91.50
    Dist./back 159.50
    Dist./front 49.50
    Drive dist. 13.50
    Gear type GR
    Starter type Start/Stop
    kW 0.9
    Terminal 50 Plug
    Voltage 12
    Total length 209.00 mm
    Dist. 124.00 mm
    Mount. hole 3 9.00 mm
    Mount. hole 1 9.00 mm
  • Køretøjsmatchning

    • OEM
      ESM18-11, ESM1811, ESM18E7, F032116280, 9807545980

    • Konkurrentreferens
      CST15301, 25-5081, 220.543.143, 300.062.142, 438297, 458725, 11090404, 42005002, 0986026400

    • NormaliseratArtNr
      cst15301, esm1811, esm18e7, f032116280, 255081, 438297, 458725, 11090404, 42005002, 220543143, 300062142, 0986026400, 9807545980

    • Passar modeller
      DS Model: DS 3 Model series: DS 3 Model type: VTi 82 (SAHMZ6) Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes
      Peugeot Model: 208 Model series: 208 Model type: Puretech 82 Type of engine: VTI Size of motor: 1.2 Brand of engine: HMZ (EB2F), HMZ (EB2), HMR (EB2FA) Type description: CR_ Body: Box From date: 01-06-2015 Fuel: Petrol Approved: Yes
      Peugeot Model: 208 Model series: 208 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Body: Hatchback From date: 01-08-2016 Fuel: Gasoline Approved: Yes
      Peugeot Model: 208 Model series: 208 Type of engine: GPL Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Peugeot Model: 301 Model series: 301 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes
