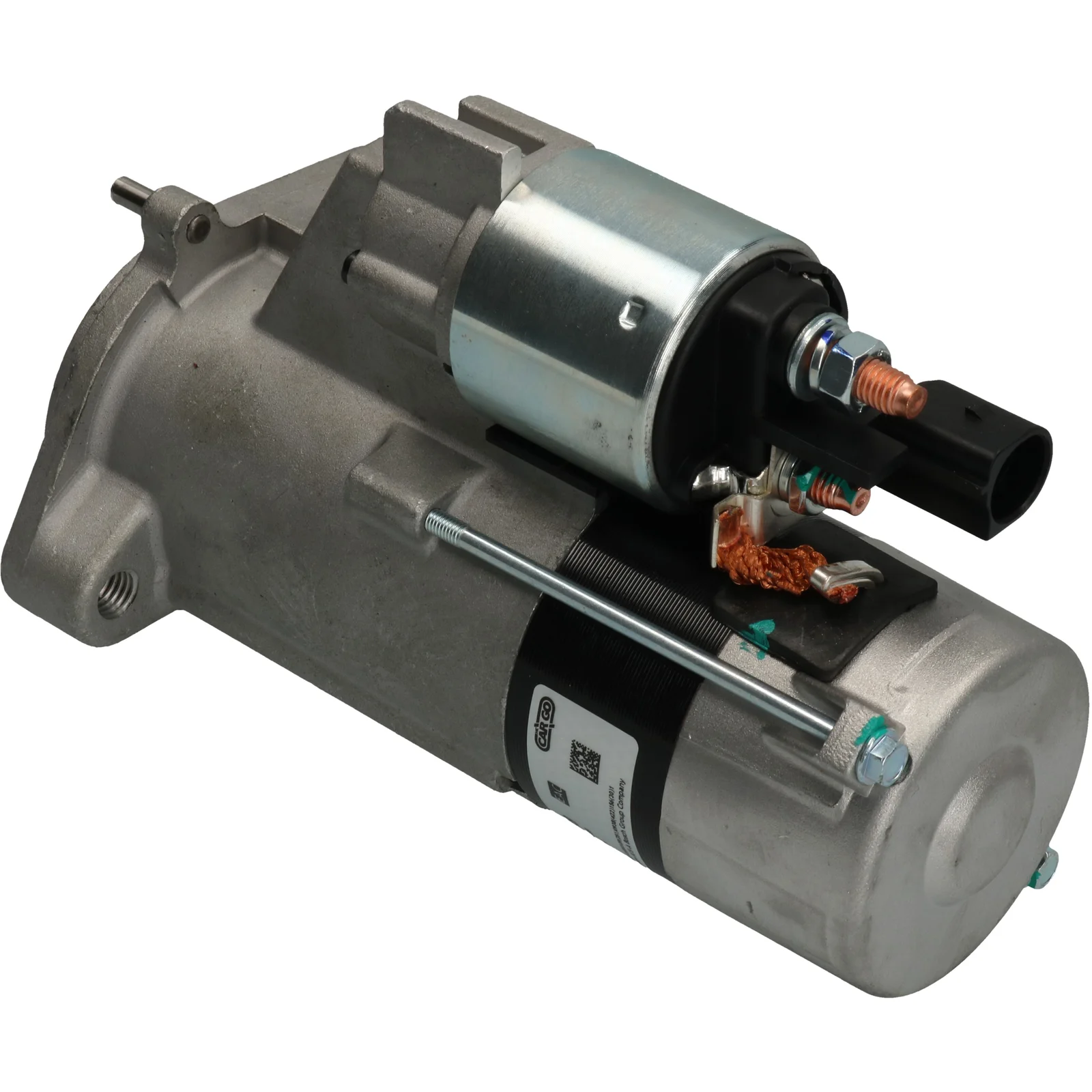

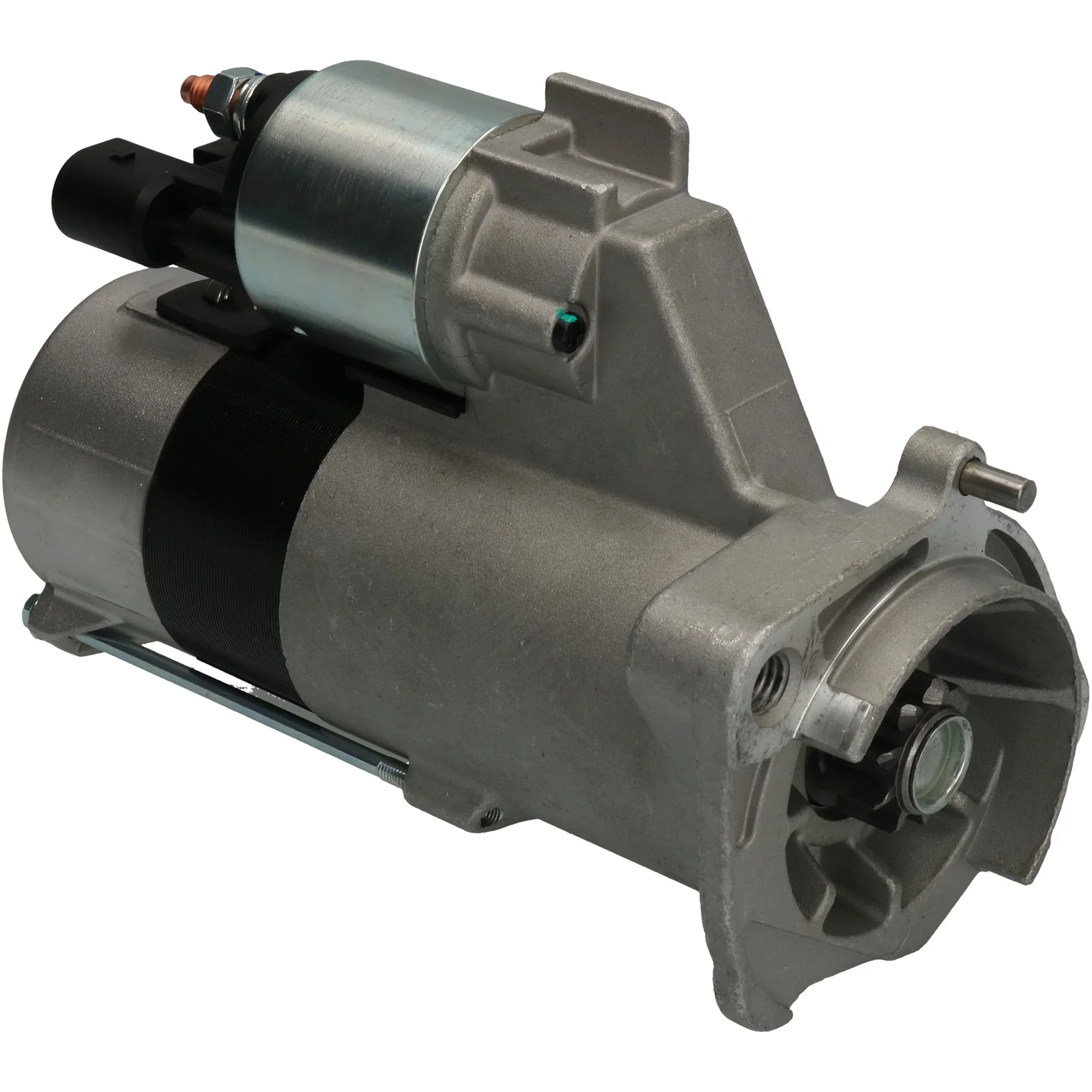

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116338

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.7, Nr./tænder: 9, Rotation: CW

Beskrivelse

Spændingsføler: 12
kW: 1.7
Montageflange: 82,00
Drevafstand: 3,00
Afstand/bag: 204,00
Afstand/for: 12,00
Antal/tænder: 9
B+: M8
Position/B+: 60
Position/50: 20
Klemme 50: Stik
Gear type: GR
Afstand mm: 101,00
Rotation: uret → aften
Total længde mm: 216,00
Antal/montagehuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.00
No./mount. holes 2 (2)
Position/50 20
Position/B+ 60
Rotation CW
Dist./back 204.00
Dist./front 12.00
Drive dist. 3.00
Gear type GR
kW 1.7
Terminal 50 Plug
Voltage 12
Total length 216.00 mm
Dist. 101.00 mm

  • OEM
    D7GS9, F032116338, 068911024L

  • Konkurrentreferens
    CST15227, lrs02269, S3185(VALEO), S3185S, 8EA012527-751, 25-3440, 311.234.092, 3056, 33269, 101387, 106759, 220547, 220547A, 438184, 458231, 8080264, 11090094, 42458231, 0986024250

  • NormaliseratArtNr
    cst15227, d7gs9, f032116338, lrs02269, s3185s, s3185valeo, 8ea012527751, 3056, 33269, 101387, 106759, 220547, 220547a, 253440, 438184, 458231, 8080264, 11090094, 42458231, 068911024l, 311234092, 0986024250

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E5, B6 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    1 / 4
  • Beskrivelse
    Spændingsføler: 12
    kW: 1.7
    Montageflange: 82,00
    Drevafstand: 3,00
    Afstand/bag: 204,00
    Afstand/for: 12,00
    Antal/tænder: 9
    B+: M8
    Position/B+: 60
    Position/50: 20
    Klemme 50: Stik
    Gear type: GR
    Afstand mm: 101,00
    Rotation: uret → aften
    Total længde mm: 216,00
    Antal/montagehuller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.00
    No./mount. holes 2 (2)
    Position/50 20
    Position/B+ 60
    Rotation CW
    Dist./back 204.00
    Dist./front 12.00
    Drive dist. 3.00
    Gear type GR
    kW 1.7
    Terminal 50 Plug
    Voltage 12
    Total length 216.00 mm
    Dist. 101.00 mm
  • Køretøjsmatchning

    • OEM
      D7GS9, F032116338, 068911024L

    • Konkurrentreferens
      CST15227, lrs02269, S3185(VALEO), S3185S, 8EA012527-751, 25-3440, 311.234.092, 3056, 33269, 101387, 106759, 220547, 220547A, 438184, 458231, 8080264, 11090094, 42458231, 0986024250

    • NormaliseratArtNr
      cst15227, d7gs9, f032116338, lrs02269, s3185s, s3185valeo, 8ea012527751, 3056, 33269, 101387, 106759, 220547, 220547a, 253440, 438184, 458231, 8080264, 11090094, 42458231, 068911024l, 311234092, 0986024250

    • Passar modeller
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E5, B6 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
