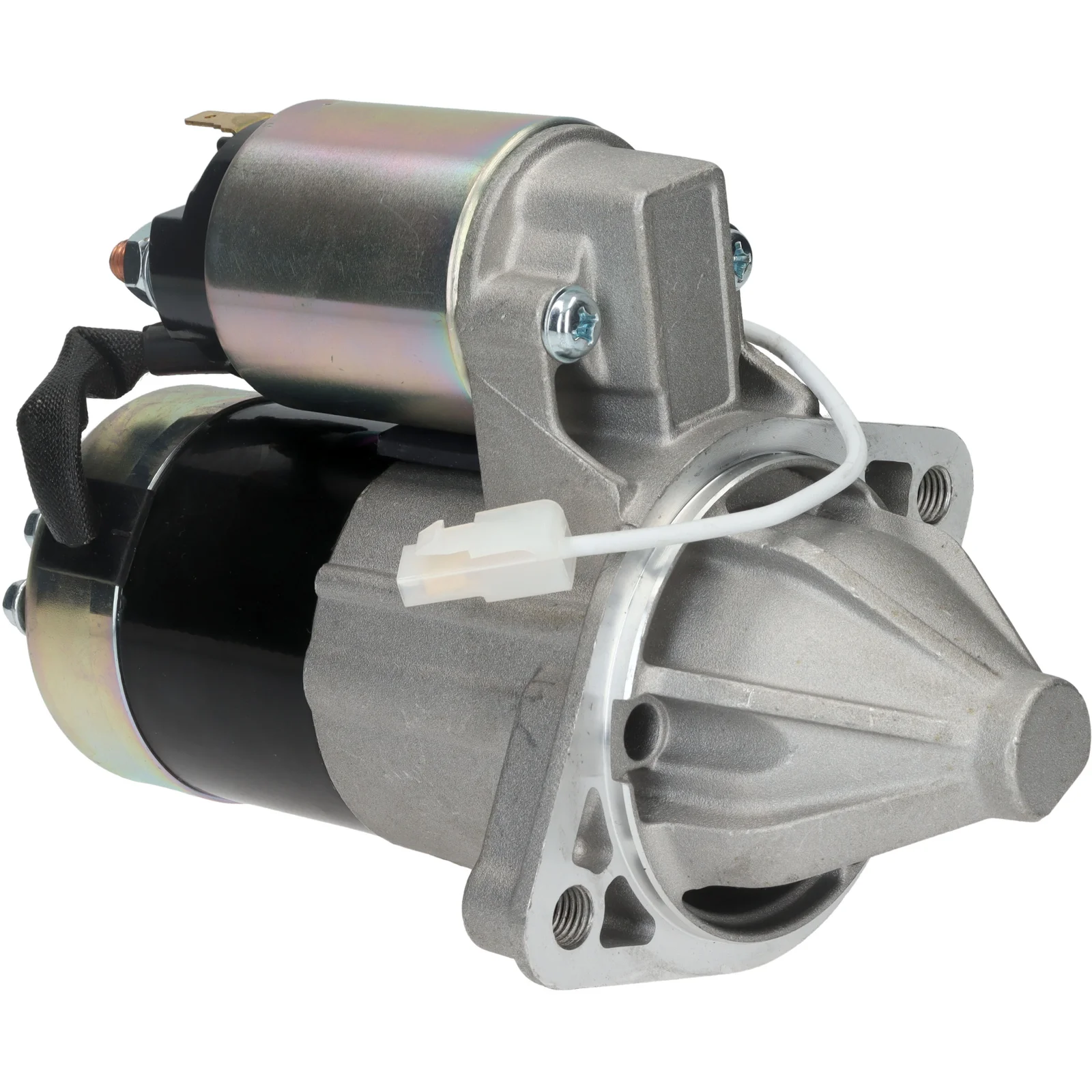

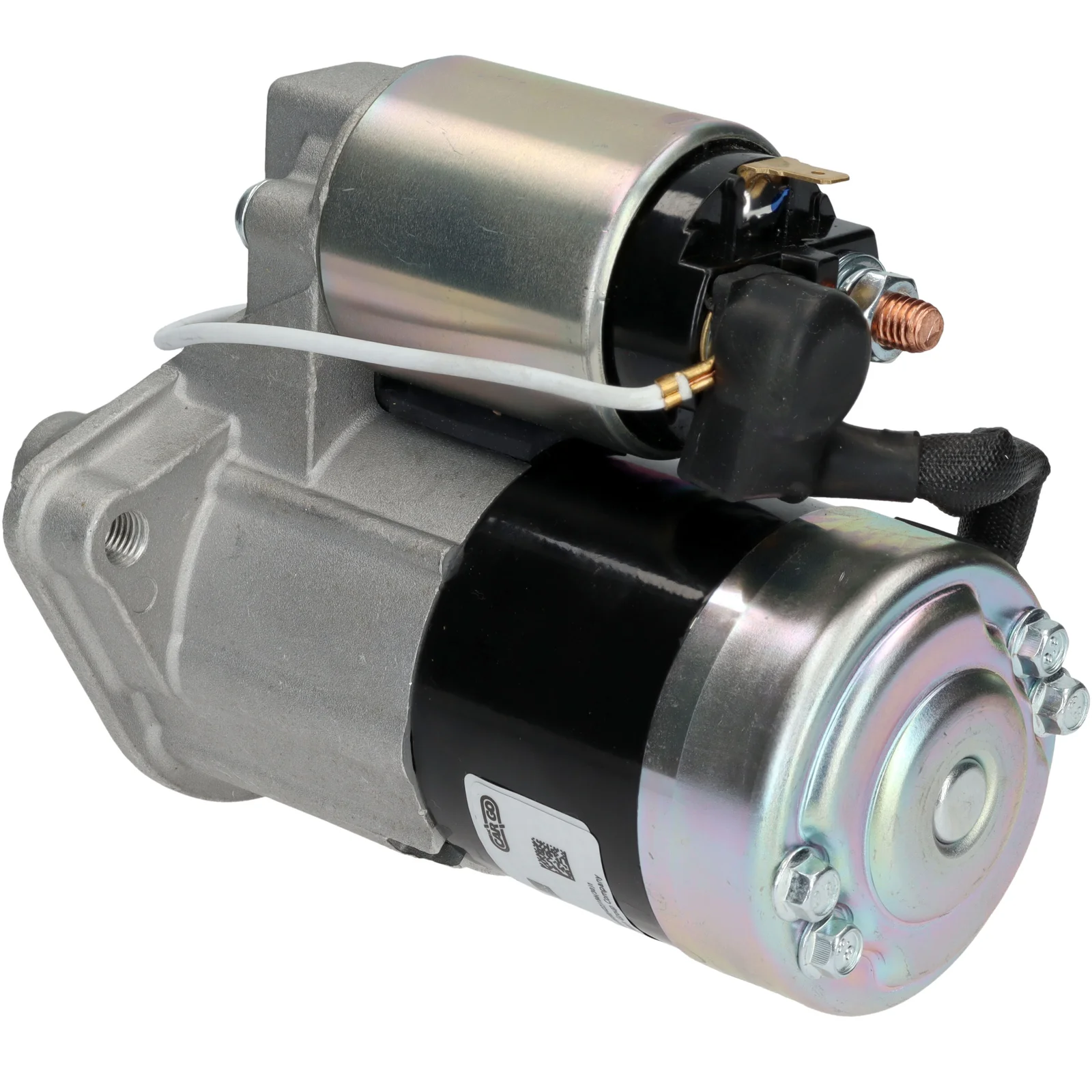

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116640

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.0, No./tænder: 8, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.0
Fælgemont. flange: 77.00
Drive afstand: 16.50
Afstand/bag: 141.50
Afstand/for: 53.00
Nr./tænder: 8
B+: M8
Position/B+: 15
Position/50: 60
Terminal 50: 6.30
Geartype: GR
Afstand mm: 105.00
Rotation: med uret
Samlet længde mm: 194.50
Nr./montageshuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 77.00
No./mount. holes 2 (2)
Position/50 60
Position/B+ 15
Rotation CW
Dist./back 141.50
Dist./front 53.00
Drive dist. 16.50
Gear type GR
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 194.50 mm
Dist. 105.00 mm

  • OEM
    F032116640, M000T71981, M000T90282, M0T71981, M0T90281, M0T90282, M0T90284, 6C040-59212, 6C140-59210, 6C140-59211, 6C140-59212

  • Konkurrentreferens
    CST35306, CST35306GS, SMT0170, 26-5220, 690.533.082.130, 18396, 106383, 254473

  • NormaliseratArtNr
    cst35306, cst35306gs, f032116640, m000t71981, m000t90282, m0t71981, m0t90281, m0t90282, m0t90284, smt0170, 6c04059212, 6c14059210, 6c14059211, 6c14059212, 18396, 106383, 254473, 265220, 690533082130

  • Passar modeller
    Kubota Model series: Various Models Model type: Tractor Type description: B1700DT, E, HSD From date: 01-01-1995 To date: 01-01-1998 Approved: Yes
    Kubota Model series: Various Models Model type: Tractor Type description: B2100DT, HSD, HSDB From date: 01-01-1995 To date: 01-01-1998 Approved: Yes
    Kubota Model series: Various Models Model type: Tractor Type description: B2320DT,DTN, DWO From date: 01-01-2008 To date: 01-01-2009 Approved: Yes
    Kubota Model series: Various Models Model type: Tractor Type description: B7510DTN-R,HSD-F, HSD-R From date: 01-01-2004 To date: 01-01-2007 Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.0
    Fælgemont. flange: 77.00
    Drive afstand: 16.50
    Afstand/bag: 141.50
    Afstand/for: 53.00
    Nr./tænder: 8
    B+: M8
    Position/B+: 15
    Position/50: 60
    Terminal 50: 6.30
    Geartype: GR
    Afstand mm: 105.00
    Rotation: med uret
    Samlet længde mm: 194.50
    Nr./montageshuller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 77.00
    No./mount. holes 2 (2)
    Position/50 60
    Position/B+ 15
    Rotation CW
    Dist./back 141.50
    Dist./front 53.00
    Drive dist. 16.50
    Gear type GR
    kW 1.0
    Terminal 50 6.30
    Voltage 12
    Total length 194.50 mm
    Dist. 105.00 mm
  • Køretøjsmatchning

    • OEM
      F032116640, M000T71981, M000T90282, M0T71981, M0T90281, M0T90282, M0T90284, 6C040-59212, 6C140-59210, 6C140-59211, 6C140-59212

    • Konkurrentreferens
      CST35306, CST35306GS, SMT0170, 26-5220, 690.533.082.130, 18396, 106383, 254473

    • NormaliseratArtNr
      cst35306, cst35306gs, f032116640, m000t71981, m000t90282, m0t71981, m0t90281, m0t90282, m0t90284, smt0170, 6c04059212, 6c14059210, 6c14059211, 6c14059212, 18396, 106383, 254473, 265220, 690533082130

    • Passar modeller
      Kubota Model series: Various Models Model type: Tractor Type description: B1700DT, E, HSD From date: 01-01-1995 To date: 01-01-1998 Approved: Yes
      Kubota Model series: Various Models Model type: Tractor Type description: B2100DT, HSD, HSDB From date: 01-01-1995 To date: 01-01-1998 Approved: Yes
      Kubota Model series: Various Models Model type: Tractor Type description: B2320DT,DTN, DWO From date: 01-01-2008 To date: 01-01-2009 Approved: Yes
      Kubota Model series: Various Models Model type: Tractor Type description: B7510DTN-R,HSD-F, HSD-R From date: 01-01-2004 To date: 01-01-2007 Approved: Yes
