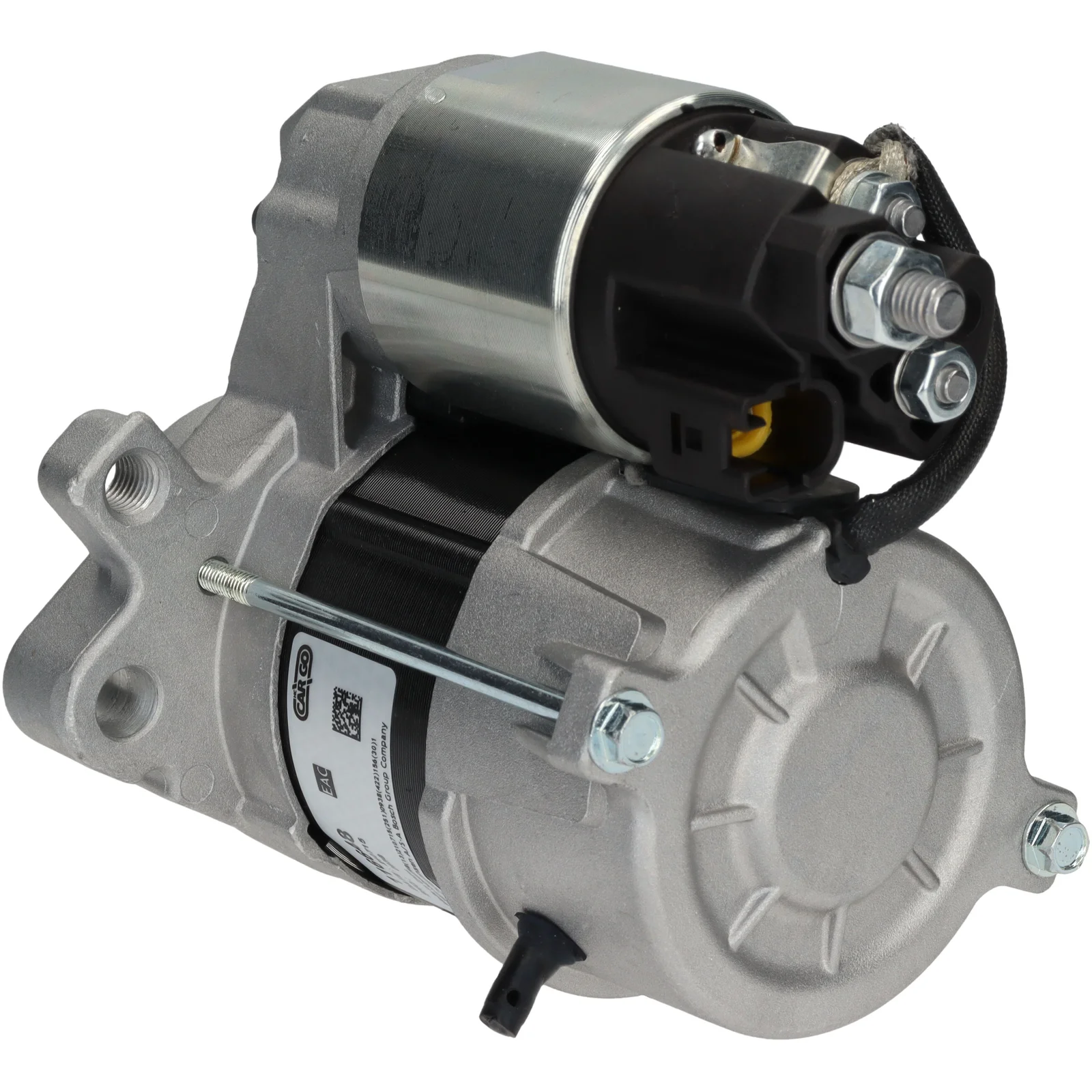

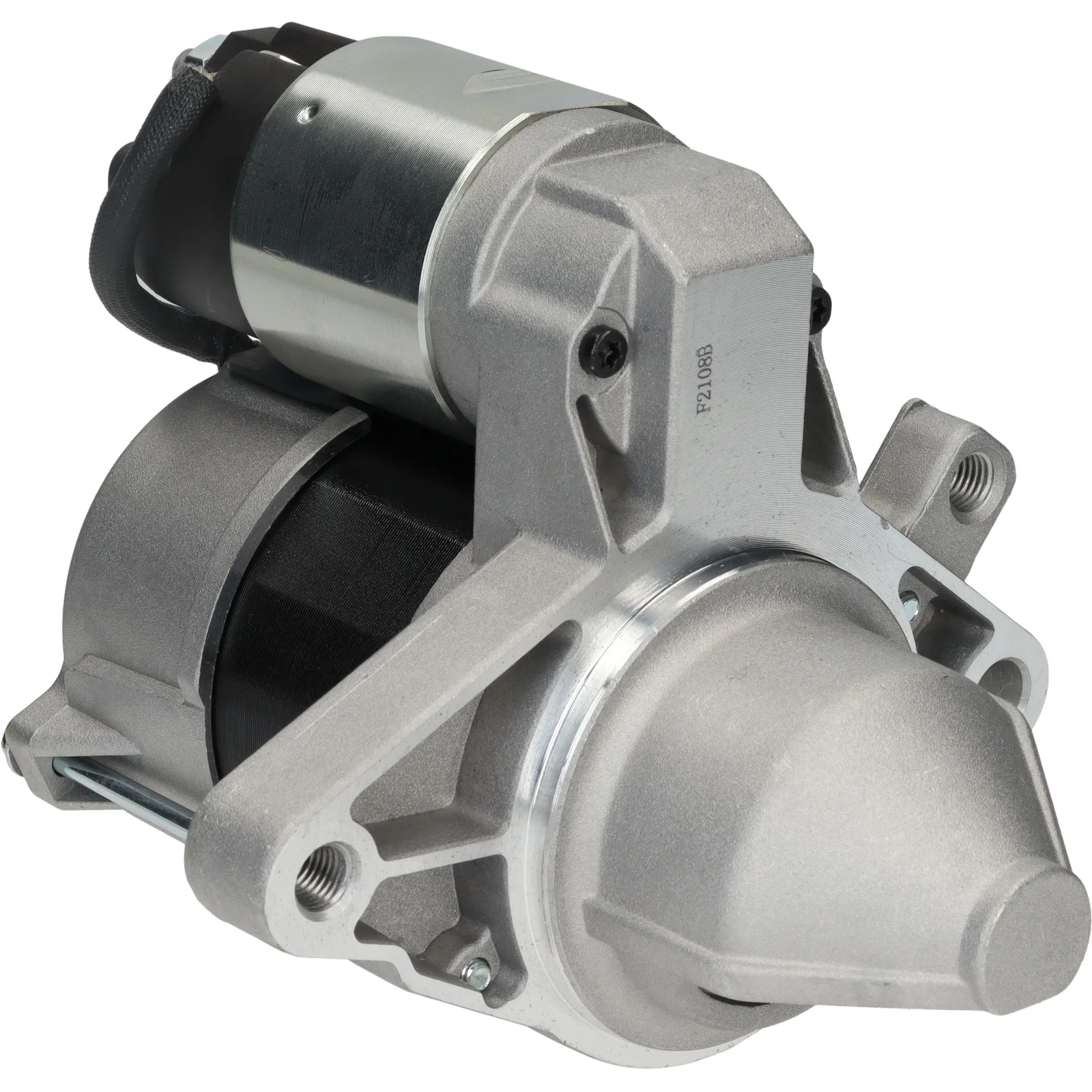

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116648

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.0, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.0
Mount. flange: 74.00
Drevafstand: 25.00
Monteringshul 1 mm: 11.00
Afstand/bag: 142.00
Afstand/forside: 61.50
No./tænder: 9
B+: M8
Position/B+: 53
Position/50: 38
Terminal 50: Stik
Gear type: DD
Afstand mm: 129.50
Rotation: CW
Total længde mm: 204.00
No./monteringshuller: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 38
Position/B+ 53
Rotation CW
Dist./back 142.00
Dist./front 61.50
Drive dist. 25.00
Gear type DD
kW 1.0
Terminal 50 Plug
Voltage 12
Total length 204.00 mm
Dist. 129.50 mm
Mount. hole 1 11.00 mm

  • OEM
    ESW10E1, F032116648, 28100-0Q090, 1612092880, 1637179880

  • Konkurrentreferens
    CST15305, S3222S, 25-5066, 220.537.102, 438313, 458736, 11090402, 0986026480

  • NormaliseratArtNr
    cst15305, esw10e1, f032116648, s3222s, 255066, 281000q090, 438313, 458736, 11090402, 220537102, 0986026480, 1612092880, 1637179880

  • Passar modeller
    Citroen Model: C1 Model series: C1 Model type: 68 Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C1 Model series: C1 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Type description: PA_, PS_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 108 Model series: 108 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Body: Hatchback From date: 01-05-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 12
    kW: 1.0
    Mount. flange: 74.00
    Drevafstand: 25.00
    Monteringshul 1 mm: 11.00
    Afstand/bag: 142.00
    Afstand/forside: 61.50
    No./tænder: 9
    B+: M8
    Position/B+: 53
    Position/50: 38
    Terminal 50: Stik
    Gear type: DD
    Afstand mm: 129.50
    Rotation: CW
    Total længde mm: 204.00
    No./monteringshuller: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 38
    Position/B+ 53
    Rotation CW
    Dist./back 142.00
    Dist./front 61.50
    Drive dist. 25.00
    Gear type DD
    kW 1.0
    Terminal 50 Plug
    Voltage 12
    Total length 204.00 mm
    Dist. 129.50 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      ESW10E1, F032116648, 28100-0Q090, 1612092880, 1637179880

    • Konkurrentreferens
      CST15305, S3222S, 25-5066, 220.537.102, 438313, 458736, 11090402, 0986026480

    • NormaliseratArtNr
      cst15305, esw10e1, f032116648, s3222s, 255066, 281000q090, 438313, 458736, 11090402, 220537102, 0986026480, 1612092880, 1637179880

    • Passar modeller
      Citroen Model: C1 Model series: C1 Model type: 68 Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C1 Model series: C1 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Type description: PA_, PS_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
      Peugeot Model: 108 Model series: 108 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Body: Hatchback From date: 01-05-2018 Fuel: Gasoline Approved: Yes
      Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
