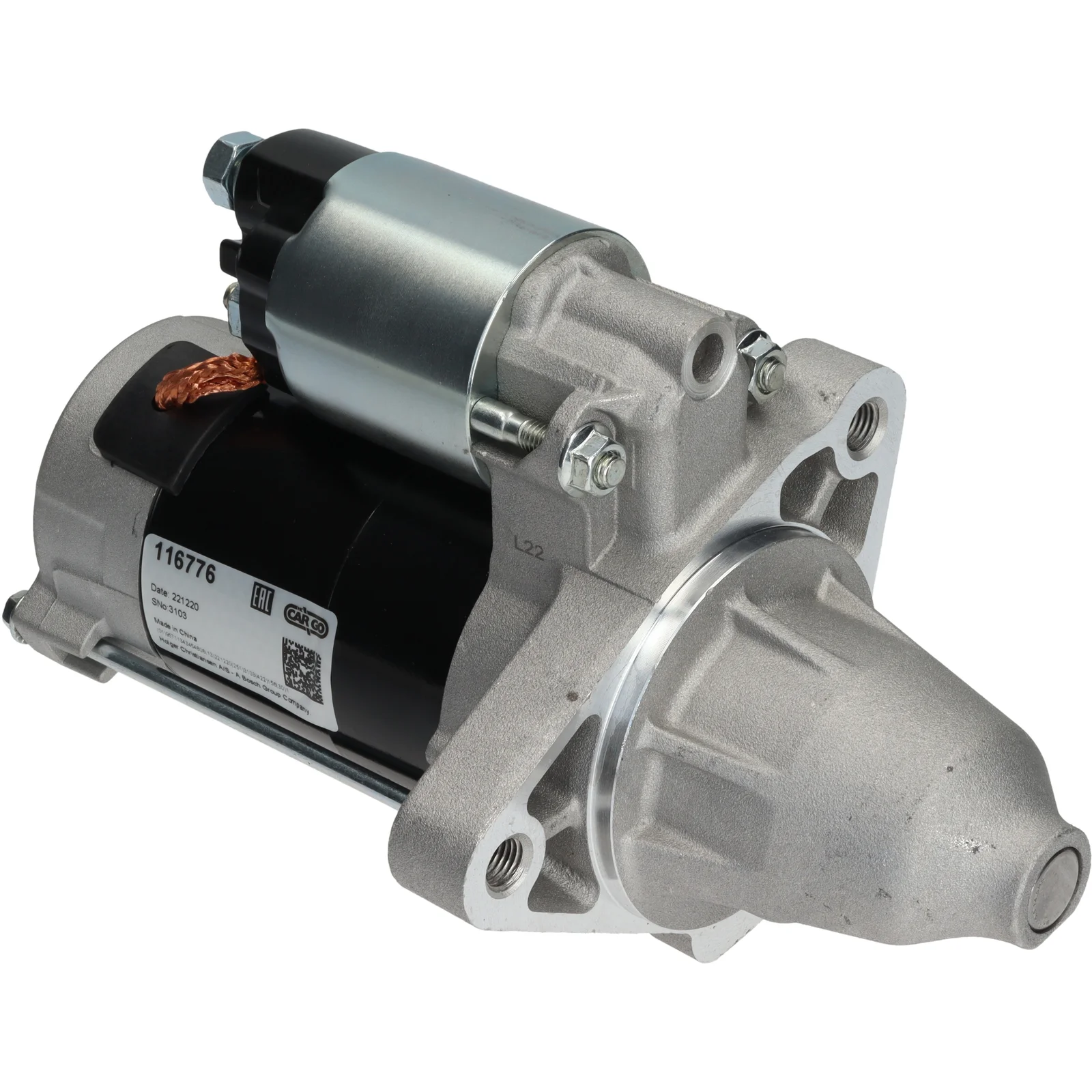

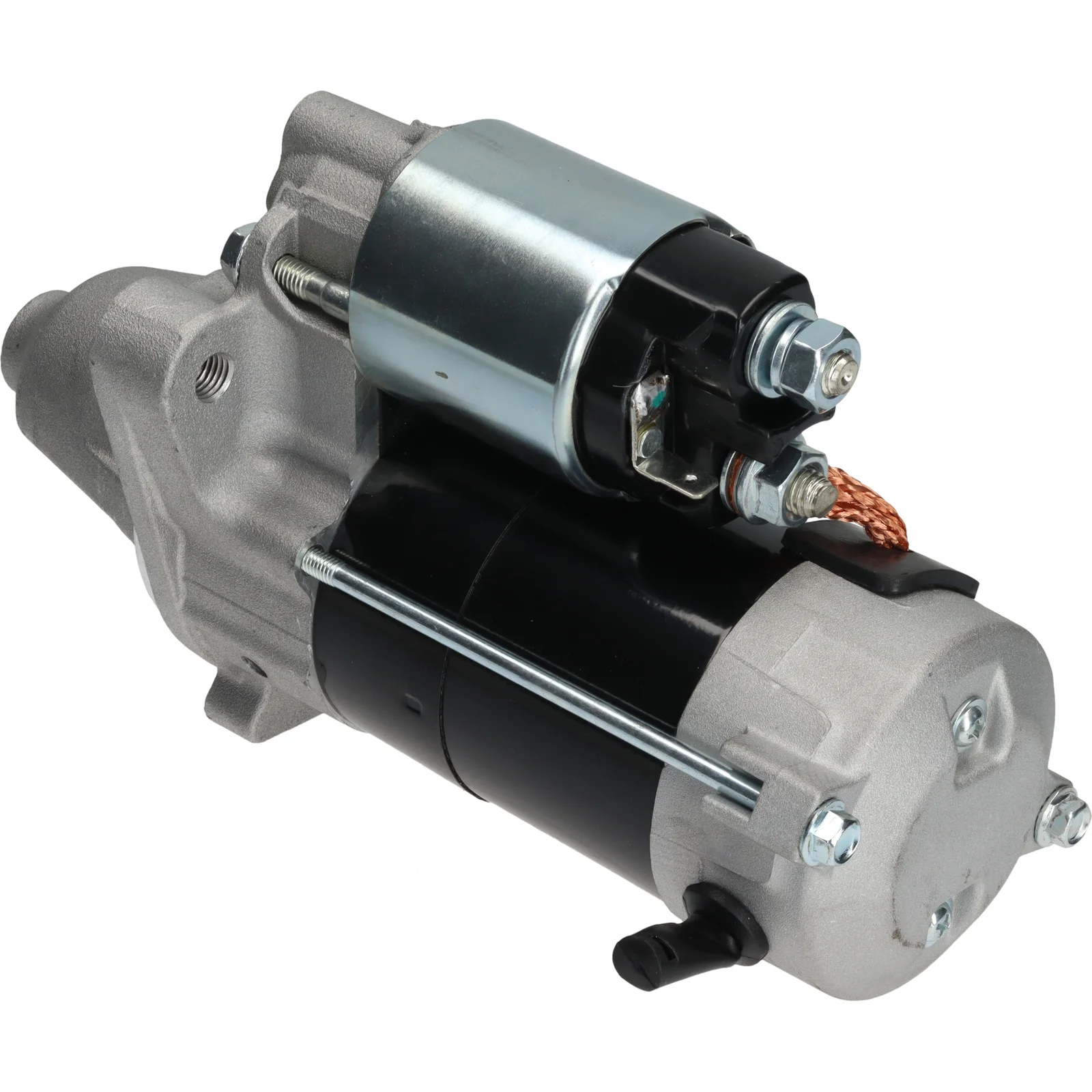

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116776

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 1.0, No./tænder: 9, Rotation: CW

Beskrivelse

Spænding: 12
kW: 1.0
Monteringsflange: 74.00
Drive afstand: 36.00
Monteringshul 2 mm: M10-1.25
Monteringshul 1 mm: M10-1.25
Afstand/back: 153.50
Afstand/front: 69.00
Antal/tænder: 9
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Afstand mm: 104.00
Rotation: med uret
Samlet længde mm: 222.50
Drive type: Steel
Antal/monteringshuller: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (2)
Position/50 45
Position/B+ 60
Rotation CW
Dist./back 153.50
Dist./front 69.00
Drive dist. 36.00
Drive type Steel
Gear type GR
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 222.50 mm
Dist. 104.00 mm
Mount. hole 2 M10-1.25 mm
Mount. hole 1 M10-1.25 mm

  • OEM
    F032116776, 28100-B1020, 28100-B2110, 28100-B2120, 428000-2560

  • Konkurrentreferens
    25-4177, 317.033.092, 11040864

  • NormaliseratArtNr
    f032116776, 28100b1020, 28100b2110, 28100b2120, 254177, 11040864, 317033092, 4280002560

  • Passar modeller
    Daihatsu Model: Cuore Model series: Cuore Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2007 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Sirion Model series: Sirion Size of motor: 1.0 Brand of engine: 1KR-FE Type description: M3_ Body: Hatchback From date: 01-01-2005 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    Subaru Model: Justy Model series: Justy Model type: BiFuel Type of engine: Bifuel Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-09-2007 To date: 01-03-2012 Fuel: Petrol/Electro Approved: Yes
    Subaru Model: Justy Model series: Justy Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-01-2007 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 1.0
    Monteringsflange: 74.00
    Drive afstand: 36.00
    Monteringshul 2 mm: M10-1.25
    Monteringshul 1 mm: M10-1.25
    Afstand/back: 153.50
    Afstand/front: 69.00
    Antal/tænder: 9
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Afstand mm: 104.00
    Rotation: med uret
    Samlet længde mm: 222.50
    Drive type: Steel
    Antal/monteringshuller: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (2)
    Position/50 45
    Position/B+ 60
    Rotation CW
    Dist./back 153.50
    Dist./front 69.00
    Drive dist. 36.00
    Drive type Steel
    Gear type GR
    kW 1.0
    Terminal 50 6.30
    Voltage 12
    Total length 222.50 mm
    Dist. 104.00 mm
    Mount. hole 2 M10-1.25 mm
    Mount. hole 1 M10-1.25 mm
  • Køretøjsmatchning

    • OEM
      F032116776, 28100-B1020, 28100-B2110, 28100-B2120, 428000-2560

    • Konkurrentreferens
      25-4177, 317.033.092, 11040864

    • NormaliseratArtNr
      f032116776, 28100b1020, 28100b2110, 28100b2120, 254177, 11040864, 317033092, 4280002560

    • Passar modeller
      Daihatsu Model: Cuore Model series: Cuore Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2007 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Sirion Model series: Sirion Size of motor: 1.0 Brand of engine: 1KR-FE Type description: M3_ Body: Hatchback From date: 01-01-2005 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      Subaru Model: Justy Model series: Justy Model type: BiFuel Type of engine: Bifuel Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-09-2007 To date: 01-03-2012 Fuel: Petrol/Electro Approved: Yes
      Subaru Model: Justy Model series: Justy Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-01-2007 Fuel: Gasoline Approved: Yes
