HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116788

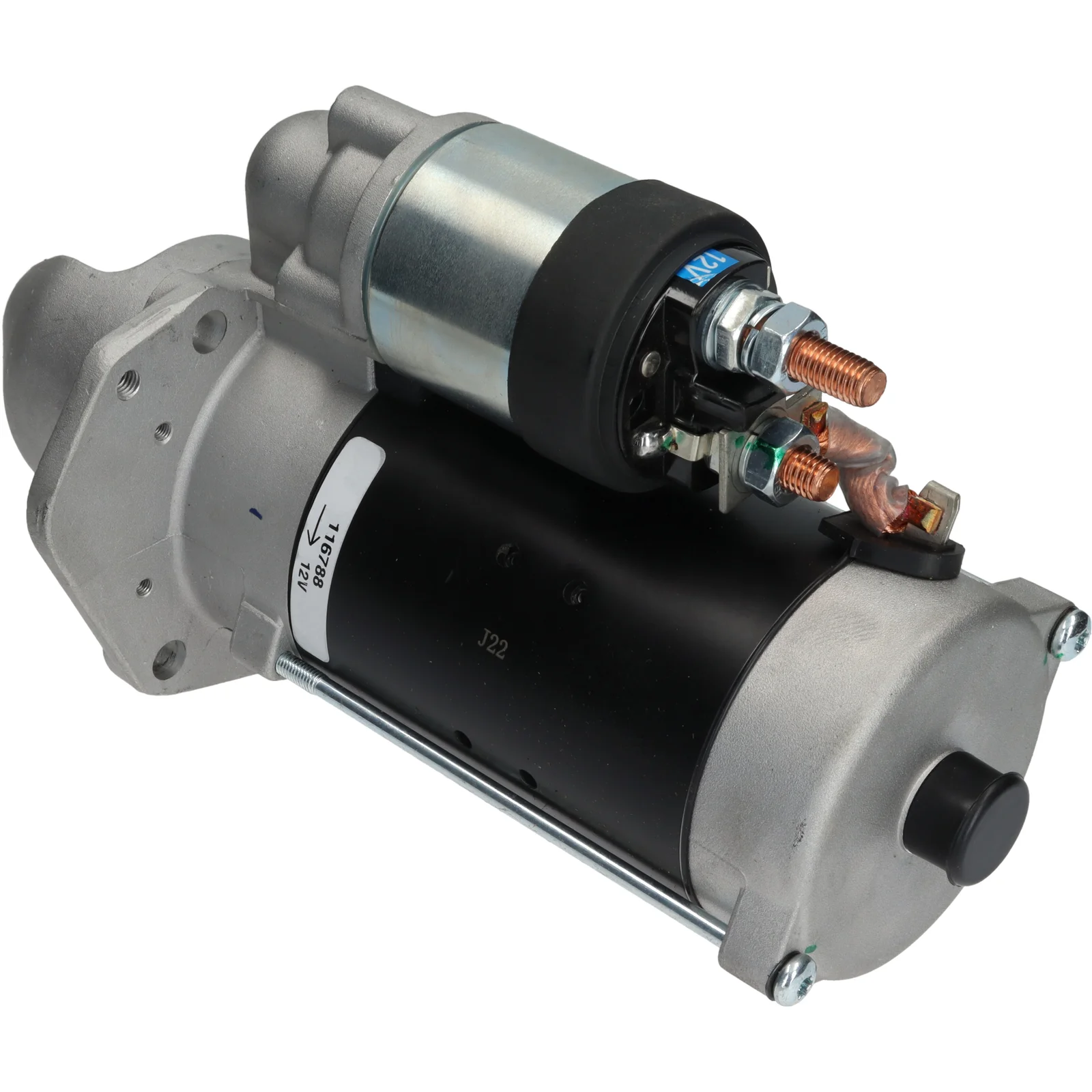

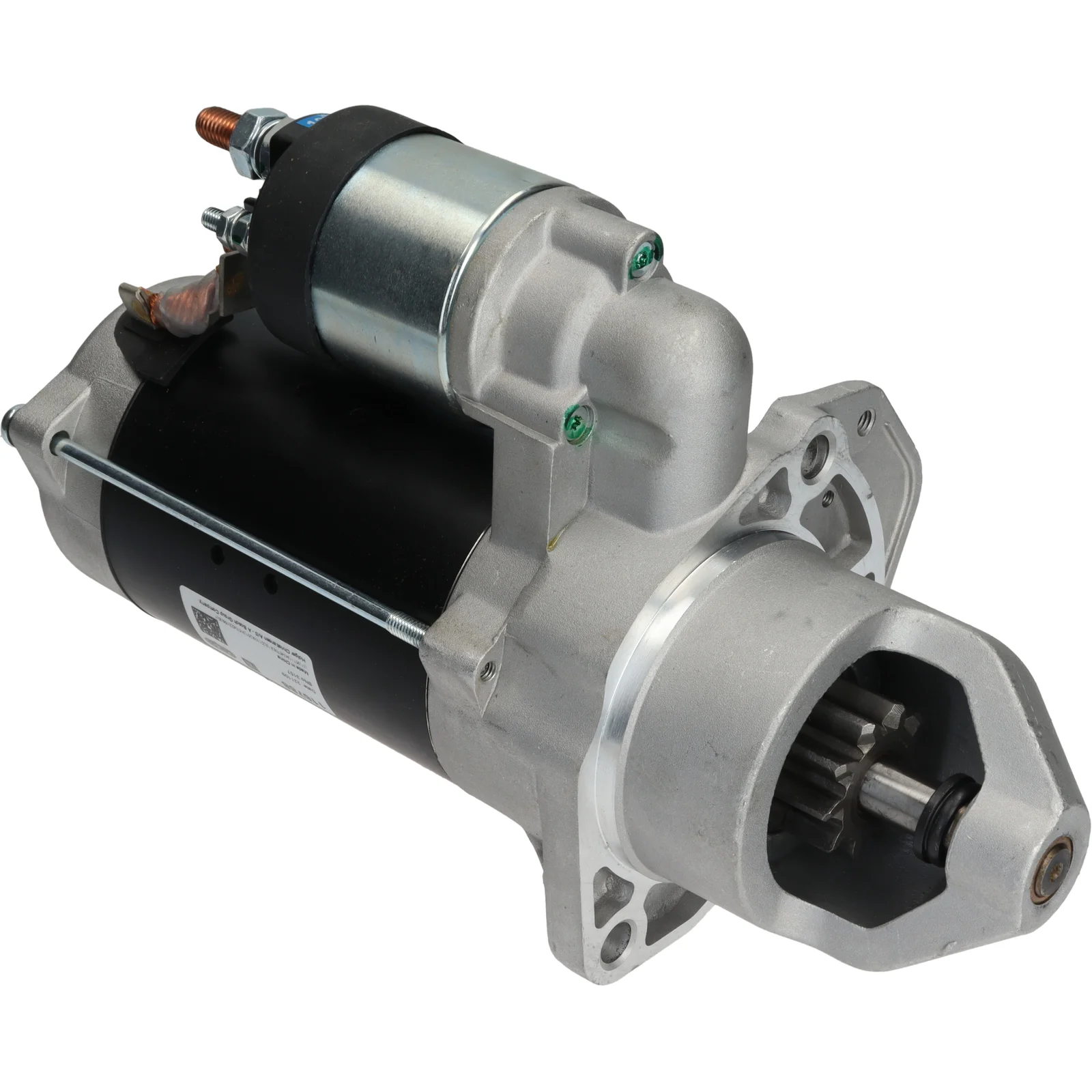

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 12, kW: 3,0, Antal/tenner: 10, Rotation: CW

Beskrivelse

Spænding: 12
kW: 3.0
Monteringsflange: 89.00
Drevafstand: 48.00
Monteringshul 3 mm: 11.00
Monteringshul 2 mm: 11.00
Monteringshul 1 mm: 11.00
Afstand/bag: 221.00
Afstand/frem: 95.00
Nr./tænder: 10
B+: M10
Position/B+: 60
Position/50: 15
-terminal 50: M6
Gear type: GR
Afstand 2: 90.00
Afstand 3: 127.00
Afstand mm: 90.00
Rotation: med uret
Total længde mm: 316.00
Nr./monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 221.00
Dist./front 95.00
Drive dist. 48.00
Gear type GR
kW 3.0
Terminal 50 M6
Voltage 12
Total length 316.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116788, 0001230030, 2855454, 504108451

  • Konkurrentreferens
    CST10000, DRS1038, 500.571.103

  • NormaliseratArtNr
    cst10000, drs1038, f032116788, 0001230030, 2855454, 500571103, 504108451

  • Passar modeller
    Iveco Model: Vertis Model series: 130 V 18 Size of motor: 3.9 Brand of engine: F4AE3481B Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Iveco Model: Vertis Model series: 130 V 19 Size of motor: 3.9 Brand of engine: F4AE3481A Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Iveco Model: Vertis Model series: 90 V 16 Size of motor: 3.9 Brand of engine: F4AE3481D Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Iveco Model: Vertis Model series: 90 V 18 Size of motor: 3.9 Brand of engine: F4AE3481B Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 12
    kW: 3.0
    Monteringsflange: 89.00
    Drevafstand: 48.00
    Monteringshul 3 mm: 11.00
    Monteringshul 2 mm: 11.00
    Monteringshul 1 mm: 11.00
    Afstand/bag: 221.00
    Afstand/frem: 95.00
    Nr./tænder: 10
    B+: M10
    Position/B+: 60
    Position/50: 15
    -terminal 50: M6
    Gear type: GR
    Afstand 2: 90.00
    Afstand 3: 127.00
    Afstand mm: 90.00
    Rotation: med uret
    Total længde mm: 316.00
    Nr./monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 15
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 221.00
    Dist./front 95.00
    Drive dist. 48.00
    Gear type GR
    kW 3.0
    Terminal 50 M6
    Voltage 12
    Total length 316.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      F032116788, 0001230030, 2855454, 504108451

    • Konkurrentreferens
      CST10000, DRS1038, 500.571.103

    • NormaliseratArtNr
      cst10000, drs1038, f032116788, 0001230030, 2855454, 500571103, 504108451

    • Passar modeller
      Iveco Model: Vertis Model series: 130 V 18 Size of motor: 3.9 Brand of engine: F4AE3481B Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Iveco Model: Vertis Model series: 130 V 19 Size of motor: 3.9 Brand of engine: F4AE3481A Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Iveco Model: Vertis Model series: 90 V 16 Size of motor: 3.9 Brand of engine: F4AE3481D Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Iveco Model: Vertis Model series: 90 V 18 Size of motor: 3.9 Brand of engine: F4AE3481B Type description: Vertis Body: Platform / Chassis From date: 01-10-2010 Fuel: Diesel Approved: Yes
