Vare nr.: F032110490

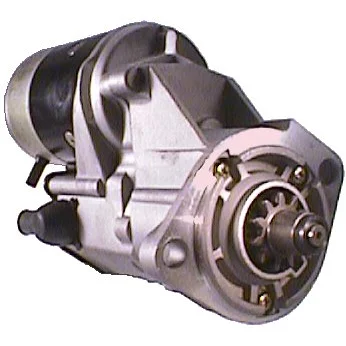

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 4.5, Nr./tænder: 11, Rotation: Med uret

Beskrivelse

Spænding: 24
kW: 4,5
monteringsflange: 90,00
driveafstand: 16,00
monteringshul 2 mm: 13,50
monteringshul 1 mm: 13,50
afstand/bag: 193,00
afstand/frem: 42,00
antal/tænder: 11
B+: M10
Position/50: 10
Terminal 50: M5
Geartype: GR
Afstand mm: 112,50
Rotation: CW
Total længde mm: 295,00
Drevetype: Stål
Produktinfo: BN
Vandtæt: Nej
Olieforseglet: Nej
antal/monteringshuller: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 90.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 10
Prod. info BN
Rotation CW
Dist./back 193.00
Dist./front 42.00
Drive dist. 16.00
Drive type Steel
Gear type GR
kW 4.5
Terminal 50 M5
Voltage 24
Total length 295.00 mm
Waterproof No
Dist. 112.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032110490, js733, 028000-5860, 028000-5861, 028000-5862, 028000-5863, 028000-5864, 028000-6010, 028000-6011, 028000-6012, 028000-6013, 28100-22060, 28100-22060-71, 28100-22061, 28100-22061-71

  • Konkurrentreferens
    CST38137, CST40606, DRS3257, F042000096, F042000099, F042S00096, F042S00099, LES0140, LRS01881, S6010, S9207, STR-6163, STR-6168, STR6163, STR6168, 2-1754-ND, 8ea730274-001, 45-1462, 635.004.114, 4256, 16614, 16614N, 17794N, 18180, 18180N, 20733, 103866, 104702, 11040392, 0986014441

  • NormaliseratArtNr
    cst38137, cst40606, drs3257, f032110490, f042000096, f042000099, f042s00096, f042s00099, js733, les0140, lrs01881, s6010, s9207, str6163, str6168, 8ea730274001, 4256, 16614, 16614n, 17794n, 18180, 18180n, 20733, 21754nd, 103866, 104702, 451462, 11040392, 0280005860, 0280005861, 0280005862, 0280005863, 0280005864, 0280006010, 0280006011, 0280006012, 0280006013, 635004114, 0986014441, 2810022060, 2810022061, 281002206071, 281002206171

  • Passar modeller
    Toyota Model: 5FD Model series: 5FD40 From date: 01-01-1988 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FD Model series: 5FD45 From date: 01-01-1988 Fuel: Diesel Approved: Yes
    Toyota Model: 5FD Model series: 5FD50 From date: 01-01-1990 Approved: Yes
    Toyota Model: 5FD Model series: 5FD60 From date: 01-01-1990 Approved: Yes
    Toyota Model: 5FD Model series: 5FD70 From date: 01-01-1990 Approved: Yes
  • Beskrivelse
    Spænding: 24
    kW: 4,5
    monteringsflange: 90,00
    driveafstand: 16,00
    monteringshul 2 mm: 13,50
    monteringshul 1 mm: 13,50
    afstand/bag: 193,00
    afstand/frem: 42,00
    antal/tænder: 11
    B+: M10
    Position/50: 10
    Terminal 50: M5
    Geartype: GR
    Afstand mm: 112,50
    Rotation: CW
    Total længde mm: 295,00
    Drevetype: Stål
    Produktinfo: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    antal/monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 90.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 10
    Prod. info BN
    Rotation CW
    Dist./back 193.00
    Dist./front 42.00
    Drive dist. 16.00
    Drive type Steel
    Gear type GR
    kW 4.5
    Terminal 50 M5
    Voltage 24
    Total length 295.00 mm
    Waterproof No
    Dist. 112.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Køretøjsmatchning

    • OEM
      F032110490, js733, 028000-5860, 028000-5861, 028000-5862, 028000-5863, 028000-5864, 028000-6010, 028000-6011, 028000-6012, 028000-6013, 28100-22060, 28100-22060-71, 28100-22061, 28100-22061-71

    • Konkurrentreferens
      CST38137, CST40606, DRS3257, F042000096, F042000099, F042S00096, F042S00099, LES0140, LRS01881, S6010, S9207, STR-6163, STR-6168, STR6163, STR6168, 2-1754-ND, 8ea730274-001, 45-1462, 635.004.114, 4256, 16614, 16614N, 17794N, 18180, 18180N, 20733, 103866, 104702, 11040392, 0986014441

    • NormaliseratArtNr
      cst38137, cst40606, drs3257, f032110490, f042000096, f042000099, f042s00096, f042s00099, js733, les0140, lrs01881, s6010, s9207, str6163, str6168, 8ea730274001, 4256, 16614, 16614n, 17794n, 18180, 18180n, 20733, 21754nd, 103866, 104702, 451462, 11040392, 0280005860, 0280005861, 0280005862, 0280005863, 0280005864, 0280006010, 0280006011, 0280006012, 0280006013, 635004114, 0986014441, 2810022060, 2810022061, 281002206071, 281002206171

    • Passar modeller
      Toyota Model: 5FD Model series: 5FD40 From date: 01-01-1988 To date: 01-01-1993 Approved: Yes
      Toyota Model: 5FD Model series: 5FD45 From date: 01-01-1988 Fuel: Diesel Approved: Yes
      Toyota Model: 5FD Model series: 5FD50 From date: 01-01-1990 Approved: Yes
      Toyota Model: 5FD Model series: 5FD60 From date: 01-01-1990 Approved: Yes
      Toyota Model: 5FD Model series: 5FD70 From date: 01-01-1990 Approved: Yes
