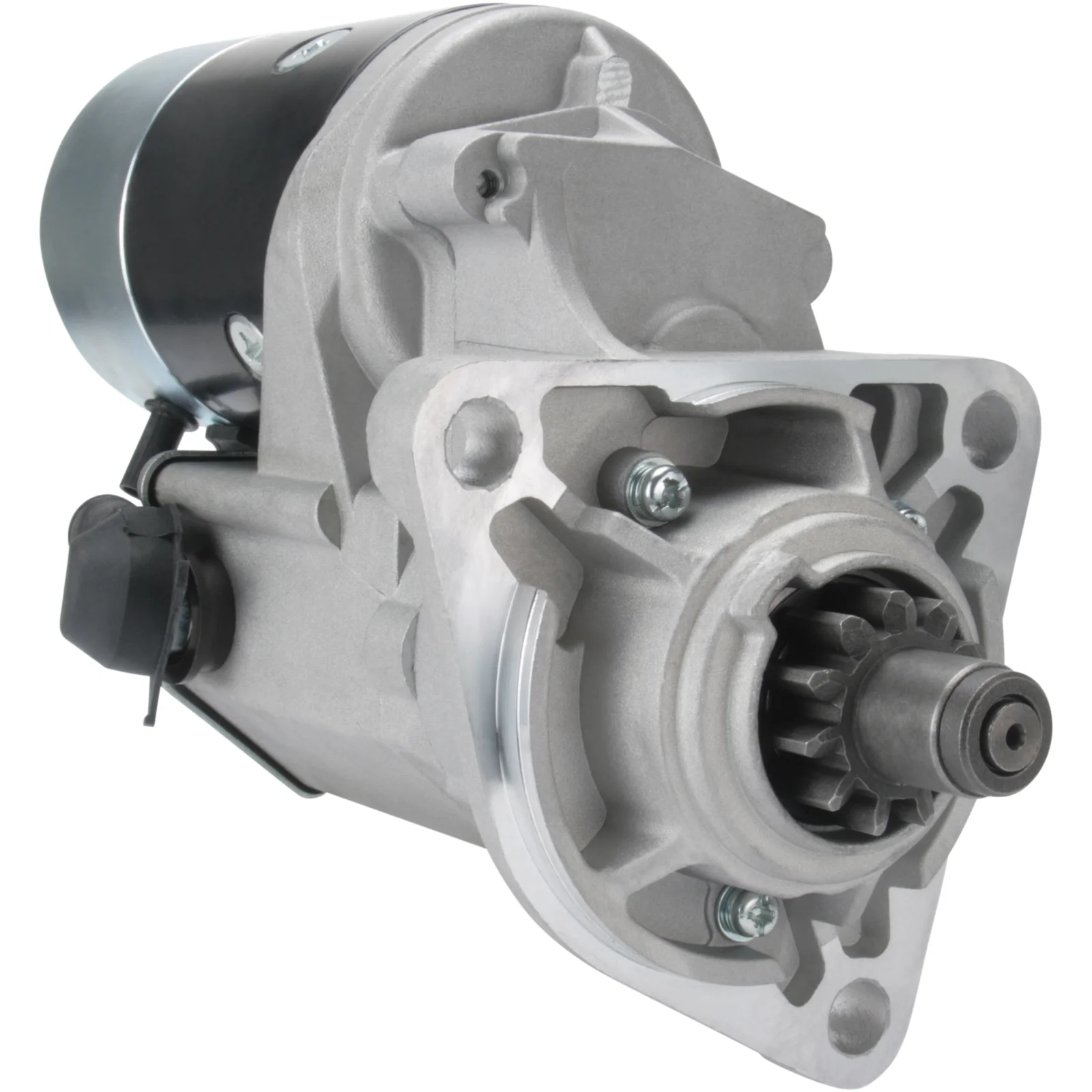

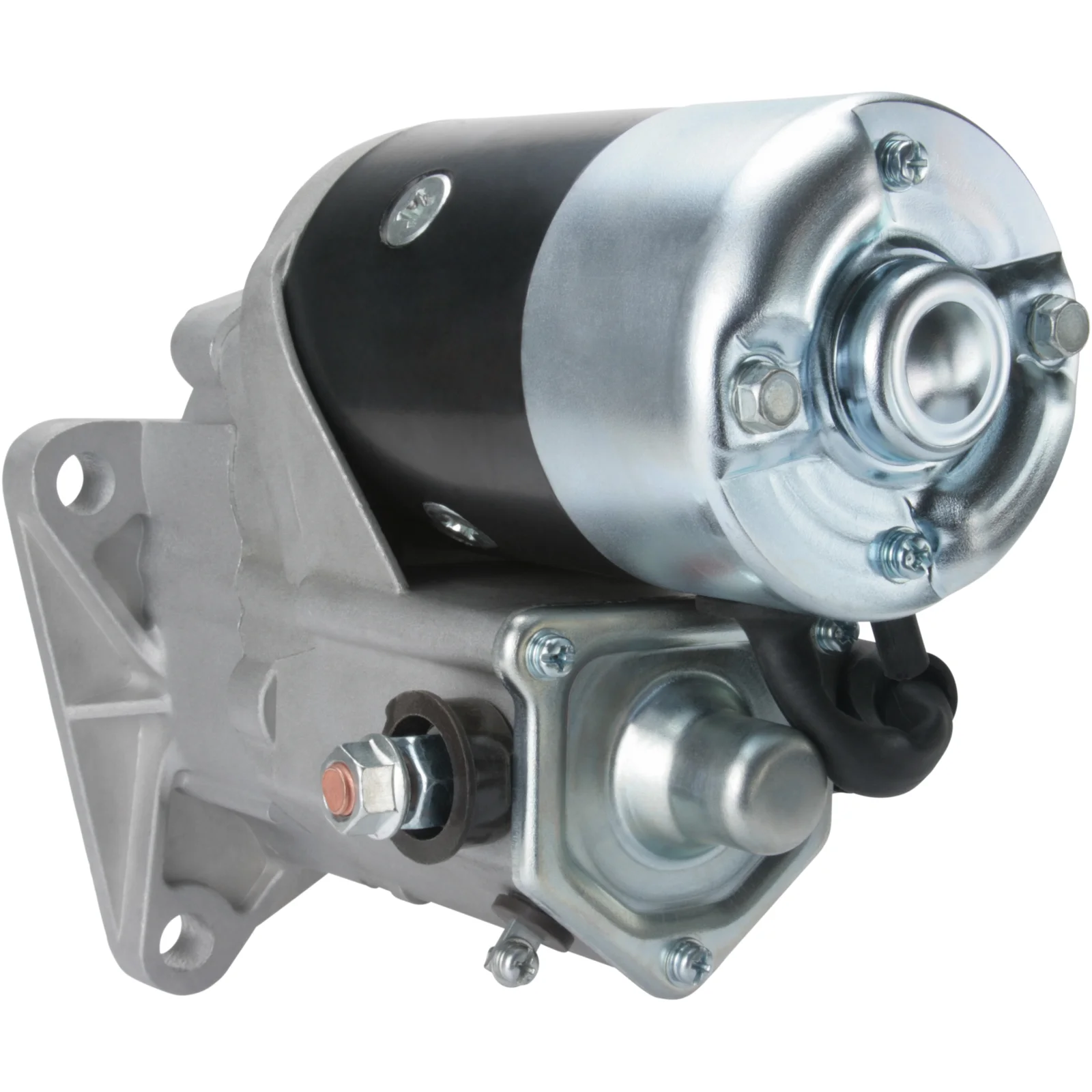

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032110580

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 4.5, Nr./tænder: 11, Rotation: Med uret

Beskrivelse

Spænding: 24
kW: 4,5
Montageflange: 105,00
Drevafstand: 41,00
Montagehul 3 mm: 13,00
Montagehul 2 mm: 13,00
Montagehul 1 mm: 13,00
Afstand/bagud: 170,00
Afstand/frampå: 68,00
Nr./tænder: 11
B+: M10
Position/50: 35
Terminal 50: M5
Gear type: GR
Afstand 2: 135,00
Afstand 3: 110,50
Afstand mm: 110,50
Rotation: UØ
Total længde mm: 297,00
Drejetype: Stål
Produktsinfo: BN
Vandtæt: Nej
Oliesikret: Nej
Nr./montagehuller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 105.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 35
Prod. info BN
Dist. 2 135.00
Dist. 3 110.50
Rotation CW
Dist./back 170.00
Dist./front 68.00
Drive dist. 41.00
Drive type Steel
Gear type GR
kW 4.5
Terminal 50 M5
Voltage 24
Total length 297.00 mm
Waterproof No
Dist. 110.50 mm
Mount. hole 3 13.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    0-21000-3291, 0-21000-3600, 0-21000-3650, 0-21000-3660, 0-21000-3661, 0-21000-4470, 0-21000-4471, 0-23000-1030, 0-23000-1031, 0-23000-1032, 0-23000-1033, 0-23000-1050, 0-23000-1060, 0-23000-1061, 0-23000-1670, 0-23000-3000, 0-23000-3010, 0-23000-3016, 0-23000-3661, F032110580, s25-100, s25-100a, s25-103, S25-135, s25-135a, 1-81100141-1, 714-40280, 028000-6200, 028000-6201, 028000-6202, 1811001410, 1811001891, 5811000180, 5811000252, 5811001180

  • Konkurrentreferens
    CST40642, CST50601, drs3217, DRS3217N, DSN2054, F042000093, F042S00093, S6027, S9184, STR-6160, STR6160, 2-2105-ND, 8ea730287-001, 45-1382, 45-1392, 261.516.113, 643.006.114, 643.034.114, 4269, 18100N-ND, 18190, 18190N, 20746, 103870, 220625, 220625A, 254653

  • NormaliseratArtNr
    cst40642, cst50601, drs3217, drs3217n, dsn2054, f032110580, f042000093, f042s00093, s25100, s25100a, s25103, s25135, s25135a, s6027, s9184, str6160, 8ea730287001, 4269, 18100nnd, 18190, 18190n, 20746, 22105nd, 103870, 220625, 220625a, 254653, 451382, 451392, 71440280, 0210003291, 0210003600, 0210003650, 0210003660, 0210003661, 0210004470, 0210004471, 0230001030, 0230001031, 0230001032, 0230001033, 0230001050, 0230001060, 0230001061, 0230001670, 0230003000, 0230003010, 0230003016, 0230003661, 261516113, 0280006200, 0280006201, 0280006202, 643006114, 643034114, 1811001410, 1811001411, 1811001891, 5811000180, 5811000252, 5811001180

  • Passar modeller
    Isuzu Model: Engine Model series: Engine Brand of engine: 6BB1 Approved: Yes
    Isuzu Model: Engine Model series: Engine Brand of engine: 6BD1T Approved: Yes
    Isuzu Model: Engine Model series: Engine Brand of engine: 6BF1 Approved: Yes
    Isuzu Model: Engine Model series: Engine Brand of engine: 6BG1 Approved: Yes
  • Beskrivelse
    Spænding: 24
    kW: 4,5
    Montageflange: 105,00
    Drevafstand: 41,00
    Montagehul 3 mm: 13,00
    Montagehul 2 mm: 13,00
    Montagehul 1 mm: 13,00
    Afstand/bagud: 170,00
    Afstand/frampå: 68,00
    Nr./tænder: 11
    B+: M10
    Position/50: 35
    Terminal 50: M5
    Gear type: GR
    Afstand 2: 135,00
    Afstand 3: 110,50
    Afstand mm: 110,50
    Rotation: UØ
    Total længde mm: 297,00
    Drejetype: Stål
    Produktsinfo: BN
    Vandtæt: Nej
    Oliesikret: Nej
    Nr./montagehuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 105.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 35
    Prod. info BN
    Dist. 2 135.00
    Dist. 3 110.50
    Rotation CW
    Dist./back 170.00
    Dist./front 68.00
    Drive dist. 41.00
    Drive type Steel
    Gear type GR
    kW 4.5
    Terminal 50 M5
    Voltage 24
    Total length 297.00 mm
    Waterproof No
    Dist. 110.50 mm
    Mount. hole 3 13.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Køretøjsmatchning

    • OEM
      0-21000-3291, 0-21000-3600, 0-21000-3650, 0-21000-3660, 0-21000-3661, 0-21000-4470, 0-21000-4471, 0-23000-1030, 0-23000-1031, 0-23000-1032, 0-23000-1033, 0-23000-1050, 0-23000-1060, 0-23000-1061, 0-23000-1670, 0-23000-3000, 0-23000-3010, 0-23000-3016, 0-23000-3661, F032110580, s25-100, s25-100a, s25-103, S25-135, s25-135a, 1-81100141-1, 714-40280, 028000-6200, 028000-6201, 028000-6202, 1811001410, 1811001891, 5811000180, 5811000252, 5811001180

    • Konkurrentreferens
      CST40642, CST50601, drs3217, DRS3217N, DSN2054, F042000093, F042S00093, S6027, S9184, STR-6160, STR6160, 2-2105-ND, 8ea730287-001, 45-1382, 45-1392, 261.516.113, 643.006.114, 643.034.114, 4269, 18100N-ND, 18190, 18190N, 20746, 103870, 220625, 220625A, 254653

    • NormaliseratArtNr
      cst40642, cst50601, drs3217, drs3217n, dsn2054, f032110580, f042000093, f042s00093, s25100, s25100a, s25103, s25135, s25135a, s6027, s9184, str6160, 8ea730287001, 4269, 18100nnd, 18190, 18190n, 20746, 22105nd, 103870, 220625, 220625a, 254653, 451382, 451392, 71440280, 0210003291, 0210003600, 0210003650, 0210003660, 0210003661, 0210004470, 0210004471, 0230001030, 0230001031, 0230001032, 0230001033, 0230001050, 0230001060, 0230001061, 0230001670, 0230003000, 0230003010, 0230003016, 0230003661, 261516113, 0280006200, 0280006201, 0280006202, 643006114, 643034114, 1811001410, 1811001411, 1811001891, 5811000180, 5811000252, 5811001180

    • Passar modeller
      Isuzu Model: Engine Model series: Engine Brand of engine: 6BB1 Approved: Yes
      Isuzu Model: Engine Model series: Engine Brand of engine: 6BD1T Approved: Yes
      Isuzu Model: Engine Model series: Engine Brand of engine: 6BF1 Approved: Yes
      Isuzu Model: Engine Model series: Engine Brand of engine: 6BG1 Approved: Yes
