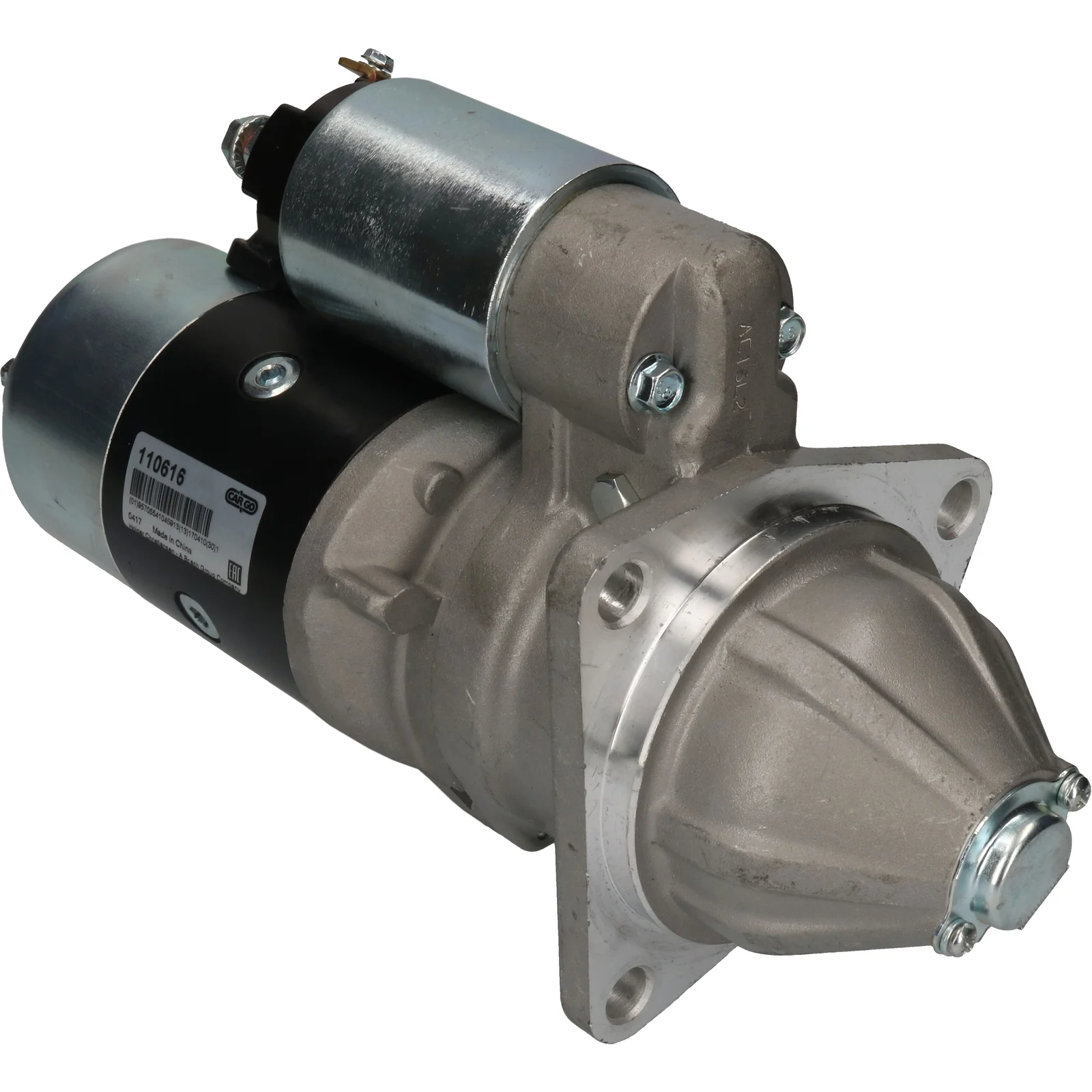

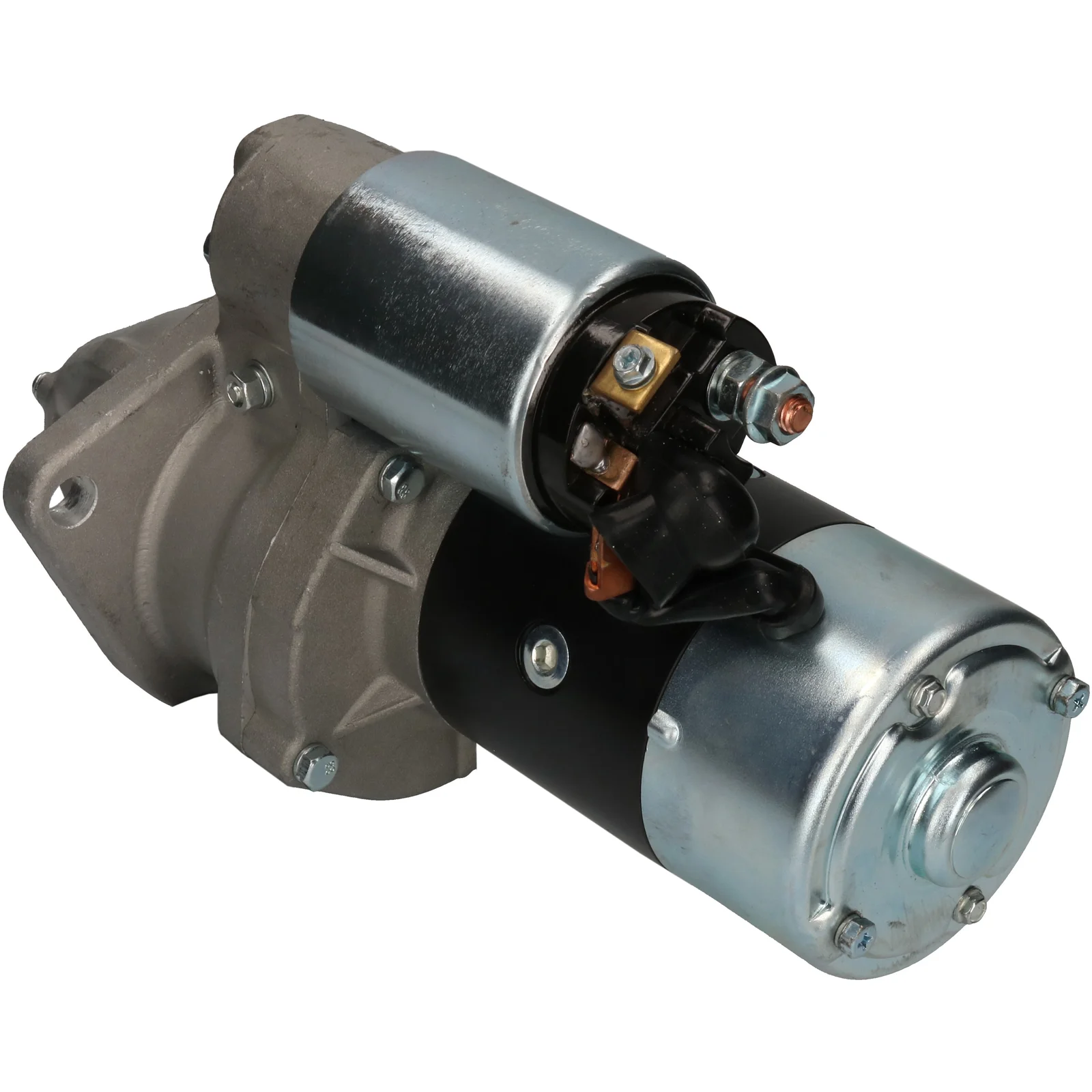

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032110616

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 4.5, Nr./tænder: 11, Rotation: Med uret

Beskrivelse

Vs. tilførsels: 24
kW: 4.5
Monteringsflange: 105.00
Drevafstand: 33.00
Monteringshul 3 mm: 13.00
Monteringshul 2 mm: 13.00
Monteringshul 1 mm: 13.00
Afstand/bag: 220.00
Afstand/frem: 77.50
Nr./tænder: 11
B+: M8
Position/B+: 10
Position/50: 55
Terminal 50: M4
Gear type: GR
Afstand 2: 108.00
Afstand 3: 111.50
Afstand mm: 135.00
Rotation: CW
Total længde mm: 303.50
Drevtype: Stål
Produktf info: BN
Vandtæt: Nej
Oliekapslet: Nej
Nr./monteringshuller: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 105.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 55
Position/B+ 10
Prod. info BN
Dist. 2 108.00
Dist. 3 111.50
Rotation CW
Dist./back 220.00
Dist./front 77.50
Drive dist. 33.00
Drive type Steel
Gear type GR
kW 4.5
Terminal 50 M4
Voltage 24
Total length 303.50 mm
Waterproof No
Dist. 135.00 mm
Mount. hole 3 13.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032110616, js1087, S25-110, s25-110a, S25-110B, s25-110c, s25-110f, s25-110g, S25-110K, s25-110l, s25-110m, s25-162, s25-164, s25-164a, s25-64, s25-64b, s25-64e, s25-64f, s25-75, s25-75a, 0350-502-0130, 0350-502-0131, 23300-25504, 23300-90060, 23300-l6000, 23300-l6600, 23300-z5000, 23300-z5005, 23300-z5504, 23300-z5505, 23300-z5507, 23300-z5508, 23300-z5509, 23300-z5514, 23300-z5515, 23300-Z5517, 23300-z5520

  • Konkurrentreferens
    ads-943, CST20601, drs3364, LRS01835, LRS01861, s-8395, s-8623, S2058, S9146, S9328S, sd-00173r, sd-0038r, snd0065, STR72001, STR72053, 2-2037-hi, 8ea732847-001, 8ea737416-001, 26-1359, 45-0445, 45-0478, 45-1330, 50-8106-1, 50-8106-9, 91-25-1087, 327.037.114, 627.033.114, 4316, 4527, 18059, 18059N, 18062, 20904, 103871, 105962, 201087, 726814, 3042323, 11040151

  • NormaliseratArtNr
    ads943, cst20601, drs3364, f032110616, js1087, lrs01835, lrs01861, s2058, s25110, s25110a, s25110b, s25110c, s25110f, s25110g, s25110k, s25110l, s25110m, s25162, s25164, s25164a, s2564, s2564b, s2564e, s2564f, s2575, s2575a, s8395, s8623, s9146, s9328s, sd00173r, sd0038r, snd0065, str72001, str72053, 8ea732847001, 8ea737416001, 4316, 4527, 18059, 18059n, 18062, 20904, 22037hi, 23300l6000, 23300l6600, 23300z5000, 23300z5005, 23300z5504, 23300z5505, 23300z5507, 23300z5508, 23300z5509, 23300z5514, 23300z5515, 23300z5517, 23300z5520, 103871, 105962, 201087, 261359, 450445, 450478, 451330, 726814, 3042323, 5081061, 5081069, 11040151, 91251087, 327037114, 627033114, 2330025504, 2330090060, 03505020130, 03505020131

  • Passar modeller
    Nissan Model: GF Model series: GF 03 Brand of engine: SD33 From date: 01-01-1978 Approved: Yes
    Nissan Model: YGF Model series: YGF 03 Brand of engine: SD33 From date: 01-01-1980 Approved: Yes
  • Beskrivelse
    Vs. tilførsels: 24
    kW: 4.5
    Monteringsflange: 105.00
    Drevafstand: 33.00
    Monteringshul 3 mm: 13.00
    Monteringshul 2 mm: 13.00
    Monteringshul 1 mm: 13.00
    Afstand/bag: 220.00
    Afstand/frem: 77.50
    Nr./tænder: 11
    B+: M8
    Position/B+: 10
    Position/50: 55
    Terminal 50: M4
    Gear type: GR
    Afstand 2: 108.00
    Afstand 3: 111.50
    Afstand mm: 135.00
    Rotation: CW
    Total længde mm: 303.50
    Drevtype: Stål
    Produktf info: BN
    Vandtæt: Nej
    Oliekapslet: Nej
    Nr./monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 105.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 55
    Position/B+ 10
    Prod. info BN
    Dist. 2 108.00
    Dist. 3 111.50
    Rotation CW
    Dist./back 220.00
    Dist./front 77.50
    Drive dist. 33.00
    Drive type Steel
    Gear type GR
    kW 4.5
    Terminal 50 M4
    Voltage 24
    Total length 303.50 mm
    Waterproof No
    Dist. 135.00 mm
    Mount. hole 3 13.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Køretøjsmatchning

    • OEM
      F032110616, js1087, S25-110, s25-110a, S25-110B, s25-110c, s25-110f, s25-110g, S25-110K, s25-110l, s25-110m, s25-162, s25-164, s25-164a, s25-64, s25-64b, s25-64e, s25-64f, s25-75, s25-75a, 0350-502-0130, 0350-502-0131, 23300-25504, 23300-90060, 23300-l6000, 23300-l6600, 23300-z5000, 23300-z5005, 23300-z5504, 23300-z5505, 23300-z5507, 23300-z5508, 23300-z5509, 23300-z5514, 23300-z5515, 23300-Z5517, 23300-z5520

    • Konkurrentreferens
      ads-943, CST20601, drs3364, LRS01835, LRS01861, s-8395, s-8623, S2058, S9146, S9328S, sd-00173r, sd-0038r, snd0065, STR72001, STR72053, 2-2037-hi, 8ea732847-001, 8ea737416-001, 26-1359, 45-0445, 45-0478, 45-1330, 50-8106-1, 50-8106-9, 91-25-1087, 327.037.114, 627.033.114, 4316, 4527, 18059, 18059N, 18062, 20904, 103871, 105962, 201087, 726814, 3042323, 11040151

    • NormaliseratArtNr
      ads943, cst20601, drs3364, f032110616, js1087, lrs01835, lrs01861, s2058, s25110, s25110a, s25110b, s25110c, s25110f, s25110g, s25110k, s25110l, s25110m, s25162, s25164, s25164a, s2564, s2564b, s2564e, s2564f, s2575, s2575a, s8395, s8623, s9146, s9328s, sd00173r, sd0038r, snd0065, str72001, str72053, 8ea732847001, 8ea737416001, 4316, 4527, 18059, 18059n, 18062, 20904, 22037hi, 23300l6000, 23300l6600, 23300z5000, 23300z5005, 23300z5504, 23300z5505, 23300z5507, 23300z5508, 23300z5509, 23300z5514, 23300z5515, 23300z5517, 23300z5520, 103871, 105962, 201087, 261359, 450445, 450478, 451330, 726814, 3042323, 5081061, 5081069, 11040151, 91251087, 327037114, 627033114, 2330025504, 2330090060, 03505020130, 03505020131

    • Passar modeller
      Nissan Model: GF Model series: GF 03 Brand of engine: SD33 From date: 01-01-1978 Approved: Yes
      Nissan Model: YGF Model series: YGF 03 Brand of engine: SD33 From date: 01-01-1980 Approved: Yes
