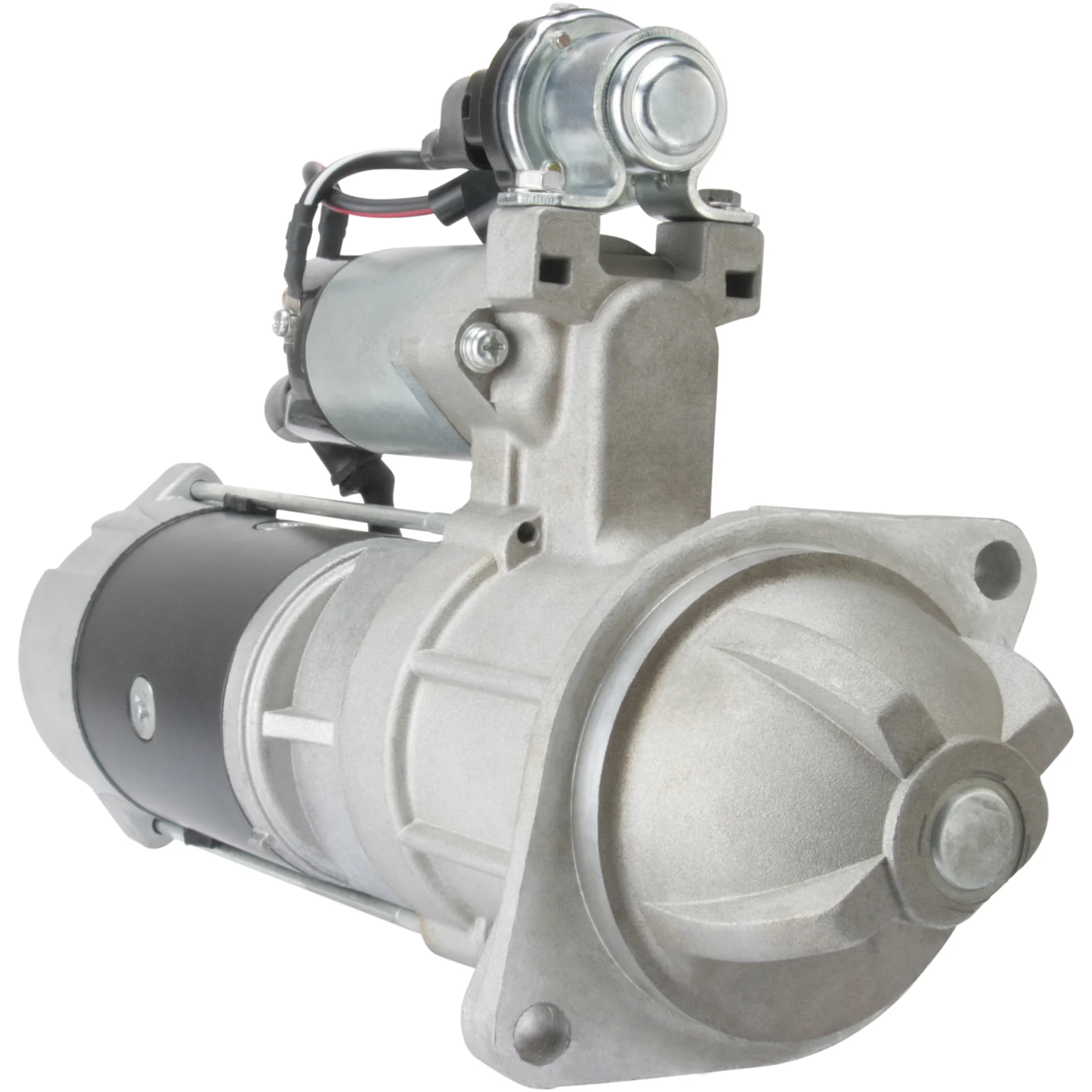

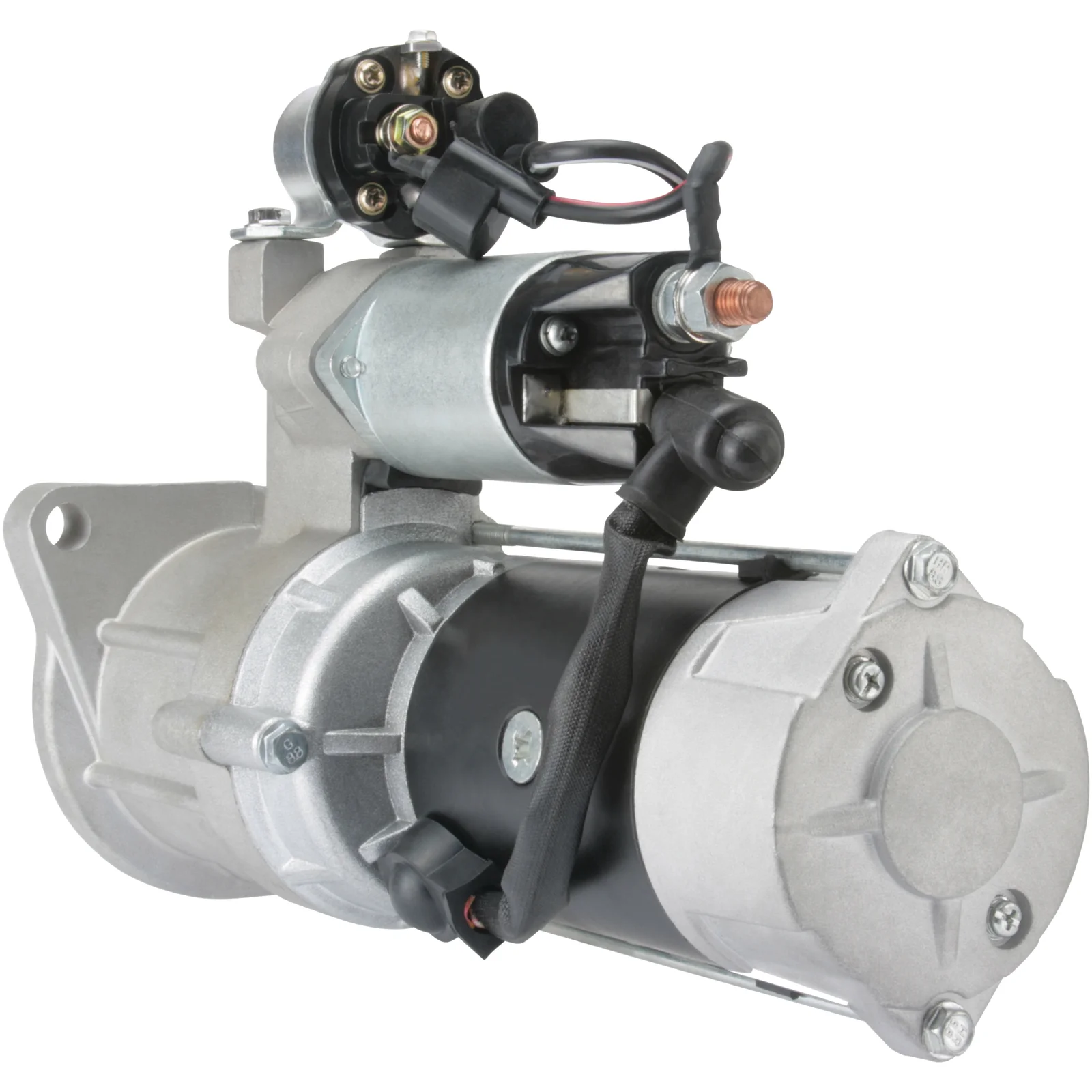

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032110656

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 5,5, No./tænder: 11, Rotation: CW

Beskrivelse

Spænding: 24
kW: 5.5
Monteringsflange: 105.00
Drevafstand: 13.50
Monteringshul 2 mm: 13.00
Monteringshul 1 mm: 13.00
Afstand/bag: 300.00
Afstand/frem: 67.00
Nr./tandhjul: 11
B+: M10
Position/50: 5
Terminal 50: M5
Gear type: GR
Afstand mm: 150.00
Rotation: CW
Total længde mm: 368.00
Drevtype: Stål
Prod. info: BN
Vandtæt: Nej
Olieforseglet: Nej
Bemærkninger: med sikkerhedskontakt.
Nr./monteringshuller: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 105.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 5
Prod. info BN
Remarks w/ safety switch.
Rotation CW
Dist./back 300.00
Dist./front 67.00
Drive dist. 13.50
Drive type Steel
Gear type GR
kW 5.5
Terminal 50 M5
Voltage 24
Total length 368.00 mm
Waterproof No
Dist. 150.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    0-23000-1290, 0-23000-1292, 0-23000-1410, 0-23000-1550, 0-23000-1750, 0-23000-1752, 0-23000-2560, 0-23000-2561, F032110656, 600-813-3320, 600-813-3350, 600-813-4420, 600-813-4421

  • Konkurrentreferens
    CST50603, F042001201, LRS2172, S9034, STR29017, 8ea730290-001, 45-3346, 643.040.114, 941.530.112, 941.530.113, 941.551.112, 4273, 18078, 18078N, 18104, 18104N, 18521, 220626, 220626A

  • NormaliseratArtNr
    cst50603, f032110656, f042001201, lrs2172, s9034, str29017, 8ea730290001, 4273, 18078, 18078n, 18104, 18104n, 18521, 220626, 220626a, 453346, 0230001290, 0230001292, 0230001410, 0230001550, 0230001750, 0230001752, 0230002560, 0230002561, 643040114, 941530112, 941530113, 941551112, 6008133320, 6008133350, 6008134420, 6008134421

  • Passar modeller
    Komatsu Model: D Model series: D31 Brand of engine: 4D105 From date: 01-01-1988 Approved: Yes
    Komatsu Model: D Model series: D31 Brand of engine: 6D95 From date: 01-01-1988 Approved: Yes
    Komatsu Model: D Model series: D41 Brand of engine: 4D105 From date: 01-01-1988 Approved: Yes
    Komatsu Model: D Model series: D41 Brand of engine: 6D95 From date: 01-01-1988 Approved: Yes
    Komatsu Model: D Model series: Various Models Brand of engine: 6D105 From date: 01-01-1986 Approved: Yes
  • Beskrivelse
    Spænding: 24
    kW: 5.5
    Monteringsflange: 105.00
    Drevafstand: 13.50
    Monteringshul 2 mm: 13.00
    Monteringshul 1 mm: 13.00
    Afstand/bag: 300.00
    Afstand/frem: 67.00
    Nr./tandhjul: 11
    B+: M10
    Position/50: 5
    Terminal 50: M5
    Gear type: GR
    Afstand mm: 150.00
    Rotation: CW
    Total længde mm: 368.00
    Drevtype: Stål
    Prod. info: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Bemærkninger: med sikkerhedskontakt.
    Nr./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 105.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 5
    Prod. info BN
    Remarks w/ safety switch.
    Rotation CW
    Dist./back 300.00
    Dist./front 67.00
    Drive dist. 13.50
    Drive type Steel
    Gear type GR
    kW 5.5
    Terminal 50 M5
    Voltage 24
    Total length 368.00 mm
    Waterproof No
    Dist. 150.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Køretøjsmatchning

    • OEM
      0-23000-1290, 0-23000-1292, 0-23000-1410, 0-23000-1550, 0-23000-1750, 0-23000-1752, 0-23000-2560, 0-23000-2561, F032110656, 600-813-3320, 600-813-3350, 600-813-4420, 600-813-4421

    • Konkurrentreferens
      CST50603, F042001201, LRS2172, S9034, STR29017, 8ea730290-001, 45-3346, 643.040.114, 941.530.112, 941.530.113, 941.551.112, 4273, 18078, 18078N, 18104, 18104N, 18521, 220626, 220626A

    • NormaliseratArtNr
      cst50603, f032110656, f042001201, lrs2172, s9034, str29017, 8ea730290001, 4273, 18078, 18078n, 18104, 18104n, 18521, 220626, 220626a, 453346, 0230001290, 0230001292, 0230001410, 0230001550, 0230001750, 0230001752, 0230002560, 0230002561, 643040114, 941530112, 941530113, 941551112, 6008133320, 6008133350, 6008134420, 6008134421

    • Passar modeller
      Komatsu Model: D Model series: D31 Brand of engine: 4D105 From date: 01-01-1988 Approved: Yes
      Komatsu Model: D Model series: D31 Brand of engine: 6D95 From date: 01-01-1988 Approved: Yes
      Komatsu Model: D Model series: D41 Brand of engine: 4D105 From date: 01-01-1988 Approved: Yes
      Komatsu Model: D Model series: D41 Brand of engine: 6D95 From date: 01-01-1988 Approved: Yes
      Komatsu Model: D Model series: Various Models Brand of engine: 6D105 From date: 01-01-1986 Approved: Yes
