Vare nr.: F032110932

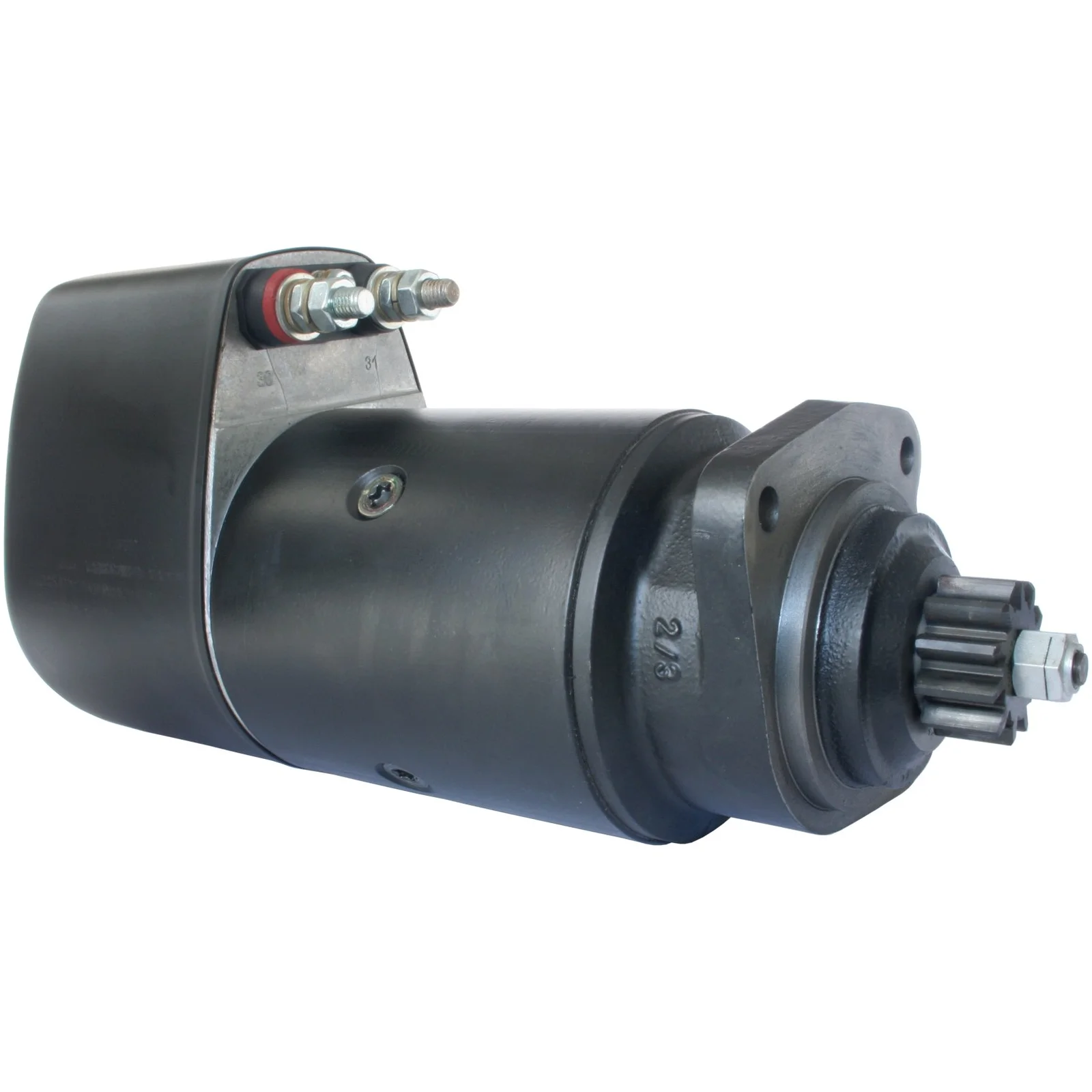

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 5.4, No./tænder: 11, Rotation: CW

Beskrivelse

Spænding: 24
kW: 5.4
Isoleret retur: Ja
Monteringsflange: 89,00
Driveafstand: 47,00
Monteringshul 3 mm: 11,00
Monteringshul 2 mm: 11,00
Monteringshul 1 mm: 11,00
Afstand/bag: 320,00
Afstand/foran: 62,00
Antal/tenner: 11
B+: M10
Position/50: 60
Terminal 50: M6
Tandhjultype: DD
Afstand 2: 91,50
Afstand 3: 91,50
Afstand mm: 128,50
Rotation: CW
B-: M10
Total længde mm: 384,50
Drevetype: Stål
Prod. info: BN
Vandtæt: Nej
Olieforseglet: Nej
Antal/monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 11
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 91.50
Dist. 3 91.50
Rotation CW
Dist./back 320.00
Dist./front 62.00
Drive dist. 47.00
Drive type Steel
Gear type DD
Insulated return Yes
kW 5.4
Terminal 50 M6
Voltage 24
Total length 384.50 mm
Waterproof No
Dist. 128.50 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032110932, R23.24, 322, 332, 544, 22623, 241789, 243482, 293889, 0001410057, 0001410068, 0001416044, 9125430, 19024040, 81466044

  • Konkurrentreferens
    CST10630, drs1450, DRS3766, F042002110, F042S02110, IS9056, MS527, S0347, STR-23807, 8ea737251-001, 45-0180, 45-1430, 4459, 33507, 33667, 101034, 103992, 11014870

  • NormaliseratArtNr
    cst10630, drs1450, drs3766, f032110932, f042002110, f042s02110, is9056, ms527, r2324, s0347, str23807, 8ea737251001, 322, 332, 544, 4459, 22623, 33507, 33667, 101034, 103992, 241789, 243482, 293889, 450180, 451430, 0001410057, 0001410068, 0001416044, 9125430, 11014870, 19024040, 81466044

  • Passar modeller
    DAF Model: F Model series: F 2825 Size of motor: 11.6 Brand of engine: DKTD1160 Body: Concrete Mixer From date: 01-01-1974 To date: 01-09-1986 Fuel: Diesel Approved: Yes
    DAF Model: SB Model series: SB 201 Size of motor: 11.6 Brand of engine: DKD1160 Body: Bus From date: 01-01-1974 Fuel: Diesel Approved: Yes
    DAF Model: SB Model series: SB 201 Size of motor: 11.6 Brand of engine: DKDL1160 Body: Bus From date: 01-01-1974 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 24
    kW: 5.4
    Isoleret retur: Ja
    Monteringsflange: 89,00
    Driveafstand: 47,00
    Monteringshul 3 mm: 11,00
    Monteringshul 2 mm: 11,00
    Monteringshul 1 mm: 11,00
    Afstand/bag: 320,00
    Afstand/foran: 62,00
    Antal/tenner: 11
    B+: M10
    Position/50: 60
    Terminal 50: M6
    Tandhjultype: DD
    Afstand 2: 91,50
    Afstand 3: 91,50
    Afstand mm: 128,50
    Rotation: CW
    B-: M10
    Total længde mm: 384,50
    Drevetype: Stål
    Prod. info: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Antal/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 11
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Prod. info BN
    Dist. 2 91.50
    Dist. 3 91.50
    Rotation CW
    Dist./back 320.00
    Dist./front 62.00
    Drive dist. 47.00
    Drive type Steel
    Gear type DD
    Insulated return Yes
    kW 5.4
    Terminal 50 M6
    Voltage 24
    Total length 384.50 mm
    Waterproof No
    Dist. 128.50 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      F032110932, R23.24, 322, 332, 544, 22623, 241789, 243482, 293889, 0001410057, 0001410068, 0001416044, 9125430, 19024040, 81466044

    • Konkurrentreferens
      CST10630, drs1450, DRS3766, F042002110, F042S02110, IS9056, MS527, S0347, STR-23807, 8ea737251-001, 45-0180, 45-1430, 4459, 33507, 33667, 101034, 103992, 11014870

    • NormaliseratArtNr
      cst10630, drs1450, drs3766, f032110932, f042002110, f042s02110, is9056, ms527, r2324, s0347, str23807, 8ea737251001, 322, 332, 544, 4459, 22623, 33507, 33667, 101034, 103992, 241789, 243482, 293889, 450180, 451430, 0001410057, 0001410068, 0001416044, 9125430, 11014870, 19024040, 81466044

    • Passar modeller
      DAF Model: F Model series: F 2825 Size of motor: 11.6 Brand of engine: DKTD1160 Body: Concrete Mixer From date: 01-01-1974 To date: 01-09-1986 Fuel: Diesel Approved: Yes
      DAF Model: SB Model series: SB 201 Size of motor: 11.6 Brand of engine: DKD1160 Body: Bus From date: 01-01-1974 Fuel: Diesel Approved: Yes
      DAF Model: SB Model series: SB 201 Size of motor: 11.6 Brand of engine: DKDL1160 Body: Bus From date: 01-01-1974 Fuel: Diesel Approved: Yes
