Vare nr.: F032112507

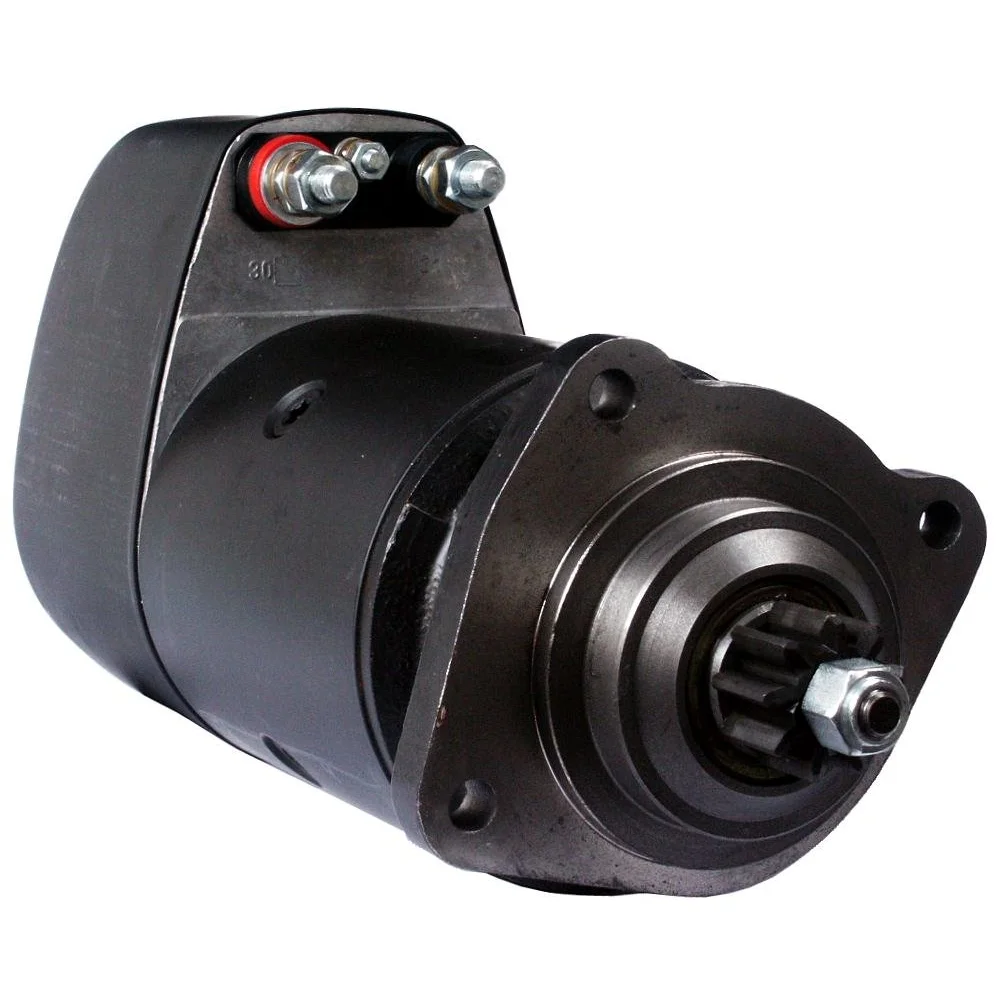

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 5.4, No./tænder: 9, Rotation: med uret

Beskrivelse

Start 24V-5,4kW passer BM 24V - 5,4kW, 9k, oliefyldt

Spænding: 24
kW: 5,4
Montageflange: 89,00
Drivelsesafstand: 47,50
Montagehul 3 mm: 11,00
Montagehul 2 mm: 11,00
Montagehul 1 mm: 11,00
Afstand/bag: 322,00
Afstand/forside: 62,00
Antal/tænder: 9
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Afstand 2: 127,00
Afstand 3: 90,00
Afstand mm: 90,00
Rotation: Uret
B-: M10
Samlet længde mm: 385,00
Koblingstype: Tør
Drevtype: Stål
Produktinfo: BN
Vandtæt: Nej
Oliefyldt: Nej
Bemærkninger: Bosch OE 0001414022/0001416026 er oliefyldt. HC-CARGO 112507 er det ikke.
Antal/montagehuller: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Clutch type Dry
Prod. info BN
Dist. 2 127.00
Remarks Bosch OE 0001414022/0001416026 is oil-sealed. HC-CARGO 112507 is not.
Dist. 3 90.00
Rotation CW
Dist./back 322.00
Dist./front 62.00
Drive dist. 47.50
Drive type Steel
Gear type DD
kW 5.4
Terminal 50 M6
Voltage 24
Total length 385.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZK 5460, F032112507, 0001 414 022, 0001 416 026, 526, 9099, 11139 111, 112507, 860520, 0001414022, 0001416026, 4774617, 4881097, 19024026, 9004881097

  • Konkurrentreferens
    CST10623, DRS0171, IS9099, LRS01918, MS499, MS713, S0436, 45-2360, 45-3089, 638.015.094, 106298, 220310, 220310A, 254322, 255242, 11090161, 0986019643

  • Bilmärken
    Volvo BM / Construction Equipment, Volvo Penta

  • NormaliseratArtNr
    azk5460, cst10623, drs0171, f032112507, is9099, lrs01918, ms499, ms713, s0436, 526, 9099, 106298, 112507, 220310, 220310a, 254322, 255242, 452360, 453089, 860520, 0001414022, 0001416026, 4774617, 4881097, 11090161, 11139111, 19024026, 638015094, 0986019643, 9004881097

  • Passar modeller
    Volvo BM / Construction Equipment Series: Lastare Model: 4400 Engine type: TD 60 B
    Volvo BM / Construction Equipment Series: Lastare Model: 4400 Engine volume: 5.5 Engine type: TD 60 B Year: 01.79-06.86
    Volvo BM / Construction Equipment Series: Lastare Model: 4500 Engine type: TD 70 G; TD 70 H
    Volvo BM / Construction Equipment Series: Lastare Model: 4500 Engine volume: 7.0 Engine type: TD 70 H Year: 12.79-06.86
    Volvo BM / Construction Equipment Series: Lastare Model: L 120 mot.nr 44670> Engine type: TD 71 G
    Volvo BM / Construction Equipment Series: Lastare Model: L 120 B
    Volvo BM / Construction Equipment Series: Lastare Model: L 70 C
    Volvo BM / Construction Equipment Series: Lastare Model: L 90 mot.nr 64927>
    Volvo BM / Construction Equipment Series: Lastare Model: L 90 C, D
    Volvo BM / Construction Equipment Series: Skogsmaskin Model: Hemec Ciseron Engine type: TD 71 G
    Volvo Model: F Series Model series: F 613 Size of motor: 5.5 Brand of engine: TD60B Body: Platform / Chassis From date: 01-09-1975 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 614 Size of motor: 5.5 Brand of engine: TD60B Body: Platform / Chassis From date: 01-09-1975 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 615 S Size of motor: 5.5 Brand of engine: TD60B Body: Platform / Chassis From date: 01-12-1978 To date: 01-10-1981 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 616 Size of motor: 5.5 Brand of engine: TD60B Body: Platform / Chassis From date: 01-02-1981 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 617 S Size of motor: 5.5 Brand of engine: TD60B Body: Platform / Chassis From date: 01-12-1978 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 5.5 Brand of engine: TD60. From date: 01-01-1982 To date: 01-06-1986 Fuel: Diesel Approved: Yes
    Volvo Penta Series: Industri Model: TD 60 B (24V-5.4kW)
    Volvo Penta Series: Industri Model: TD 60 D (24V-5.4kW)
