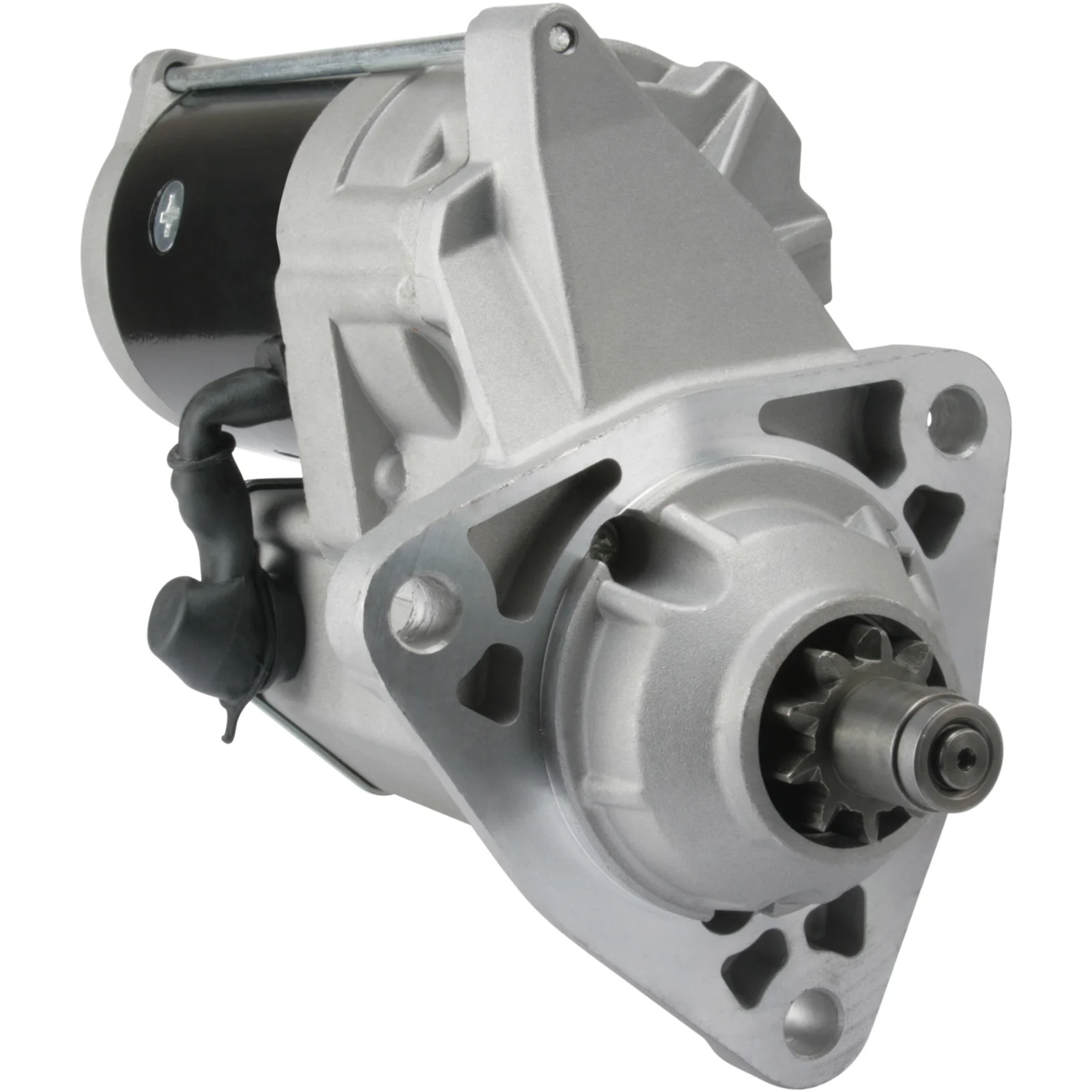

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032112544

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 7.5, No./tænder: 10, Rotation: CW

Beskrivelse

Spænding: 24
kW: 7.5
Monteringsflange: 92.00
Drevafstand: 47.00
Monteringshulses diameter 3 mm: 14.00
Monteringshulses diameter 2 mm: 14.00
Monteringshulses diameter 1 mm: 14.00
Afstand/ryg: 162.00
Afstand/foran: 73.00
Nr./tænder: 10
B+: M10
Position/50: 5
Terminal 50: M5
Gear type: GR
Afstand 2: 126.50
Afstand 3: 126.50
Afstand mm: 126.50
Rotation: HØJRE
Total længde mm: 314.00
Koblingstype: Vådt
Drey type: Stål
Produktion info: BN
Vandtæt: Nej
Oliesvejset: Ja
Nr./monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 92.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/50 5
Clutch type Wet
Prod. info BN
Dist. 2 126.50
Dist. 3 126.50
Rotation CW
Dist./back 162.00
Dist./front 73.00
Drive dist. 47.00
Drive type Steel
Gear type GR
kW 7.5
Terminal 50 M5
Voltage 24
Total length 314.00 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 3 14.00 mm
Mount. hole 2 14.00 mm
Mount. hole 1 14.00 mm

  • OEM
    F032112544, 714/40296, 128000-9820, 128000-9821, 223900A1, 223900A2, 228000-5610, 228000-5611, 228000-5612, 228000-5630, 228000-5631, 228000-7380, 228000-7381, 428000-1340, 428000-3380, 604662rx, 3283214, 3283814, 3675247rx, 3920329, 3957597, 121502400

  • Konkurrentreferens
    CST40611, CST40615, CST40633, DRS0352, DSN2002, F042000250, F042000251, F042S00250, F042S00251, s-8920, S6090, S6381S, STR-9152, STR30052, 246-30214, 18535, 18535N, 19097, 19097N, 105499, 106570, 254662, 254750

  • NormaliseratArtNr
    cst40611, cst40615, cst40633, drs0352, dsn2002, f032112544, f042000250, f042000251, f042s00250, f042s00251, s6090, s6381s, s8920, str30052, str9152, 18535, 18535n, 19097, 19097n, 105499, 106570, 223900a1, 223900a2, 254662, 254750, 604662rx, 3283214, 3283814, 3675247rx, 3920329, 3957597, 24630214, 71440296, 121502400, 1280009820, 1280009821, 2280005610, 2280005611, 2280005612, 2280005630, 2280005631, 2280007380, 2280007381, 4280001340, 4280003380

  • Passar modeller
    Cummins Model: Engine Model series: Engine Size of motor: 8.3 Approved: Yes
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
  • Beskrivelse
    Spænding: 24
    kW: 7.5
    Monteringsflange: 92.00
    Drevafstand: 47.00
    Monteringshulses diameter 3 mm: 14.00
    Monteringshulses diameter 2 mm: 14.00
    Monteringshulses diameter 1 mm: 14.00
    Afstand/ryg: 162.00
    Afstand/foran: 73.00
    Nr./tænder: 10
    B+: M10
    Position/50: 5
    Terminal 50: M5
    Gear type: GR
    Afstand 2: 126.50
    Afstand 3: 126.50
    Afstand mm: 126.50
    Rotation: HØJRE
    Total længde mm: 314.00
    Koblingstype: Vådt
    Drey type: Stål
    Produktion info: BN
    Vandtæt: Nej
    Oliesvejset: Ja
    Nr./monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 92.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/50 5
    Clutch type Wet
    Prod. info BN
    Dist. 2 126.50
    Dist. 3 126.50
    Rotation CW
    Dist./back 162.00
    Dist./front 73.00
    Drive dist. 47.00
    Drive type Steel
    Gear type GR
    kW 7.5
    Terminal 50 M5
    Voltage 24
    Total length 314.00 mm
    Waterproof No
    Dist. 126.50 mm
    Mount. hole 3 14.00 mm
    Mount. hole 2 14.00 mm
    Mount. hole 1 14.00 mm
  • Køretøjsmatchning

    • OEM
      F032112544, 714/40296, 128000-9820, 128000-9821, 223900A1, 223900A2, 228000-5610, 228000-5611, 228000-5612, 228000-5630, 228000-5631, 228000-7380, 228000-7381, 428000-1340, 428000-3380, 604662rx, 3283214, 3283814, 3675247rx, 3920329, 3957597, 121502400

    • Konkurrentreferens
      CST40611, CST40615, CST40633, DRS0352, DSN2002, F042000250, F042000251, F042S00250, F042S00251, s-8920, S6090, S6381S, STR-9152, STR30052, 246-30214, 18535, 18535N, 19097, 19097N, 105499, 106570, 254662, 254750

    • NormaliseratArtNr
      cst40611, cst40615, cst40633, drs0352, dsn2002, f032112544, f042000250, f042000251, f042s00250, f042s00251, s6090, s6381s, s8920, str30052, str9152, 18535, 18535n, 19097, 19097n, 105499, 106570, 223900a1, 223900a2, 254662, 254750, 604662rx, 3283214, 3283814, 3675247rx, 3920329, 3957597, 24630214, 71440296, 121502400, 1280009820, 1280009821, 2280005610, 2280005611, 2280005612, 2280005630, 2280005631, 2280007380, 2280007381, 4280001340, 4280003380

    • Passar modeller
      Cummins Model: Engine Model series: Engine Size of motor: 8.3 Approved: Yes
      Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
