Vare nr.: F032113353

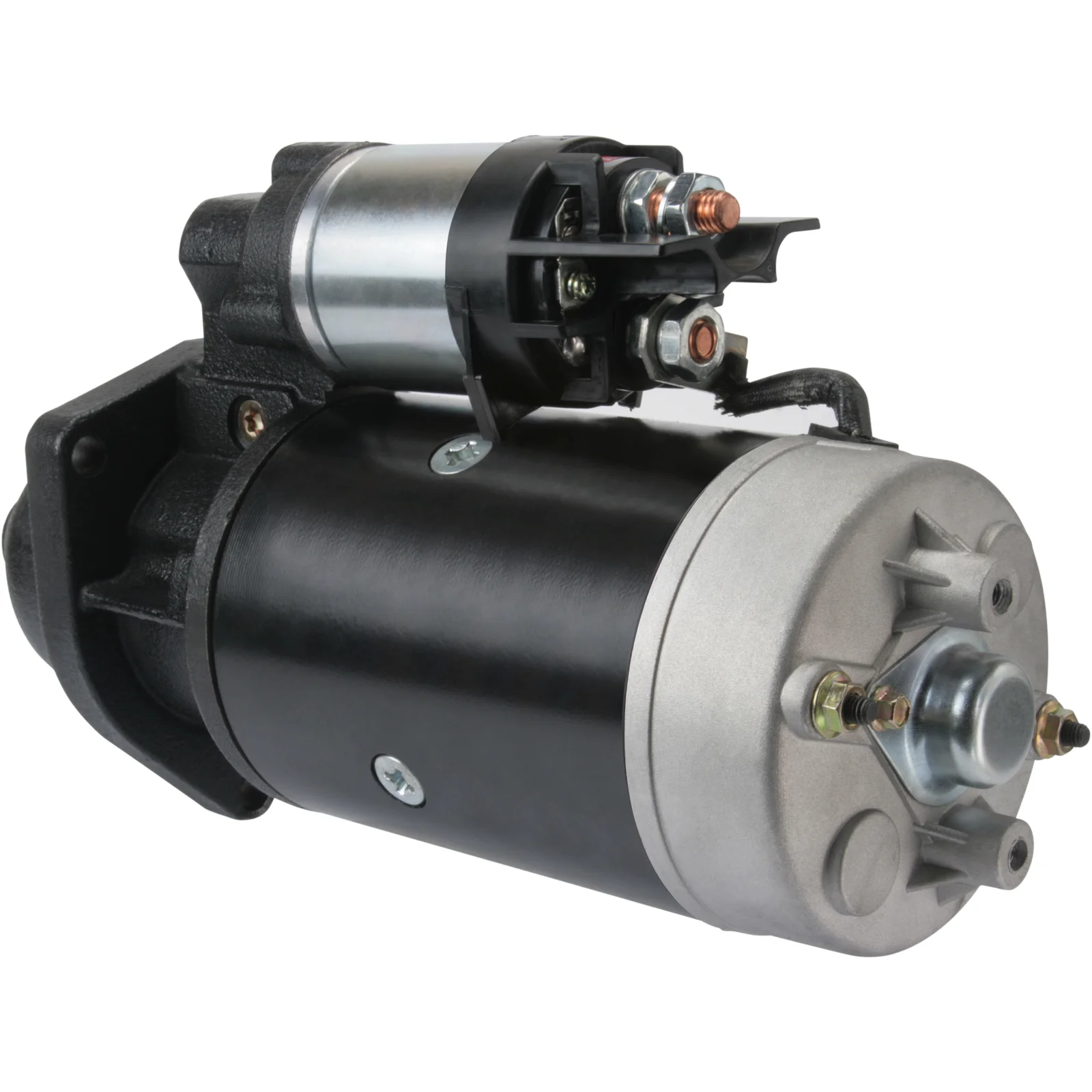

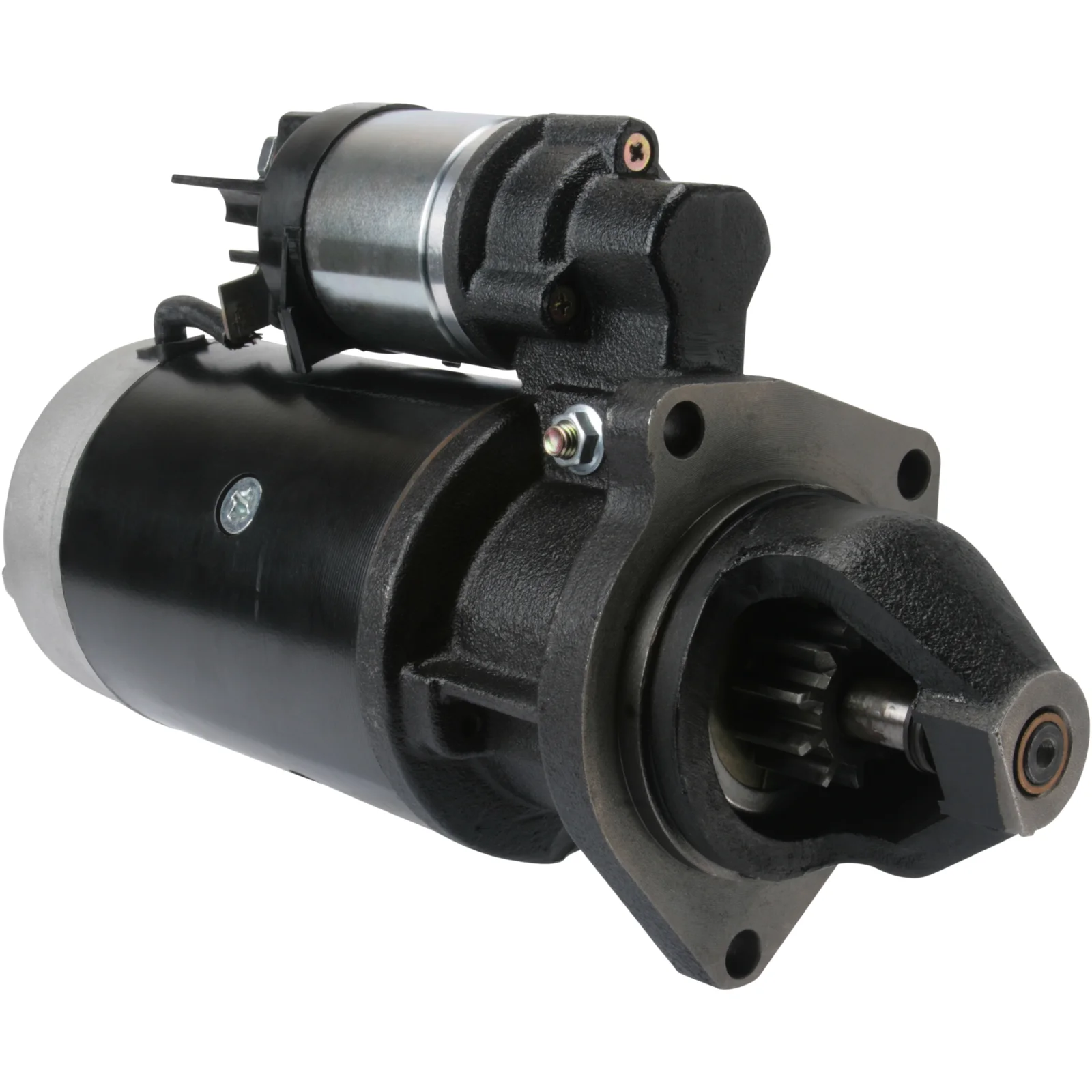

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 4.0, No./tænder: 10, Rotation: CW

Beskrivelse

Voltage: 24
kW: 4.0
Montageflange: 89.00
Driveafstand: 27.50
Montagehult 3 mm: 11.00
Montagehult 2 mm: 11.00
Montagehult 1 mm: 11.00
Afstand/tilbagetog: 265.00
Afstand/foran: 75.00
Antal/tenner: 10
B+: M10
Position/50: 45
Terminal 50: M4
Gear-type: DD
Afstand 2: 124.00
Afstand 3: 78.00
Afstand mm: 117.00
Rotation: CW
Samlet længde mm: 340.00
Drive type: Steel
Produktinfo: BN/OE
Vandtæt: Nej
Olieførtæt: Nej
Antal/montagehuller: 3 (0)

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN/OE
Dist. 2 124.00
Dist. 3 78.00
Rotation CW
Dist./back 265.00
Dist./front 75.00
Drive dist. 27.50
Drive type Steel
Gear type DD
kW 4.0
Terminal 50 M4
Voltage 24
Total length 340.00 mm
Waterproof No
Dist. 117.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm
  • OEM

    cs1280, F032113353, 51.26201-7146, 0001368311
  • Konkurrentreferens

    LRS02653, 45-4325, 600.240.104, 101280, 104373, 11090052
  • NormaliseratArtNr

    cs1280, f032113353, lrs02653, 101280, 104373, 454325, 0001368311, 11090052, 600240104, 51262017146
  • Passar modeller

    Fendt Model: 800 Model series: 800 Series Size of motor: 6.9 Brand of engine: D286.. From date: 01-06-1993 Fuel: Diesel Approved: Yes
    Fendt Model: 900 Model series: 900 Series Approved: Yes
  • Beskrivelse
    Voltage: 24
    kW: 4.0
    Montageflange: 89.00
    Driveafstand: 27.50
    Montagehult 3 mm: 11.00
    Montagehult 2 mm: 11.00
    Montagehult 1 mm: 11.00
    Afstand/tilbagetog: 265.00
    Afstand/foran: 75.00
    Antal/tenner: 10
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear-type: DD
    Afstand 2: 124.00
    Afstand 3: 78.00
    Afstand mm: 117.00
    Rotation: CW
    Samlet længde mm: 340.00
    Drive type: Steel
    Produktinfo: BN/OE
    Vandtæt: Nej
    Olieførtæt: Nej
    Antal/montagehuller: 3 (0)
  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN/OE
    Dist. 2 124.00
    Dist. 3 78.00
    Rotation CW
    Dist./back 265.00
    Dist./front 75.00
    Drive dist. 27.50
    Drive type Steel
    Gear type DD
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 340.00 mm
    Waterproof No
    Dist. 117.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning
    • OEM

      cs1280, F032113353, 51.26201-7146, 0001368311
    • Konkurrentreferens

      LRS02653, 45-4325, 600.240.104, 101280, 104373, 11090052
    • NormaliseratArtNr

      cs1280, f032113353, lrs02653, 101280, 104373, 454325, 0001368311, 11090052, 600240104, 51262017146
    • Passar modeller

      Fendt Model: 800 Model series: 800 Series Size of motor: 6.9 Brand of engine: D286.. From date: 01-06-1993 Fuel: Diesel Approved: Yes
      Fendt Model: 900 Model series: 900 Series Approved: Yes
