Vare nr.: F032113675

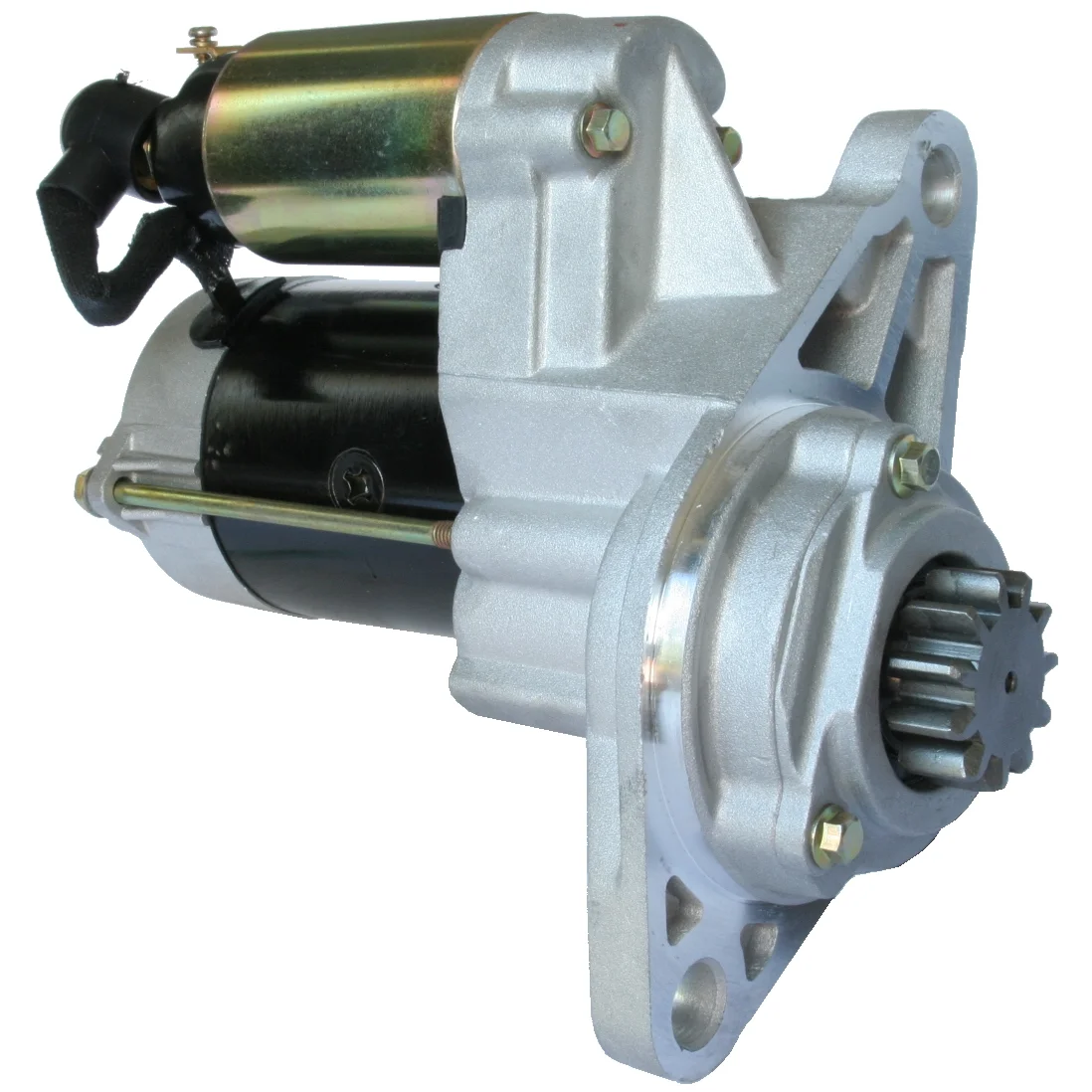

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 4,0, No./tand: 11, Rotation: CCW

Beskrivelse

Spænding: 24
kW: 4.0
Montering flange: 94.00
Drevafstand: 44.00
Monteringshuls 2 mm: 15.00
Monteringshuls 1 mm: 15.00
Afstand/bag: 188.50
Afstand/frem: 44.00
Antal./tænder: 11
B+: M8
Position/50: 55
Terminal 50: M4
Gear type: GR
Afstand mm: 170.00
Rotation: SKW
Total længde mm: 235.50
Kobling type: Tør
Drev type: Stål
Produktinfo: BN
Vandtæt: Nej
Olieforseglet: Nej
Antal./monteringshuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 94.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 55
Clutch type Dry
Prod. info BN
Rotation CCW
Dist./back 188.50
Dist./front 44.00
Drive dist. 44.00
Drive type Steel
Gear type GR
kW 4.0
Terminal 50 M4
Voltage 24
Total length 235.50 mm
Waterproof No
Dist. 170.00 mm
Mount. hole 2 15.00 mm
Mount. hole 1 15.00 mm

  • OEM
    F032113675, S25-163, s25-163a, s25-163b, s25-163c, s25-163e, s25-163f, s25-163g, s25-168, s25-168a, s25-171, s25-501, s25-501a, S25-501B, S25-501C, s25-505, s25-505a, s25-505c, S25-505E, s25-505g, S25-515A, S25-515B, S25-515C, 8970324642, 8970655260, 8970958112, 8971009261, 8972161861, 8973239352, 8980549840, 8980552791

  • Konkurrentreferens
    CST20606, CST20613, CST20614, DRS0845, F042004053, F042004054, F042202531, F042S04053, F042S04054, F042S04065, LES0316, s-80102, S2008, S2022, STR-6107, STR6107, 2-2233-hi, 18960N, 254160

  • NormaliseratArtNr
    cst20606, cst20613, cst20614, drs0845, f032113675, f042004053, f042004054, f042202531, f042s04053, f042s04054, f042s04065, les0316, s2008, s2022, s25163, s25163a, s25163b, s25163c, s25163e, s25163f, s25163g, s25168, s25168a, s25171, s25501, s25501a, s25501b, s25501c, s25505, s25505a, s25505c, s25505e, s25505g, s25515a, s25515b, s25515c, s80102, str6107, 18960n, 22233hi, 254160, 8970324642, 8970655260, 8970958112, 8971009261, 8972161861, 8973239352, 8980549840, 8980552791

  • Passar modeller
    Nissan Model: YE Model series: YE 03 Brand of engine: SD33 From date: 01-01-1980 Approved: Yes
    Nissan Model: YGF Model series: YGF 03 Brand of engine: SD33 From date: 01-01-1980 Approved: Yes
  • Beskrivelse
    Spænding: 24
    kW: 4.0
    Montering flange: 94.00
    Drevafstand: 44.00
    Monteringshuls 2 mm: 15.00
    Monteringshuls 1 mm: 15.00
    Afstand/bag: 188.50
    Afstand/frem: 44.00
    Antal./tænder: 11
    B+: M8
    Position/50: 55
    Terminal 50: M4
    Gear type: GR
    Afstand mm: 170.00
    Rotation: SKW
    Total længde mm: 235.50
    Kobling type: Tør
    Drev type: Stål
    Produktinfo: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Antal./monteringshuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 94.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 55
    Clutch type Dry
    Prod. info BN
    Rotation CCW
    Dist./back 188.50
    Dist./front 44.00
    Drive dist. 44.00
    Drive type Steel
    Gear type GR
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 235.50 mm
    Waterproof No
    Dist. 170.00 mm
    Mount. hole 2 15.00 mm
    Mount. hole 1 15.00 mm
  • Køretøjsmatchning

    • OEM
      F032113675, S25-163, s25-163a, s25-163b, s25-163c, s25-163e, s25-163f, s25-163g, s25-168, s25-168a, s25-171, s25-501, s25-501a, S25-501B, S25-501C, s25-505, s25-505a, s25-505c, S25-505E, s25-505g, S25-515A, S25-515B, S25-515C, 8970324642, 8970655260, 8970958112, 8971009261, 8972161861, 8973239352, 8980549840, 8980552791

    • Konkurrentreferens
      CST20606, CST20613, CST20614, DRS0845, F042004053, F042004054, F042202531, F042S04053, F042S04054, F042S04065, LES0316, s-80102, S2008, S2022, STR-6107, STR6107, 2-2233-hi, 18960N, 254160

    • NormaliseratArtNr
      cst20606, cst20613, cst20614, drs0845, f032113675, f042004053, f042004054, f042202531, f042s04053, f042s04054, f042s04065, les0316, s2008, s2022, s25163, s25163a, s25163b, s25163c, s25163e, s25163f, s25163g, s25168, s25168a, s25171, s25501, s25501a, s25501b, s25501c, s25505, s25505a, s25505c, s25505e, s25505g, s25515a, s25515b, s25515c, s80102, str6107, 18960n, 22233hi, 254160, 8970324642, 8970655260, 8970958112, 8971009261, 8972161861, 8973239352, 8980549840, 8980552791

    • Passar modeller
      Nissan Model: YE Model series: YE 03 Brand of engine: SD33 From date: 01-01-1980 Approved: Yes
      Nissan Model: YGF Model series: YGF 03 Brand of engine: SD33 From date: 01-01-1980 Approved: Yes
