HC-Cargo Startmotor

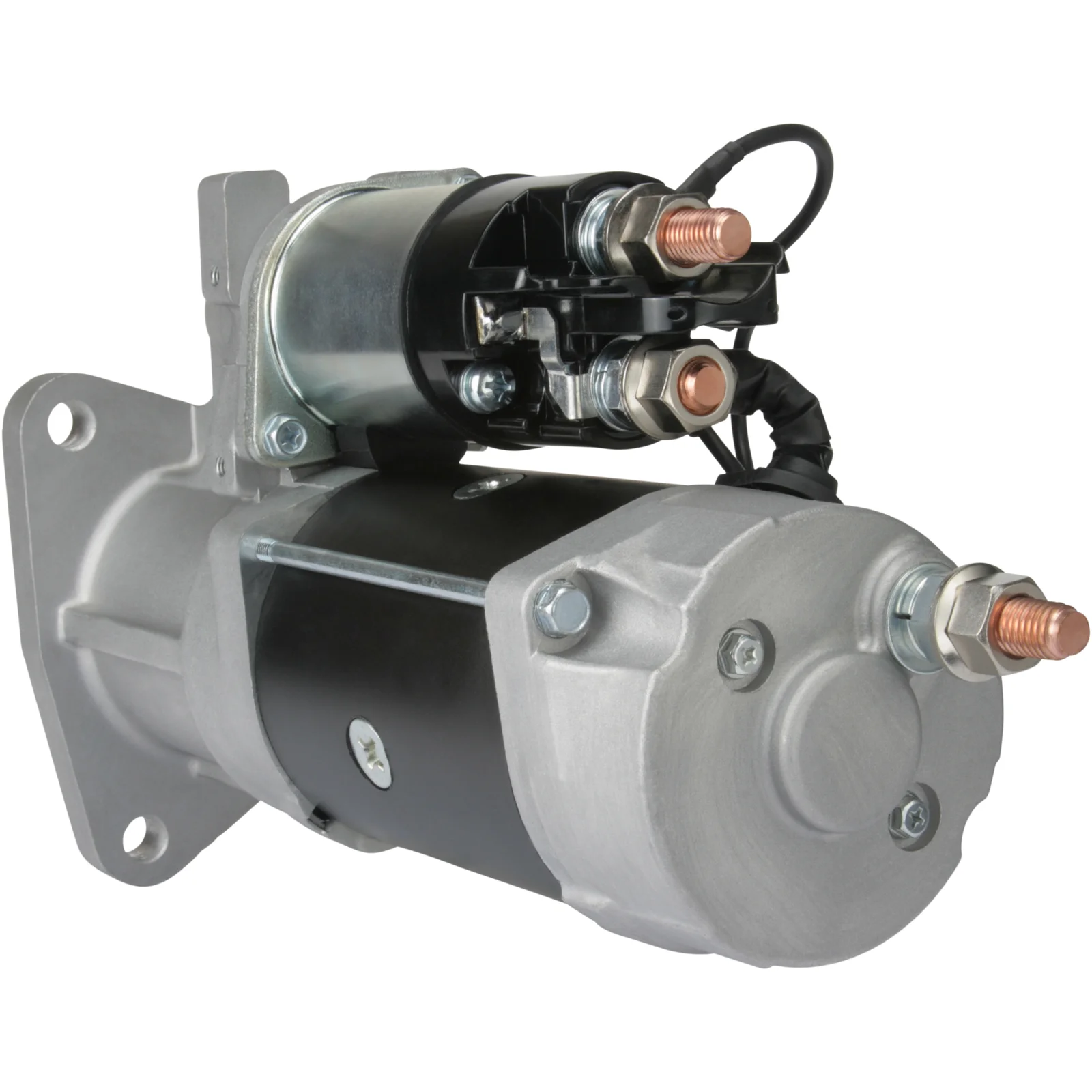

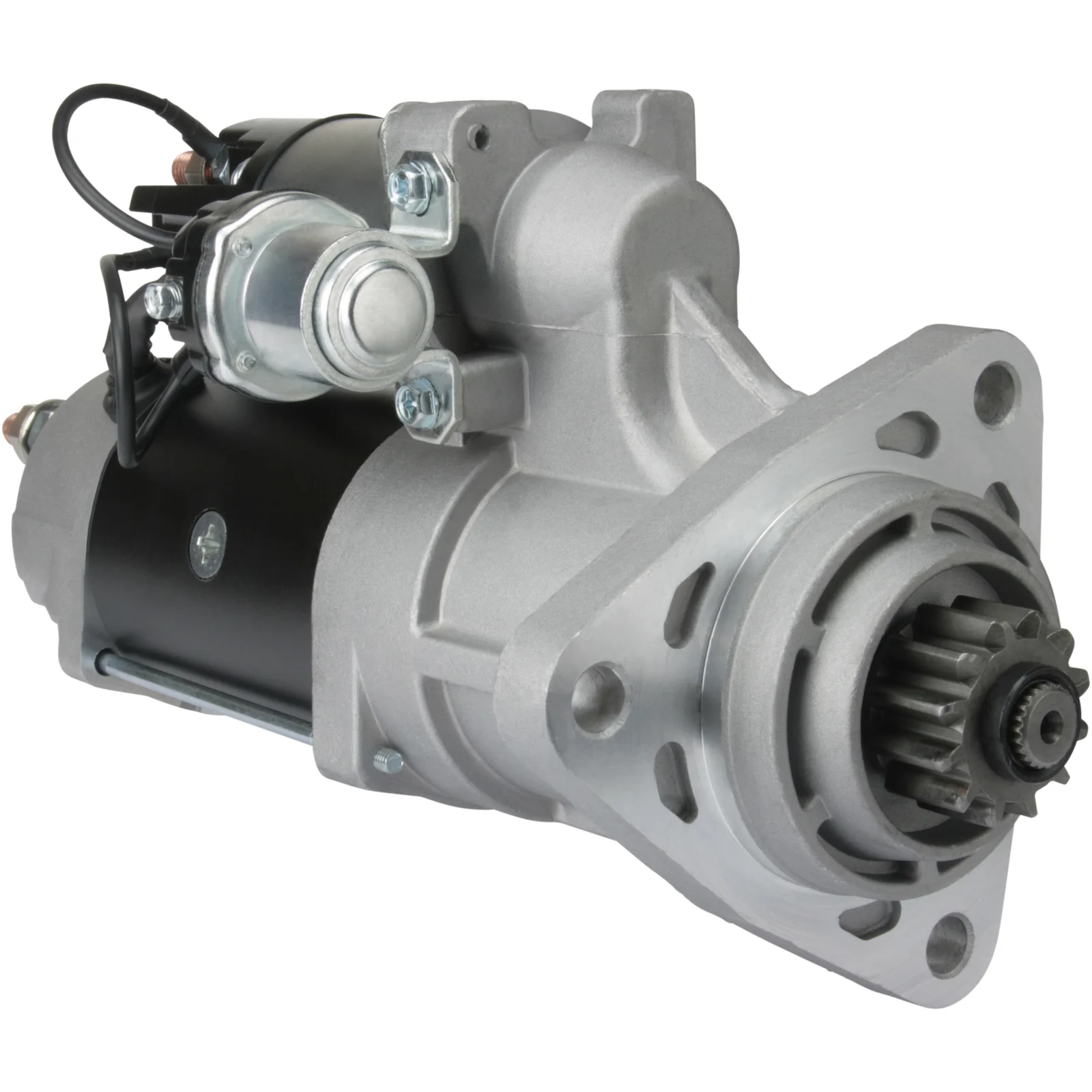

HC-Cargo Startmotor
Vare nr.: F032113827

HC-Cargo Startmotor

Tekniske oplysninger:

Spændingsregulator: 24, kW: 7.0, Rotation: CW, Monteringsflange: 92.00

Beskrivelse

Spænding: 24
kW: 7,0
Montageflange: 92,00
Drevafstand: 47,00
Montagehul 3 mm: 13,50
Montagehul 2 mm: 13,50
Montagehul 1 mm: 13,50
Afstand/bag: 310,00
Afstand/frem: 54,50
B+: M12
Glemmelængde mm: 30,00
Position/50: 15
Terminal 50: M5
Gear type: GR
Afstand 2: 126,00
Afstand 3: 126,00
Afstand mm: 126,00
Rotation: CW
Position/b-: 5
B-: M12
Samlet længde mm: 406,00
Drevtype: Stål
Produktsinfo: BN
Vandtæt: Nej
Olieforseglet: Nej
Nr./montagehuller: 3 (0)

Filer

Specifikation

B+ M12
B- M12
Mount. flange 92.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Position/b- 5
Prod. info BN
Dist. 2 126.00
Dist. 3 126.00
Rotation CW
Dist./back 310.00
Dist./front 54.50
Drive dist. 47.00
Drive type Steel
Gear type GR
kW 7.0
Terminal 50 M5
Voltage 24
Total length 406.00 mm
Waterproof No
Dist. 126.00 mm
Thread length 30.00 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    C3415537, F032113827, M009T82171, M105R3503SE, M105R3507SE, m9t82171, M9T82171AM, 2873K116, 1556967, 3965284, 8200000, 8200027, 8200053, 8200072, 8200449, 8300025, 10461759, 10478817, 10479221, 11127679, 19011512, 19023060, 19026026, 19026030

  • Konkurrentreferens
    CST60608, DRS3953, F042003006, F042S03006, LRS02537, S1038, S5066, S5445S, STR-0130, ts-1757, 2-2375-dr-1, 91-01-4621, 641.523.123, 641.534.123, 641.536.123, 811.517.123, 811.523.123, 6833, 6833N, 19547N, 220569, 220569A

  • NormaliseratArtNr
    c3415537, cst60608, drs3953, f032113827, f042003006, f042s03006, lrs02537, m009t82171, m105r3503se, m105r3507se, m9t82171, m9t82171am, s1038, s5066, s5445s, str0130, ts1757, 2873k116, 6833, 6833n, 19547n, 22375dr1, 220569, 220569a, 1556967, 3965284, 8200000, 8200027, 8200053, 8200072, 8200449, 8300025, 10461759, 10478817, 10479221, 11127679, 19011512, 19023060, 19026026, 19026030, 91014621, 641523123, 641534123, 641536123, 811517123, 811523123

  • Passar modeller
    Cummins Model: Engine Model series: Engine Size of motor: 8.3 Approved: Yes
    Ford Model: Cargo Model series: C 4432 T Size of motor: 8.3 Body: Semi-Trailer From date: 01-02-2006 To date: 01-04-2011 Fuel: Diesel Approved: Yes
    Various Industrial applications Model: Various Industrial applications Approved: Yes
  • Beskrivelse
    Spænding: 24
    kW: 7,0
    Montageflange: 92,00
    Drevafstand: 47,00
    Montagehul 3 mm: 13,50
    Montagehul 2 mm: 13,50
    Montagehul 1 mm: 13,50
    Afstand/bag: 310,00
    Afstand/frem: 54,50
    B+: M12
    Glemmelængde mm: 30,00
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Afstand 2: 126,00
    Afstand 3: 126,00
    Afstand mm: 126,00
    Rotation: CW
    Position/b-: 5
    B-: M12
    Samlet længde mm: 406,00
    Drevtype: Stål
    Produktsinfo: BN
    Vandtæt: Nej
    Olieforseglet: Nej
    Nr./montagehuller: 3 (0)

    Filer

  • Specifikation
    B+ M12
    B- M12
    Mount. flange 92.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Position/b- 5
    Prod. info BN
    Dist. 2 126.00
    Dist. 3 126.00
    Rotation CW
    Dist./back 310.00
    Dist./front 54.50
    Drive dist. 47.00
    Drive type Steel
    Gear type GR
    kW 7.0
    Terminal 50 M5
    Voltage 24
    Total length 406.00 mm
    Waterproof No
    Dist. 126.00 mm
    Thread length 30.00 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Køretøjsmatchning

    • OEM
      C3415537, F032113827, M009T82171, M105R3503SE, M105R3507SE, m9t82171, M9T82171AM, 2873K116, 1556967, 3965284, 8200000, 8200027, 8200053, 8200072, 8200449, 8300025, 10461759, 10478817, 10479221, 11127679, 19011512, 19023060, 19026026, 19026030

    • Konkurrentreferens
      CST60608, DRS3953, F042003006, F042S03006, LRS02537, S1038, S5066, S5445S, STR-0130, ts-1757, 2-2375-dr-1, 91-01-4621, 641.523.123, 641.534.123, 641.536.123, 811.517.123, 811.523.123, 6833, 6833N, 19547N, 220569, 220569A

    • NormaliseratArtNr
      c3415537, cst60608, drs3953, f032113827, f042003006, f042s03006, lrs02537, m009t82171, m105r3503se, m105r3507se, m9t82171, m9t82171am, s1038, s5066, s5445s, str0130, ts1757, 2873k116, 6833, 6833n, 19547n, 22375dr1, 220569, 220569a, 1556967, 3965284, 8200000, 8200027, 8200053, 8200072, 8200449, 8300025, 10461759, 10478817, 10479221, 11127679, 19011512, 19023060, 19026026, 19026030, 91014621, 641523123, 641534123, 641536123, 811517123, 811523123

    • Passar modeller
      Cummins Model: Engine Model series: Engine Size of motor: 8.3 Approved: Yes
      Ford Model: Cargo Model series: C 4432 T Size of motor: 8.3 Body: Semi-Trailer From date: 01-02-2006 To date: 01-04-2011 Fuel: Diesel Approved: Yes
      Various Industrial applications Model: Various Industrial applications Approved: Yes
