HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114169

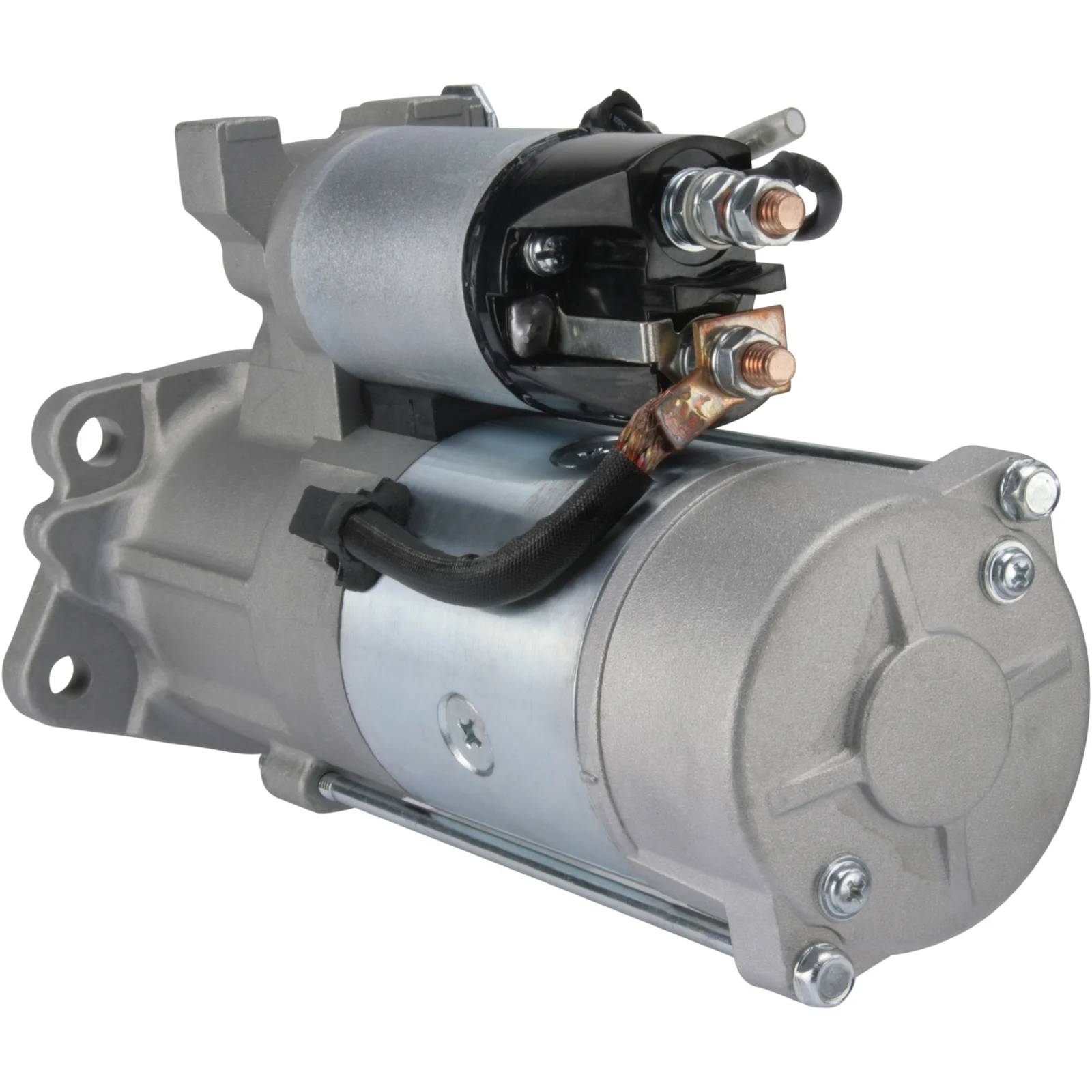

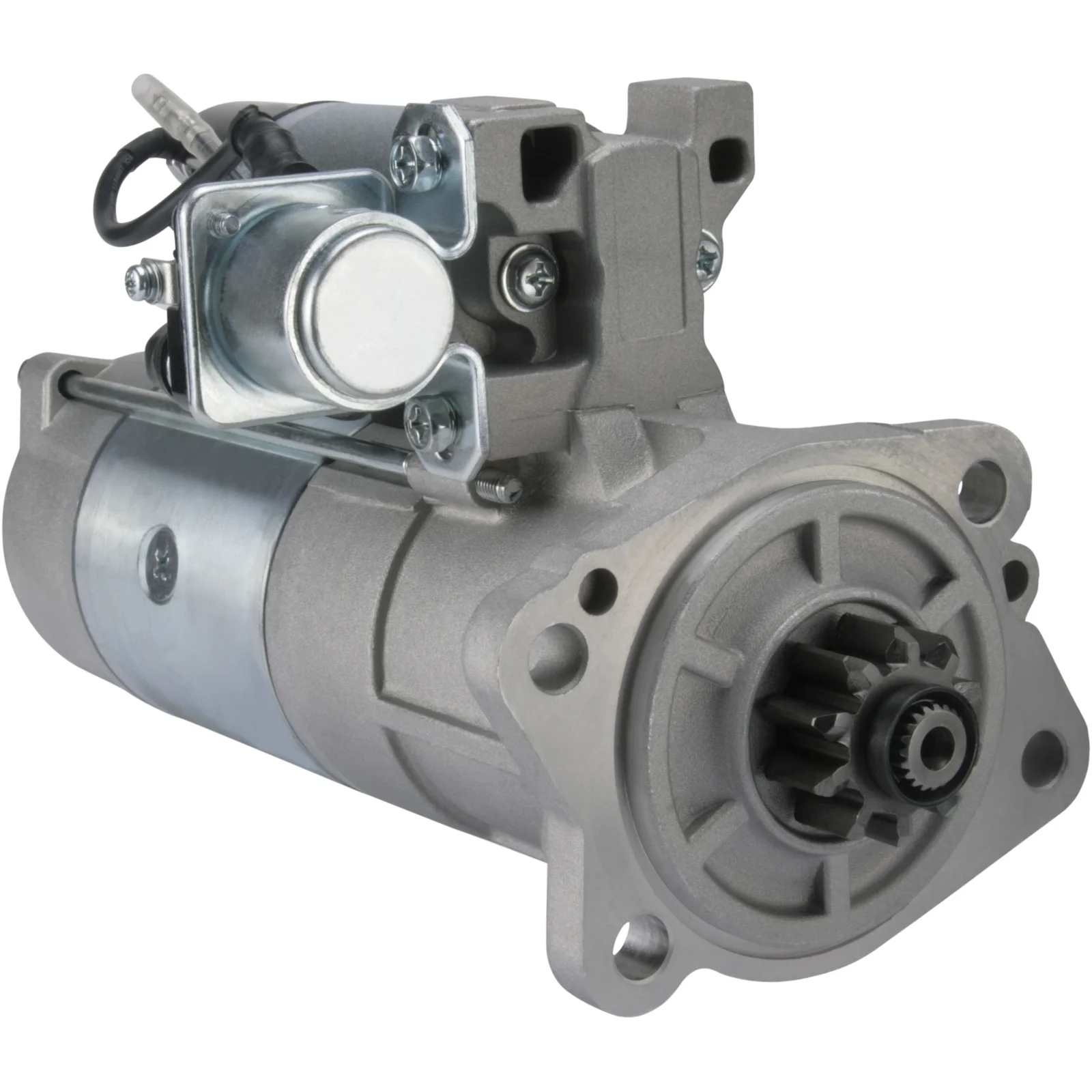

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 5,0, No./tænder: 10, Rotation: CW

Beskrivelse

Spænding: 24
kW: 5.0
Montageflange: 82.50
Drevafstand: 22.50
Montagehul 4 mm: 10.50
Montagehul 3 mm: 11.50
Montagehul 2 mm: 10.50
Montagehul 1 mm: 11.50
Afstand/bag: 257.00
Afstand/foran: 31.00
Antal/tænder: 10
B+: M8
Position/50: 15
Terminal 50: M4
Geartype: GR
Afstand 2: 95.50
Afstand 3: 55.00
Afstand 4: 95.50
Afstand mm: 55.00
Rotation: CW
Samlet længde mm: 287.50
Bemærkninger: med startrelæ
Antal/montagehuller: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Dist. 2 95.50
Remarks w/ start relay
Dist. 3 55.00
Dist. 4 95.50
Rotation CW
Dist./back 257.00
Dist./front 31.00
Drive dist. 22.50
Gear type GR
kW 5.0
Terminal 50 M4
Voltage 24
Total length 287.50 mm
Dist. 55.00 mm
Mount. hole 4 10.50 mm
Mount. hole 3 11.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032114169, M008T60371, M008T60372, M008T60373, m8t60371, m8t60372, m8t60373, m8t60374, 32B66-00200, 32b66-00202, 32b66-00204, 32B66-20100

  • Konkurrentreferens
    CST35613, DRS0077, F042001189, F042S01189, LRS02199, S5108, S5189, S5217, S9185, STR-7108, 45-3370, 151.538.102, 151.538.104, 18246N, 254090

  • NormaliseratArtNr
    cst35613, drs0077, f032114169, f042001189, f042s01189, lrs02199, m008t60371, m008t60372, m008t60373, m8t60371, m8t60372, m8t60373, m8t60374, s5108, s5189, s5217, s9185, str7108, 32b6600200, 32b6600202, 32b6600204, 32b6620100, 18246n, 254090, 453370, 151538102, 151538104

  • Passar modeller
    Caterpillar Model: DP40 Model series: DP40 Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD35D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD35D2 Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD35DS Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD38 Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD40D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD45D Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD50C Brand of engine: S6E/S6S Approved: Yes
    Mitsubishi Model: FD Model series: FD50D Brand of engine: S6E/S6S Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 24
    kW: 5.0
    Montageflange: 82.50
    Drevafstand: 22.50
    Montagehul 4 mm: 10.50
    Montagehul 3 mm: 11.50
    Montagehul 2 mm: 10.50
    Montagehul 1 mm: 11.50
    Afstand/bag: 257.00
    Afstand/foran: 31.00
    Antal/tænder: 10
    B+: M8
    Position/50: 15
    Terminal 50: M4
    Geartype: GR
    Afstand 2: 95.50
    Afstand 3: 55.00
    Afstand 4: 95.50
    Afstand mm: 55.00
    Rotation: CW
    Samlet længde mm: 287.50
    Bemærkninger: med startrelæ
    Antal/montagehuller: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 15
    Dist. 2 95.50
    Remarks w/ start relay
    Dist. 3 55.00
    Dist. 4 95.50
    Rotation CW
    Dist./back 257.00
    Dist./front 31.00
    Drive dist. 22.50
    Gear type GR
    kW 5.0
    Terminal 50 M4
    Voltage 24
    Total length 287.50 mm
    Dist. 55.00 mm
    Mount. hole 4 10.50 mm
    Mount. hole 3 11.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 11.50 mm
  • Køretøjsmatchning

    • OEM
      F032114169, M008T60371, M008T60372, M008T60373, m8t60371, m8t60372, m8t60373, m8t60374, 32B66-00200, 32b66-00202, 32b66-00204, 32B66-20100

    • Konkurrentreferens
      CST35613, DRS0077, F042001189, F042S01189, LRS02199, S5108, S5189, S5217, S9185, STR-7108, 45-3370, 151.538.102, 151.538.104, 18246N, 254090

    • NormaliseratArtNr
      cst35613, drs0077, f032114169, f042001189, f042s01189, lrs02199, m008t60371, m008t60372, m008t60373, m8t60371, m8t60372, m8t60373, m8t60374, s5108, s5189, s5217, s9185, str7108, 32b6600200, 32b6600202, 32b6600204, 32b6620100, 18246n, 254090, 453370, 151538102, 151538104

    • Passar modeller
      Caterpillar Model: DP40 Model series: DP40 Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD35D Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD35D2 Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD35DS Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD38 Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD40D Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD45D Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD50C Brand of engine: S6E/S6S Approved: Yes
      Mitsubishi Model: FD Model series: FD50D Brand of engine: S6E/S6S Approved: Yes
      1 / 2
