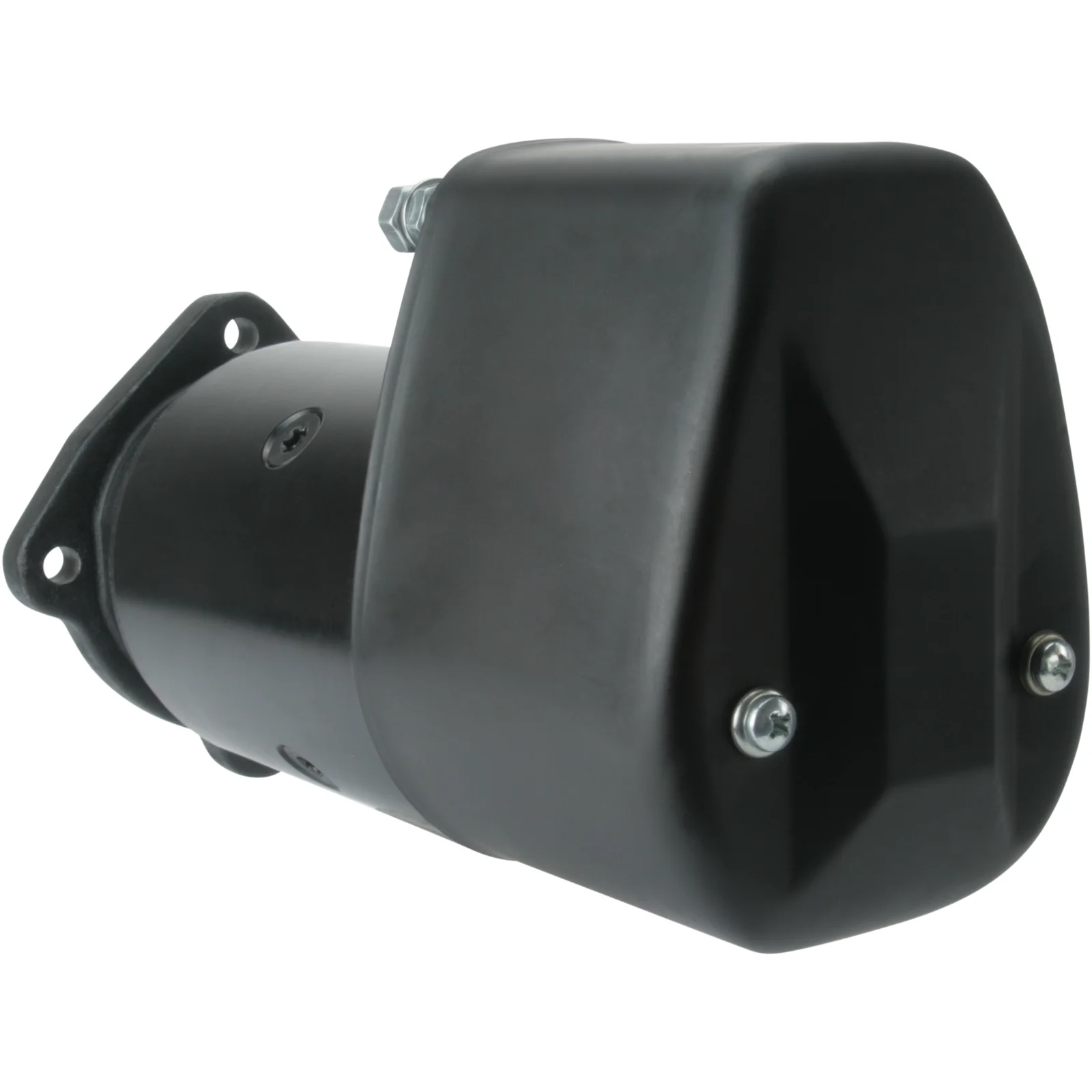

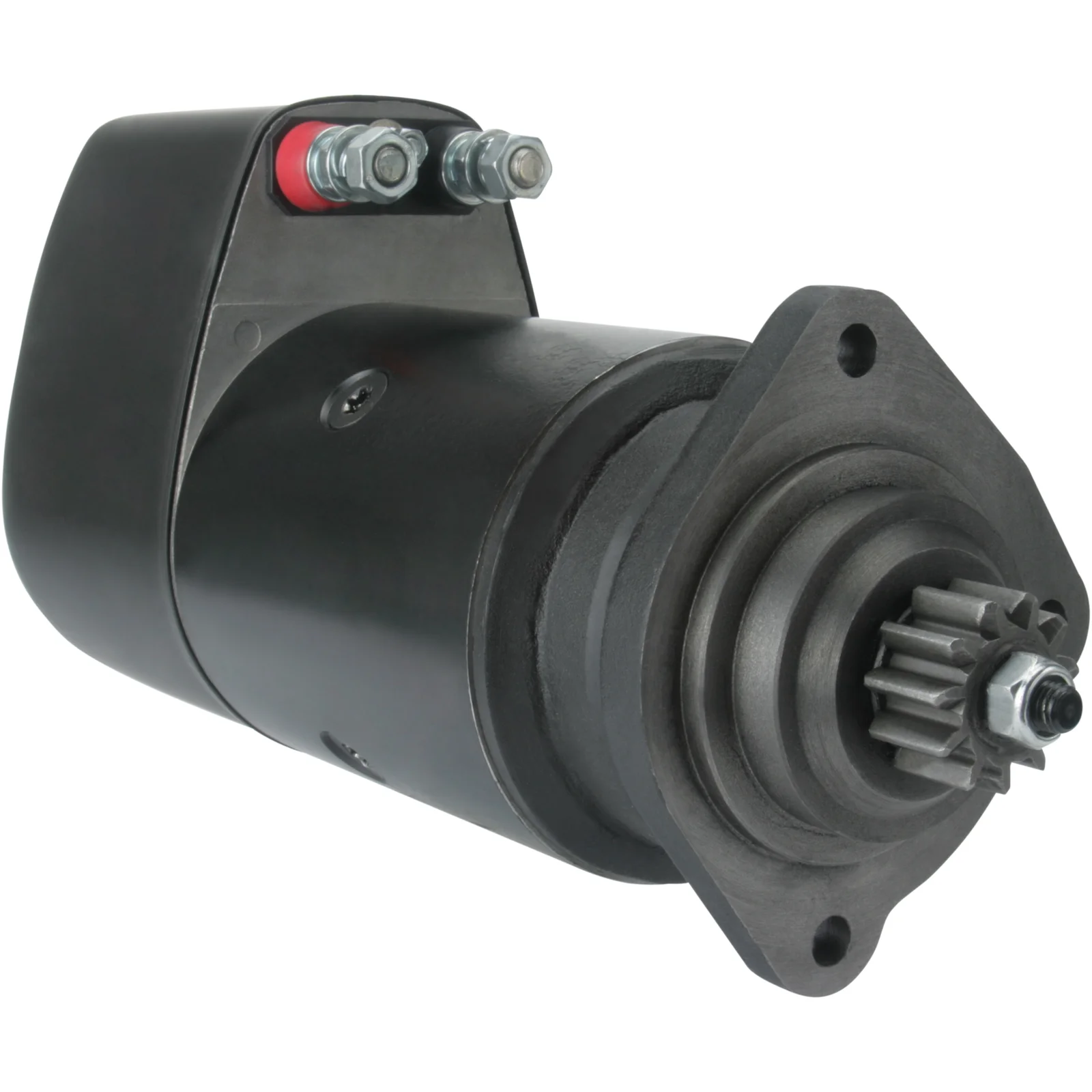

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032114438

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 5.4, No./tænder: 11, Rotation: CW

Beskrivelse

Spænding: 24
kW: 5,4
Isoleret retur: Ja
Monteringsflange: 89,00
Drive afstand: 47,50
Monteringshul 3 mm: 11,00
Monteringshul 2 mm: 11,00
Monteringshul 1 mm: 11,00
Dist./bag: 324,00
Dist./front: 62,50
Antal./tænder: 11
B+: M10
Position/B+: 59
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 90,00
Dist. 3: 127,00
Dist. mm: 90,00
Rotation: CW
Position/b-: 1
B-: M10
Total længde mm: 387,00
Produktion info: BN
Antal./monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 60
Position/b- 1
Position/B+ 59
Prod. info BN
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 324.00
Dist./front 62.50
Drive dist. 47.50
Gear type DD
Insulated return Yes
kW 5.4
Terminal 50 M6
Voltage 24
Total length 387.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114438, 00174637, 0174637, 01163558, 1163558, 01174637, 1174637, 0001416032, 1701071

  • Konkurrentreferens
    DRS1480, F042002105, F042S02105, is0486, S0283, STR-23802, 45-1468, 88-11.480, 600.025.114, 33664, 220257, 220257A, 42011480, 42011840, 0986011480

  • NormaliseratArtNr
    drs1480, f032114438, f042002105, f042s02105, is0486, s0283, str23802, 33664, 00174637, 0174637, 220257, 220257a, 451468, 01163558, 1163558, 01174637, 1174637, 0001416032, 1701071, 8811480, 42011480, 42011840, 600025114, 0986011480

  • Passar modeller
    KHD Model: Engine Model series: Engine Size of motor: 12.8 Brand of engine: F8L413 From date: 01-01-1972 Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 9.6 Brand of engine: F6L413 From date: 01-04-1982 Fuel: Diesel Approved: Yes
    Liebherr Model: A902 Litronic Model series: A902 Litronic Brand of engine: D904TB Approved: Yes
    Orenstein and koppel Model: Various Models Model series: Various Models Brand of engine: F8L413 Approved: Yes
  • Beskrivelse
    Spænding: 24
    kW: 5,4
    Isoleret retur: Ja
    Monteringsflange: 89,00
    Drive afstand: 47,50
    Monteringshul 3 mm: 11,00
    Monteringshul 2 mm: 11,00
    Monteringshul 1 mm: 11,00
    Dist./bag: 324,00
    Dist./front: 62,50
    Antal./tænder: 11
    B+: M10
    Position/B+: 59
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Dist. 2: 90,00
    Dist. 3: 127,00
    Dist. mm: 90,00
    Rotation: CW
    Position/b-: 1
    B-: M10
    Total længde mm: 387,00
    Produktion info: BN
    Antal./monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 11
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 60
    Position/b- 1
    Position/B+ 59
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 324.00
    Dist./front 62.50
    Drive dist. 47.50
    Gear type DD
    Insulated return Yes
    kW 5.4
    Terminal 50 M6
    Voltage 24
    Total length 387.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Køretøjsmatchning

    • OEM
      F032114438, 00174637, 0174637, 01163558, 1163558, 01174637, 1174637, 0001416032, 1701071

    • Konkurrentreferens
      DRS1480, F042002105, F042S02105, is0486, S0283, STR-23802, 45-1468, 88-11.480, 600.025.114, 33664, 220257, 220257A, 42011480, 42011840, 0986011480

    • NormaliseratArtNr
      drs1480, f032114438, f042002105, f042s02105, is0486, s0283, str23802, 33664, 00174637, 0174637, 220257, 220257a, 451468, 01163558, 1163558, 01174637, 1174637, 0001416032, 1701071, 8811480, 42011480, 42011840, 600025114, 0986011480

    • Passar modeller
      KHD Model: Engine Model series: Engine Size of motor: 12.8 Brand of engine: F8L413 From date: 01-01-1972 Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 9.6 Brand of engine: F6L413 From date: 01-04-1982 Fuel: Diesel Approved: Yes
      Liebherr Model: A902 Litronic Model series: A902 Litronic Brand of engine: D904TB Approved: Yes
      Orenstein and koppel Model: Various Models Model series: Various Models Brand of engine: F8L413 Approved: Yes
