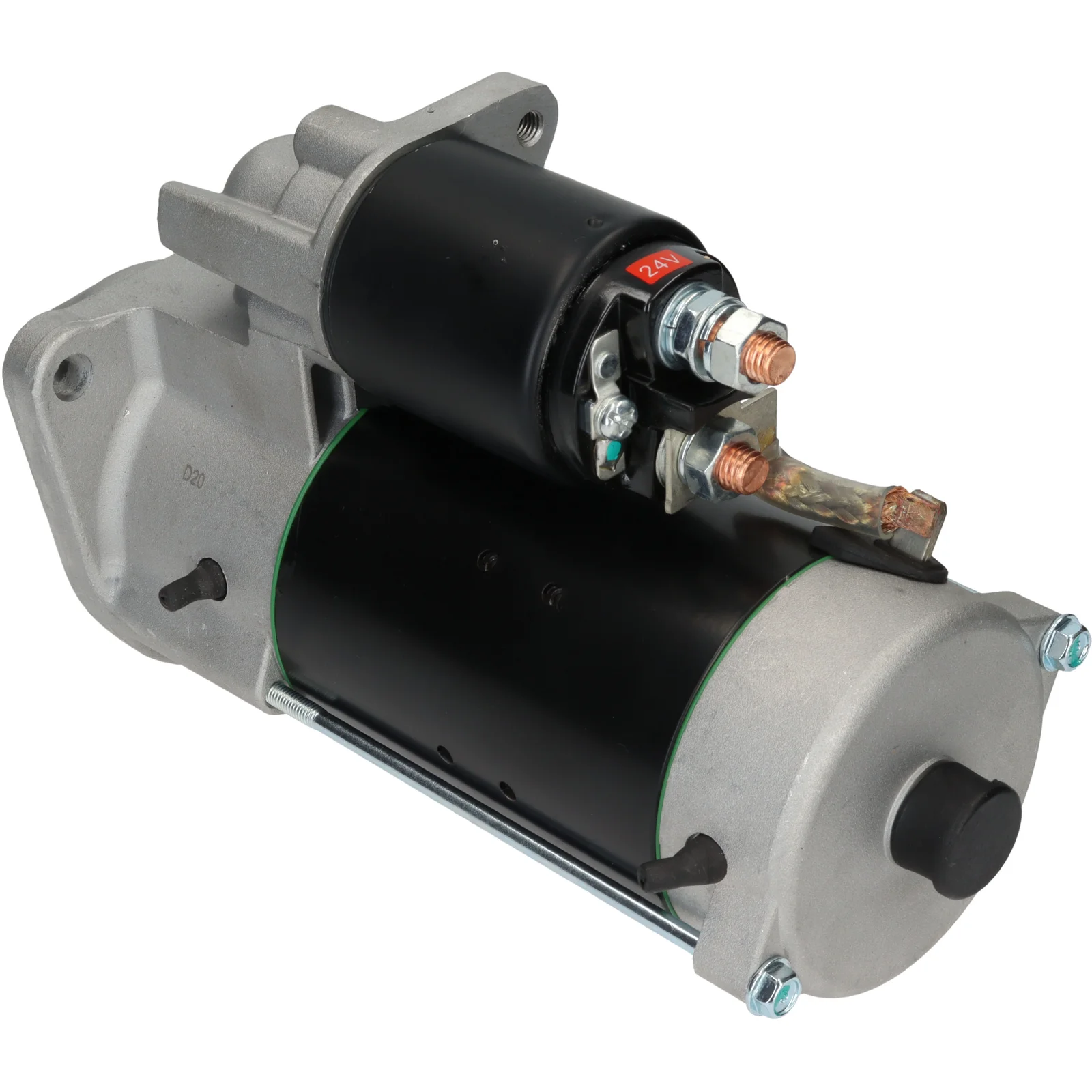

HC-Cargo Startmotor
HC-Cargo Startmotor
Vare nr.: F032116347

HC-Cargo Startmotor

Tekniske oplysninger:

Spænding: 24, kW: 4.0, Antal/tenner: 9,Rotation: med uret

Beskrivelse

Spænding: 24
kW: 4,0
Monteringsflange: 110,00
Driveafstand: 27,00
Monteringshul 3 mm: 12,00/14,00
Monteringshul 2 mm: 12,00
Monteringshul 1 mm: 12,00
Afstand/bagerst: 231,00
Afstand/frem: 74,00
Nummer/tænder: 9
B+: M10
Position/B+: 60
Terminal 50: M6
Gear type: GR
Afstand 2: 103,50
Afstand 3: 103,50
Afstand mm: 146,00
Rotation: med uret
Total længde mm: 317,00
Nummer/monteringshuller: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 110.00
No./mount. holes 3 (0)
Position/B+ 60
Dist. 2 103.50
Dist. 3 103.50
Rotation CW
Dist./back 231.00
Dist./front 74.00
Drive dist. 27.00
Gear type GR
kW 4.0
Terminal 50 M6
Voltage 24
Total length 317.00 mm
Dist. 146.00 mm
Mount. hole 3 12.00/14.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032116347, 0001231010, 75114529

  • Konkurrentreferens
    CST10661, DRT1690, S0425, STR22063, 8EA015642-461, 19664N, 220754, 220754A, 861049, 11021690, 0986021690, 0986021693

  • NormaliseratArtNr
    cst10661, drt1690, f032116347, s0425, str22063, 8ea015642461, 19664n, 220754, 220754a, 861049, 0001231010, 11021690, 75114529, 0986021690, 0986021693

  • Passar modeller
    Iveco Model: EuroCargo Model series: 75 E 14 Size of motor: 4.0 Brand of engine: 8040.45.4000 Type description: EuroCargo Body: Platform / Chassis From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Iveco Model: EuroCargo Model series: 75 E 14 Size of motor: 4.0 Brand of engine: 8040.45.4180 Type description: EuroCargo Body: Platform / Chassis From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 109-14 Size of motor: 5.5 Brand of engine: 8060.04.689 Type description: Zeta Body: Dump Truck From date: 01-06-1983 To date: 01-12-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 109-14 Size of motor: 5.5 Brand of engine: 8060.04.689 Type description: Zeta Body: Platform / Chassis From date: 01-06-1983 To date: 01-12-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 109-14 Size of motor: 5.9 Brand of engine: 8060.05.289 Type description: Zeta Body: Dump Truck From date: 01-11-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.060 Type description: Zeta Body: Dump Truck From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.060 Type description: Zeta Body: Platform / Chassis From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.060 Type description: Zeta Body: Twin Cab From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Dump Truck From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Platform / Chassis From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Twin Cab From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Dump Truck From date: 01-01-1983 To date: 01-11-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Platform / Chassis From date: 01-01-1983 To date: 01-11-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Twin Cab From date: 01-01-1983 To date: 01-11-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.9 Brand of engine: 8060.05.280 Type description: Zeta Body: Dump Truck From date: 01-12-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.9 Brand of engine: 8060.05.280 Type description: Zeta Body: Platform / Chassis From date: 01-12-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 79-14 Size of motor: 5.9 Brand of engine: 8060.05.280 Type description: Zeta Body: Twin Cab From date: 01-12-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 95-14 Size of motor: 5.5 Brand of engine: 8060.04.669 Type description: Zeta Body: Dump Truck From date: 01-07-1983 To date: 01-10-1985 Fuel: Diesel Approved: Yes
    Iveco Model: Zeta Model series: 95-14 Size of motor: 5.5 Brand of engine: 8060.04.669 Type description: Zeta Body: Platform / Chassis From date: 01-07-1983 To date: 01-10-1985 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 24
    kW: 4,0
    Monteringsflange: 110,00
    Driveafstand: 27,00
    Monteringshul 3 mm: 12,00/14,00
    Monteringshul 2 mm: 12,00
    Monteringshul 1 mm: 12,00
    Afstand/bagerst: 231,00
    Afstand/frem: 74,00
    Nummer/tænder: 9
    B+: M10
    Position/B+: 60
    Terminal 50: M6
    Gear type: GR
    Afstand 2: 103,50
    Afstand 3: 103,50
    Afstand mm: 146,00
    Rotation: med uret
    Total længde mm: 317,00
    Nummer/monteringshuller: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 110.00
    No./mount. holes 3 (0)
    Position/B+ 60
    Dist. 2 103.50
    Dist. 3 103.50
    Rotation CW
    Dist./back 231.00
    Dist./front 74.00
    Drive dist. 27.00
    Gear type GR
    kW 4.0
    Terminal 50 M6
    Voltage 24
    Total length 317.00 mm
    Dist. 146.00 mm
    Mount. hole 3 12.00/14.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Køretøjsmatchning

    • OEM
      F032116347, 0001231010, 75114529

    • Konkurrentreferens
      CST10661, DRT1690, S0425, STR22063, 8EA015642-461, 19664N, 220754, 220754A, 861049, 11021690, 0986021690, 0986021693

    • NormaliseratArtNr
      cst10661, drt1690, f032116347, s0425, str22063, 8ea015642461, 19664n, 220754, 220754a, 861049, 0001231010, 11021690, 75114529, 0986021690, 0986021693

    • Passar modeller
      Iveco Model: EuroCargo Model series: 75 E 14 Size of motor: 4.0 Brand of engine: 8040.45.4000 Type description: EuroCargo Body: Platform / Chassis From date: 01-01-1991 Fuel: Diesel Approved: Yes
      Iveco Model: EuroCargo Model series: 75 E 14 Size of motor: 4.0 Brand of engine: 8040.45.4180 Type description: EuroCargo Body: Platform / Chassis From date: 01-01-1991 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 109-14 Size of motor: 5.5 Brand of engine: 8060.04.689 Type description: Zeta Body: Dump Truck From date: 01-06-1983 To date: 01-12-1985 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 109-14 Size of motor: 5.5 Brand of engine: 8060.04.689 Type description: Zeta Body: Platform / Chassis From date: 01-06-1983 To date: 01-12-1985 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 109-14 Size of motor: 5.9 Brand of engine: 8060.05.289 Type description: Zeta Body: Dump Truck From date: 01-11-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.060 Type description: Zeta Body: Dump Truck From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.060 Type description: Zeta Body: Platform / Chassis From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.060 Type description: Zeta Body: Twin Cab From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Dump Truck From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Platform / Chassis From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-13 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Twin Cab From date: 01-11-1979 To date: 01-12-1983 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-14 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Dump Truck From date: 01-01-1983 To date: 01-11-1985 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-14 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Platform / Chassis From date: 01-01-1983 To date: 01-11-1985 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-14 Size of motor: 5.5 Brand of engine: 8060.04.660 Type description: Zeta Body: Twin Cab From date: 01-01-1983 To date: 01-11-1985 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-14 Size of motor: 5.9 Brand of engine: 8060.05.280 Type description: Zeta Body: Dump Truck From date: 01-12-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-14 Size of motor: 5.9 Brand of engine: 8060.05.280 Type description: Zeta Body: Platform / Chassis From date: 01-12-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 79-14 Size of motor: 5.9 Brand of engine: 8060.05.280 Type description: Zeta Body: Twin Cab From date: 01-12-1985 To date: 01-03-1991 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 95-14 Size of motor: 5.5 Brand of engine: 8060.04.669 Type description: Zeta Body: Dump Truck From date: 01-07-1983 To date: 01-10-1985 Fuel: Diesel Approved: Yes
      Iveco Model: Zeta Model series: 95-14 Size of motor: 5.5 Brand of engine: 8060.04.669 Type description: Zeta Body: Platform / Chassis From date: 01-07-1983 To date: 01-10-1985 Fuel: Diesel Approved: Yes
      1 / 4
