Vare nr.: F032330341

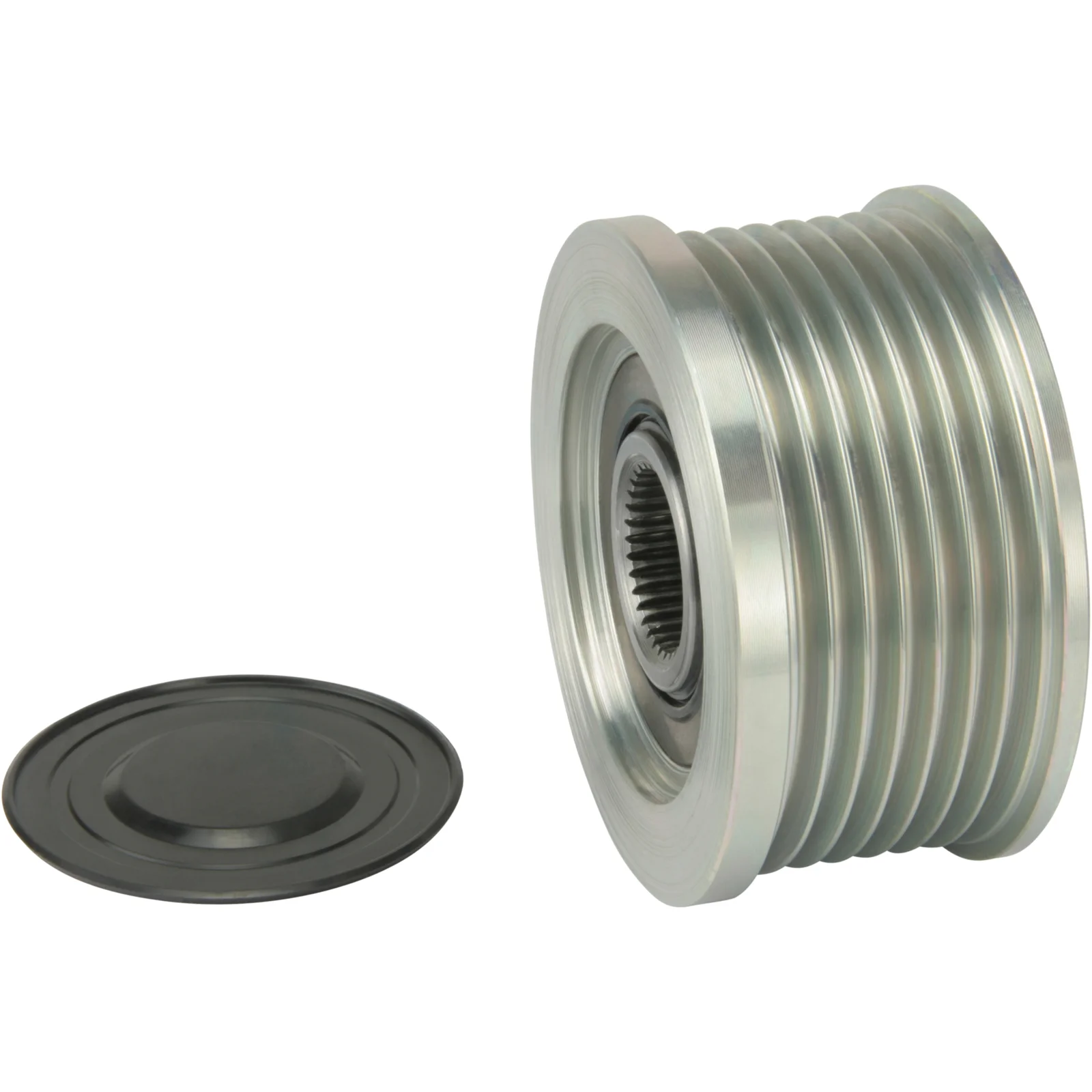

Remskive

Tekniske oplysninger:

Rotation: CW, OD mm: 64,90, Bredde 1 mm: 39,50, Boringsdia.: 17,00

Beskrivelse

Rotation: CW
OD mm: 64,90
Bredde 1 mm: 39,50
Bore dia.: 17,00
Gevindstørrelse: M17-1,50
Dybde mm: 17,00
Afstand/tilbage: 4,50
Remskive type: SP/FW
Riller: 7
Remtype: Multi Remskive
Friløb: w/
ID/bøsning mm: N/A
Måling 1. rille: 10,10
Remskive: N/A
Kilde: N/A

Specifikation

Measurement 1. groove 10.10
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Rotation CW
Dist./back 4.50
Free run w/
Grooves 7
Source N/A
Thread size M17-1.50
Width 1 39.50 mm
Depth 17.00 mm
OD 64.90 mm
ID/bearing N/A mm
  • OEM

    A252C564FE, F-552386.01, F032330341, 86-74-17, 5522, 23151-EB301, 23151-EB30A, 354111, 535017710, 5350177000
  • Konkurrentreferens

    AFP5008, AFP5008(INA), AFP5008(V), AFP5008S, AFP5010
  • NormaliseratArtNr

    a252c564fe, afp5008, afp5008ina, afp5008s, afp5008v, afp5010, f032330341, f55238601, 5522, 23151eb301, 23151eb30a, 354111, 867417, 535017710, 5350177000
  • Beskrivelse
    Rotation: CW
    OD mm: 64,90
    Bredde 1 mm: 39,50
    Bore dia.: 17,00
    Gevindstørrelse: M17-1,50
    Dybde mm: 17,00
    Afstand/tilbage: 4,50
    Remskive type: SP/FW
    Riller: 7
    Remtype: Multi Remskive
    Friløb: w/
    ID/bøsning mm: N/A
    Måling 1. rille: 10,10
    Remskive: N/A
    Kilde: N/A
  • Specifikation
    Measurement 1. groove 10.10
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Rotation CW
    Dist./back 4.50
    Free run w/
    Grooves 7
    Source N/A
    Thread size M17-1.50
    Width 1 39.50 mm
    Depth 17.00 mm
    OD 64.90 mm
    ID/bearing N/A mm
  • Køretøjsmatchning
    • OEM

      A252C564FE, F-552386.01, F032330341, 86-74-17, 5522, 23151-EB301, 23151-EB30A, 354111, 535017710, 5350177000
    • Konkurrentreferens

      AFP5008, AFP5008(INA), AFP5008(V), AFP5008S, AFP5010
    • NormaliseratArtNr

      a252c564fe, afp5008, afp5008ina, afp5008s, afp5008v, afp5010, f032330341, f55238601, 5522, 23151eb301, 23151eb30a, 354111, 867417, 535017710, 5350177000
