Vare nr.: F032332317

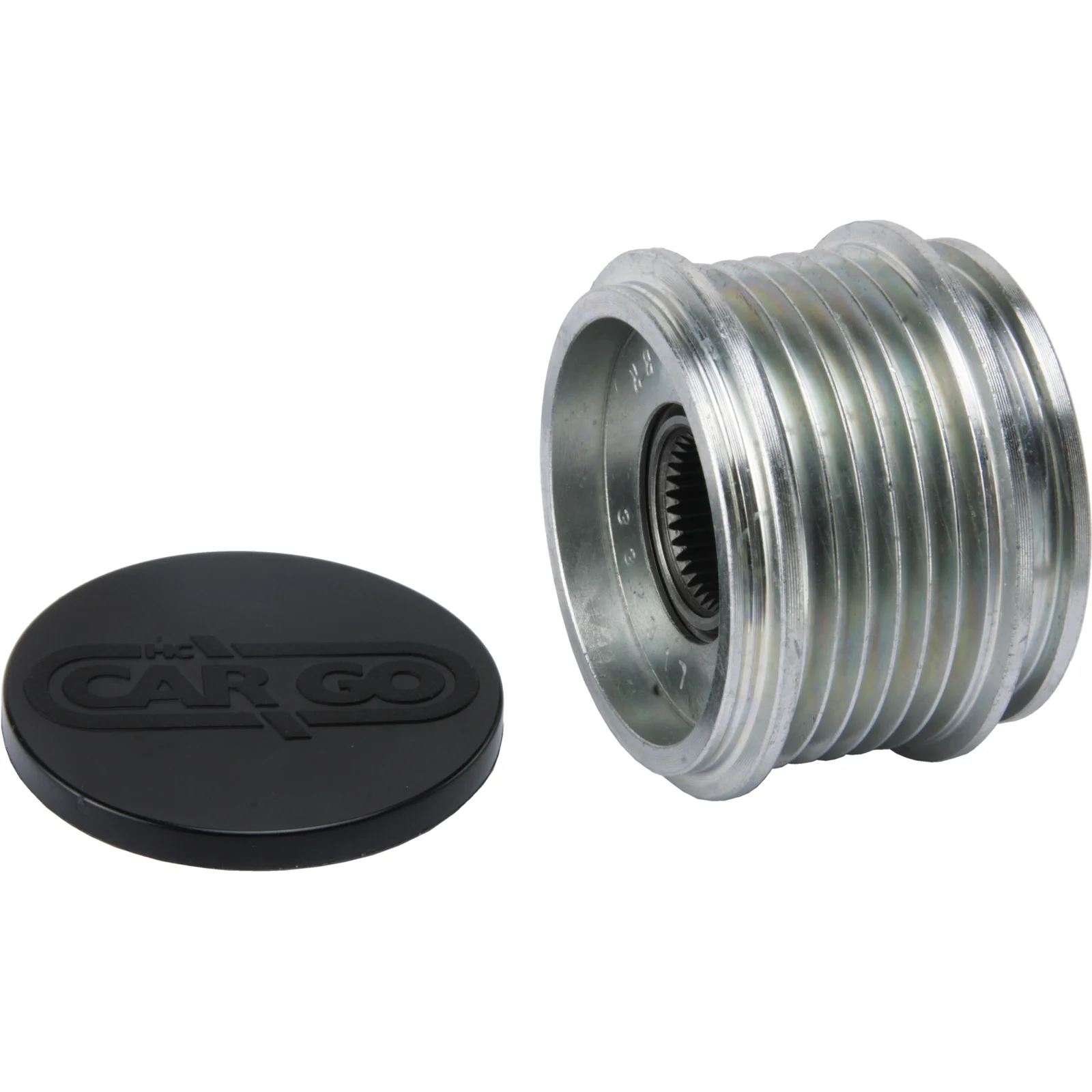

Remskive

Tekniske oplysninger:

Rotation: CW, OD mm: 56.20, Bredde 1 mm: 42.80, Boret dia.: 17.00

Beskrivelse

Rotation: CW
OD mm: 56.20
Bredde 1 mm: 42.80
Bore dia.: 17.00
Gevindstørrelse: M16-1.50
Dybde mm: 11.10
Afstand/ bagud: 1.00
Remskive type: SP/FW
Riller: 6
Remskivetype: Multi Remskive
Frie løb: w/
Inderste diameter/bøsning mm: N/A
Måling 1. rille: 15.20
Remskive: N/A
Bemærkninger: Remskiveværktøj: HC-CARGO 210843.

Filer

Specifikation

Measurement 1. groove 15.20
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Remarks Pulley tool: HC-CARGO 210843.
Rotation CW
Dist./back 1.00
Free run w/
Grooves 6
Thread size M16-1.50
Width 1 42.80 mm
Depth 11.10 mm
OD 56.20 mm
ID/bearing N/A mm

  • OEM
    F-227628, F-227628.04, F-227628.05, F-227628.06, F-227628.07, f-227628.10, F-227628.11, F-227628.12, f-227628.4, f-227628.5, f-227628.6, f-227628.7, f-227628.8, F-553470.01, f-553470.02, F-553470.07, F00M147600, F00M147737, F00M147801, f00m591131, f00m599534, f00m991002, f00m991122, f00m991206, f00m991284, F032332317, GD214998, GD214998-1, 85-42-06, 1986AE4573, 5378, 0138600, 0138601, 335201, 588001, 593491, 593600, 593999, 599327, 2536778, 2546778, 2602911, 2604504, 022903119c, 028903119am, 038903119a, 038903119t, 535001210

  • Konkurrentreferens
    AFP0010, EC4076, 24-91255

  • NormaliseratArtNr
    afp0010, ec4076, f00m147600, f00m147737, f00m147801, f00m591131, f00m599534, f00m991002, f00m991122, f00m991206, f00m991284, f032332317, f227628, f22762804, f22762805, f22762806, f22762807, f22762810, f22762811, f22762812, f2276284, f2276285, f2276286, f2276287, f2276288, f55347001, f55347002, f55347007, gd214998, gd2149981, 1986ae4573, 5378, 0138600, 0138601, 335201, 588001, 593491, 593600, 593999, 599327, 854206, 2491255, 2536778, 2546778, 2602911, 2604504, 022903119c, 028903119am, 038903119a, 038903119t, 535001210
  • Beskrivelse
    Rotation: CW
    OD mm: 56.20
    Bredde 1 mm: 42.80
    Bore dia.: 17.00
    Gevindstørrelse: M16-1.50
    Dybde mm: 11.10
    Afstand/ bagud: 1.00
    Remskive type: SP/FW
    Riller: 6
    Remskivetype: Multi Remskive
    Frie løb: w/
    Inderste diameter/bøsning mm: N/A
    Måling 1. rille: 15.20
    Remskive: N/A
    Bemærkninger: Remskiveværktøj: HC-CARGO 210843.

    Filer

  • Specifikation
    Measurement 1. groove 15.20
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Remarks Pulley tool: HC-CARGO 210843.
    Rotation CW
    Dist./back 1.00
    Free run w/
    Grooves 6
    Thread size M16-1.50
    Width 1 42.80 mm
    Depth 11.10 mm
    OD 56.20 mm
    ID/bearing N/A mm
  • Køretøjsmatchning

    • OEM
      F-227628, F-227628.04, F-227628.05, F-227628.06, F-227628.07, f-227628.10, F-227628.11, F-227628.12, f-227628.4, f-227628.5, f-227628.6, f-227628.7, f-227628.8, F-553470.01, f-553470.02, F-553470.07, F00M147600, F00M147737, F00M147801, f00m591131, f00m599534, f00m991002, f00m991122, f00m991206, f00m991284, F032332317, GD214998, GD214998-1, 85-42-06, 1986AE4573, 5378, 0138600, 0138601, 335201, 588001, 593491, 593600, 593999, 599327, 2536778, 2546778, 2602911, 2604504, 022903119c, 028903119am, 038903119a, 038903119t, 535001210

    • Konkurrentreferens
      AFP0010, EC4076, 24-91255

    • NormaliseratArtNr
      afp0010, ec4076, f00m147600, f00m147737, f00m147801, f00m591131, f00m599534, f00m991002, f00m991122, f00m991206, f00m991284, f032332317, f227628, f22762804, f22762805, f22762806, f22762807, f22762810, f22762811, f22762812, f2276284, f2276285, f2276286, f2276287, f2276288, f55347001, f55347002, f55347007, gd214998, gd2149981, 1986ae4573, 5378, 0138600, 0138601, 335201, 588001, 593491, 593600, 593999, 599327, 854206, 2491255, 2536778, 2546778, 2602911, 2604504, 022903119c, 028903119am, 038903119a, 038903119t, 535001210
