Vare nr.: F032333062

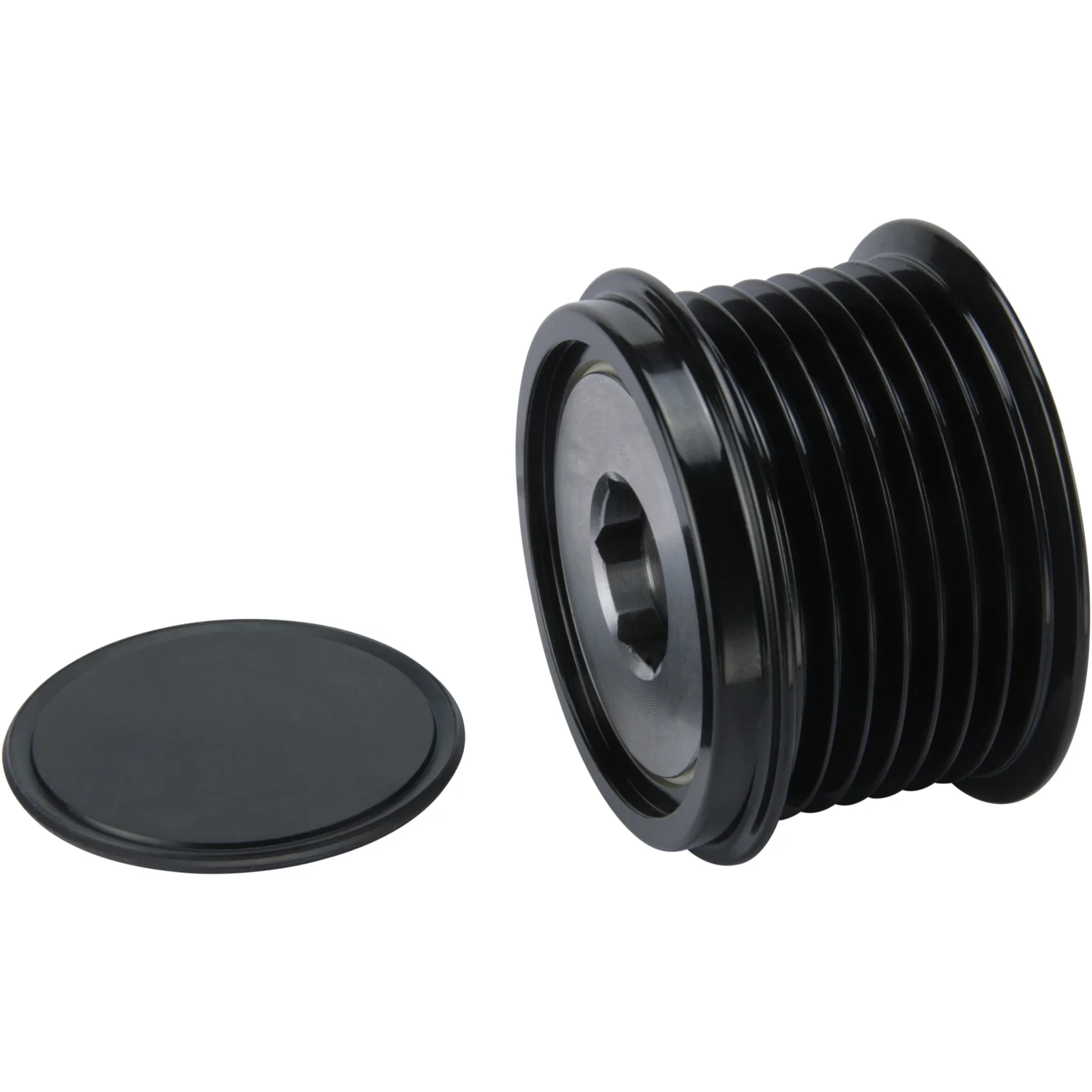

Remskive

Tekniske oplysninger:

Rotation: CW, OD mm: 52.50, Bredde 1 mm: 41.10, Hulse diameter: 17.00

Beskrivelse

Rotation: CW
OD mm: 52,50
Bredde 1 mm: 41,10
Bore dia.: 17,00
Gvælgestørrelse: M14-1,50
Dybde mm: 10,80
Dist./bag: 4,30
Remskive-type: OAD
Riller: 7
Rem: Multi Rem
Friforløb: w/
Måling 1. rille: 9,00
Bemærkninger: Bemærk: Always skift OADTM-remskiver med den samme OADTM-teknologi – For at forhindre skader og tab af garanti i tilfælde af fejl.

Specifikation

Measurement 1. groove 9.00
Belt type Multi Belt
Bore dia. 17.00
Pulley type OAD
Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
Rotation CW
Dist./back 4.30
Free run w/
Grooves 7
Thread size M14-1.50
Width 1 41.10 mm
Depth 10.80 mm
OD 52.50 mm
  • OEM

    F032333062, 86-74-53, 5503, 021040-1340, 27415-0w010, 333062, 354151, 920726, 920954, 535020910
  • Konkurrentreferens

    AFP6017, AFP6017(LITENS), AFP6075S, EC3596, 24-82290-4
  • NormaliseratArtNr

    afp6017, afp6017litens, afp6075s, ec3596, f032333062, 5503, 274150w010, 333062, 354151, 867453, 920726, 920954, 24822904, 0210401340, 535020910
  • Beskrivelse
    Rotation: CW
    OD mm: 52,50
    Bredde 1 mm: 41,10
    Bore dia.: 17,00
    Gvælgestørrelse: M14-1,50
    Dybde mm: 10,80
    Dist./bag: 4,30
    Remskive-type: OAD
    Riller: 7
    Rem: Multi Rem
    Friforløb: w/
    Måling 1. rille: 9,00
    Bemærkninger: Bemærk: Always skift OADTM-remskiver med den samme OADTM-teknologi – For at forhindre skader og tab af garanti i tilfælde af fejl.
  • Specifikation
    Measurement 1. groove 9.00
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley type OAD
    Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
    Rotation CW
    Dist./back 4.30
    Free run w/
    Grooves 7
    Thread size M14-1.50
    Width 1 41.10 mm
    Depth 10.80 mm
    OD 52.50 mm
  • Køretøjsmatchning
    • OEM

      F032333062, 86-74-53, 5503, 021040-1340, 27415-0w010, 333062, 354151, 920726, 920954, 535020910
    • Konkurrentreferens

      AFP6017, AFP6017(LITENS), AFP6075S, EC3596, 24-82290-4
    • NormaliseratArtNr

      afp6017, afp6017litens, afp6075s, ec3596, f032333062, 5503, 274150w010, 333062, 354151, 867453, 920726, 920954, 24822904, 0210401340, 535020910
