Vare nr.: F032333454

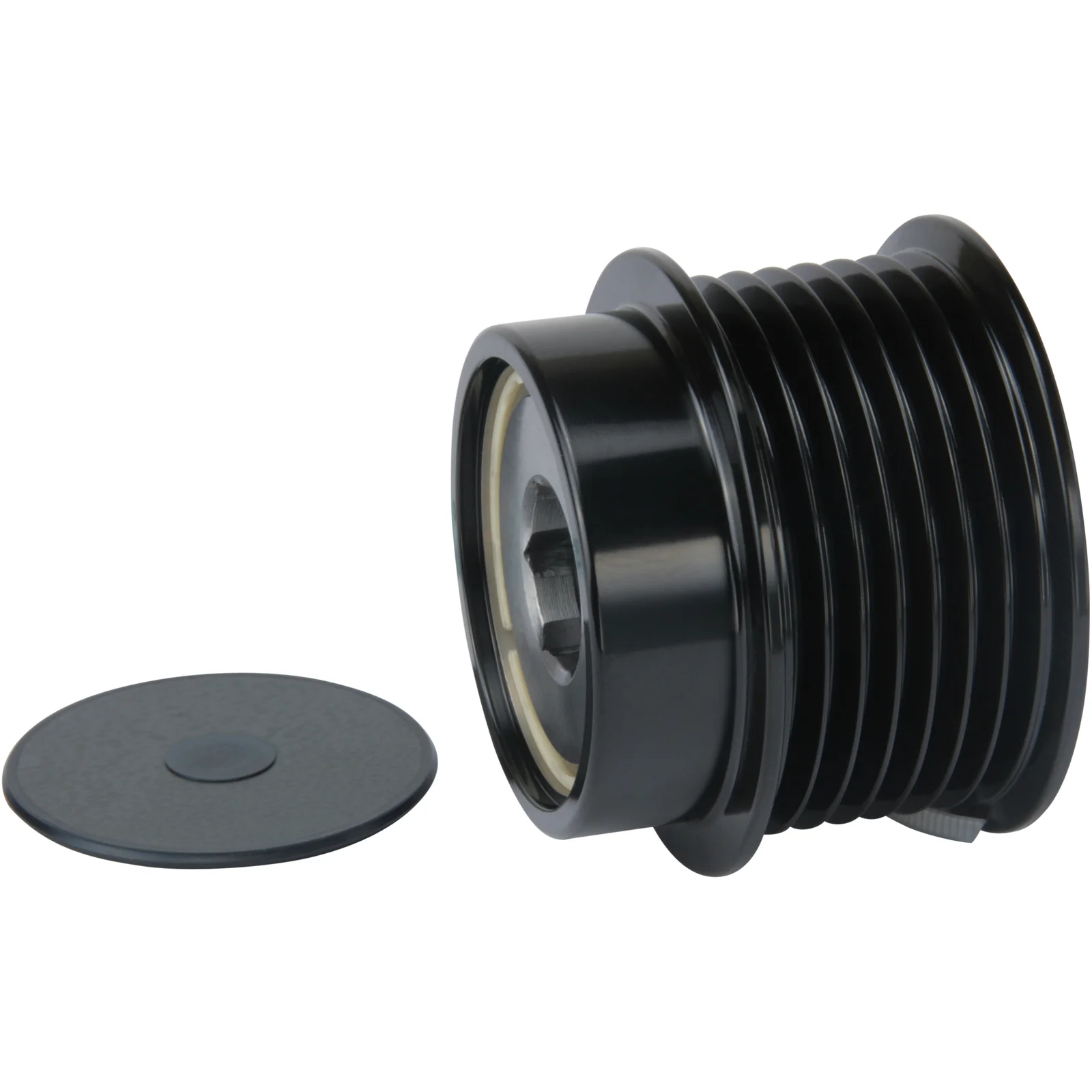

Remskive

Tekniske oplysninger:

Rotation: CW, OD mm: 55.00, Bredde 1 mm: 50.00, Borediameter: 17.00

Beskrivelse

Rotation: CW
OD mm: 55.00
Bredde 1 mm: 50.00
Bore dia.: 17.00
Trådstørrelse: M14-1.50
Dybde mm: 12.00
Afstand/tilbageløb: 4.10
Remskive type: OAD
Riller: 7
Bælte type: Multi Bælte
Fri kørsel: v/
Måling 1. rille: 9.00
Bemærkninger: Bemærk: Skift altid OADTM remskiver med den samme OADTM teknologi – For at forhindre skader og bortfald af garanti i tilfælde af fejl.

Specifikation

Measurement 1. groove 9.00
Belt type Multi Belt
Bore dia. 17.00
Pulley type OAD
Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
Rotation CW
Dist./back 4.10
Free run w/
Grooves 7
Thread size M14-1.50
Width 1 50.00 mm
Depth 12.00 mm
OD 55.00 mm
  • Beskrivelse
    Rotation: CW
    OD mm: 55.00
    Bredde 1 mm: 50.00
    Bore dia.: 17.00
    Trådstørrelse: M14-1.50
    Dybde mm: 12.00
    Afstand/tilbageløb: 4.10
    Remskive type: OAD
    Riller: 7
    Bælte type: Multi Bælte
    Fri kørsel: v/
    Måling 1. rille: 9.00
    Bemærkninger: Bemærk: Skift altid OADTM remskiver med den samme OADTM teknologi – For at forhindre skader og bortfald af garanti i tilfælde af fejl.
  • Specifikation
    Measurement 1. groove 9.00
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley type OAD
    Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
    Rotation CW
    Dist./back 4.10
    Free run w/
    Grooves 7
    Thread size M14-1.50
    Width 1 50.00 mm
    Depth 12.00 mm
    OD 55.00 mm
