Vare nr.: F032335018

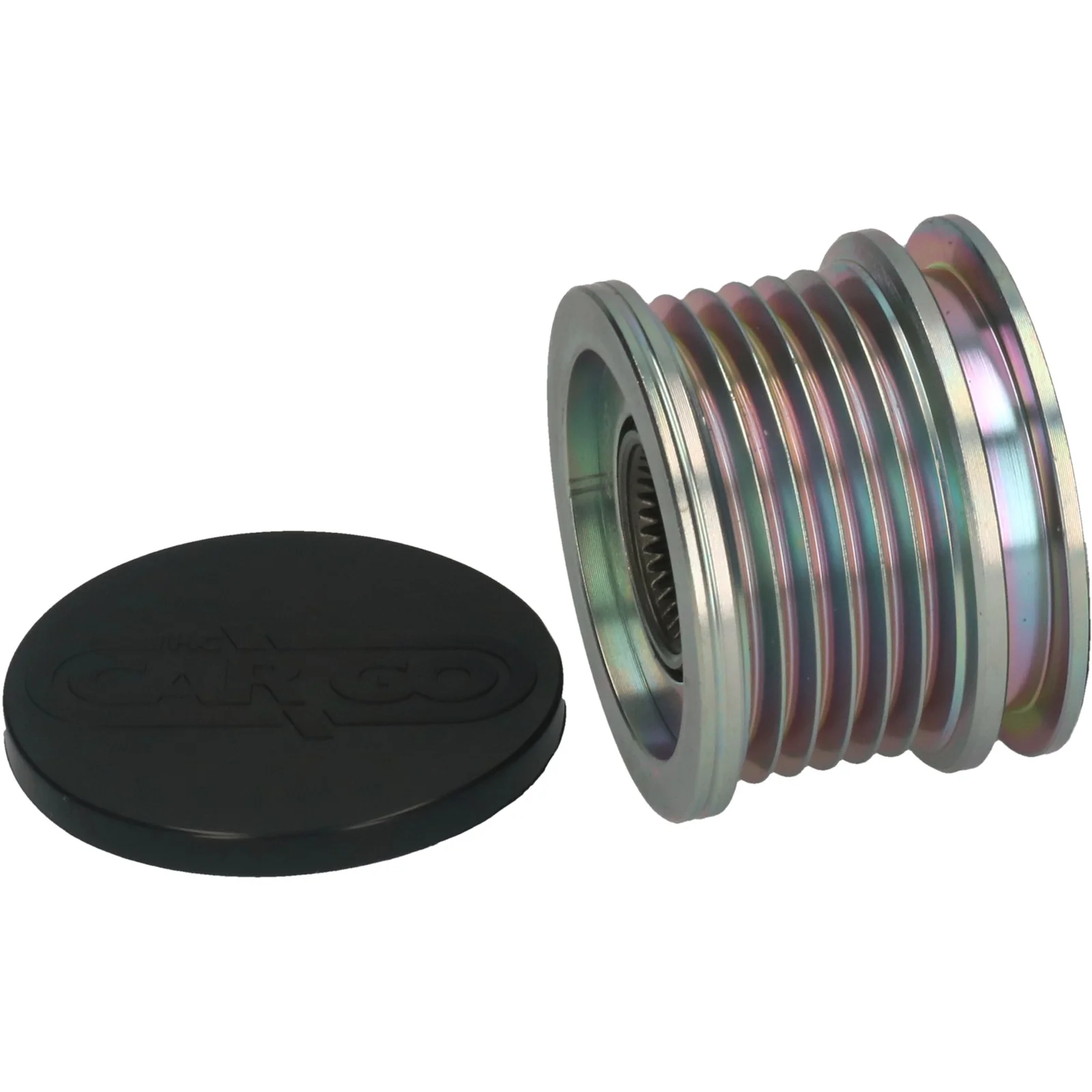

Remskive

Tekniske oplysninger:

Rotation: CW, Rotation/vifte: CW, OD mm: 49,50, Bredde 1 mm: 39,40

Beskrivelse

Rotation: CW
OD mm: 49,50
Bredde 1 mm: 39,40
Hulldiameter: 17,00
Gängestørrelse: M16-1,50
Dybde mm: 11,10
Afstand/bag: 0,30
Remskive type: SP/FW
Riller: 6
Remtype: Multi Rem
Friløb: v/
Indre diameter/bøsning mm: N/A
Måling 1. rille: 14,40
Remskive: N/A
Rotation/blæser: CW
Kilde: N/A

Specifikation

Measurement 1. groove 14.40
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Rotation CW
Rotation/fan CW
Dist./back 0.30
Free run w/
Grooves 6
Source N/A
Thread size M16-1.50
Width 1 39.40 mm
Depth 11.10 mm
OD 49.50 mm
ID/bearing N/A mm
  • OEM

    F-551406.02, F-551406.07, F00M991932, F00MA47723, F032335018, 1986AE4574, 353441, 588016, 599248, 2604787, 2618124, 535012410
  • Konkurrentreferens

    AFP0033
  • NormaliseratArtNr

    afp0033, f00m991932, f00ma47723, f032335018, f55140602, f55140607, 1986ae4574, 353441, 588016, 599248, 2604787, 2618124, 535012410
  • Beskrivelse
    Rotation: CW
    OD mm: 49,50
    Bredde 1 mm: 39,40
    Hulldiameter: 17,00
    Gängestørrelse: M16-1,50
    Dybde mm: 11,10
    Afstand/bag: 0,30
    Remskive type: SP/FW
    Riller: 6
    Remtype: Multi Rem
    Friløb: v/
    Indre diameter/bøsning mm: N/A
    Måling 1. rille: 14,40
    Remskive: N/A
    Rotation/blæser: CW
    Kilde: N/A
  • Specifikation
    Measurement 1. groove 14.40
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Rotation CW
    Rotation/fan CW
    Dist./back 0.30
    Free run w/
    Grooves 6
    Source N/A
    Thread size M16-1.50
    Width 1 39.40 mm
    Depth 11.10 mm
    OD 49.50 mm
    ID/bearing N/A mm
  • Køretøjsmatchning
    • OEM

      F-551406.02, F-551406.07, F00M991932, F00MA47723, F032335018, 1986AE4574, 353441, 588016, 599248, 2604787, 2618124, 535012410
    • Konkurrentreferens

      AFP0033
    • NormaliseratArtNr

      afp0033, f00m991932, f00ma47723, f032335018, f55140602, f55140607, 1986ae4574, 353441, 588016, 599248, 2604787, 2618124, 535012410
